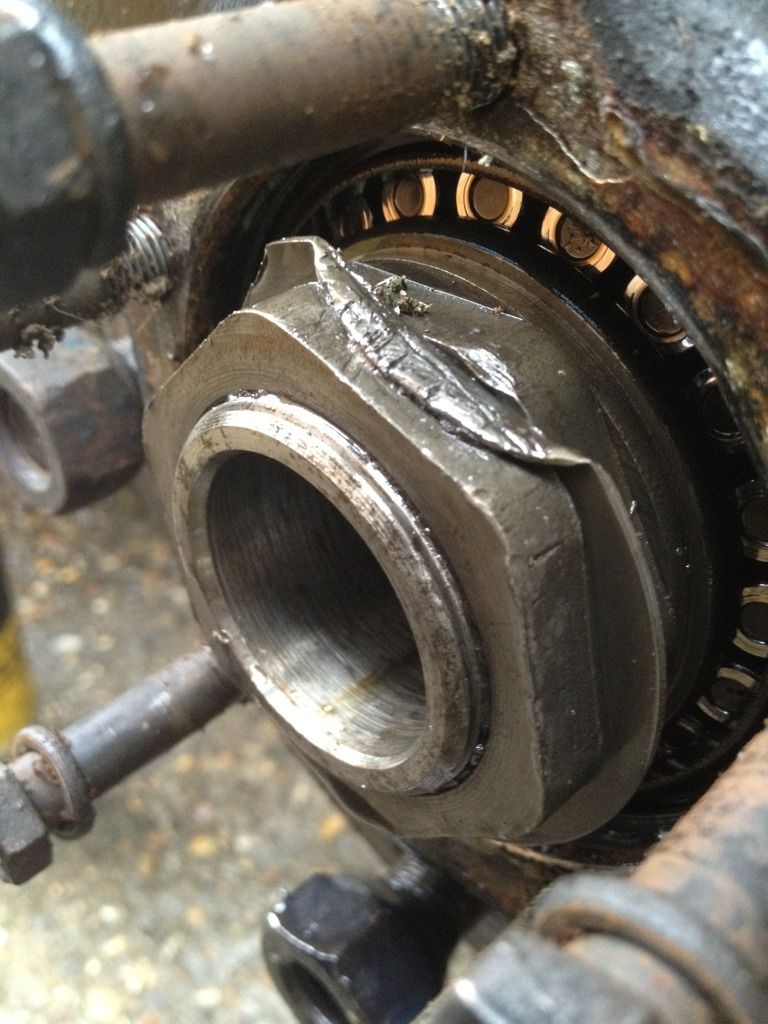

Hi I'm just in the process of fitting a new seal kit to the front right swivel ball and took the hub cap off to find this all bent any ideas on what would have caused this and if it's bad?
This doesn't look good
- Thread starter Monkey_man_tom
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
90boy
Well-Known Member
- Posts
- 6,836
- Location
- Worcestershire, Tenbury Wells
sure it should be like that
Mark L
Well-Known Member
- Posts
- 2,693
- Location
- Tamworth - Staffs
Lock washer. Perfectly normal.
Hammers over the nut to stop it coming loose etc.
Hammers over the nut to stop it coming loose etc.
Soloby Rob
Banned
- Posts
- 7,714
- Location
- In a house, not far from somewhere
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,080
- Location
- Kernow - Near England
Step away from the 2.5 ton killing machine and leave it to someone who has a clue. :doh:
Monkey_man_tom
New Member
- Posts
- 38
Okey dokey thats okay then
Yh I've got the dreaded Haynes manual that doesn't show the same axle configuration to what I have:/
I think you ought to buy a manwell or down load one before you go any further.
Yh I've got the dreaded Haynes manual that doesn't show the same axle configuration to what I have:/
defenderlee
New Member
- Posts
- 94
- Location
- Liverpool
its a locking washer used to stop the locking nut from coming loose, perfectly normal as previously said
Soloby Rob
Banned
- Posts
- 7,714
- Location
- In a house, not far from somewhere
I think you ought to buy a manwell or down load one before you go any further.
I thought my way was much nicererer though
defenderlee
New Member
- Posts
- 94
- Location
- Liverpool
haha
Soloby Rob
Banned
- Posts
- 7,714
- Location
- In a house, not far from somewhere
But I'm not being funny mate, to do the hub seals you're messing with brakes, steering and suspension, as I said get the right manwell before you go any further, or get someone to help/show or do the job for you. It could just save some tears.
dellboy1959
Well-Known Member
- Posts
- 1,030
To chuffin true,You don't wanna go messin around with critical parts of ya landy that ya don't fully understand.
Don't know if ya have a family but how are you going to feel if you have a fatal because ya did something wrong.
I'm sure someone on here will be willing to give you a hand if they are close to you.
Monkey_man_tom
New Member
- Posts
- 38
Yeah I've got a mate that is a mechanic that is gonna help me I'm just starting to take it apart so it's ready to be sorted.
Soloby Rob
Banned
- Posts
- 7,714
- Location
- In a house, not far from somewhere
Station House
Well-Known Member
- Posts
- 3,960
- Location
- Fife, Scotland
ScratchyDom
Well-Known Member
- Posts
- 1,151
- Location
- Norf Dorset
'Rather' a good idea. Have a look at Buster's Photo Tours they'll help you understand what's going on.
discomania
Well-Known Member
- Posts
- 6,947
You should really replace that locking washer now too, someone has made a right mess of punching that one down, looks like they used a screwdriver or chisel.
You can bash them flat again, turn them 90° and then knock them down, but for 25p it's worth just fitting two new ones.
You can bash them flat again, turn them 90° and then knock them down, but for 25p it's worth just fitting two new ones.
ScratchyDom
Well-Known Member
- Posts
- 1,151
- Location
- Norf Dorset
What's the best way of doing it then? I used a small chisel when I did mine, did the job but I wouldn't re-use 'em..!
dellboy1959
Well-Known Member
- Posts
- 1,030
I use a brass drift as it doesn't damage the washer and just for the record i never use them twice unless out in the field and it's the only option.
ScratchyDom
Well-Known Member
- Posts
- 1,151
- Location
- Norf Dorset
I'm guessing that a brass drift will negate any chance of getting little metal chips into the bearings, which can only be a good thing!
