TD5 vaccum solenoid question

Discussion in 'General Land Rover Forum' started by nesponge, Jul 7, 2018.

< Previous Thread | Next Thread >
  1. nesponge

    nesponge Active Member

    Joined:
    Nov 20, 2008
    Posts:
    486
    Likes Received:
    43
    Location:
    Northumberland
    Spotted this loose vacuum hose in the engine bay and can't see where it should plug in.



    The hose in question is on the bottom of the solenoid.

    Vehicle is a 2001 Defender td5

    Is suspect it is something to do with the EGR, but the vaccum hose on the end runs to that, while the other taps into the main vacuum pipe off the pump.

  2. raywin

    raywin Well-Known Member Full Member

    Joined:
    Feb 17, 2014
    Posts:
    3,515
    Likes Received:
    2,293
    Location:
    North Yorkshire
    Can't see your picture, but I have a 2001 defender.
    On the offside inner wing there are 2 solenoid valves which operate the EGR, they take a vacuum from the pump which is mounted on the alternator and also serves the brake servo, they are teed into the main tube.
    Because of this it is vital to be sure they are verry securely blanked if you remove them otherwise you will drastically affect the braking

  3. nesponge

    nesponge Active Member

    Joined:
    Nov 20, 2008
    Posts:
    486
    Likes Received:
    43
    Location:
    Northumberland
    Yes the lines on the front of the solenoid, one runs to a T-piece off the main vacuum line from the pump.

    The other runs to the top of the egr.

    The third runs toward the front of the engine somewhere, but I can't see anywhere obvious. I'm assuming it would run to the air intake system somewhere, but not sure.

  4. raywin

    raywin Well-Known Member Full Member

    Joined:
    Feb 17, 2014
    Posts:
    3,515
    Likes Received:
    2,293
    Location:
    North Yorkshire
    Don't know if this helps but:

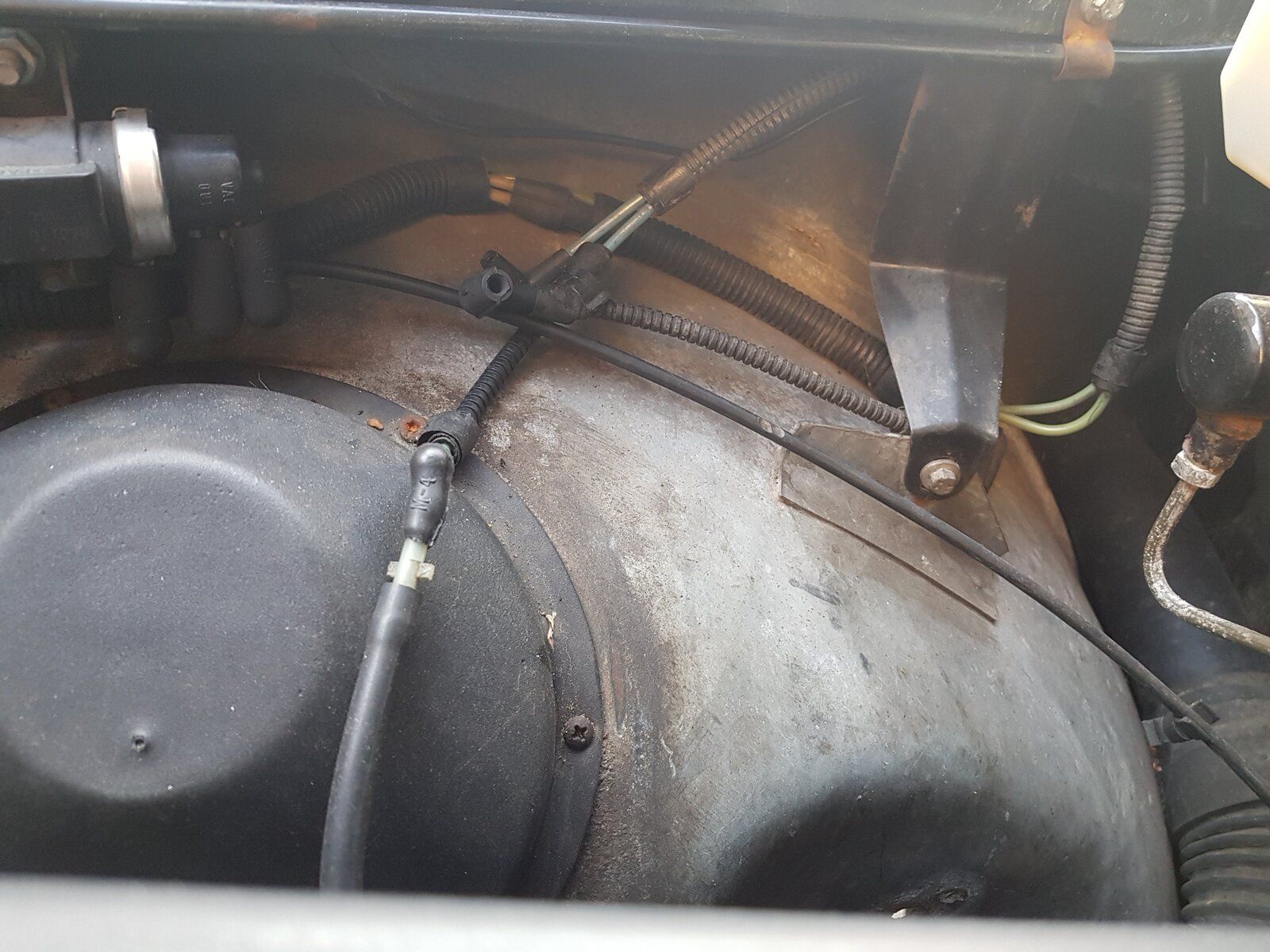

    Above is the tee in the main line to the brake solenoid, mine is closed by a silicone plug and some clear silicone

    On the inner wing there are two solenoid valves each should have a connection


    Pictures are not fantastic did them with my phone hope it helps
