Disco 2 Td5 slow to change gear

Discussion in 'Land Rover Discovery' started by Russell 1, Mar 31, 2021.

< Previous Thread | Next Thread >
  1. Russell 1

    Russell 1 Active Member

    Joined:
    Feb 4, 2020
    Posts:
    176
    Likes Received:
    31
    Location:
    Space
    I'm about to take my disco off the road for a overhaul. The chassis is the main issue but also the gearbox is not quite right and there is a lot of slop in the drive train somewhere.
    There is no creeping forward in drive and it's reluctant to change up. Does it need sending off for rebuild or could it be something simple?
    I have changed the oil but it's still the same.

  2. Stanleysteamer

    Stanleysteamer Well-Known Member Full Member

    Joined:
    Nov 22, 2013
    Posts:
    27,872
    Likes Received:
    61,630
    Location:
    East Dorset
    Have you dropped the sump and replaced the filter?, take it you are talking about an auto box.

  3. Russell 1

    Russell 1 Active Member

    Joined:
    Feb 4, 2020
    Posts:
    176
    Likes Received:
    31
    Location:
    Space
    Yes it's a auto box but no I did not change the filter as I was planning on doing a second oil change.

  4. Russell 1

    Russell 1 Active Member

    Joined:
    Feb 4, 2020
    Posts:
    176
    Likes Received:
    31
    Location:
    Space
    well galv chassis is fitted and now back on the road and im having this autobox problem again.
    Sometimes its happy to shift up sometimes it sticks and runs up to 4000rpm.
    Ive read the guvnor can get blocked with debris.
    Where is this?
    Is it worth changing the filter or will this be a waste of oil and filter and will be a problem elsewhere?

  5. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    15,378
    Likes Received:
    2,786
    Location:
    Arad
    The D2's autobox has no "governor" that's valid for D1 and RR boxes which dont have electronic management
    That's definitely the first move to do before other things

  6. TheMunster

    TheMunster Active Member

    Joined:
    Jul 31, 2007
    Posts:
    328
    Likes Received:
    39
    Drop the gearbox sump and see what's in it. This will give you the next step.
    These 4 speeds are not that expensive to get rebuilt, seeing as you've put a galv chassis on then I think it might be worth it.

    Stanleysteamer likes this.
  7. Russell 1

    Russell 1 Active Member

    Joined:
    Feb 4, 2020
    Posts:
    176
    Likes Received:
    31
    Location:
    Space
    Ok thanks for the replys. I reset the driver adaptions yesterday and on the test-drive it was fine and changed normally so will see how it goes today. I've noticed the gear position indicator does not show when in drive or neutral unless I pull back on the gear lever slightly. All other positions show the gear without fault.
    Is that important?

  8. berg450

    berg450 Well-Known Member

    Joined:
    Jan 11, 2014
    Posts:
    647
    Likes Received:
    119
    Location:
    Hungary
    My previous D2 did the same . Sometimes changed well, sometimes over 3000rpm. I did 2 oil changes and added auto box additive and the problem solved. I do not know if it was the 2x oil changes which solved the problem or the additive?

  9. Russell 1

    Russell 1 Active Member

    Joined:
    Feb 4, 2020
    Posts:
    176
    Likes Received:
    31
    Location:
    Space
    Well looks like it's still holding on to gear too long so I'll do the oil and filter.

  10. ronsealdeath

    ronsealdeath Sagging Member

    Joined:
    Aug 30, 2012
    Posts:
    1,823
    Likes Received:
    318
    Location:
    Swansea, Wales
    Id say your xyz switch may also be dodgy. Worth removing it to adjust and clean it up.

  11. Chazb5046

    Chazb5046 Member

    Joined:
    Dec 18, 2019
    Posts:
    19
    Likes Received:
    9
    Location:
    Staffordshire
    If you check the comments on this video there are at least two who are asking the uploader about having a similar problem. You may find some ideas there.


  12. Russell 1

    Russell 1 Active Member

    Joined:
    Feb 4, 2020
    Posts:
    176
    Likes Received:
    31
    Location:
    Space
    I still have yet to change the oil but I just striped, cleaned and adjusted the xyz switch. Now when in drive I get a D on the dash. Just been on a test drive and seams ok.
    On a different note, does anyone know where the temp sensor is on the gearbox?

  13. Stanleysteamer

    Stanleysteamer Well-Known Member Full Member

    Joined:
    Nov 22, 2013
    Posts:
    27,872
    Likes Received:
    61,630
    Location:
    East Dorset
    Dunno but going to suggest the obvious, follow a wire or two maybe?
    It'll be in RAVE and maybe even in Haynes.:rolleyes::p

    (arf, arf, arf!!!):D:D:D

  14. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    13,066
    Likes Received:
    1,737
    Location:
    Sector 12 in Kent, The Garden of England
    So what makes u think the temp sensor is on the gearbox?

    Well it isn’t the temp sensor is located on the bottom right hand side of the gearbox oil cooler which is positioned behind the front grill.

  15. Stanleysteamer

    Stanleysteamer Well-Known Member Full Member

    Joined:
    Nov 22, 2013
    Posts:
    27,872
    Likes Received:
    61,630
    Location:
    East Dorset
    So there!
    nah na nah na nah nah!!!

    (I'd have expected it to be on the gearbox too, so you're not alone, @Russell 1 !!!!)

  16. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    13,066
    Likes Received:
    1,737
    Location:
    Sector 12 in Kent, The Garden of England
    No your not alone, the question has been asked more than a few times. What would they do before forums? Buy a book perhaps :D

    Stanleysteamer likes this.
  17. Stanleysteamer

    Stanleysteamer Well-Known Member Full Member

    Joined:
    Nov 22, 2013
    Posts:
    27,872
    Likes Received:
    61,630
    Location:
    East Dorset
    Funnily I just commented on books to a member who has been trying to find the correct "page" on his new Nanocom for what seems like a few days.
    Like you probably I can remember when there were Haynes manuals, Workshop manuals and mates in a car club and that was about it. How did we manage?
    Mind you the feckin things were a lot simpler then!!
    I guess forums are just like having a massive pub full of mates all with the same ideas and problems.
    not so bad really then!!
    Cheers!:):):)

    discool likes this.
  18. Andy Warren

    Andy Warren Well-Known Member Full Member

    Joined:
    Jun 27, 2017
    Posts:
    1,147
    Likes Received:
    531
    Location:
    Hertfordshire

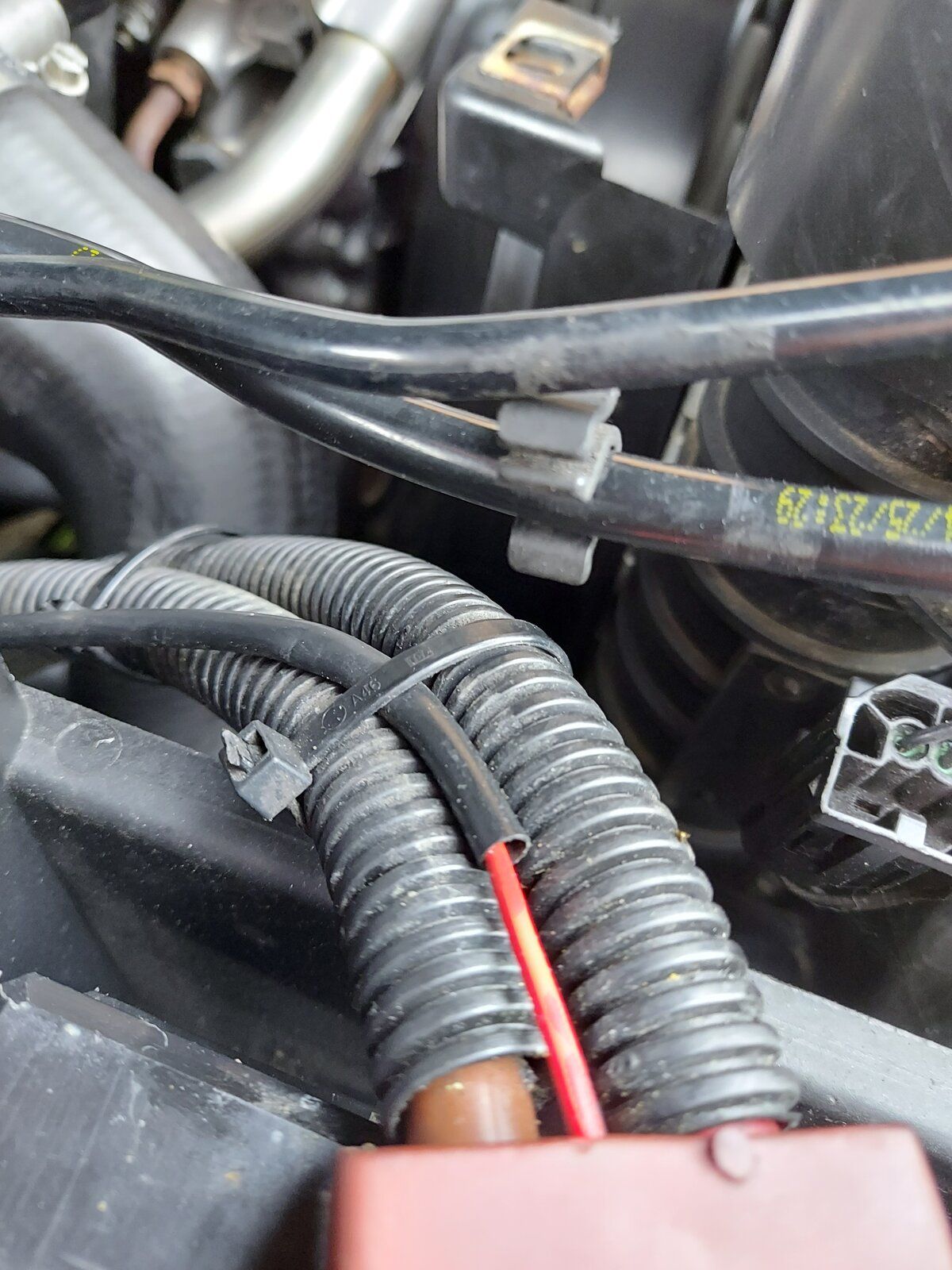

    That's if your sitting in the 20201018_153139.jpg vehicle, L/H if your looking under the bonnet. The wiring connector is just below the pipe with the yellow writing.

  19. Russell 1

    Russell 1 Active Member

    Joined:
    Feb 4, 2020
    Posts:
    176
    Likes Received:
    31
    Location:
    Space
    My research lead to believe there is one on the gearbox and one on the cooler. I have found one on the cooler but all I can find on the gearbox is one that looks to be on the transfer box.
    I have two single spade connectors that are not connected on top of the gearbox by can't find where they go.
    Any ideas?

  20. ronsealdeath

    ronsealdeath Sagging Member

    Joined:
    Aug 30, 2012
    Posts:
    1,823
    Likes Received:
    318
    Location:
    Swansea, Wales
    Lockup on the auto box is controlled by engine temp. All the trans cooler sensor does is report an overheat of the oil.
