Freelander 2 (LR2) Tailgate release not working

Discussion in 'Land Rover Freelander' started by SWalker, Nov 27, 2020.

< Previous Thread | Next Thread >
  1. SWalker

    SWalker Active Member

    Joined:
    Sep 16, 2017
    Posts:
    166
    Likes Received:
    27
    Location:
    lisburn

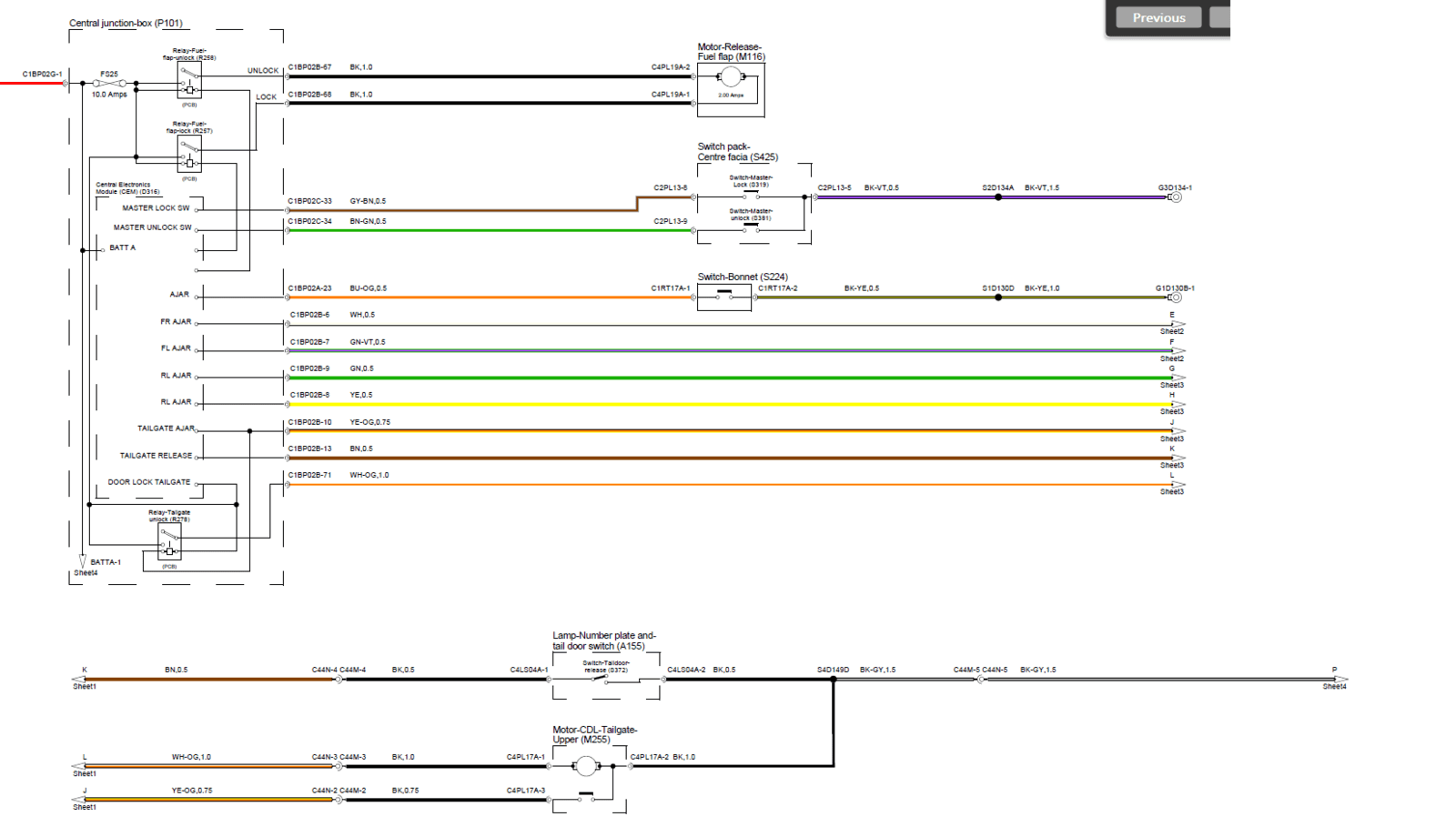

    i am guessing it is a broken wire from the switch. The diagrams say it is brown which goes to the CJB. Questions are does it run up the left or right at the top of the tailgate?
    is this common and is there a part loom replacement available?
    suppose one way to find out...

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,636
    Likes Received:
    5,306
    Location:
    Near Newquay
    The switch is known to fail, but I've never heard of the wiring fail.

  3. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    16,683
    Likes Received:
    11,337
    Location:
    Christchurch, New Zealand
    There have been problems with earths for the door loom(s), hasn't the window damaged door looms as well? Agree though, the switch is a common fail point.

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,636
    Likes Received:
    5,306
    Location:
    Near Newquay
    The window doesn't move the the FL2 GG, unfortunately.

  5. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    16,683
    Likes Received:
    11,337
    Location:
    Christchurch, New Zealand
    Woops - missed that :D

  6. SWalker

    SWalker Active Member

    Joined:
    Sep 16, 2017
    Posts:
    166
    Likes Received:
    27
    Location:
    lisburn
    Thanks Nodge, i stripped the switch out and tested it, yeah its not working.
    It was wet in there and such a small switch - the click it makes did give it away i suppose.
    No amount of contact cleaner and airline were able to get it back until the new loom arrives!!
    It is obvious someone has been there before - couple of clips out of shape on the panel cover and the number light housing itself is not on good shape - super glue and clamps over night job to sort the brackets back out.
