Strange pipe to inlet manifold

Chrisabsolute · Oct 25, 2012

I have changed the inlet manifold on my stage 1 v8 109
I have come across a strange pipe that come from the exhaust on the offside that connects to the top centre of the inlet manifold any one know what this is and or does
Thanks

Spunka · Oct 25, 2012

can you post a pic

Knobwrot · Oct 25, 2012

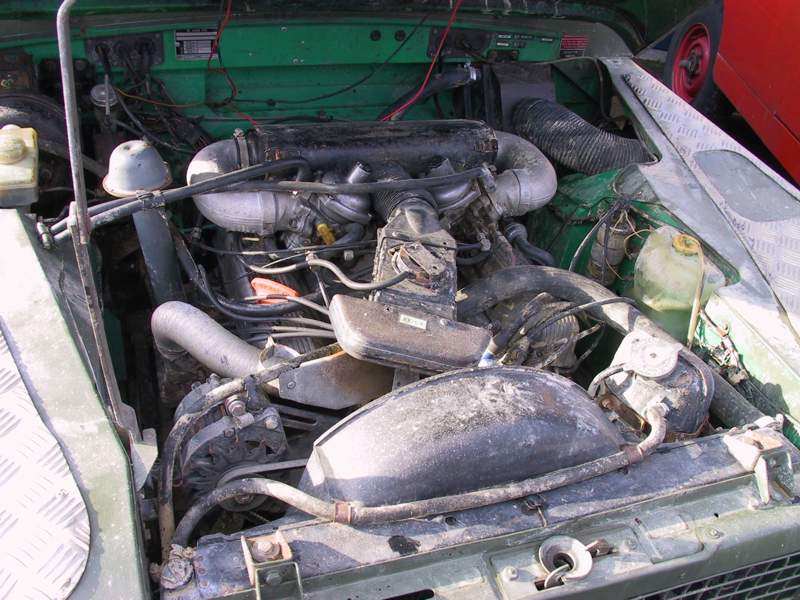

Is it the flexy pipe coming off the top of the manifold..?

martin1512 · Oct 25, 2012

Chrisabsolute said:
I have changed the inlet manifold on my stage 1 v8 109
I have come across a strange pipe that come from the exhaust on the offside that connects to the top centre of the inlet manifold any one know what this is and or does
Thanks

The only pipe I can think of is the intake heater pipe. It draws warm air from the exhaust manifold into the air intake to help the engine warm up quicker.

Mr Noisy · Oct 25, 2012

Absolutely correct

Mr Noisy · Oct 25, 2012

In fact it's a VERY original feature, the vast majority if early v8s have this removed!!

Cherish that part and FFS do not bin it!!
