Strange Leak 04 TD5 Defender

ndamico · Aug 11, 2019

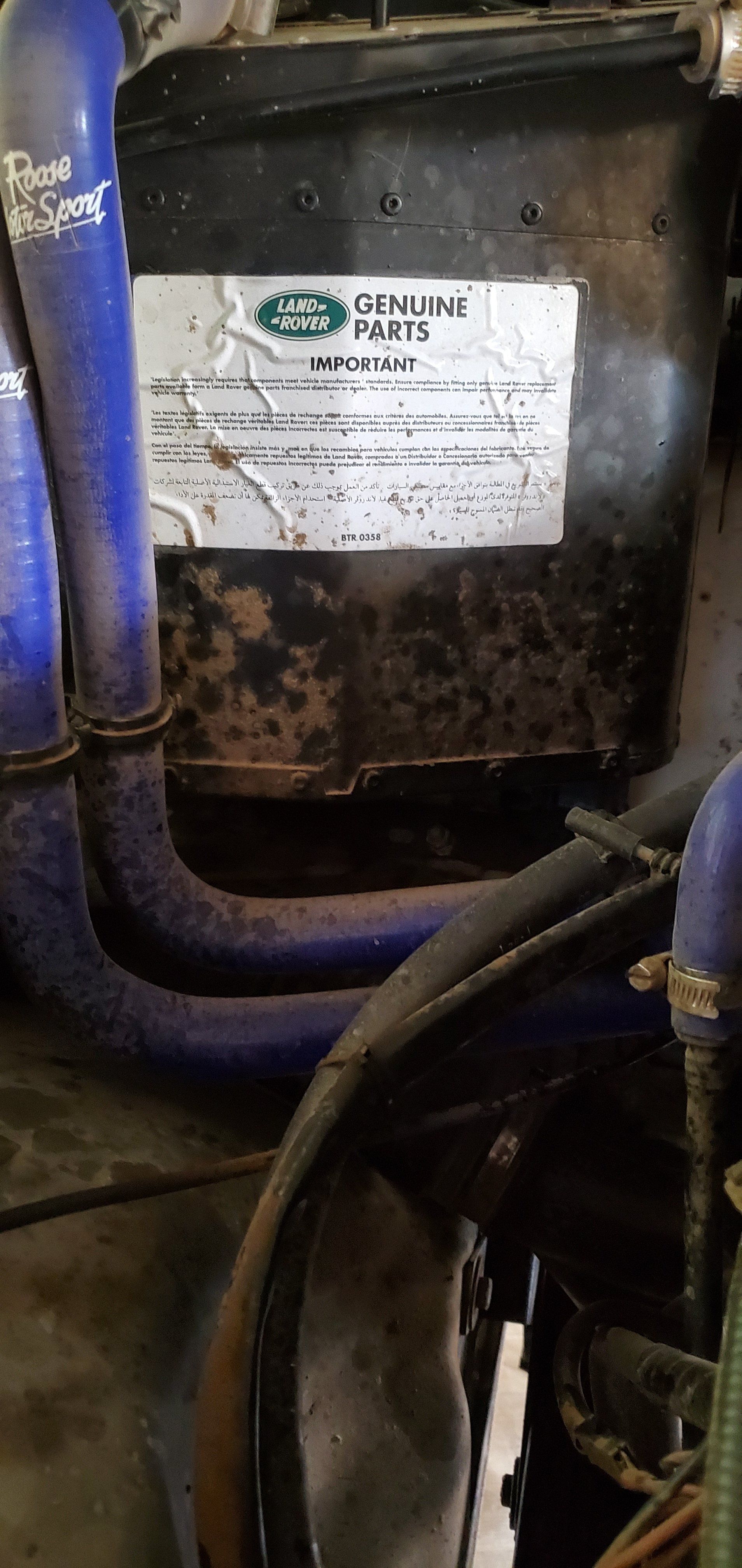

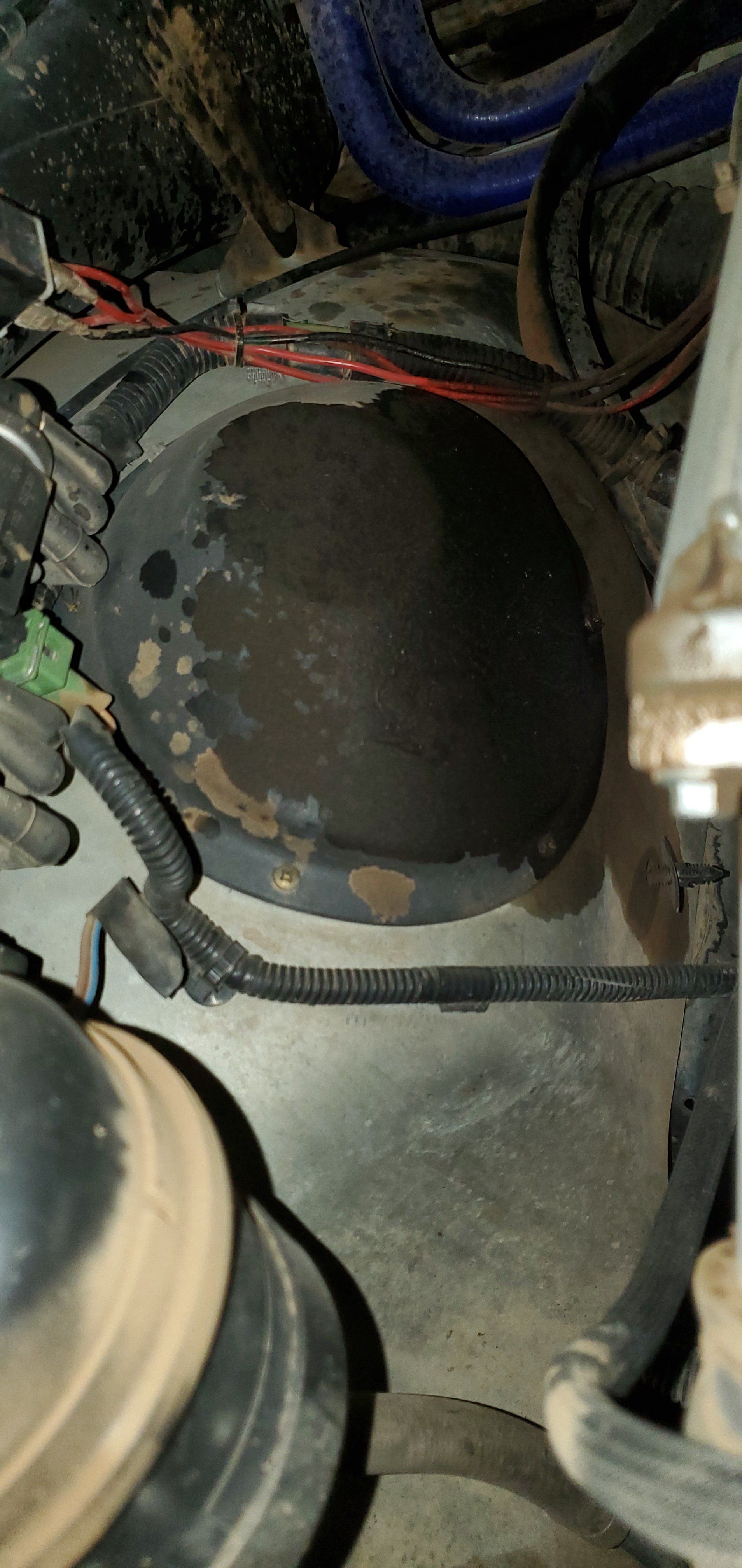

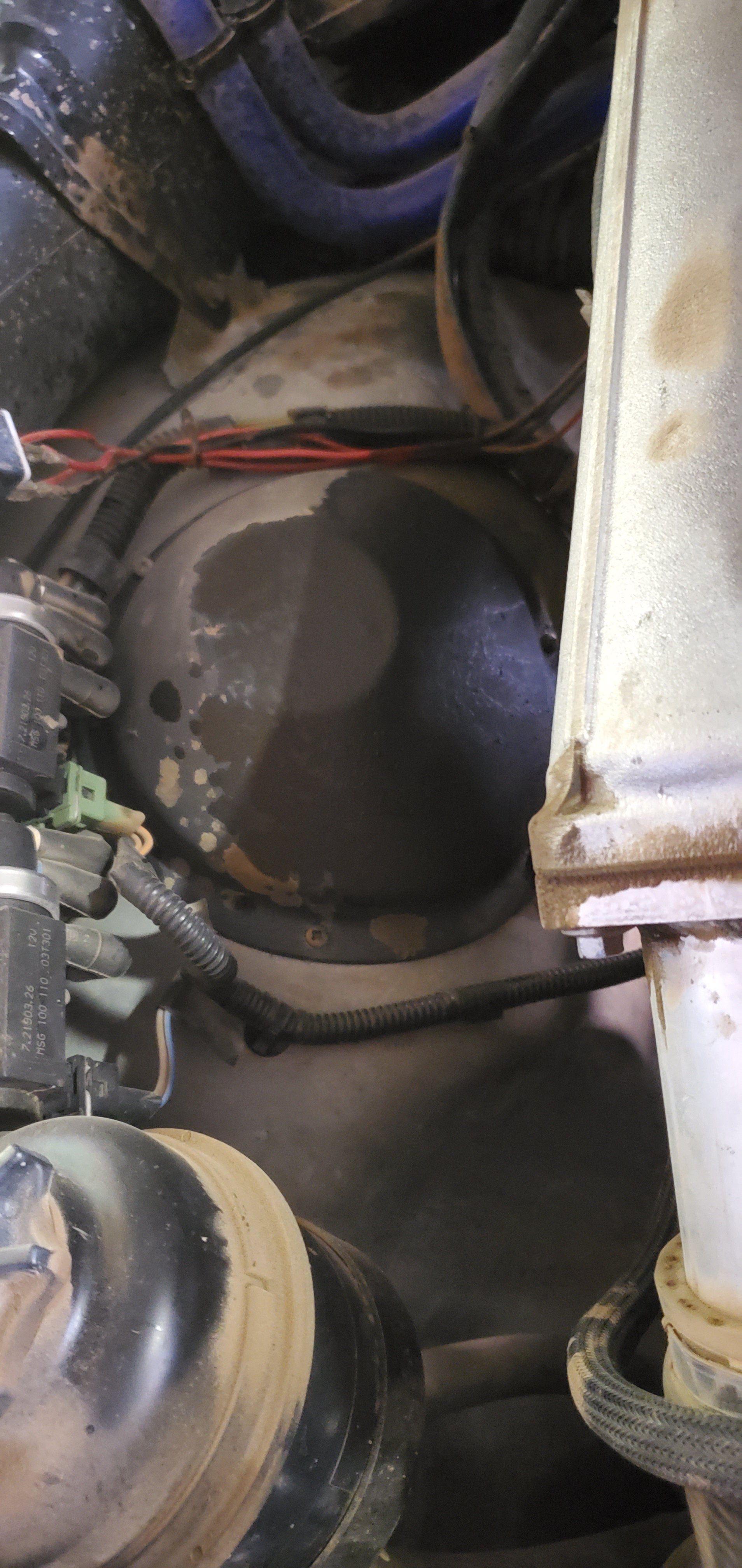

i have a leak but i can't figure out what it is. it sprays on the side of the engine compartment when i'm running but i can't find anything wet under the bonnet. I've cleaned the area and it comes back. its so thin i can't tell what type of fluid it is. any suggestions? it also gets on the heater box. i've ruled out the dipstick tube as well as the CCV. this is my first TD5.

thanks!

Scooby22 · Aug 11, 2019

As it is getting on both sides of engine, heater box on passenger side and drivers side as in photos, check the half moon seal at rear of rocker cover for leaks, it is a known leak spot, another is the fuel pressure regulator on drivers side but that usually drip downwards and you can tell its diesel.

ndamico · Aug 11, 2019

hi,

its only on the right side of the engine. sorry if the picture looked like it was on both. i'll check the seal. the injector harness was replaced just before i bought the car. thanks

Scooby22 · Aug 11, 2019

Is your TD5 a left hand drive model, my RHD model has heater box on the other side to EGR vacuum solenoid's and power steering level pot.

ndamico · Aug 11, 2019

It is LHD

Scooby22 · Aug 11, 2019

That's why I thought it was on both sides.
