Steve's unexpected Series 3 rebuild.

Discussion in 'Members Vehicles/Projects' started by LincolnSteve, Nov 28, 2015.

< Previous Thread | Next Thread >
  1. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Don't forget - with all the inherent "leakability" any treament needs to let water run through. I've heard horror stories of people blocking drains and ending up with rust troubles higher up the structure. I personally like the idea of sticky oil rather than the idea of a thick creamy wax but as you say you do need to get things as high up as possible.

    "Industrial" solutions often use high pressure air and nozzles to make an atomising spray (but seriously you need to have finshed your paint work and let it dry before you do this kind of treatment)

    If I'd have logged in sooner I would have suggested using something like Zinga on the inside of the cavities whilst they were still open. You can weld through it but it is really dodgy to do so in an area with out decent ventilation. Zinga is essentially liquid zinc (96% Zinc - probably measured by weight - apparently) which I have been using quite a bit recently. I like it for inside structures (and the steel frame I've built for my new shed) but as I say it is a bit dodgy for welding so you need to be sensible / aware / reckless / irresponsible / not caring about life...

    LincolnSteve likes this.
  2. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    I'll have a look at Zinga. Sounds good stuff.

  3. Stretch

    Stretch Well-Known Member

    Joined:
    Mar 18, 2016
    Posts:
    1,556
    Likes Received:
    620
    Location:
    Holland
    Compared with other options I have found it to be a good value for money option. It isn't the only cold zinc coating solution out there...

    ...sound a bit like the BBC - "other cold galvanising systems are available"...

    ...what I have found during my shed building steel construction palaver is that if you don't manage to clean off surfaces as well as perhaps you should have done you can revisit the surfaces with an angle grinder and wire brush to apply a second coat. I have found that the Zinga does indeed attack surface rust (that was left behind by someone in a rush thinking "that ****ting rain cloud is about to make me 'king wet") and much like a rust eating product after wire brushing the surface underneath has been cleaned of rust.

    This isn't the way in which the product is meant to be used but I think it is a potentially interesting way of getting rid of surface rust in hard to reach areas. You do need to apply and wait a few weeks / months and then go back and revisit the area.

    The one thing I don't think would be smart - despite what the manufacturer says - is to use Zinga as an undercoating for a paint system. I can't see how a sacrificial subsurface that essentially moves would be suitable, May be I've not got enough metal chemistry knowledge but seems to me to be asking for trouble...

    ...one thing I am considering however is to play about with external galvanised Land Rover trim => Wire brush off the rust - apply Zinga - come back to it after the sacrifical working has done something - wire brush again - then Zinga again and then use the strangest tip I've come across - fake an old galvanised finish with unstirred Primocon (!)

    One of these days when I get me effing garage built and me effing Land Rover out of storage I might give this an effing go

  4. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    There's always another job that needs doing before you can get to what you really want to be doing.

    When you're sitting pretty in that huge workshop everything will be right in the world.

  5. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    I can't believe another couple of months has slipped by. There has been some more progress but not very much. Now my son is back at school and the homework is coming in again there's very little spare time. The clocks have changed today so that's really it for the evenings now as well. I think I probably moan about this every year. Anyway.
    Time for the footwell to come out.
    I was trying to leave as much attached for as long as possible while I checked what was what. It's obvious that the bit that's been exposed there is a goner so that's the next problem.
    I made myself a template. IT'S GRRREAT! Sorry. I don't need the whole of that making in steel. Its more for being able to reinstate those holes later.
    This bit of an old steel shelf had just the right bend and was the right thickness so that was a bit of luck.
    Now to get the holes back in place.
    Draw them back in through the template and then cut out.

    Henry_b and boguing like this.
  6. Henry_b

    Henry_b Waiting..........

    Joined:
    Jan 29, 2018
    Posts:
    12,656
    Likes Received:
    11,919
    Location:
    Its Full of WIN.....
    Great Fab skills with this resto..

    Seldom see nice repair panels that form an invisible repair!! ;)

    LincolnSteve likes this.
  7. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    Getting the footwell out means I can get a really good look at some of the other bits that will need sorting.
    That bottom bit is quite far gone. Also its right where I can't get at it because the engine and gearbox are in the way. The plan is to weld the new footwell in round all the bits I can get at so it's secure and then take the bulkhead off again to finish the rest.
    DSC04916.jpg I dithered about over this bit trying to think of ways to carry on without removing it but in the end I came to my senses.
    DSC04917.jpg DSC04918.jpg DSC04919.jpg It had to come off and really needs sorting underneath. I've got to reuse the original as there's no way I could make that shape so we'll see how that goes later.

  8. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    Thanks Henry. Not many others would be daft enough to spend so much time faffing about. :D
    Glad to know you're still watching.

    Henry_b likes this.
  9. Henry_b

    Henry_b Waiting..........

    Joined:
    Jan 29, 2018
    Posts:
    12,656
    Likes Received:
    11,919
    Location:
    Its Full of WIN.....
    I do enjoy the thread, the attention to detail is quite inspiring! :D

    LincolnSteve likes this.
  10. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    Another tweak to the replacement panels is needed. Or it's needed if you are an OCD loony like me.
    That bit i'm holding in place is needed if you want it to look like the original. It also gives somewhere for another little strengthening piece to attach to the curved bit of the door pillar right at the top. I think it's often not bothered with but I can't help myself over stuff like this so it's got to go back in.

    resto_d1 and jamesmartin like this.
  11. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    Nice to see you back at it Steve. Fair play

    LincolnSteve likes this.
  12. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    Time for the footwell to be offered in place.
    This is where I have to make a confession. Although it fits well in most places It doesn't fit properly everywhere and I have had perform what you can only call a bodge to get round it.
    As you can see there is a gap between that return on the door pillar and the side of the footwell. Even worse it's not even a consistent gap. It's wider at the bottom than the top. In my defence the other side of the door pillar meets up perfectly with the footwell and you can see that held together with mole grips in the 2nd picture in this post. In that same picture you can see i've drawn a line and written 2mm at the top and 6mm at the bottom. That's the adjustment I would have had to make to get it to meet up but then I would have probably skewed it out everywhere else where it seemed to fit really well. I soon realised that trying to make that alteration would probably mangle the footwell so badly it wasn't worth trying. I decided that if it's got to be bodged it needs to happen where it will never be seen.
    This is my solution. It's two strips of flat bar about 10mm across by 3mm thick. They are drilled and plug welded to the side of the footwell and then the door pillar plug welded on the top. One of the bars had to be ground to a taper because the gap narrows at the top. Its solid and I will eventually weld up the front to make it even stronger and block any holes where muck and water could get through to the door pillar. I'm not pleased that i've had to do it and i'm not even sure how it happened but once the door pillar and bulkhead foot were in with the door shutting the footwell just had to be made to fit somehow. Once it's all back together nobody will be able to tell.

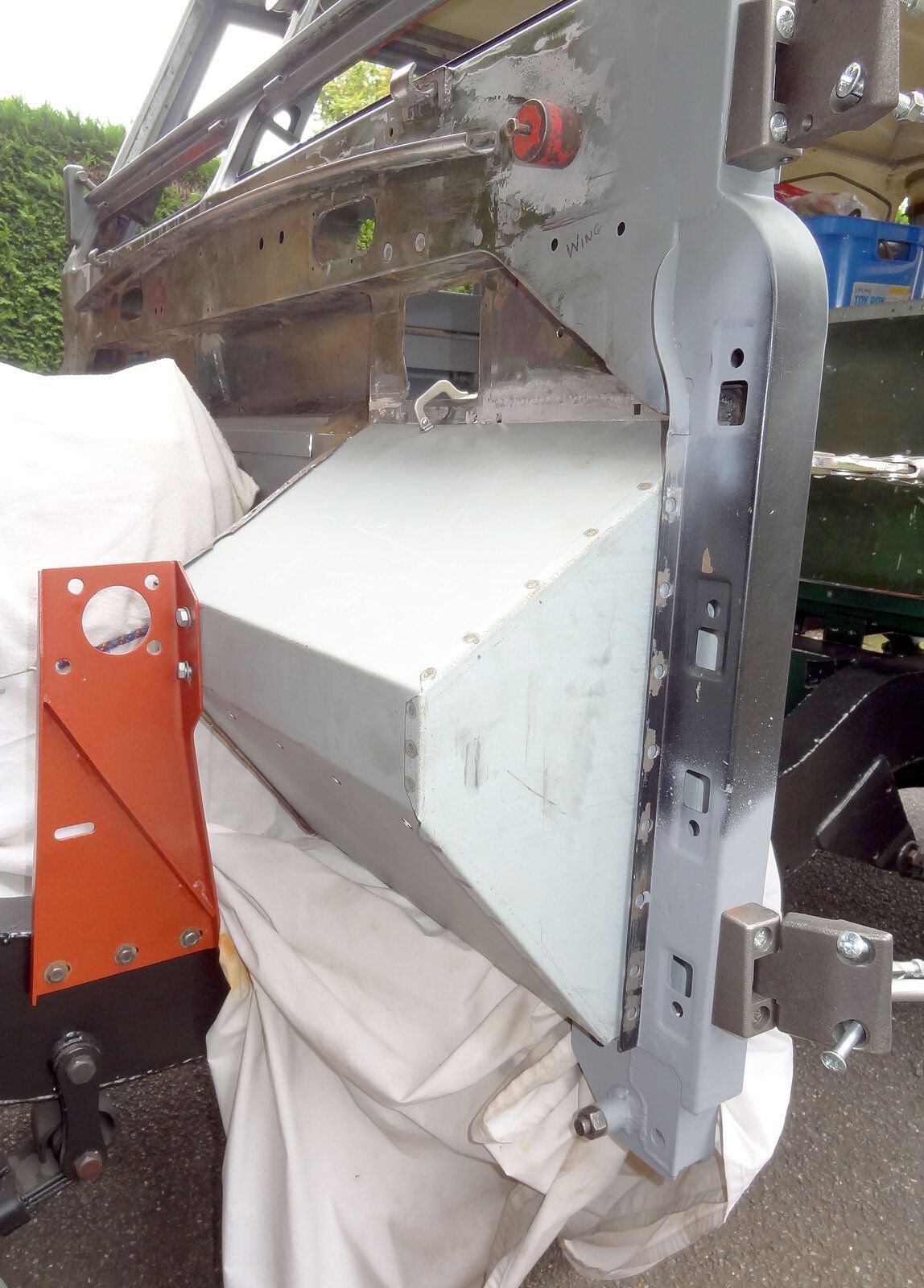

    So then I did all the plug welds and ground them back. I'm not sure who is more sick of grinding back welds me or my neighbours. Still some finishing needed but it's in. All in all only took about six months and the other side is much worse.

    flat likes this.
  13. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    Good to hear from you. For some reason i've stopped getting notifications on a lot of the threads I was watching so i'm behind on how everyone is doing. How's yours going?

  14. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    For some reason I traded my hilux for a Td5 90 earlier in the year - I’ve been playing with that more than anything lol

  15. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,138
    Likes Received:
    3,012
    Location:
    Far away from you!!
    Stunning work on that footwell :)

    LincolnSteve likes this.
  16. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    9,011
    Likes Received:
    6,057
    Location:
    Near the land of 'Me Duck'
    Mine will have rusted to nothing by the time you've finished yours:p

    LincolnSteve likes this.
  17. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    Sounds good. I've also got another distraction but I hardly dare admit to it on here. I've just got a Suzuki Grand Vitara. It's another old banger with it's fair share of problems that i'm working through. I really like it though. Do you think i'm still allowed on here? :eek:

  18. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    Thanks for that. Comments like that keep me going.

  19. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    676
    Likes Received:
    444
    Location:
    Lincoln
    The pyramids were built quicker than this land rover. o_O

  20. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    9,011
    Likes Received:
    6,057
    Location:
    Near the land of 'Me Duck'
    Chop chop:p

    LincolnSteve likes this.
