Steering Wheel and Shaft

border said:

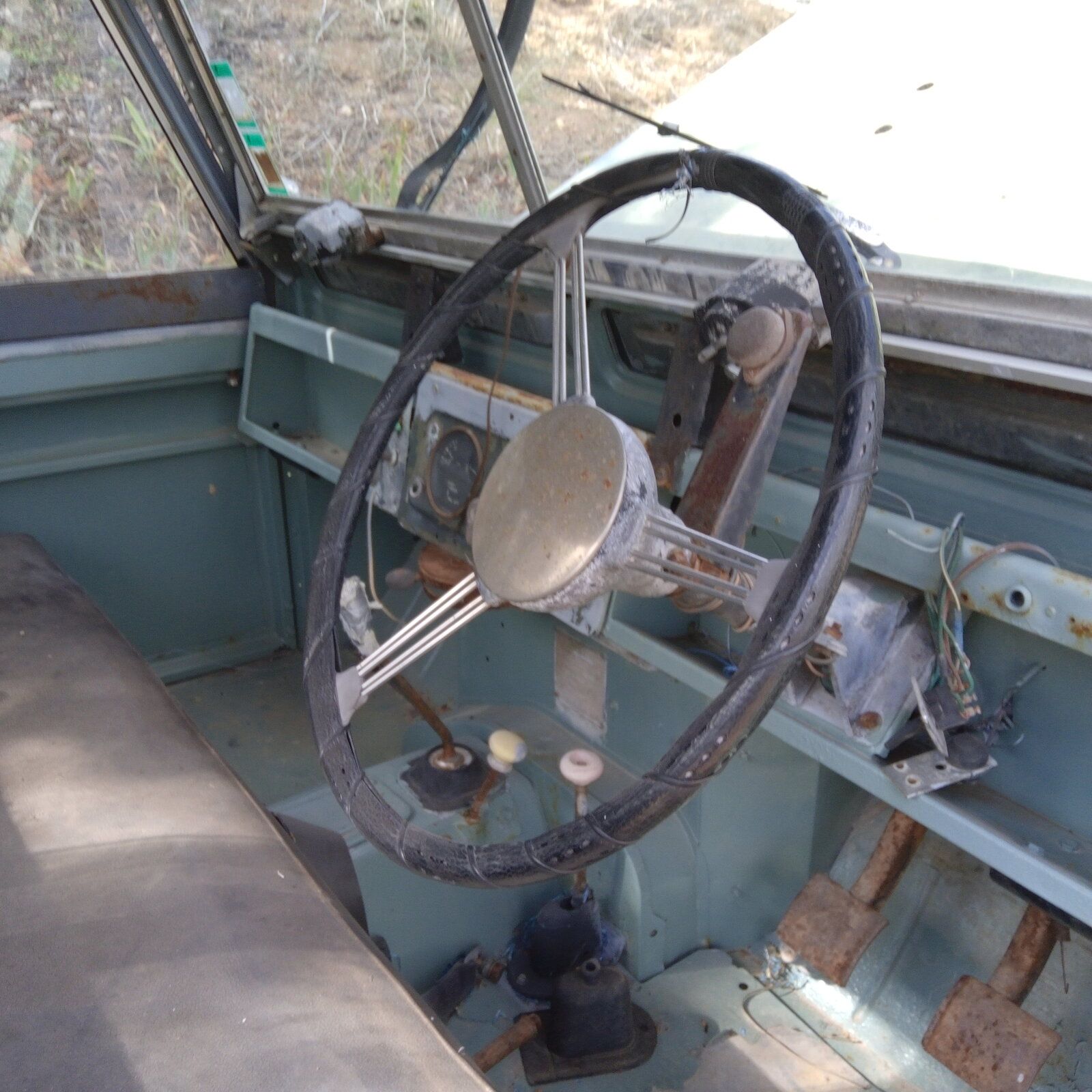

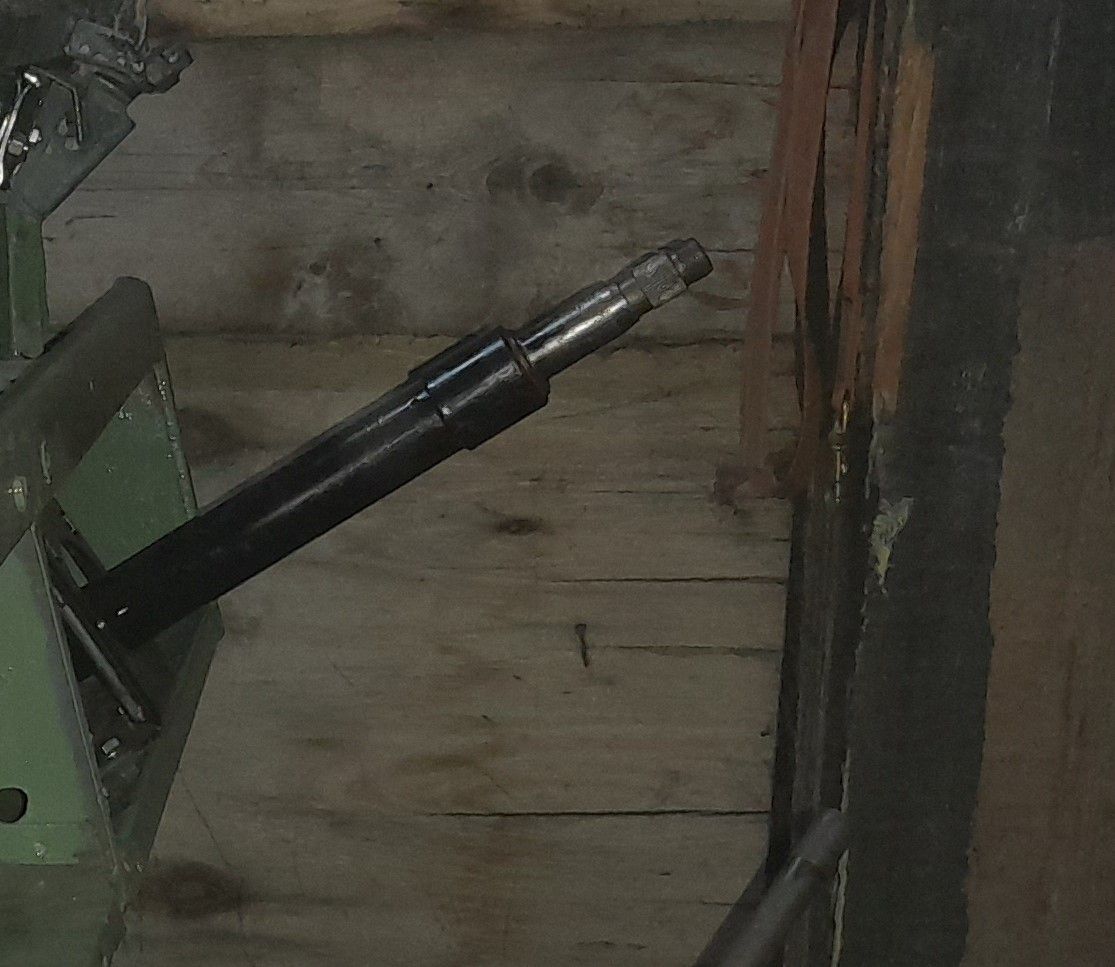

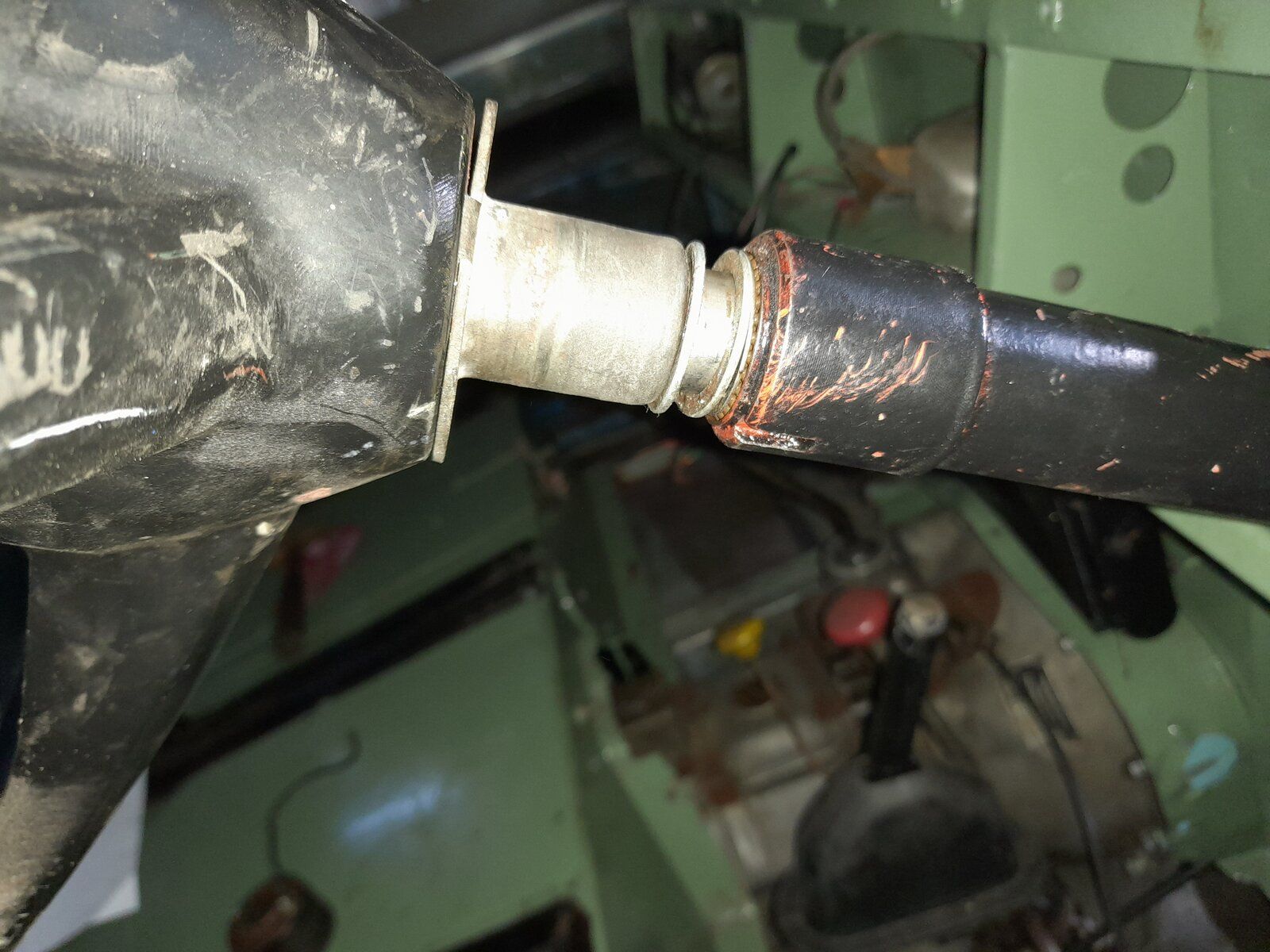

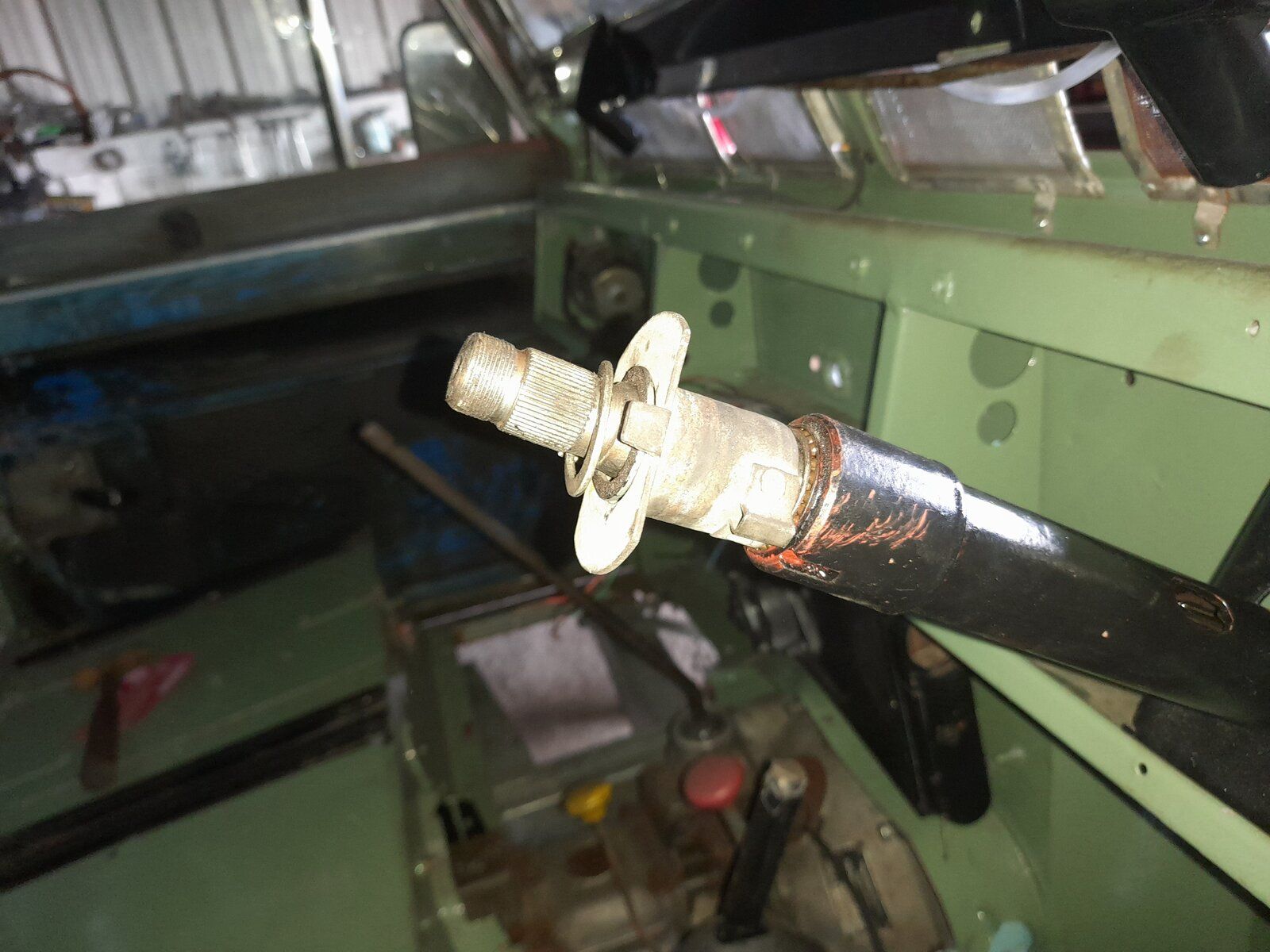

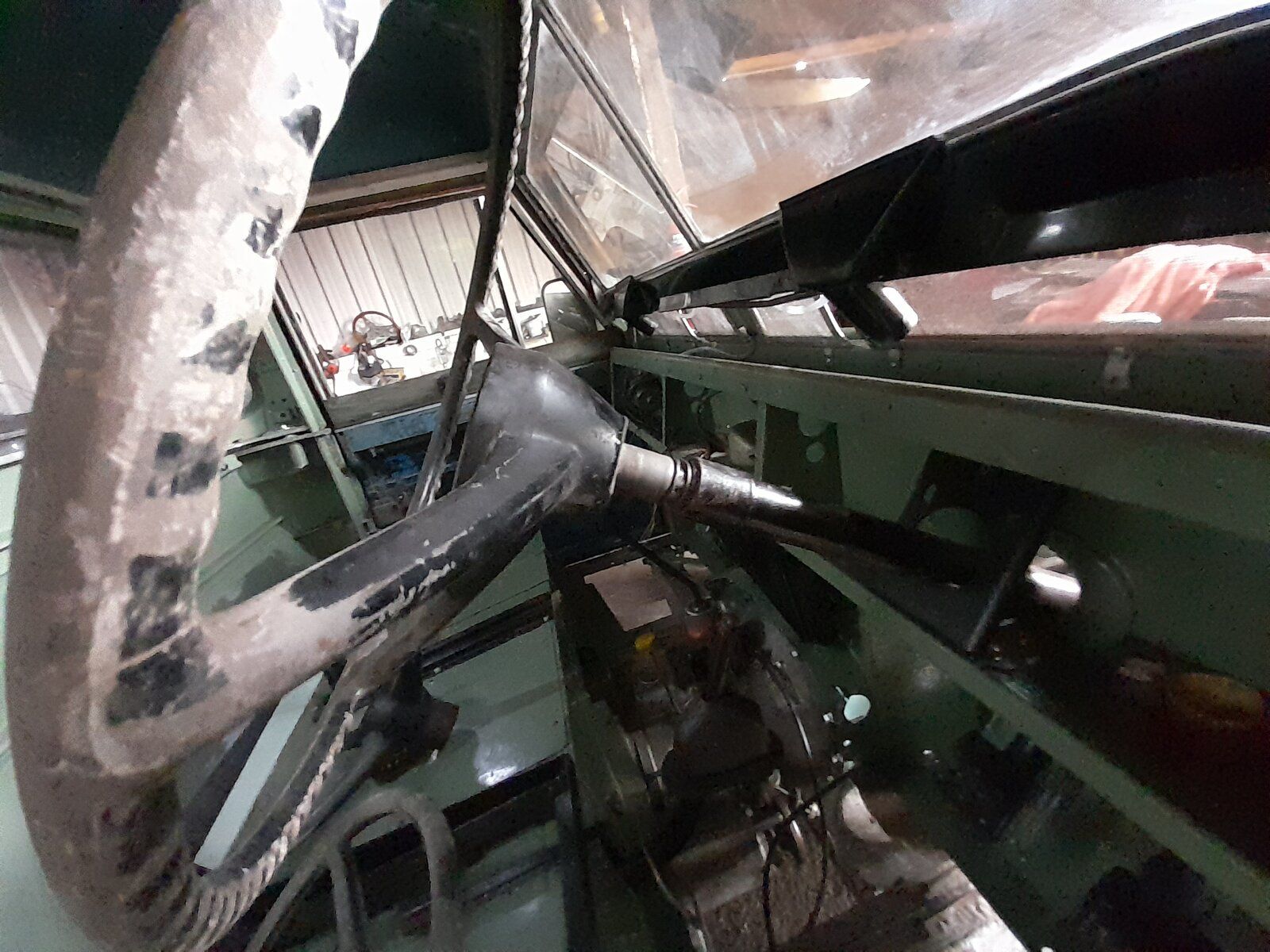

Not sure what I have done here, I refurbished one box out of 2, think This is a series 3 shaft, my truck is series 2a, which steering wheel will I need or will both fit ? ?.

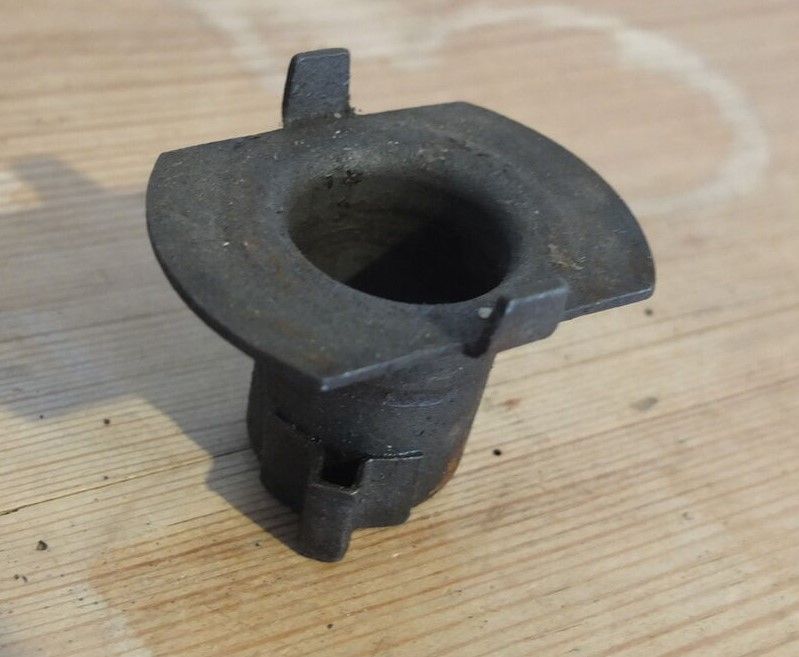

I have these parts but not sure how the indicator canceler goes on, will I need it ?

Cant find any pics on google,

Thanks

Click to expand...

Turboman said:

There are two steering columns. Early ones have optional indicators, late ones have indicators that were fitted as standard.

There could be a third type, because Series 3 had a strange arrangement where the choke or fuel shut off interfaced with the steering lock, but I think those are the same box and column as late 2a.

If you have a Series 2a, it is probably going to be better to fit a 2a box and column.

Click to expand...

Shippers said:

First 2 pics are not S2 last does look like what I've got I think...

Click to expand...

border said:

So do you think I have a series 3 shaft ? dont suppose you have any pics of what goes where only thing I
can find on google is the diagram.

Click to expand...

Shippers said:

Will get back to you tomorrow with pics just received steering box rebuild kit from Paddocks...but I ordered r7uear shocks and they sent front....multiple emails later and theyv'e sent the ones I paid for after a phone call...but told keep wrong ones...next emails from them send back and we may refund you only if packaging is original...oh yeh you crushed the boxes to force them in...and I dont want a refund as you sent the wrong part...message from them tonight parts sent but delivery time is way longer than when I pay for postage...

Click to expand...

border said:

So do you think I have a series 3 shaft ? dont suppose you have any pics of what goes where only thing I can find on google is the diagram.

Click to expand...

Shippers said:

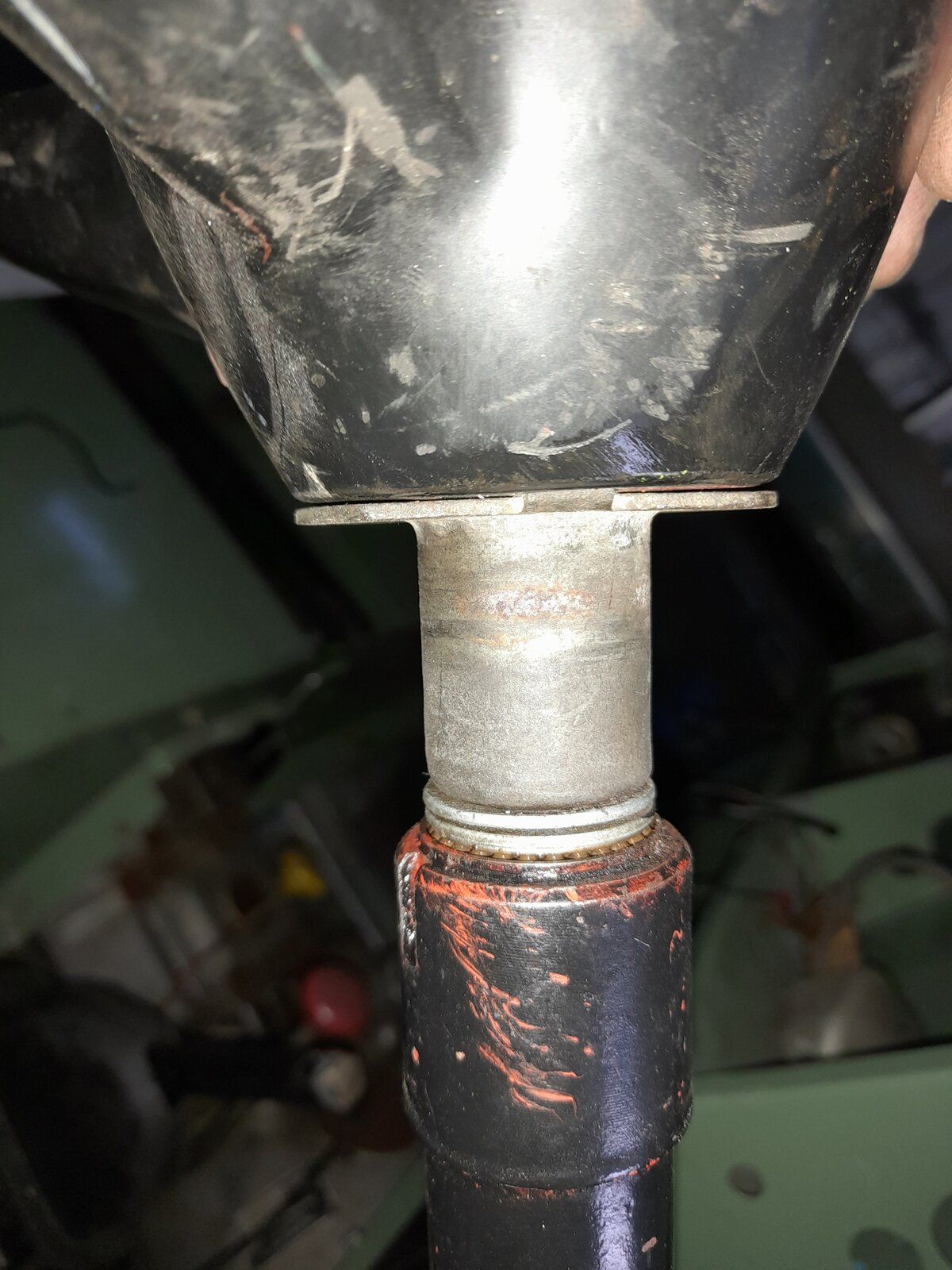

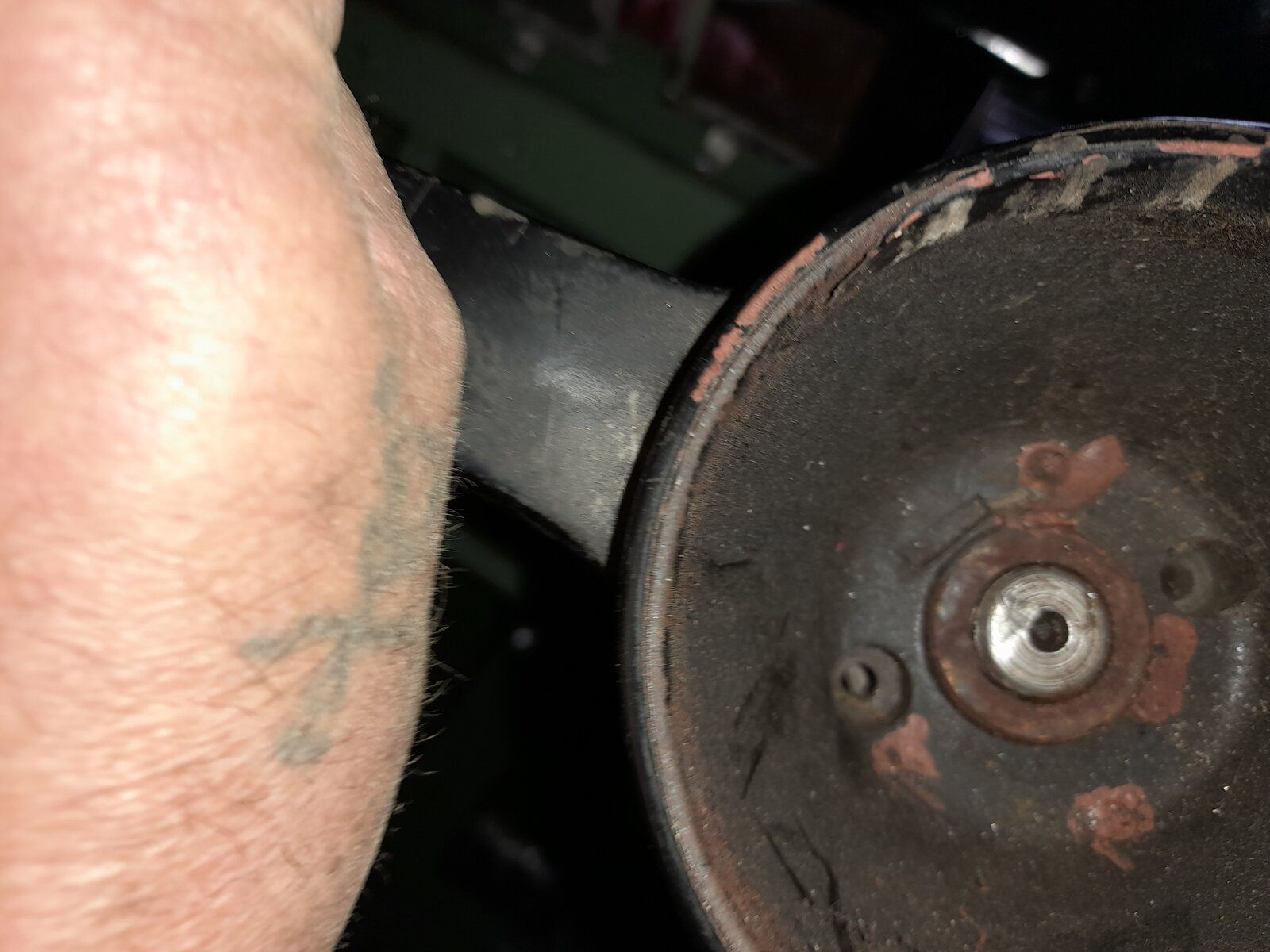

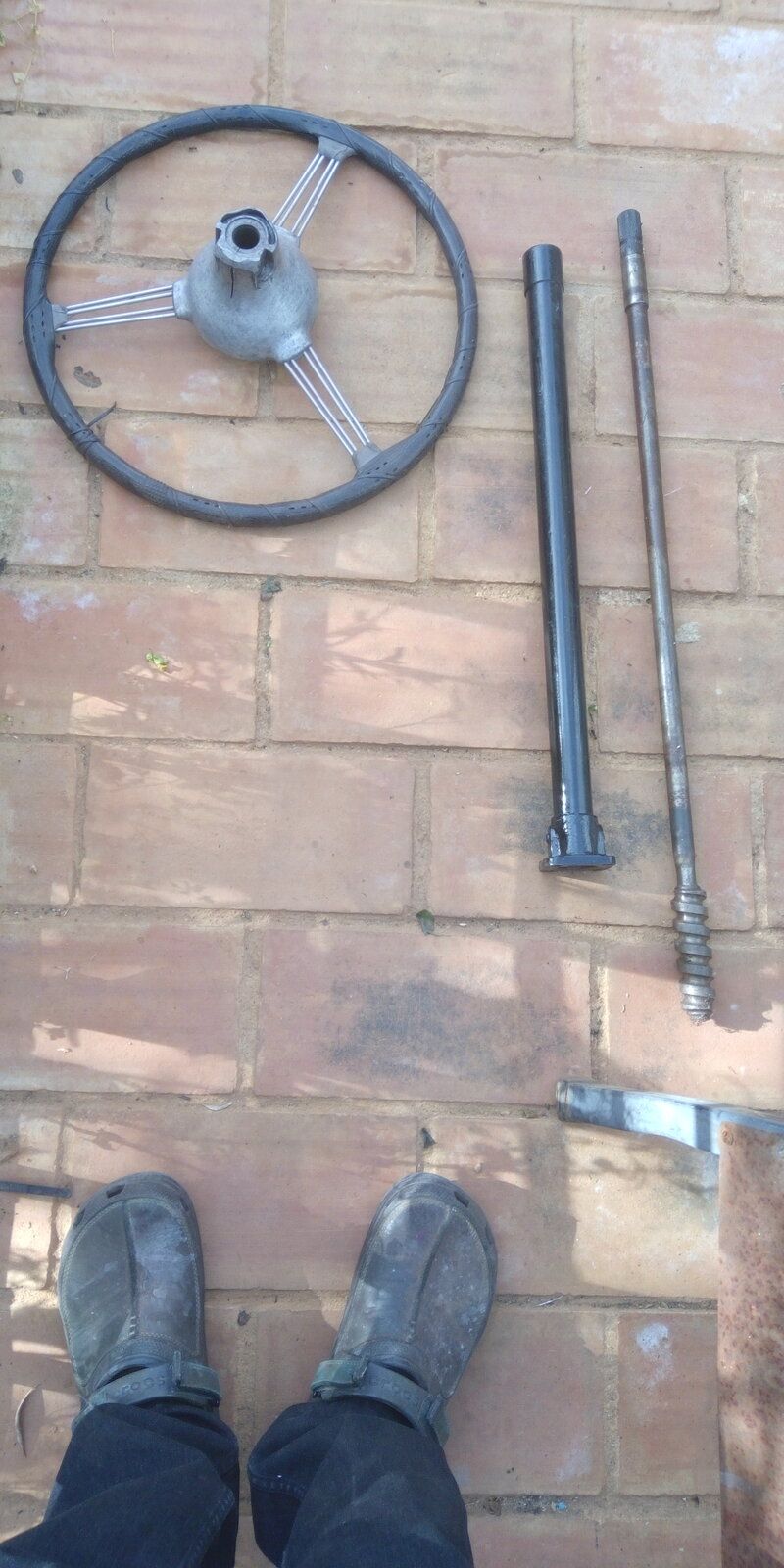

View attachment 265005 View attachment 2650061959S2 no nut on steering rod wheel held on with pinch-bolt...indicators were on a flick switch screwed to bulkhead but will change that to a car solutions column mount similar to horn...

Click to expand...

Shippers said:

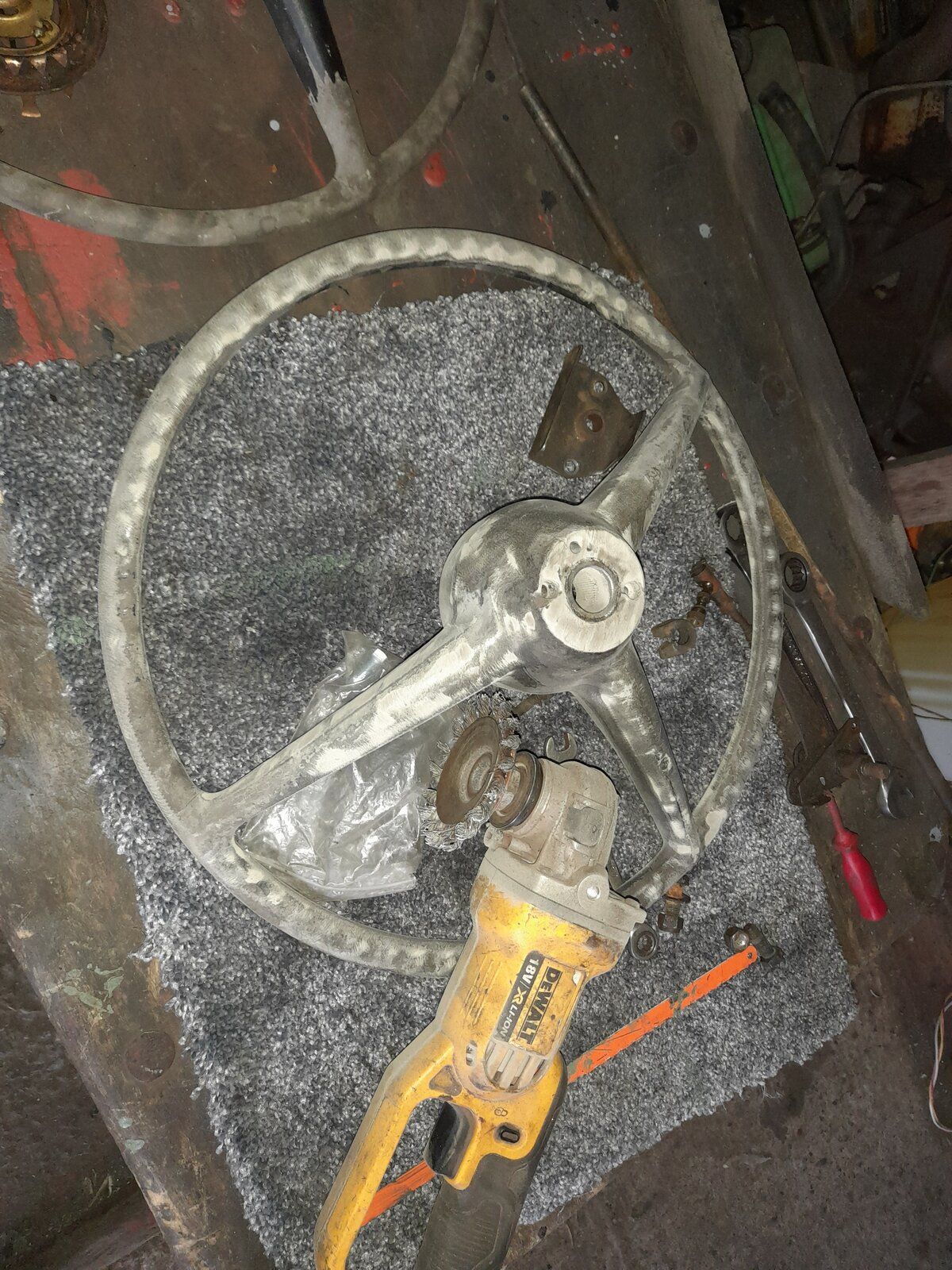

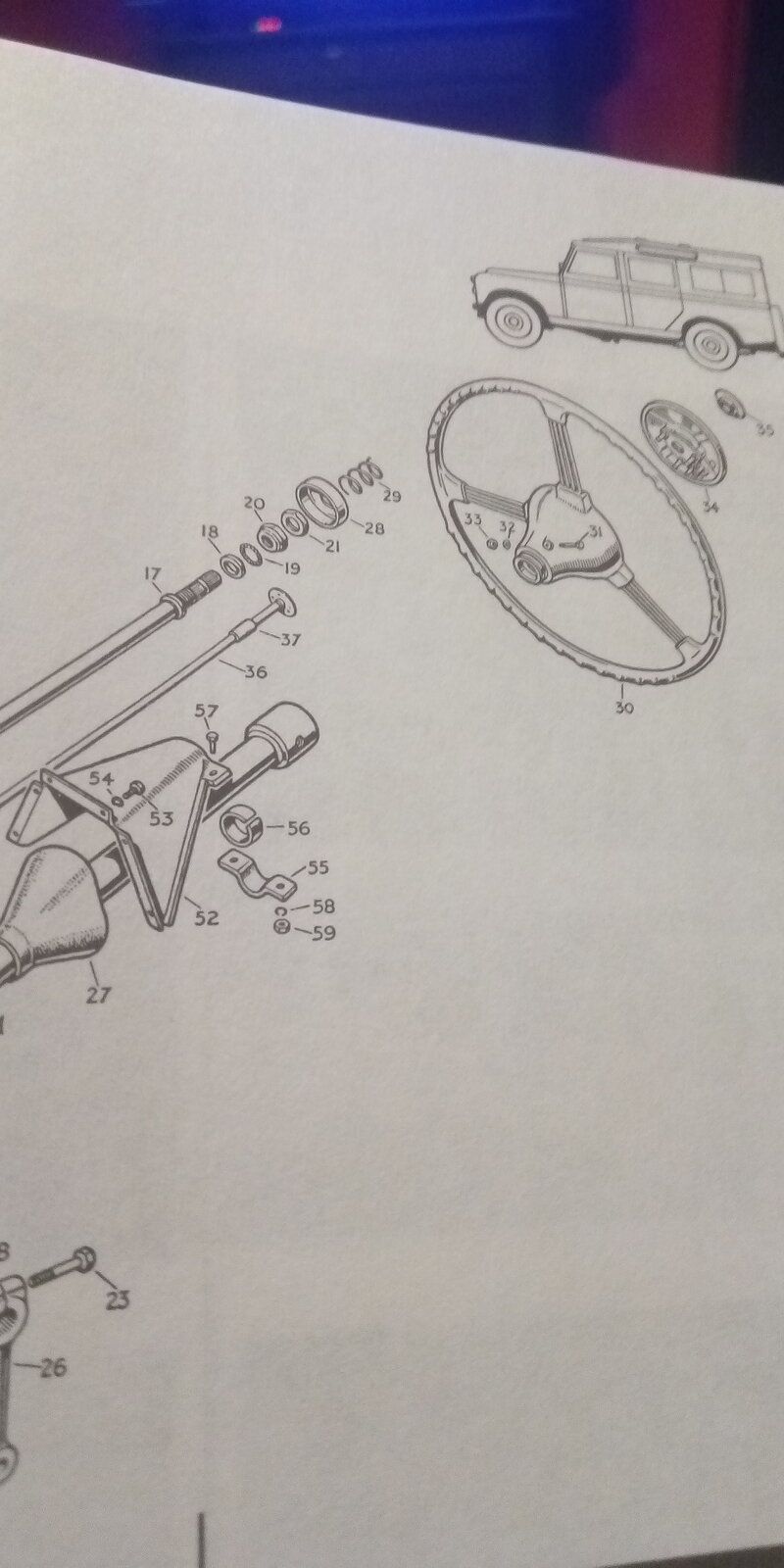

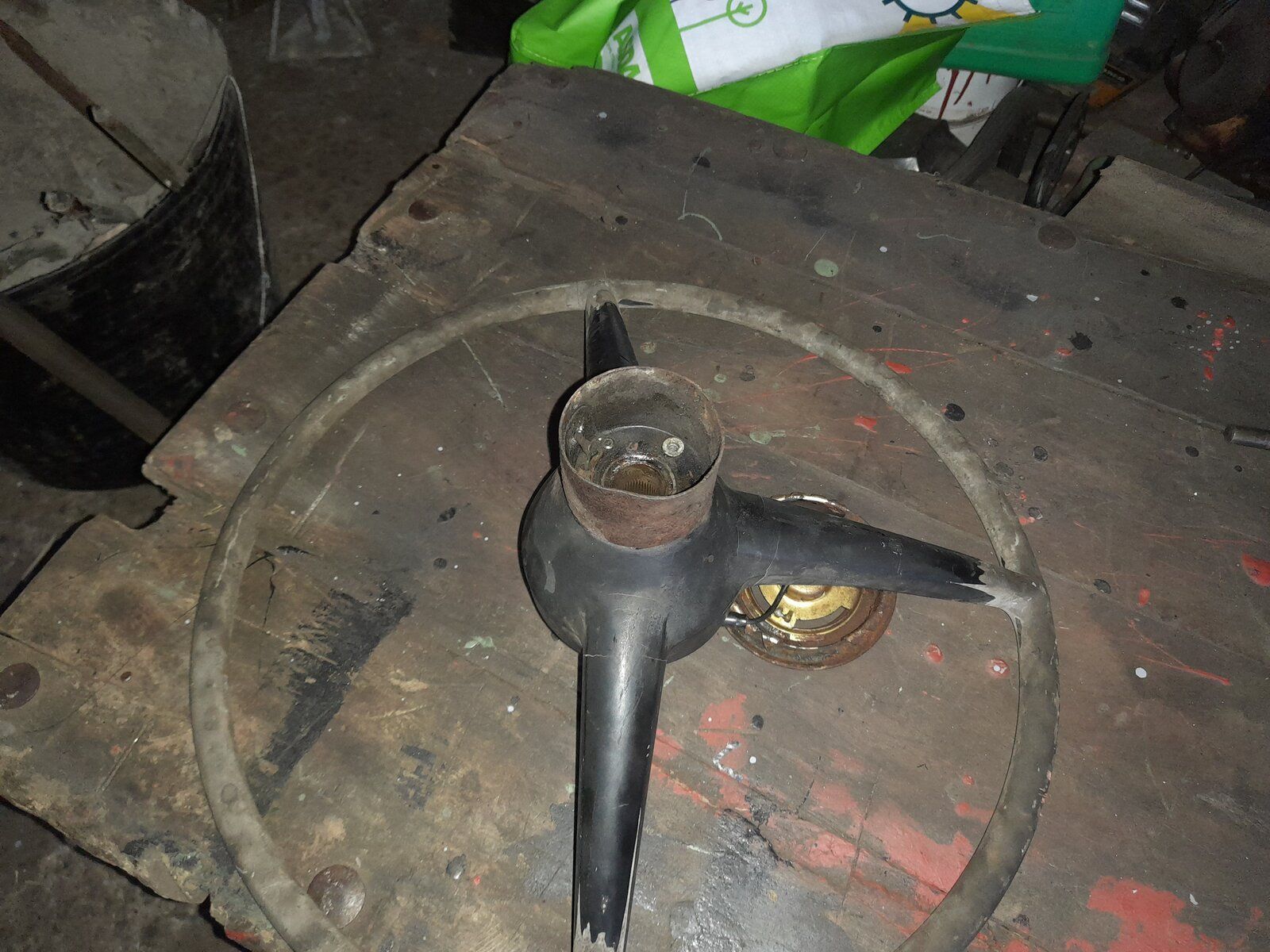

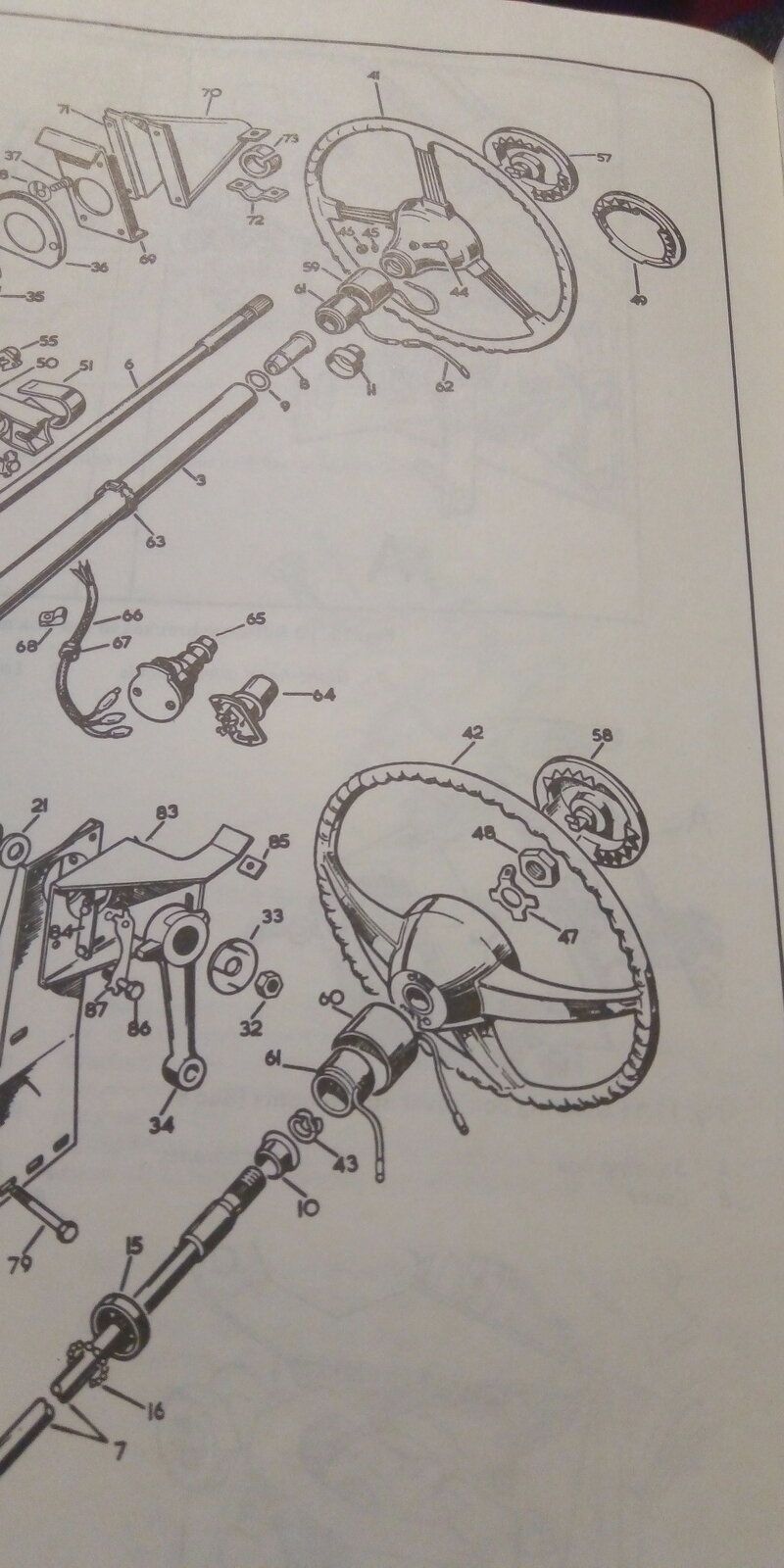

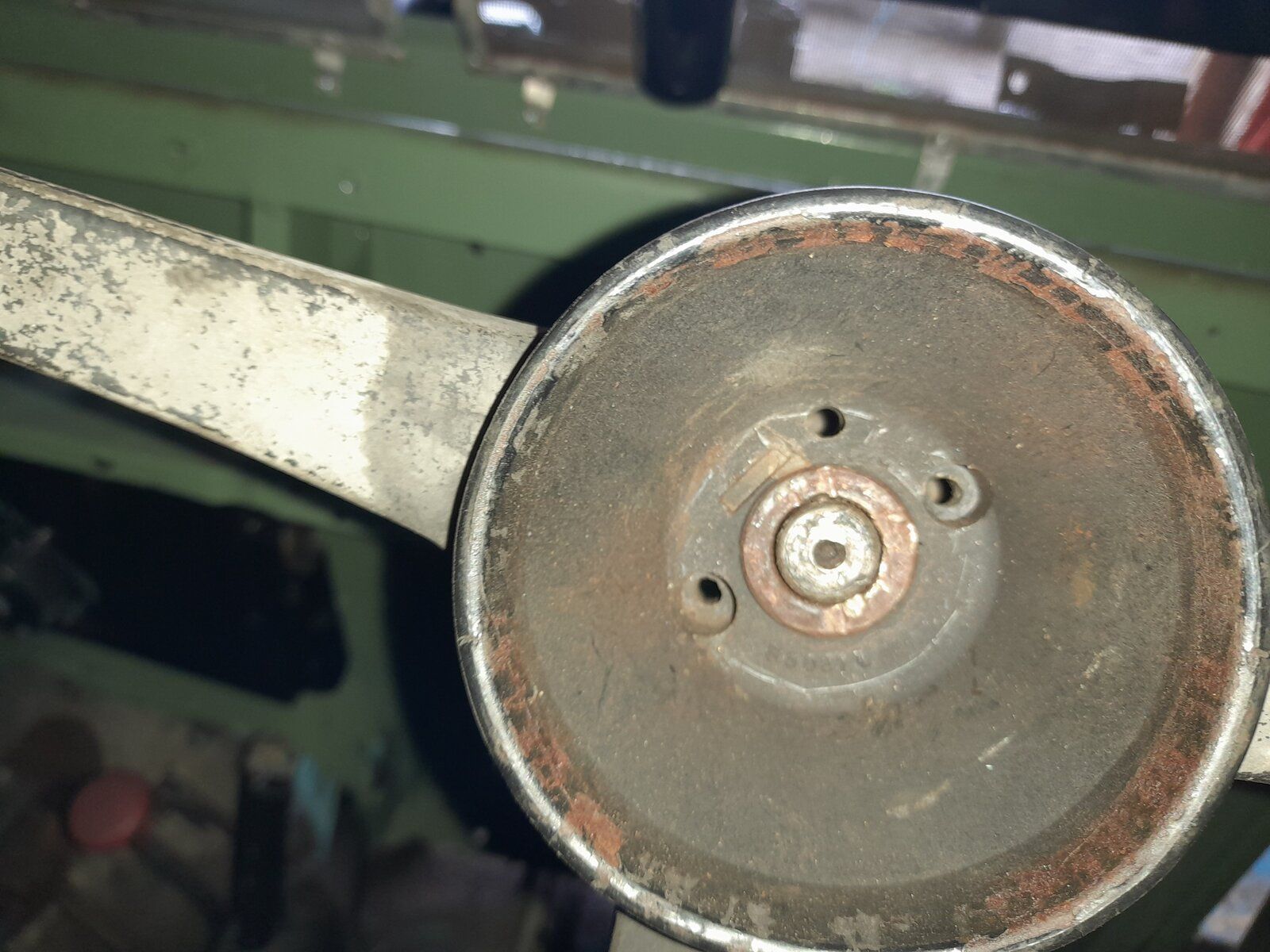

View attachment 265038From Lydsey Porter restoration manual...S1 set up shows spring... my S2 doesnt just has bearings top and bottom and pinch bolt to hold wheel on...looks like youv'e got wrong shaft with wrong wheel...does your wheel have pinch bolt hole?...

Click to expand...

border said:

Not sure where on wheel will it be ?

Click to expand...
