Steering joint help

jak1471 · Sep 1, 2011

Hi all!

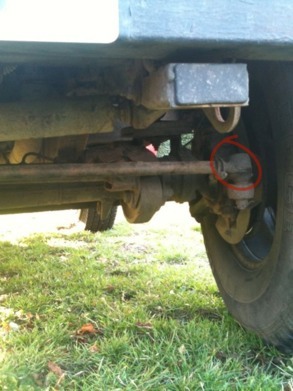

Iv got me MOT in a few weeks and the only thing I think it'll fail on is the sloppy steering! Iv traced the play to the joint below. The rubbers split too so defiantly needs replacing. I can't find a part number anywhere and was hoping someone might have it or the name of the joint? Sorry if there's already a post on this... The search thing ain't working for me :/

Cheers

jak1471 · Sep 1, 2011

Might help if I posted the photo...

jamesmartin · Sep 1, 2011

drag link ball joint same as rack rod ball joint rtc5869 rh thread should be one you need or rtc5870 lh thread you need to undo clamp slide out the way soak with penertrating fluid hit tube all round using two hammers using one as anvil till unscrews easily to remove from steering arm on swivel housing hit end of arm near where ball joint goes if you hit it hard enough ball joint will pop out of arm ,if taper doesnt stop ball joint from rotating apply pressure to push joint further into taper while you get nut undone

jak1471 · Sep 2, 2011

jamesmartin said:
drag link ball joint same as rack rod ball joint rtc5869 rh thread should be one you need or rtc5870 lh thread you need to undo clamp slide out the way soak with penertrating fluid hit tube all round using two hammers using one as anvil till unscrews easily to remove from steering arm on swivel housing hit end of arm near where ball joint goes if you hit it hard enough ball joint will pop out of arm ,if taper doesnt stop ball joint from rotating apply pressure to push joint further into taper while you get nut undone

Mate, that's brilliant! All ordered. Will let you know how it goes. Cheers!!!
