Steering Box tie bar replacement

When taking my sieve of a steering box off on my 90 I discovered the tie bar had sheared in 2. (source of loud bang discovered!)
The one I took off has slots for mounting it to the steering box, the replacement has holes.
On the slotted tie bar it is a snug fit for the steering box mounting bolts, on the replacement it is very not snug. See pictures below.

Have I got the right part or do I need to go scavenge for a slotted tie bar?

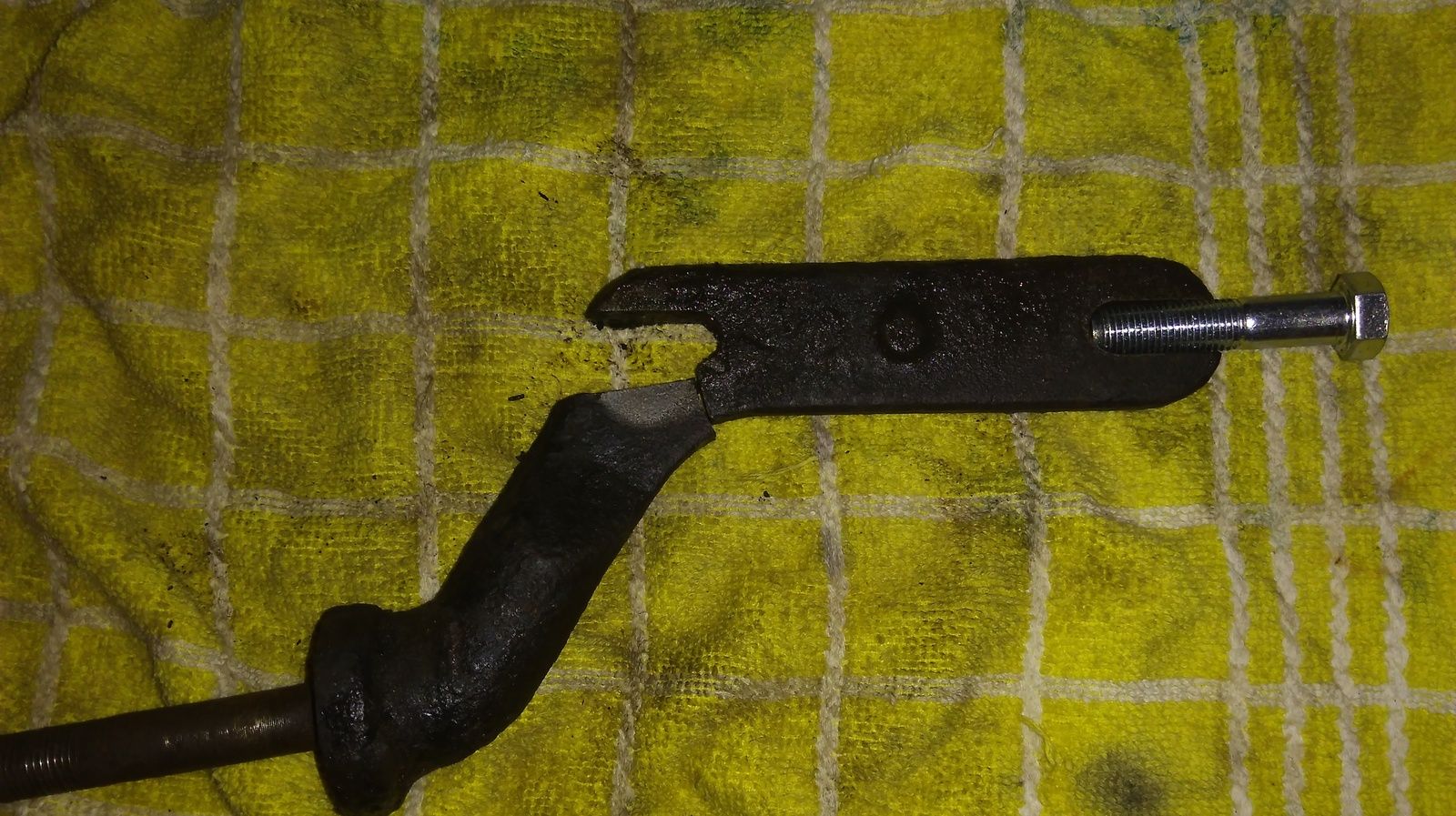

Slotted (broken tie bar)

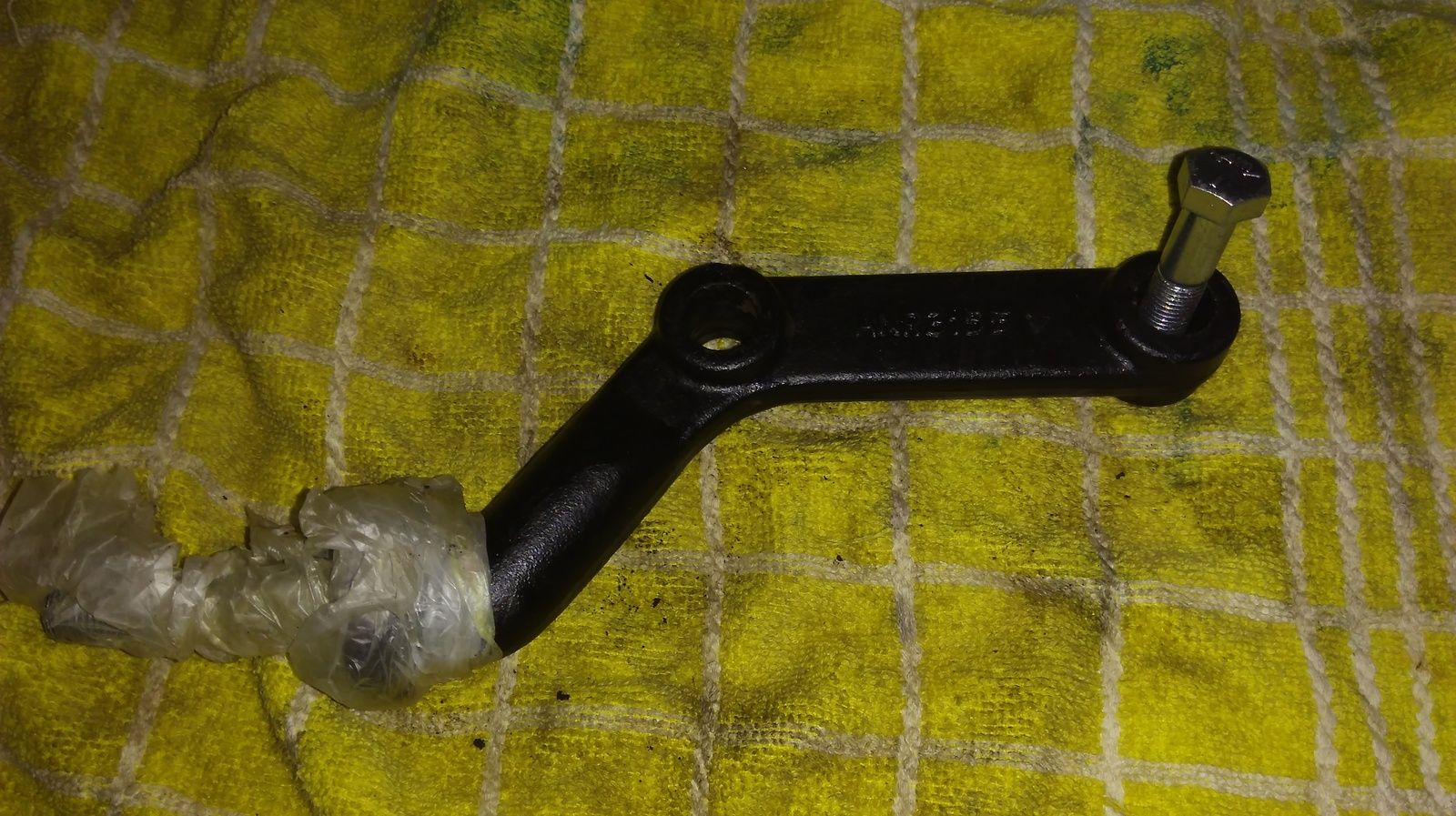

Holed replacement tie bar

When I replaced my tie bar it was similar. When you fit it you only nip the bolts up then go for a short drive then tighten everything up properly its to allow everything to settle in natural position.

So just chuck a washer on and nip it up? then nip it up some more? I can only do some big 3 point turns at the moment and the next time it goes on the road is to the MOT centre.

Roaming Wombat said:

So just chuck a washer on and nip it up? then nip it up some more? I can only do some big 3 point turns at the moment and the next time it goes on the road is to the MOT centre.

Click to expand...

its a slack fit so that once tightened up it doesnt pull on the steering box nip all bolts before fully tightening any ,you dont need to go for a drive

Roaming Wombat said:

So just chuck a washer on and nip it up? then nip it up some more? I can only do some big 3 point turns at the moment and the next time it goes on the road is to the MOT centre.

Click to expand...

The Part number for the washers are 217245 JM maybe right about going for a drive. I can't remember who or if I read it in a manual said about going for a drive just know thats what I did then gave bolts and the large nut a final torque after a quick spin round the block.

Sorry for hijacking the thread but does anybody know the difference between bh607161l and bh607191l and also why the latter is not available?

Discokids said:

Sorry for hijacking the thread but does anybody know the difference between bh607161l and bh607191l and also why the latter is not available?

Click to expand...

3/8 ths of an inch the latter number been the longer, probably because the 2 inch bolt does the job

Thanks a lot James.
