Steering box lubrication
- Thread starter Maxwell8
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
tottot
Well-Known Member
- Posts
- 8,073
- Location
- west wales coast
Yes and the level is one of the bolts on the outside of the box.
After consulting bible didn't want to get mixed up. Thanks
tottot
Well-Known Member
- Posts
- 8,073
- Location
- west wales coast
Book will show which is level plug, I can't remember.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
theres 4 bolts on top of relay unit, undo 2 off them fill through one air bleeds out the other
Colthebrummie
Well-Known Member
- Posts
- 9,870
- Location
- Thatcham
I must have dome mine wrong then because I'm sure I was told you fill via the square headed level plug until oil dribbles out. No wonder it was a pain.
Col
Col
You're not the only one, that is what I did with mine as well.
offshoretitan
Member
- Posts
- 20
- Location
- Nashville, TN
James Martin's answer was about the steering relay and not the steering box. He was responding to the question from Rodeo Joe.

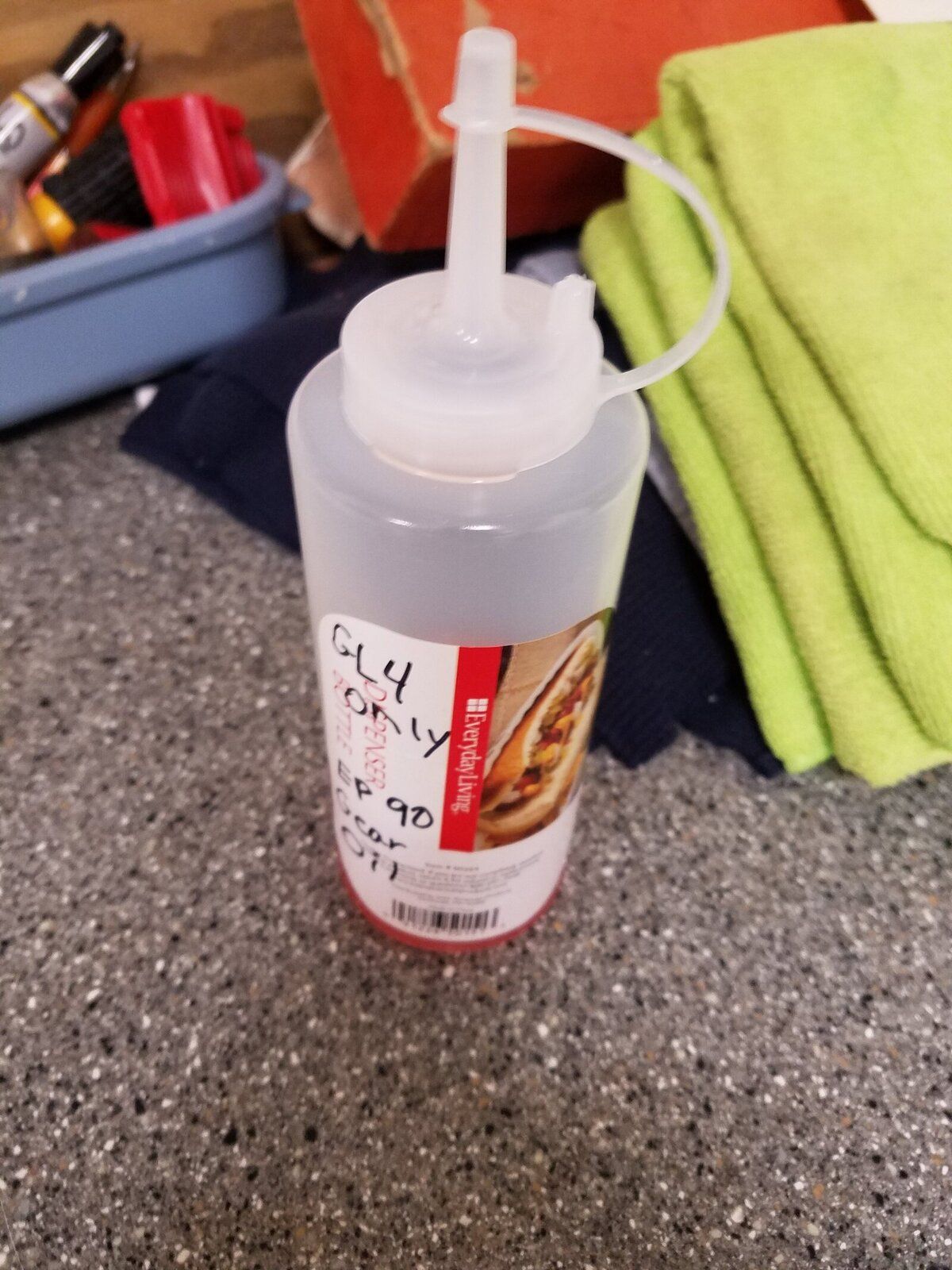

Rodeo Joe, if it's been a while since your relay was topped up expect it to take a while. I use a little clear squeeze bottle from the grocery store. Take out the two bolts in the top of the relay that are front and rear of the four available. Squeeze in a little EP90. Replace bolts a little later and do again the next day or weekend, repeating until it won't hold any more. Made a HUGE difference in the steering, eliminating most play in the system. I think mine had never been filled before I bought the vehicle.
Rodeo Joe, if it's been a while since your relay was topped up expect it to take a while. I use a little clear squeeze bottle from the grocery store. Take out the two bolts in the top of the relay that are front and rear of the four available. Squeeze in a little EP90. Replace bolts a little later and do again the next day or weekend, repeating until it won't hold any more. Made a HUGE difference in the steering, eliminating most play in the system. I think mine had never been filled before I bought the vehicle.
Attachments
- Posts
- 68,332
- Location
- The Wooly Witch
Colthebrummie
Well-Known Member
- Posts
- 9,870
- Location
- Thatcham
Oh,
I do beg your pardon, the title 'steering box lubrication' made me think we were talking about steering box lubrication, how utterly stupid of me.
Col
