Steering Arm

Discussion in 'Series Land Rovers' started by border, Apr 4, 2021.

< Previous Thread | Next Thread >
  1. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK

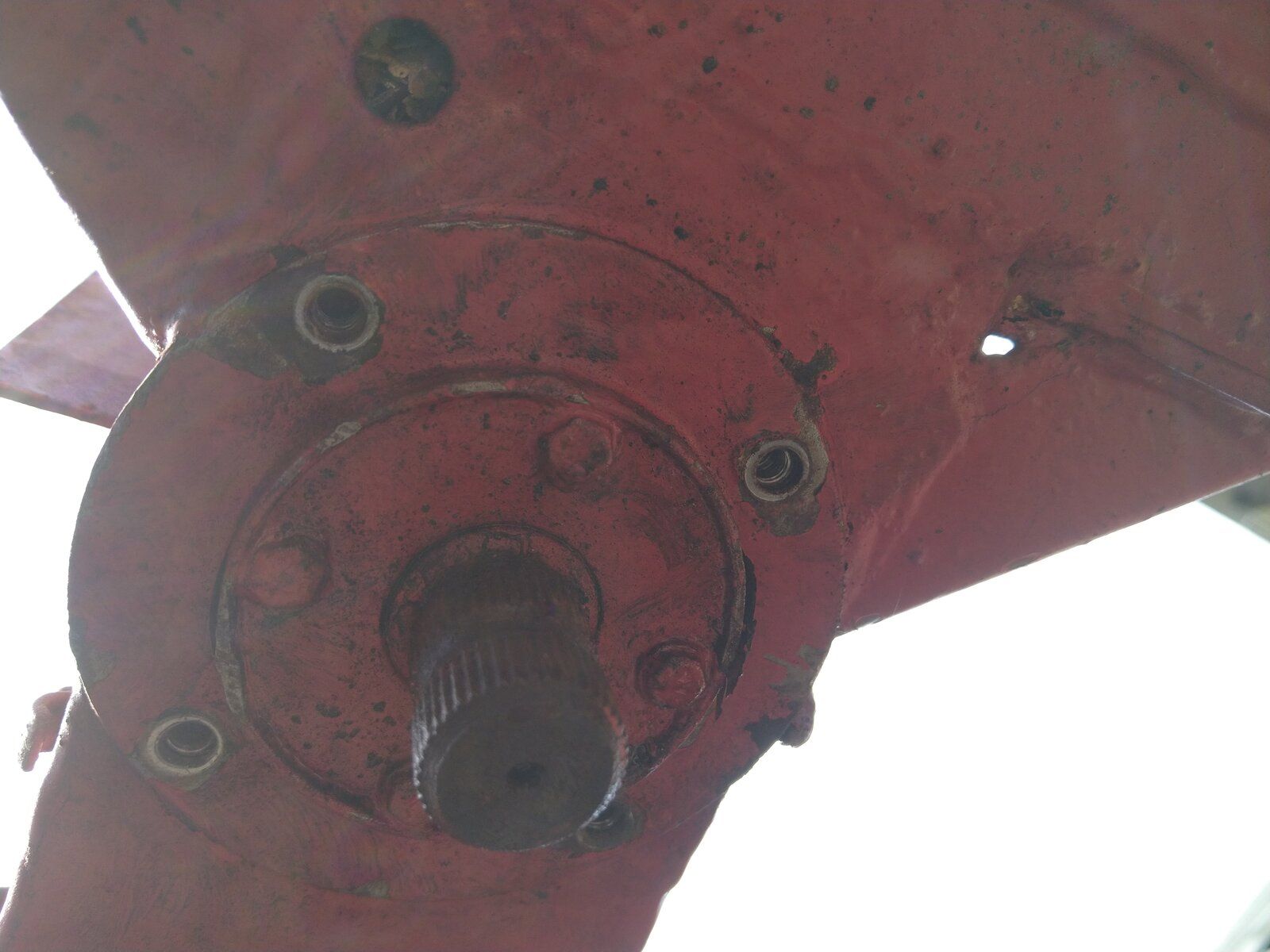

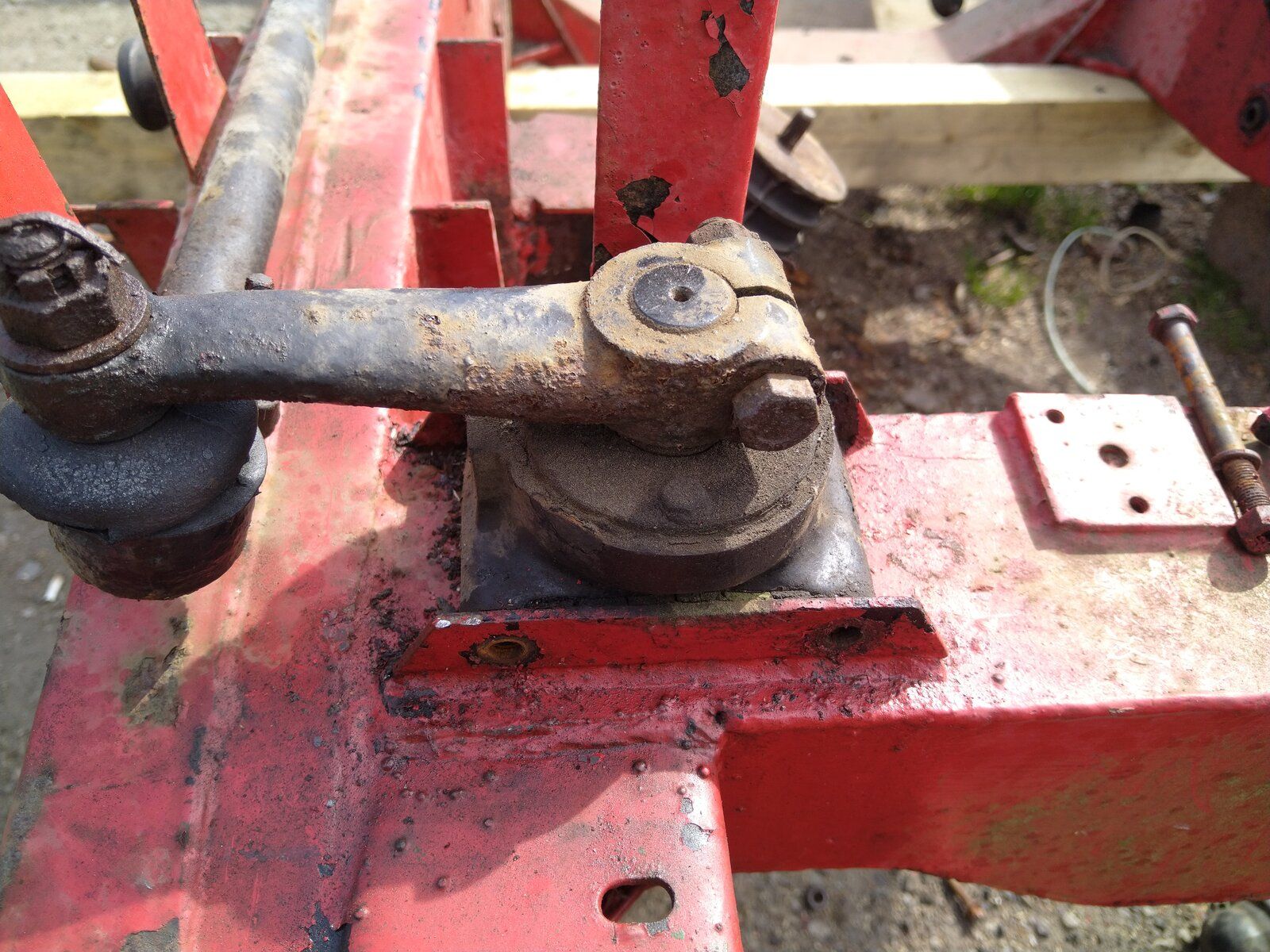

    Stripping Chassis for shot blasting. trying to get this arm off, have removed bolts top and bottom , it wont budge yet , just noticed these other smaller 4 bolts will take them out later .
    Is there a knack to this or will I have to use brute force ?


    Attached Files:

  2. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    8,167
    Likes Received:
    15,373
    Location:
    Bulgaria
    Turboman and Hicap phill like this.
  3. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,917
    Likes Received:
    15,624
    Location:
    Kent
    Search for steering idler removal or removing steering idler.

    DO NOT and I cannot emphasise this enough, remove the 4 small bolts top and bottom.

  4. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,064
    Likes Received:
    605
    Location:
    Tyneside
    The four bolts holding the lower ring can be removed , not the lower part of the relay ie the bit the shaft comes through.
    The relay gets crud between the cahssis and it withe the retainer off you can scrape some of it out with a small knife or broken hacksaw blade . Diesel will soften the crud.
    You can turn the chassis upside down and let it soak in.

    Turboman and lynall like this.
  5. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK
    Glad I've just checked in on my phone, was just about to have a go at removing those bolts. It's normal for me to fu!! things up that dam thing will still not budge yet though, gonna have a read through the link marjon sent before I touch anything else.

    lynall likes this.
  6. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    8,167
    Likes Received:
    15,373
    Location:
    Bulgaria
    It will show you whats in there and what you are up against.

    J

  7. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK

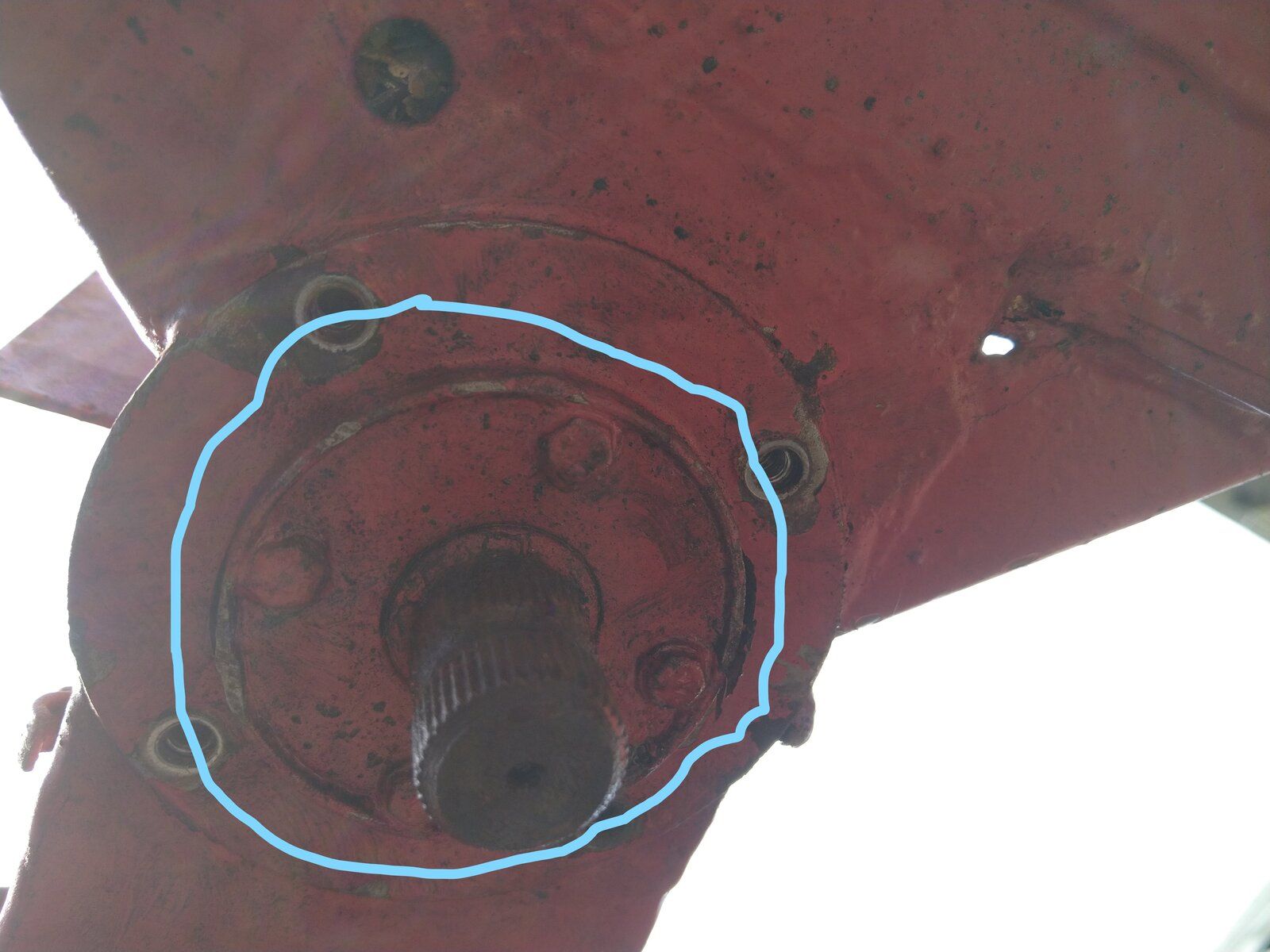

    Yes I see what it is now. So should the round plate circled in blue that I have removed bolts from Prise Off first ?


    Attached Files:

  8. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    8,167
    Likes Received:
    15,373
    Location:
    Bulgaria
    Yes, see @Blackburn post.
    Patience or violence to get it out it seems:eek::)

    J

  9. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK
    , Thought it was all one piece, must be the crud and paint covering the join. don't want to hammer at the end in case I bugger the threads up where arm goes back on. will have another go tomorrow and try not to damage anything.

    marjon likes this.
  10. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK
    Well Ive been in some sticky situations similar to this with mt defender rebuild but never gave up, always got them in the end. But Im ready to give up in this one, watched a few vids on getting them out with a jack but they had the full weight of vehicle on them, tried lowering on to axle stand with socket and banging it down from top, the dam thing has not moved. dont want to cut it out then have to weld chassis back up. Gonna tip chassis on its side or even upside down as blackburn mentioned then have a go from that side.

  11. Herald

    Herald Member

    Joined:
    Sep 24, 2008
    Posts:
    84
    Likes Received:
    0
    Location:
    East London
    Are you still trying to remove the flange plate (the item circle in blue in earlier posts) I used a cold chisel to remove that, it was heavily corroded. The steering relay itself came out after filling the hole with penetrating fluid for a few days then knocking the top left to right, left to right repeatedly - the movement is imperceptible at first. I jacked the car up on the relay and continued knocking it from side to side. It eventually came out. Keep topping it up with your favourite penetrating fluid/diesel/brake fluid.

  12. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    3,533
    Likes Received:
    1,441
    Location:
    Slough and Bath
    Agreed, run oil down between the relay and the chassis for a few days, keep tapping it. There is a section where water gets in a swells it and it gets stuck. Once it moves you should be OK. A lot of people free it with a jack from underneath but you may be short of weight.

  13. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK
    Ive removed the round plate it came off easy. Doing as above tapping everywhere, now I have moved it up about half inch so getting somewhere at last after starting to use diesel instead of wd40, still soaking so see how far I can get it tomorrow.
    ,

    Blackburn and lynall like this.
  14. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    3,533
    Likes Received:
    1,441
    Location:
    Slough and Bath
    !/2" is a good as a done, you are nearly home and dry.

    border likes this.
  15. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK

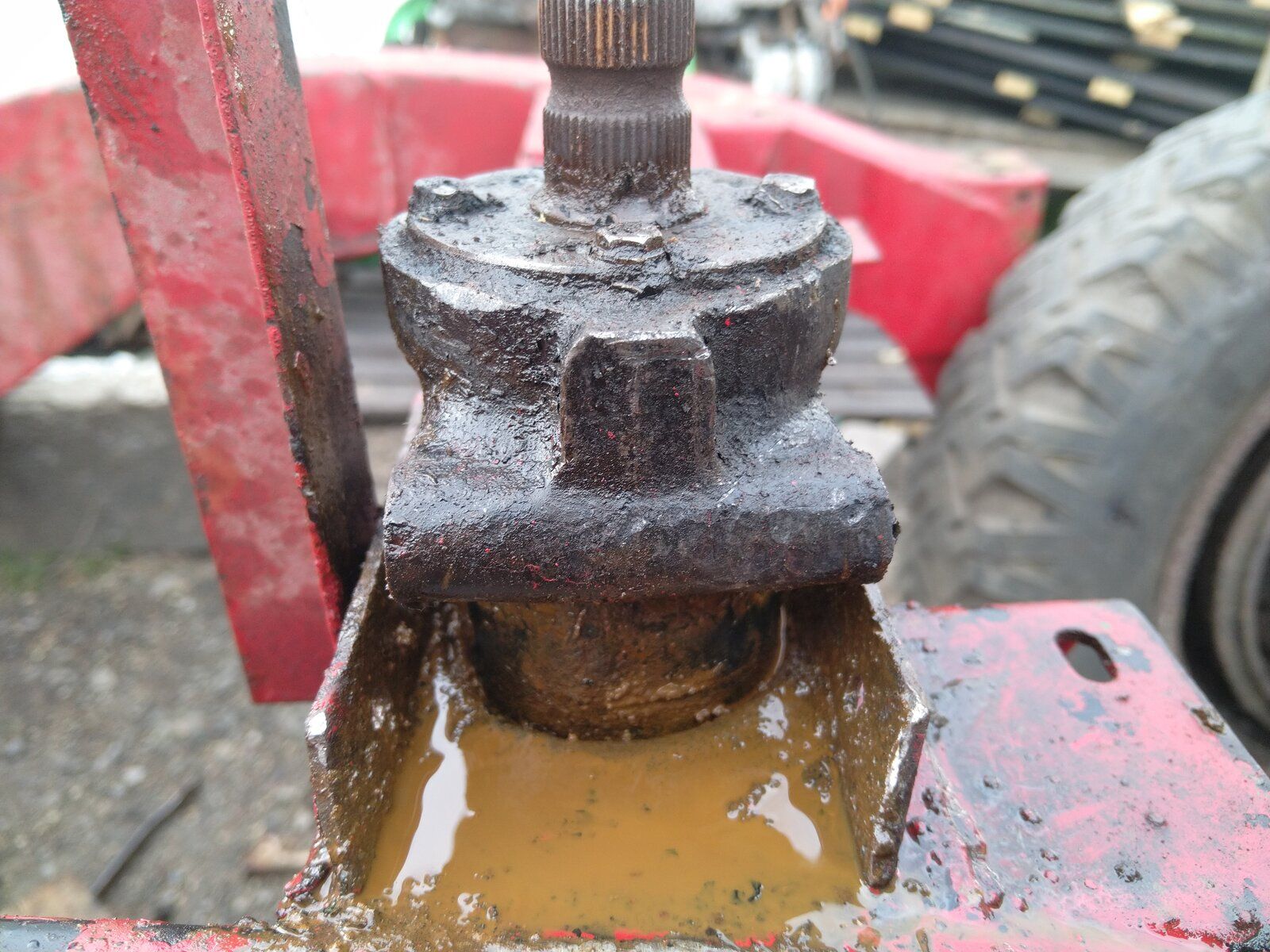

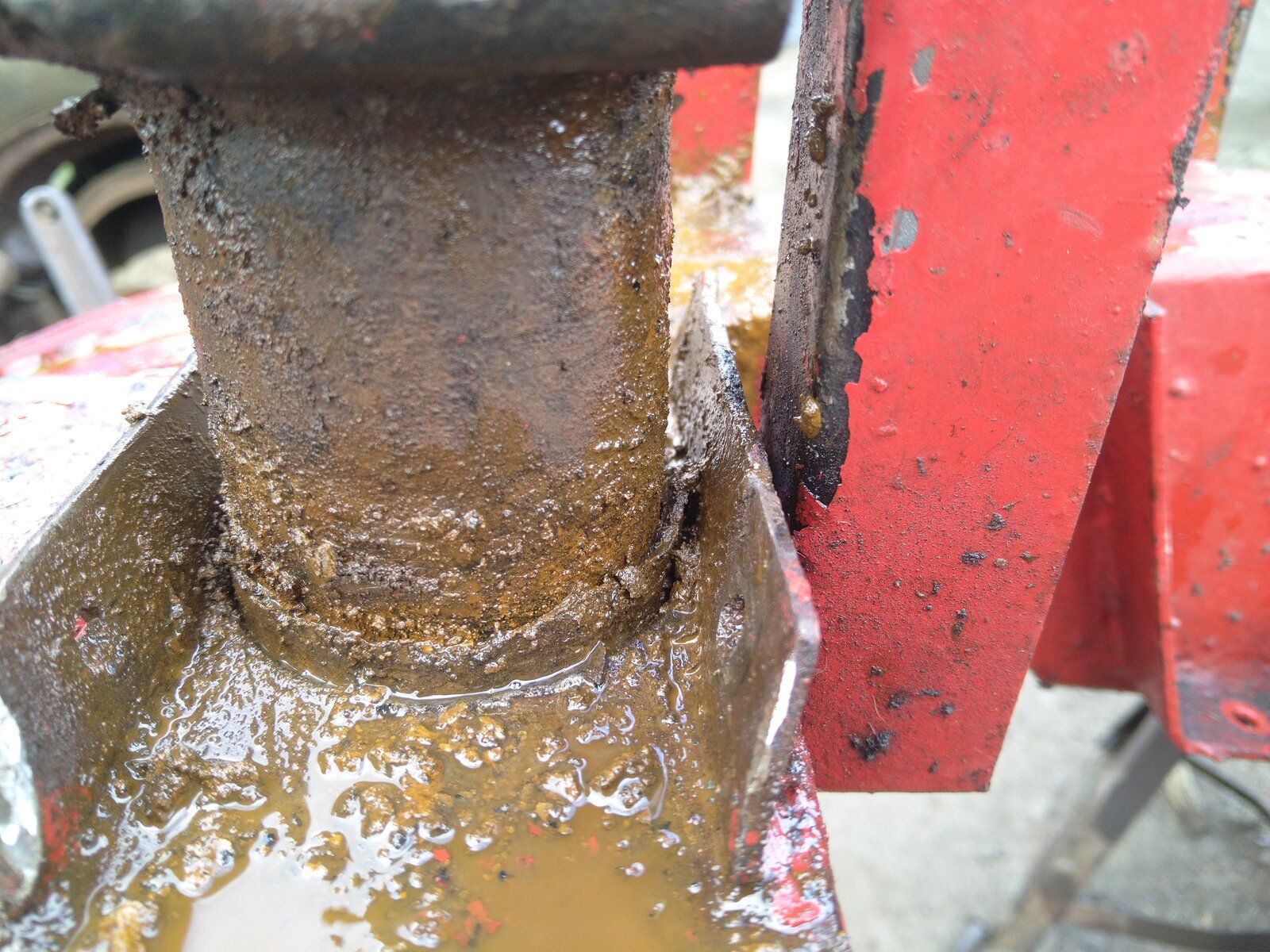

    Nearly there now, need 5 minutes to carm down and stop shouting and swearing


    Attached Files:

    marjon likes this.
  16. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    5,943
    Likes Received:
    833
    Location:
    Manc chester
    When you replace the relay replace it with a good make one like Bearmach :)

  17. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,064
    Likes Received:
    605
    Location:
    Tyneside
    Overhaul your old one if shaft fitted you can fit a speedi sleeve to it.

  18. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK

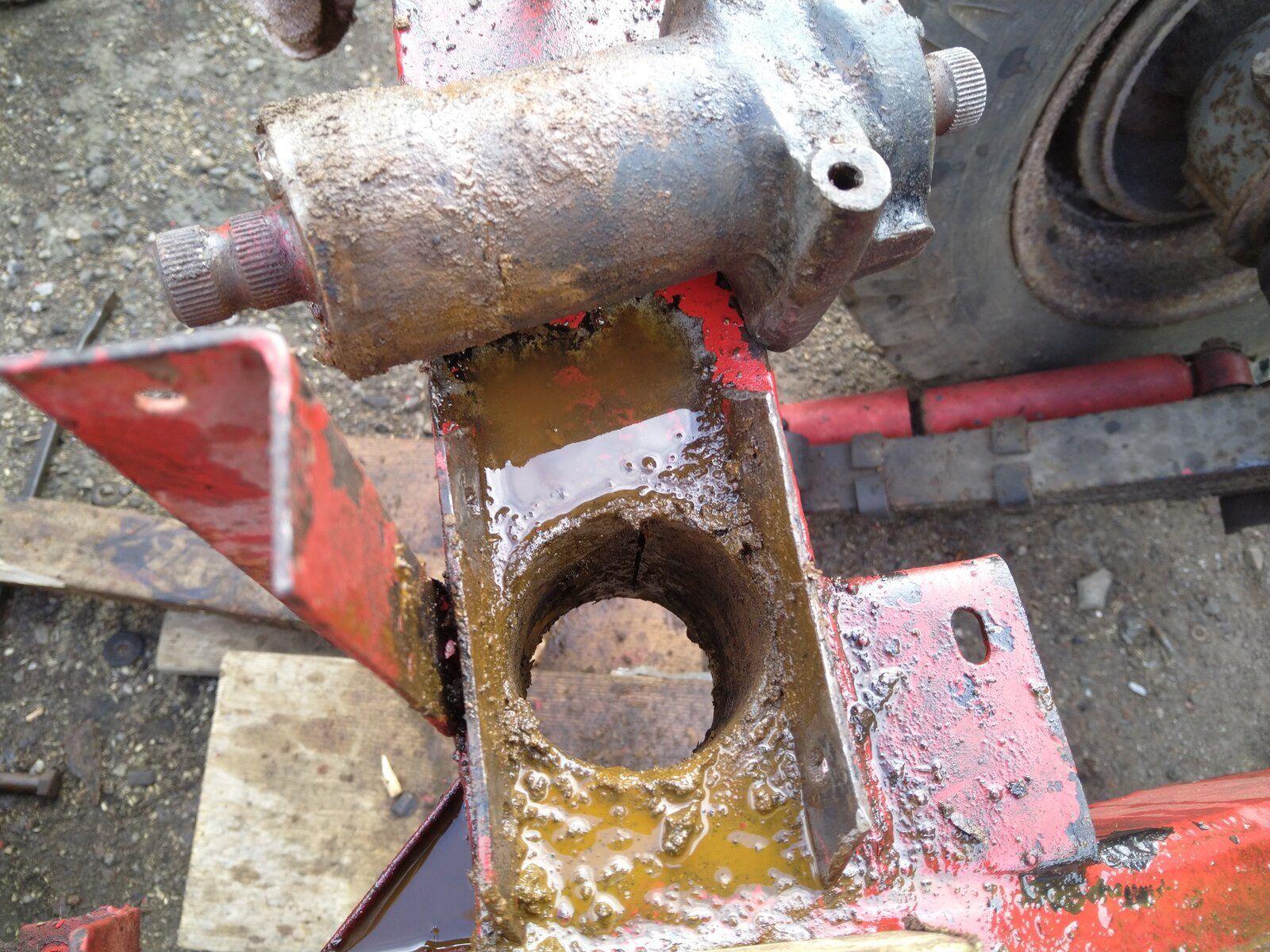

    Well the bas!!!rds oot, nearly gave up but got there in the end , broke one of the corners off but still usable. was planning on keeping it but not sure how old or how long its been in there, probably since 1970 by the look of it. but think the rebuild deserves a new one anyway , depending on price of them.

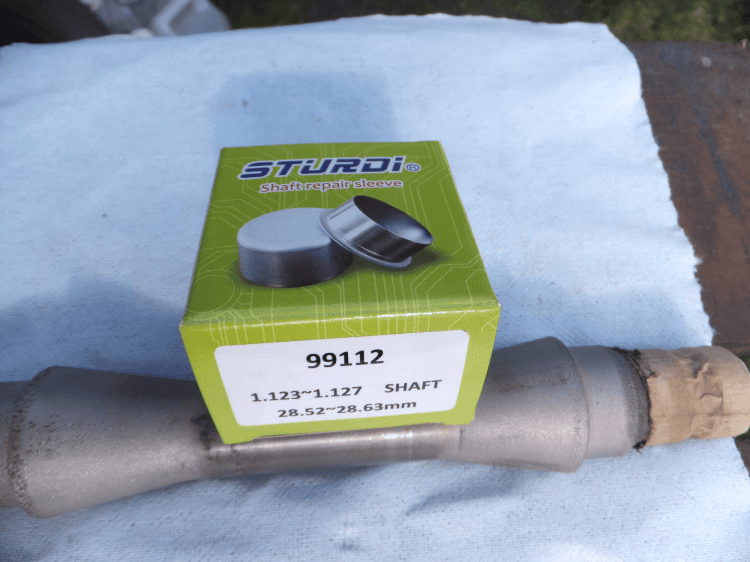

    Whats a speedy sleeve ?


    Attached Files:

    lynall likes this.
  19. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,064
    Likes Received:
    605
    Location:
    Tyneside

    Attached Files:

    lynall likes this.
  20. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,149
    Likes Received:
    775
    Location:
    North East. UK
    Thanks Mate will have a good look at it and see if it is worth saving.
