Starter motor

Discussion in 'Series Land Rovers' started by shayneyboy, Mar 17, 2019 at 12:53 PM.

< Previous Thread | Next Thread >
  1. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    Hi guys, my starter motor has decided to pack in, I’ve taken it off and it’s just sticking, does any of you know where the cheapest place is to buy one??

  2. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,314
    Likes Received:
    487
    Location:
    west wales coast
    What engine?

  3. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    Oh aye that would help lol
    Series 3 2.25 diesel

  4. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,314
    Likes Received:
    487
    Location:
    west wales coast
    Does the motor still run? If so you may just need a new solonoid and a clean up.

  5. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    No it won’t spin, it jumps forward but won’t spin round so don’t think it’s the solonoid

  6. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,314
    Likes Received:
    487
    Location:
    west wales coast
    Simplest thing is a new one then.

  7. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,048
    Likes Received:
    218
    Location:
    Tyneside
    When the solenoid jumps forward it closes a set of contacts to energise the motor have you tried power to the motor direct as it may just be the solenoid contacts.

  8. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    How do I do that, I’ve just tested it with jump leads and a screwdriver touching across to start it

  9. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,314
    Likes Received:
    487
    Location:
    west wales coast
    Touch jump lead to the connection that goes into the starter body, this by passes the solonoid switch.

  10. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    Ok I’ll give it a go cheers

  11. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    Just tried it and it’s not doing anything at all

  12. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    81,996
    Likes Received:
    7,732
    Location:
    Embasinga stocæ
  13. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,321
    Likes Received:
    409
    Location:
    Slough and Bath
    If its an original Lucas then rebuild it. Its most likely the brushes which are under £5 to replace. There are a number of sizes so you need part numbers off the starter casing. The "new" starters seem to be lasting a year or two which some failing immediatly whereas the orginals with a few new parts should do 20 plus.

  14. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    I have just stripped it down and cleaned it and put it back together it did turn but is intermittent still

  15. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    81,996
    Likes Received:
    7,732
    Location:
    Embasinga stocæ
    Did yu check brushes and commutator?

  16. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    The copper brushes in the top was about 3cm long do think they are ok but I couldn’t see what else there is to change, it is a Lucas one by the way
    the brushes in the end looked ok to me and unfortunately I don’t know what a commutator is ‍♂️

  17. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,321
    Likes Received:
    409
    Location:
    Slough and Bath
    Are the brushes moving freely and the springs pushing down ok? A thing that fooled me for a while was a poor connection between the brush holder and the end cover. The later designs have both the brush holders joined on a ring and the earth bolt through it. Mine were separate and rivetted on. I drilled the rivets, cleaned it and pop rivetted it back, worked suprisingly well.

  18. shayneyboy

    shayneyboy Member

    Joined:
    Feb 21, 2019
    Posts:
    30
    Likes Received:
    4
    Location:
    halifax
    Yes they are and was a bloody pain in the arse to get back on

  19. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    81,996
    Likes Received:
    7,732
    Location:
    Embasinga stocæ

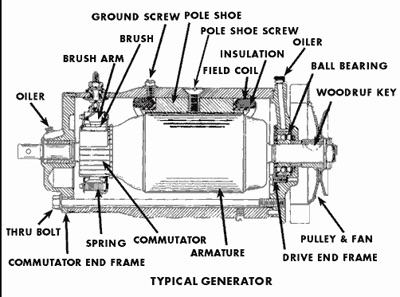

    Commutator is the copper and insulator stripy ring at one end, that the brushes sit on. Needs to be clean with the copper strips slightly proud. Clean with fine emery cloth and wash grit off with petrol.


    Attached Files:

  20. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    81,996
    Likes Received:
    7,732
    Location:
    Embasinga stocæ
    Ensure the brush springs don’t bottom out.
