Spare part

Aeromole · Sep 5, 2018

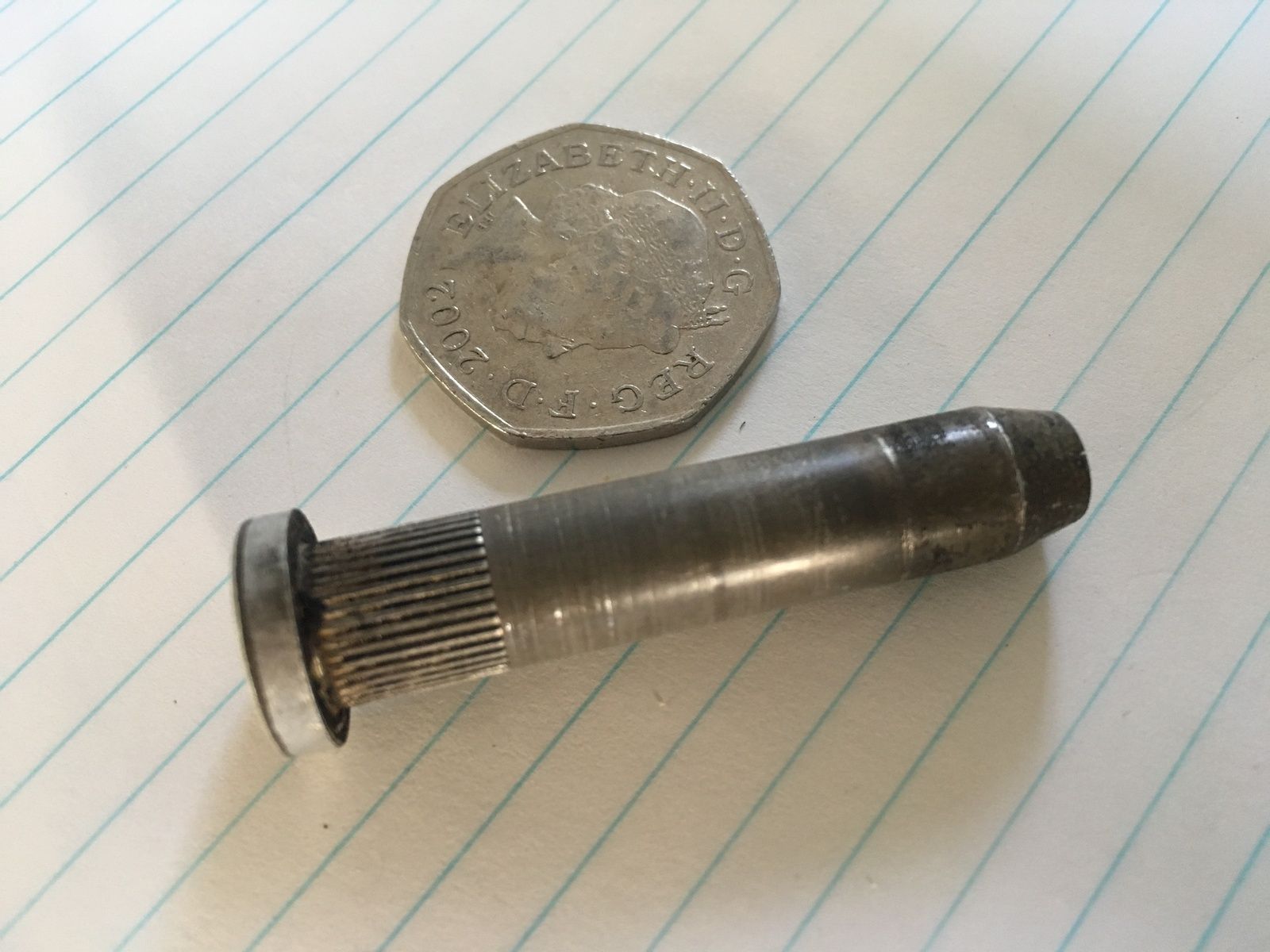

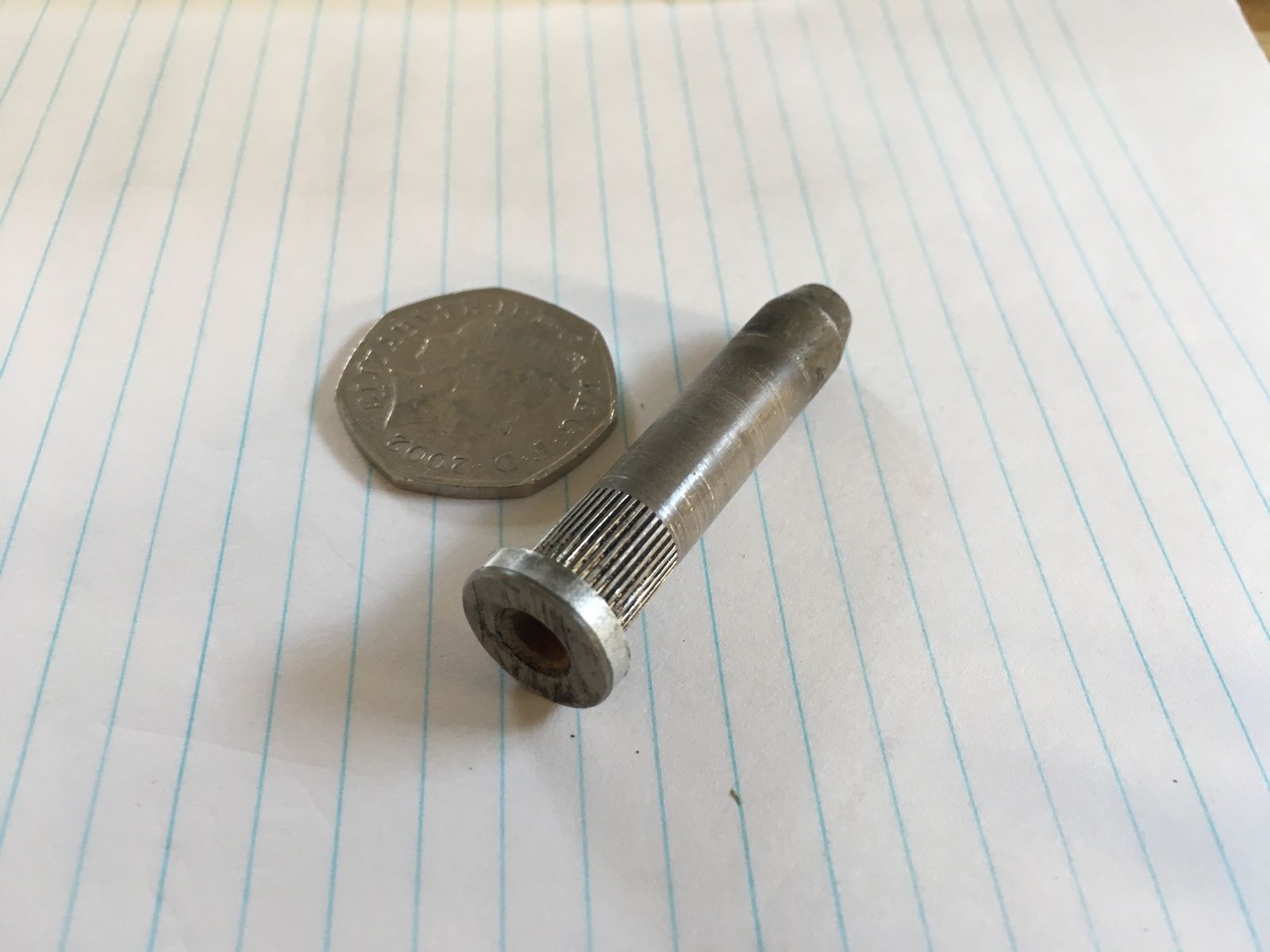

Hi. I've just replaced the head gasket on my 2002 TD5 Disco. Job went tolerably well, and the truck is running again, but.....rather embarrassingly I have a spare part! I know I took it off, but I can't for the life of me see where it came from. Pictures attached. It looks like a water flow restrictor - the hole inside is brownish. Can anyone help please....and more importantly, advise me whether I should be worried that it is not fitted! Thanks in anticipation. Pete

Lazydave · Sep 5, 2018

I believe this is fitted inside the coolant hose near to fuel cooler. It is fitted when a later type radiator is fitted. It alters flow rate.

neilly · Sep 5, 2018

Look here and scroll down to cooling unit and fan cowl diesel. look at piccie.

https://allbrit.de/NAV.cfm?PAGE=544149&SPRACHE=EN

Cheers

Interceptorxj · Sep 5, 2018

Yes just pops in the front end of the fuel cooler before you put your pipe on.

Aeromole · Sep 5, 2018

Ah, I see! Many thanks guys. Pete
