discodick2 said:

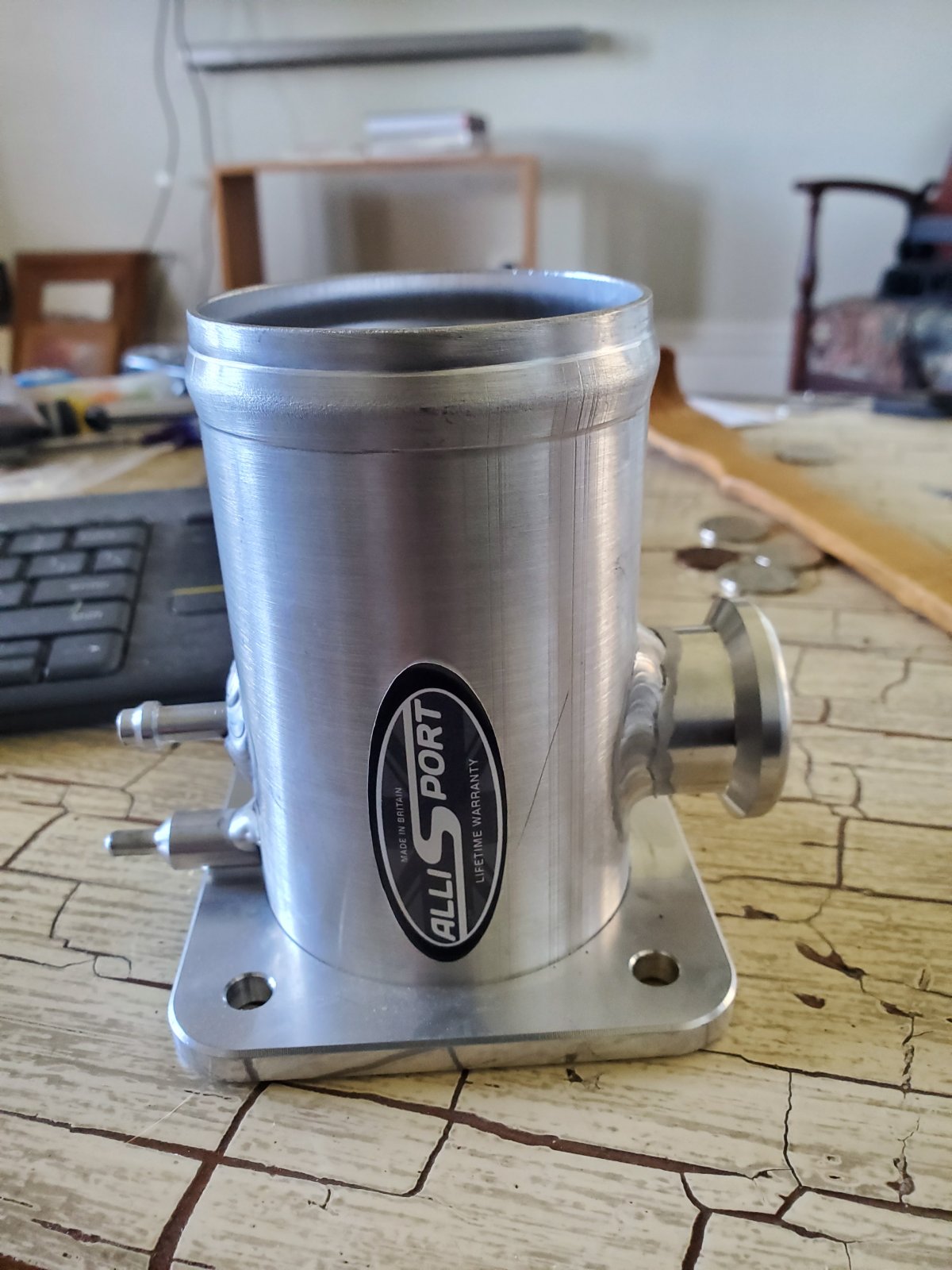

I bought an EGR delete from Allisport, it has the mushroom blank on the bottom and 2 appendages opposite. The bottom one is solid and top has a hole through into the barrel. I'm not sure what these are for. I have a 2000 td5 discovery without the cooler part in the egr pipe.
I was wondering whether I bought the right pipe, if someone could enlighten me it would be greatView attachment 326698

Click to expand...

Stanleysteamer said:

You got the wrong one, you need one for a 10p engine.

The kit should come with a really simple, flanged tube to replace the EGR, a plug to plug the single vacuum hose and a small plate to blank off the pipe from the turbo.

Even if you mess around with what you have you will end up with the inlet flow swirling around due to the shape.

Click to expand...

sierrafery said:

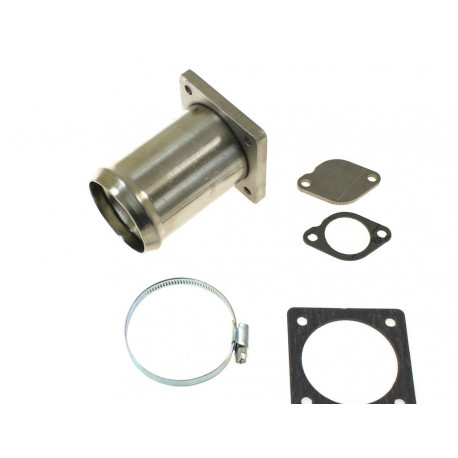

too bad that they overcomplicated a simple thing then... you paid for ports/adds which are completely useless unless you want to fit a boost gauge...the simple bypass kit for 10P looks like this

View attachment 326712

Click to expand...

Andy Warren said:

Just a simple blanking plate will do & costs nothing to make (if you have a drill/grinder/hacksaw). Also mot inspectors can't see the EGR has been 'adjusted' as all the original stuff stays in place !

Click to expand...
