SP Galvanised Rear Door

I need to replace my Series 3 rear safari door. The aluminium panel is badly corroded because the internal steel frame is very badly rusted. To avoid this in the future I thought I would fit a galvanised -frame complete rear door from SP. Does anyone have any experience of these please? I wanted to use Paintman Panels but they only supply standard steel/aluminium units. I understand they are a bit more of a fiddle to prepare for painting as the frame is galvanised.

I have just fitted their front doors and have no complaints. They fit well and we’re as expected. Not really any extra effort to paint. You just need to t-wash and use and etch primer.

So T-Wash, rinse off and check good black coverage then etch primer…..did you bother with a high build primer or did you go straight to paint then please?

Binks said:

I need to replace my Series 3 rear safari door. The aluminium panel is badly corroded because the internal steel frame is very badly rusted. To avoid this in the future I thought I would fit a galvanised -frame complete rear door from SP. Does anyone have any experience of these please? I wanted to use Paintman Panels but they only supply standard steel/aluminium units. I understand they are a bit more of a fiddle to prepare for painting as the frame is galvanised.

Click to expand...

Fitted 2 front galvanised door bottoms and a rear safari door already Glazed without any problems, left them just a nice clean alloy finish with a coat of clear coat ( lacquer) over the top

Binks said:

So T-Wash, rinse off and check good black coverage then etch primer…..did you bother with a high build primer or did you go straight to paint then please?

Click to expand...

I didn’t bother with high build primer but I was not going for a perfect finish. I was painting with a roller in a barn. My Land Rover is not exactly straight and I didn’t bother filling any of the dents etc either. Having said that I still achieved a reasonable finish.

Link to doors page of rebuild thread (you can see the finished painter doors on page 25)

Thanks guys

Binks said:

Thanks guys

Click to expand...

Dunno if it's too late but I got a set of front and rear doors a couple weeks back from SP and the back one was okay but the front doors were very poor, skins not put on right, mounting holes for the hinges and door tops drilled in the wrong places and the welds sitting so proud that the cappings wouldn't fit.... It's been an ordeal trying to get them to admit the parts were faulty and I've since gotten doors from paintman panels which are far better.

lANDYbrownlee said:

Dunno if it's too late but I got a set of front and rear doors a couple weeks back from SP and the back one was okay but the front doors were very poor, skins not put on right, mounting holes for the hinges and door tops drilled in the wrong places and the welds sitting so proud that the cappings wouldn't fit.... It's been an ordeal trying to get them to admit the parts were faulty and I've since gotten doors from paintman panels which are far better.

Click to expand...

Vs the paintman doors

I also have the paint man panels front doors. Not fitted them yet as they are in the pile of "done" bits.

I recently bought a Paintman Panels glazed door top and it fitted perfectly. I bought the rear door from SP because it has a galvanised steel frame and since it was the rusting steel frame that corroded my current door skin I saw this as the way forward (Paintman don’t supply galvanised rear doors). I was worried when I read your post but I see your rear door was fine. I hope mine will be as it is coming on Tuesday!

Binks said:

I recently bought a Paintman Panels glazed door top and it fitted perfectly. I bought the rear door from SP because it has a galvanised steel frame and since it was the rusting steel frame that corroded my current door skin I saw this as the way forward (Paintman don’t supply galvanised rear doors). I was worried when I read your post but I see your rear door was fine. I hope mine will be as it is coming on Tuesday!

Click to expand...

I wanted to fit galvanised rear door too but mine is a Series 3 with the brass guide block and, because I have spare on rear door have x3 rear hinges. SP could not do both but the Paintman one did (I'll put up with having to block the hole for extra lock with grommet).

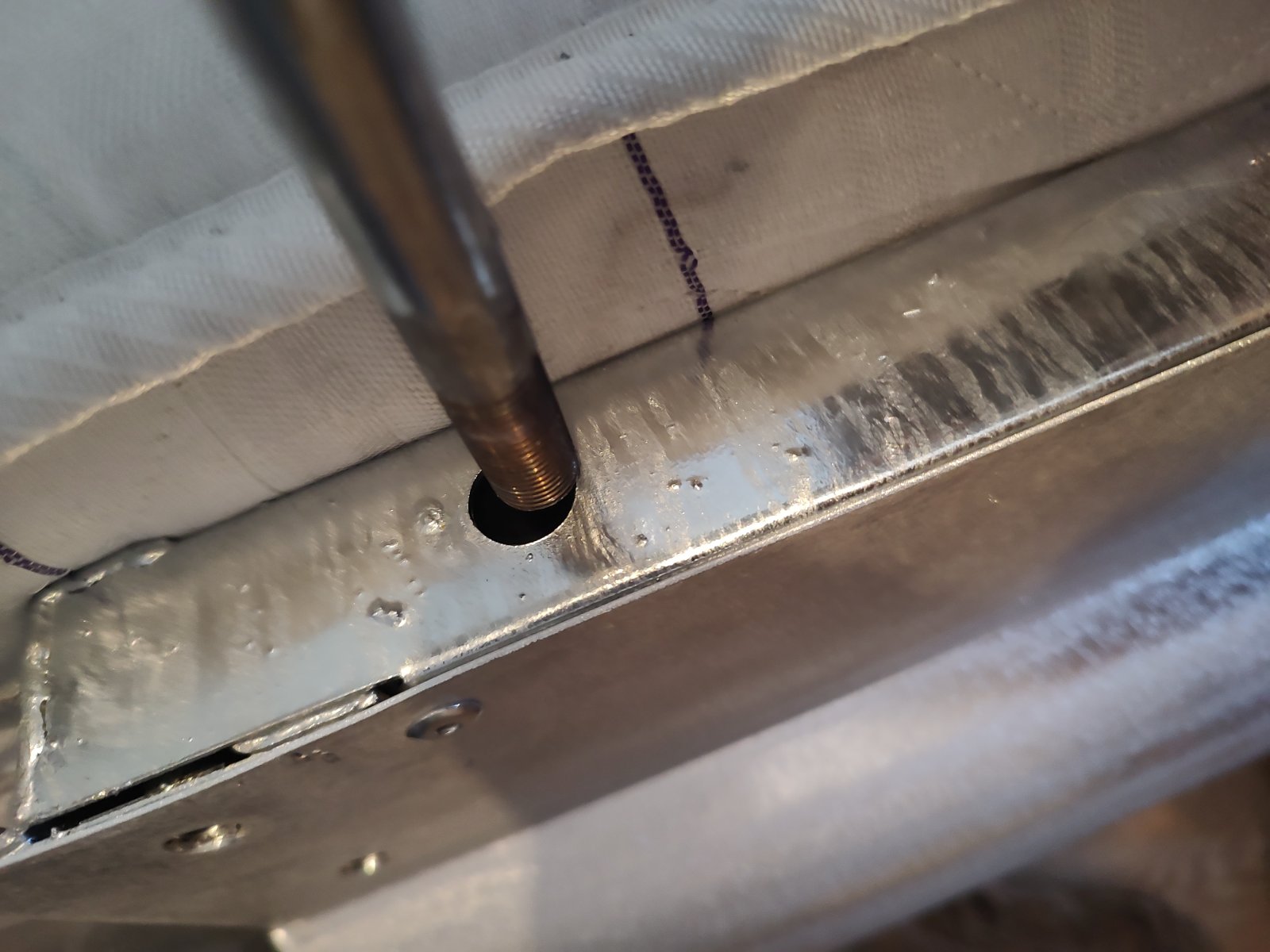

One thing I have noticed is that there are no drain holes for the frame at the bottom (although my previous door rotted the aluminium below the window and the frame around the lock). Before I fit the door I was going to add a couple of drain holes in the lower frame , paint it and then fill the voids between the frame and skin with Waxoyl to slow the rotting process down.
Anyone got any other top tips (sarcastic suggestions re: galvanising are out!)

Built hambler dynax s50, not waxoil

Dinitrol not waxoil.

Basically as above anything but waxoil, it is no longer that good and there are much better alternatives on the market.

The SP galvanised rear door does have the fitting for the bronze guide plate.

Thanks for suggestions, where I applied Waxoyl in my old MGB box sections it lasted for 20 years, problem was the bits I missed!
I have some ACF 50 but that is more of a surface treatment and could get expensive.
I'll research the Dinitrol and Dynax S50
@Binks but they advised me that the door with the bracket for the block only has two hinges?

Dinitrol 3125 HS for the cavity protection
Dinitrol 4941 for the externals

That is what I have use don my chassis, bulkhead, door frmaes etc.
