Sills Defender 110 van

border · Feb 4, 2020

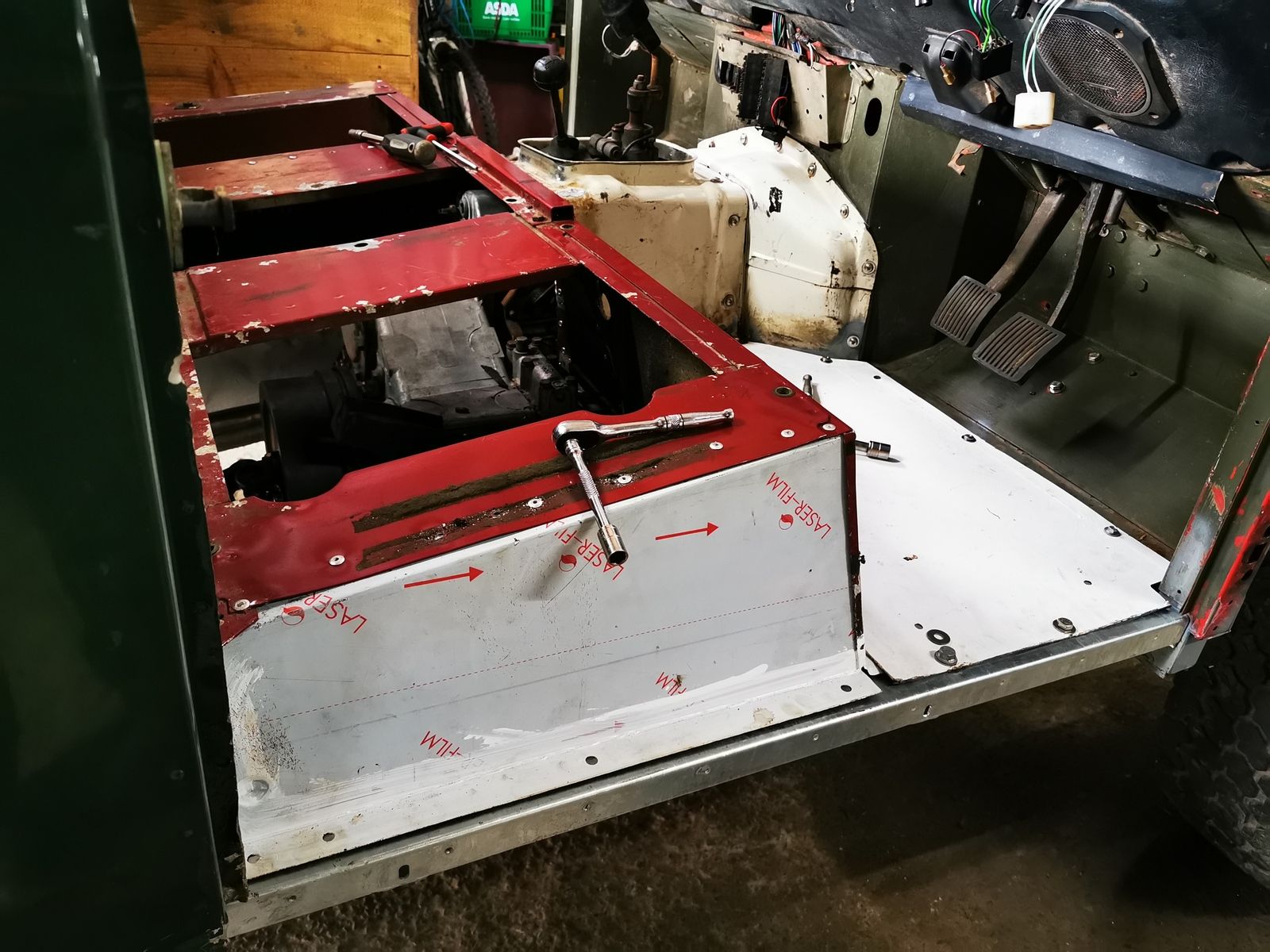

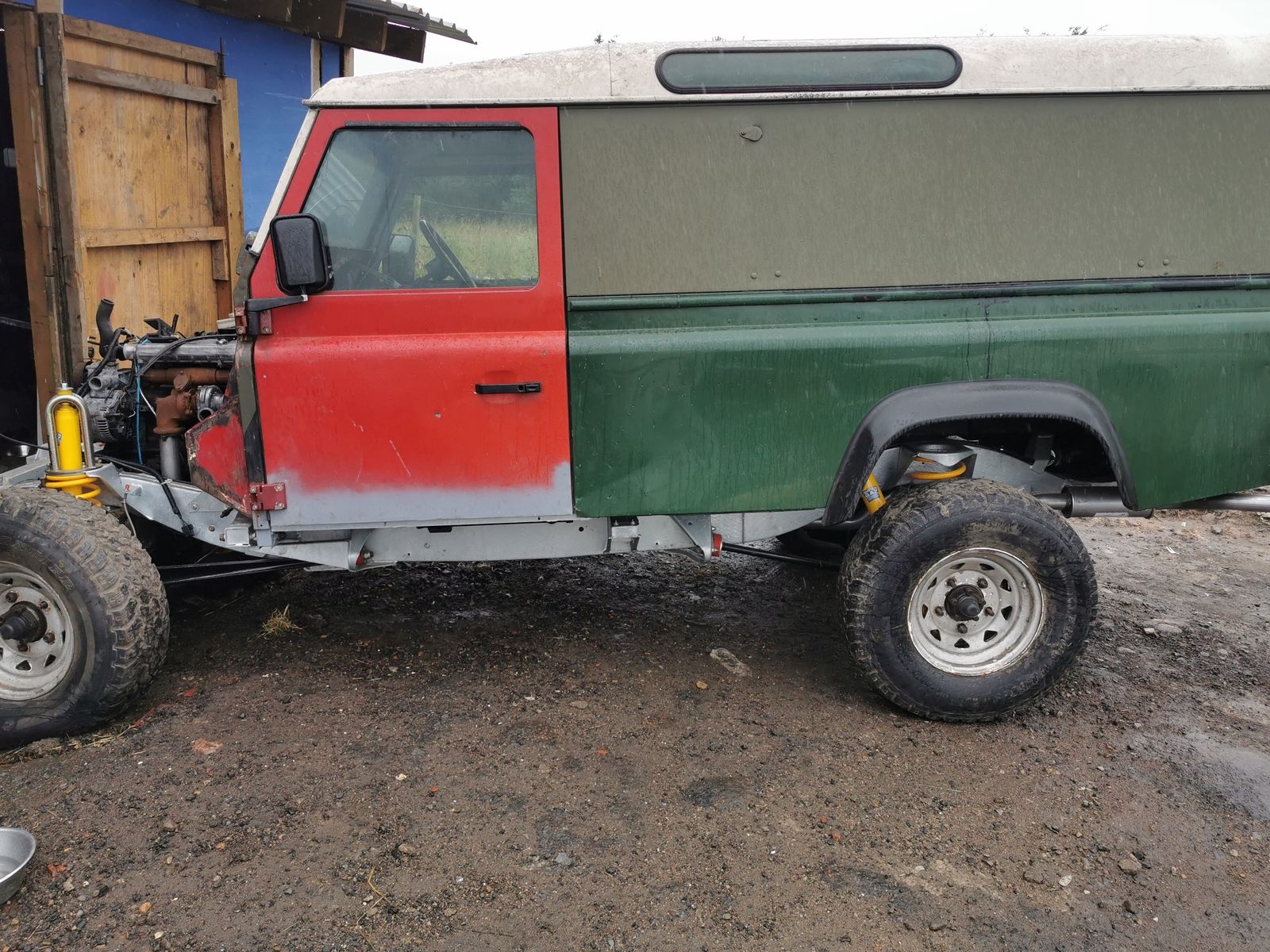

Need to order a couple of bits for my rebuild. I just remembered I need sills, but not sure what ones to get, Nearly ordered these but not sure now, https://www.paddockspares.com/110-chequered-sills-pair.html Are these the Full Sill ? or just the outer bit, Problem is I bought project as rolling chassis so did not get to see how Origional ones were fitted, it has the inner sill rails fitted already, but just to the length of the Door. .

jamesmartin · Feb 4, 2020

try rtc6205 and rtc6205,
mrc5049 and mrc5050

border · Feb 4, 2020

jamesmartin said:
try rtc6205 and rtc6205,
mrc5049 and mrc5050

Right so I need all 4 ? Thought they would be 1 each side but longer.

jamesmartin · Feb 4, 2020

border said:
Right so I need all 4 ? Thought they would be 1 each side but longer.

front sill are made to fit both 90 and 110,so the rears differ

border · Feb 4, 2020

jamesmartin said:
front sill are made to fit both 90 and 110,so the rears differ

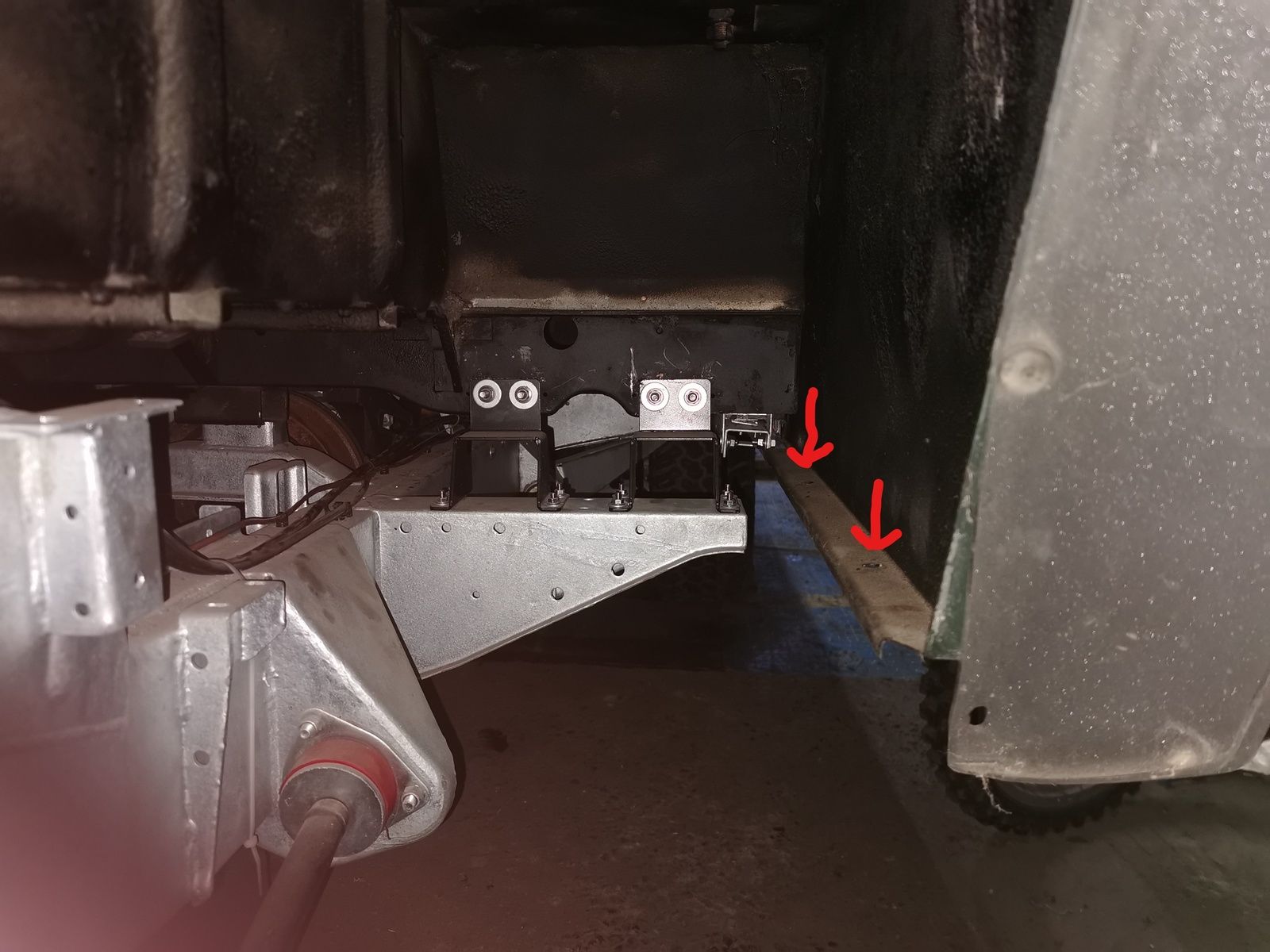

Have I missed something out here ? Inner sill rail is only Door width, end arrowed in pic. there is nothing beyond that to fit rears bit on.

jamesmartin · Feb 4, 2020

border said:
Have I missed something out here ? Inner sill rail is only Door width, end arrowed in pic. there is nothing beyond that to fit rears bit on.

bolts to underside of body side

border · Feb 4, 2020

jamesmartin said:
bolts to underside of body side

I have some brackets that came with the inner sill rails, do the other bolts go through these holes on pic ?

jamesmartin · Feb 4, 2020

bolt the bracket to the sill and offer it up

border · Feb 4, 2020

jamesmartin said:
bolt the bracket to the sill and offer it up

OK Thanks for all your help mate. Found them cheaper on Island 4x4 .

border · Feb 8, 2020

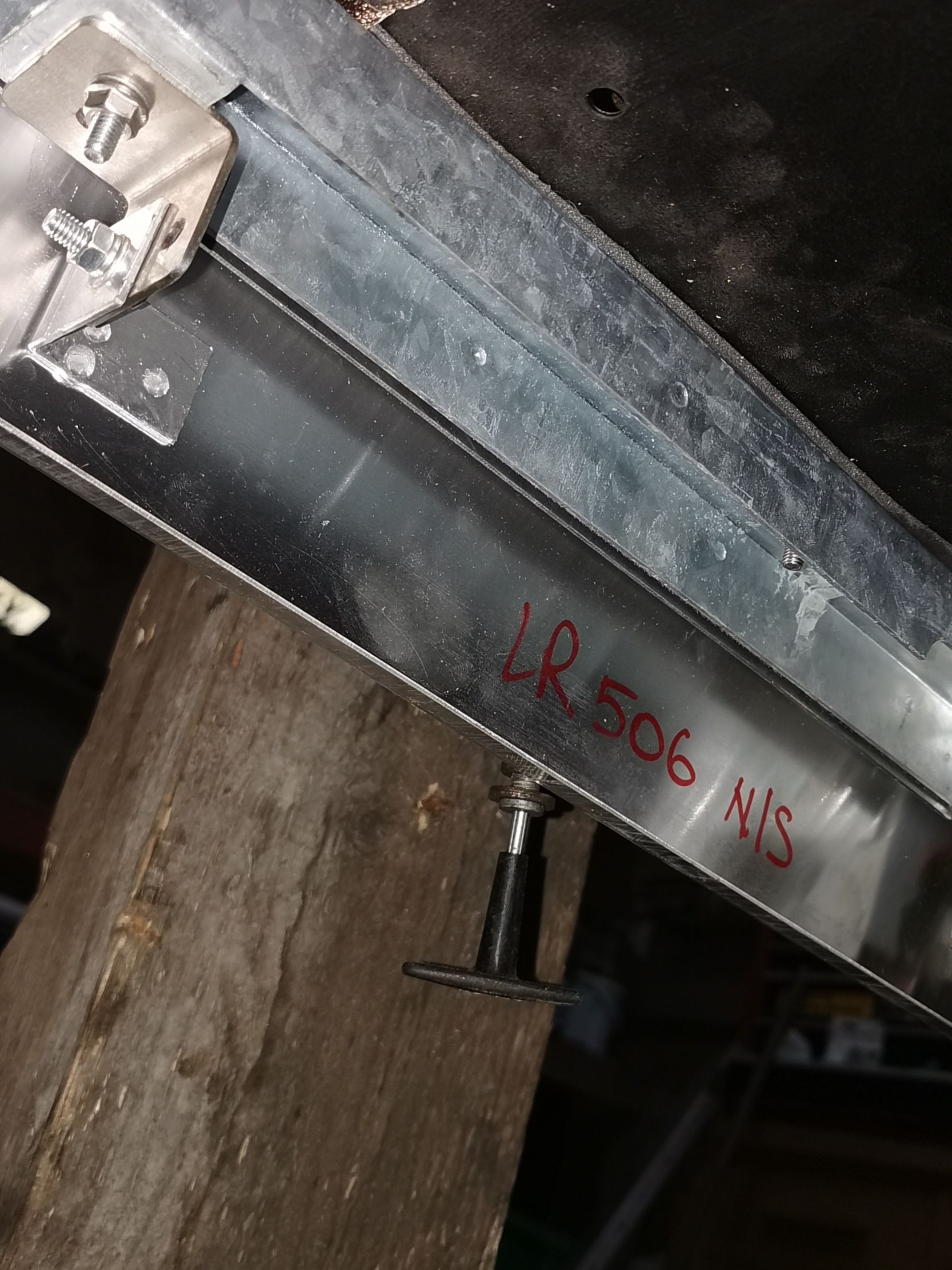

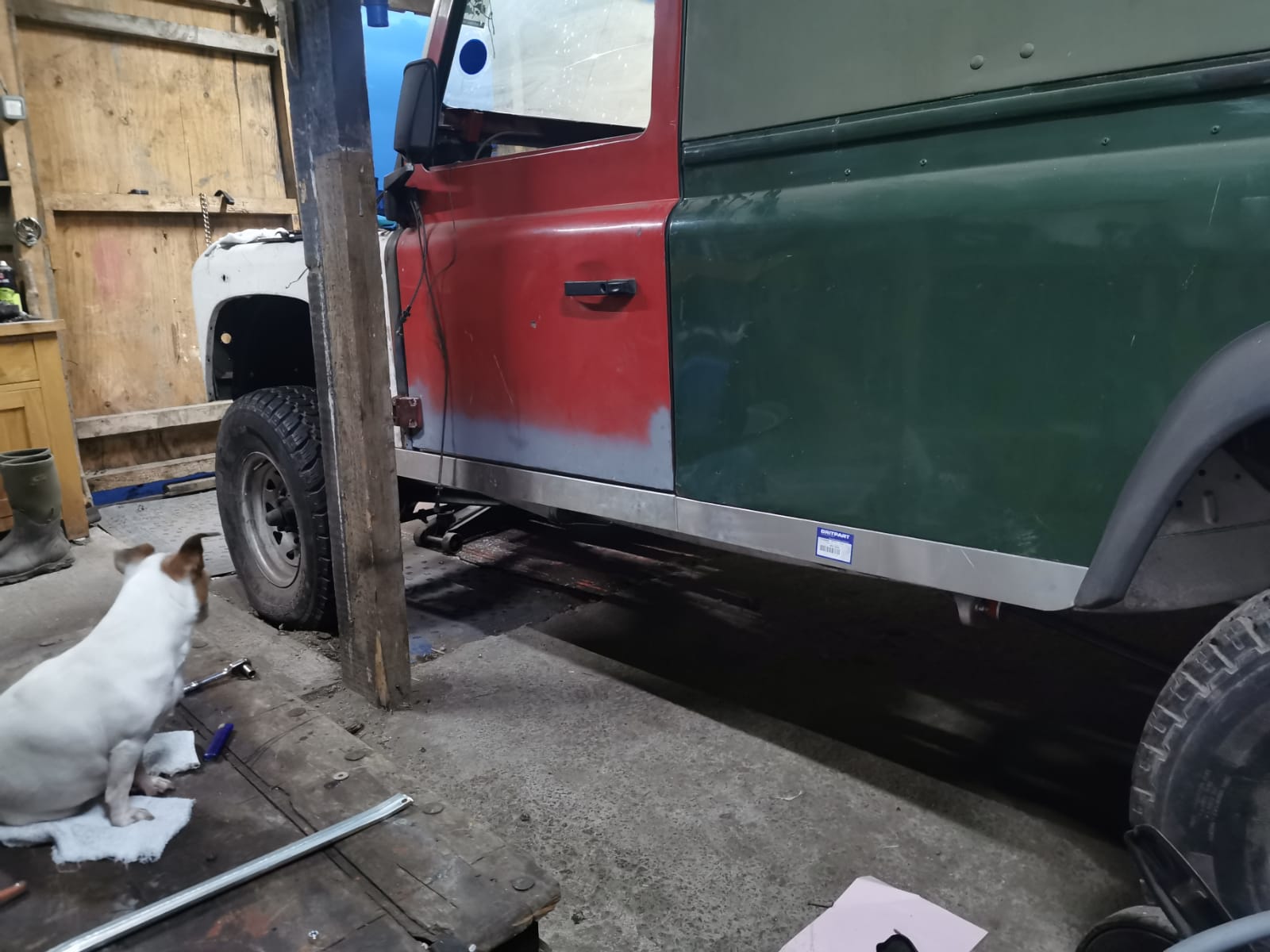

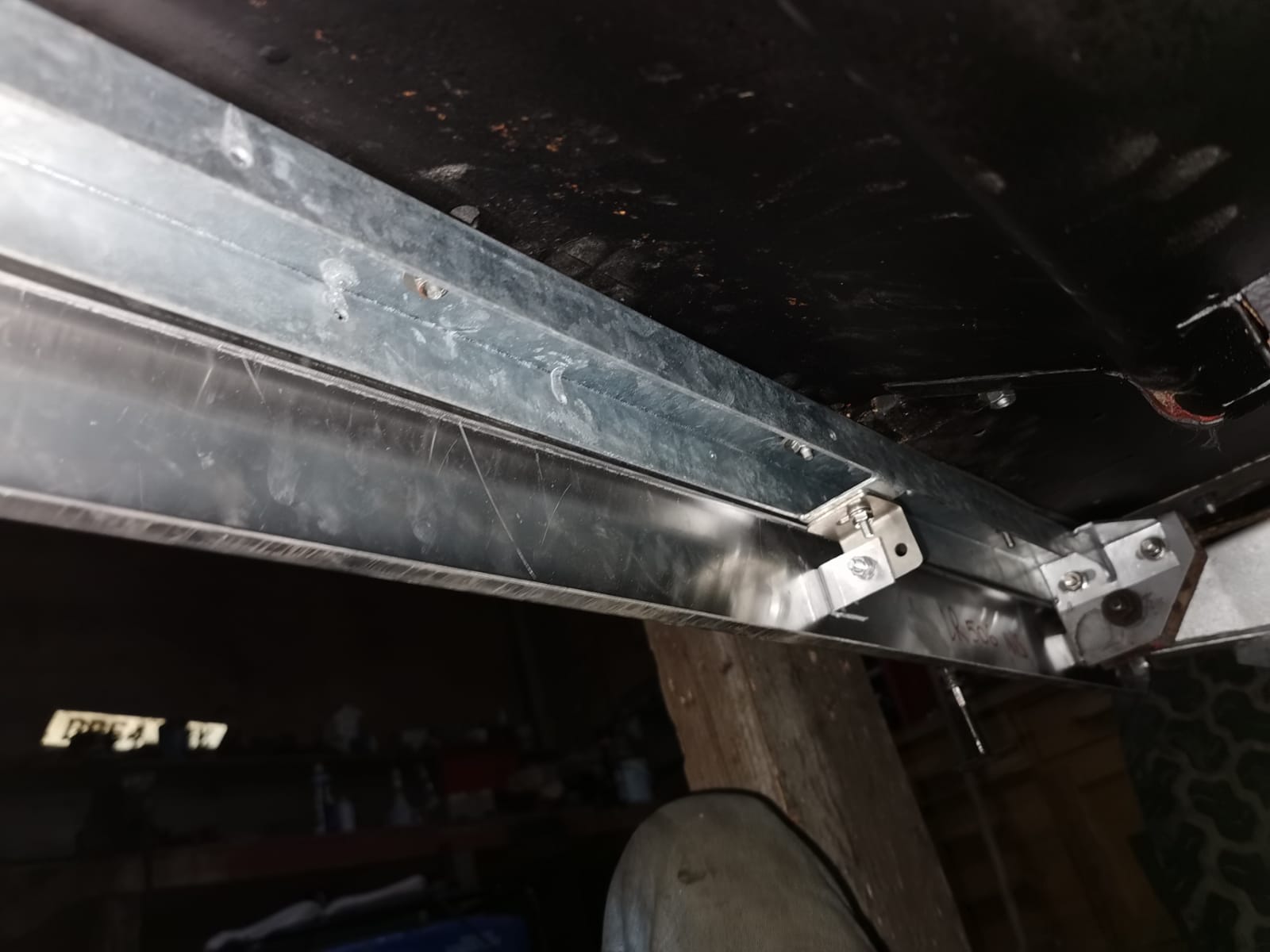

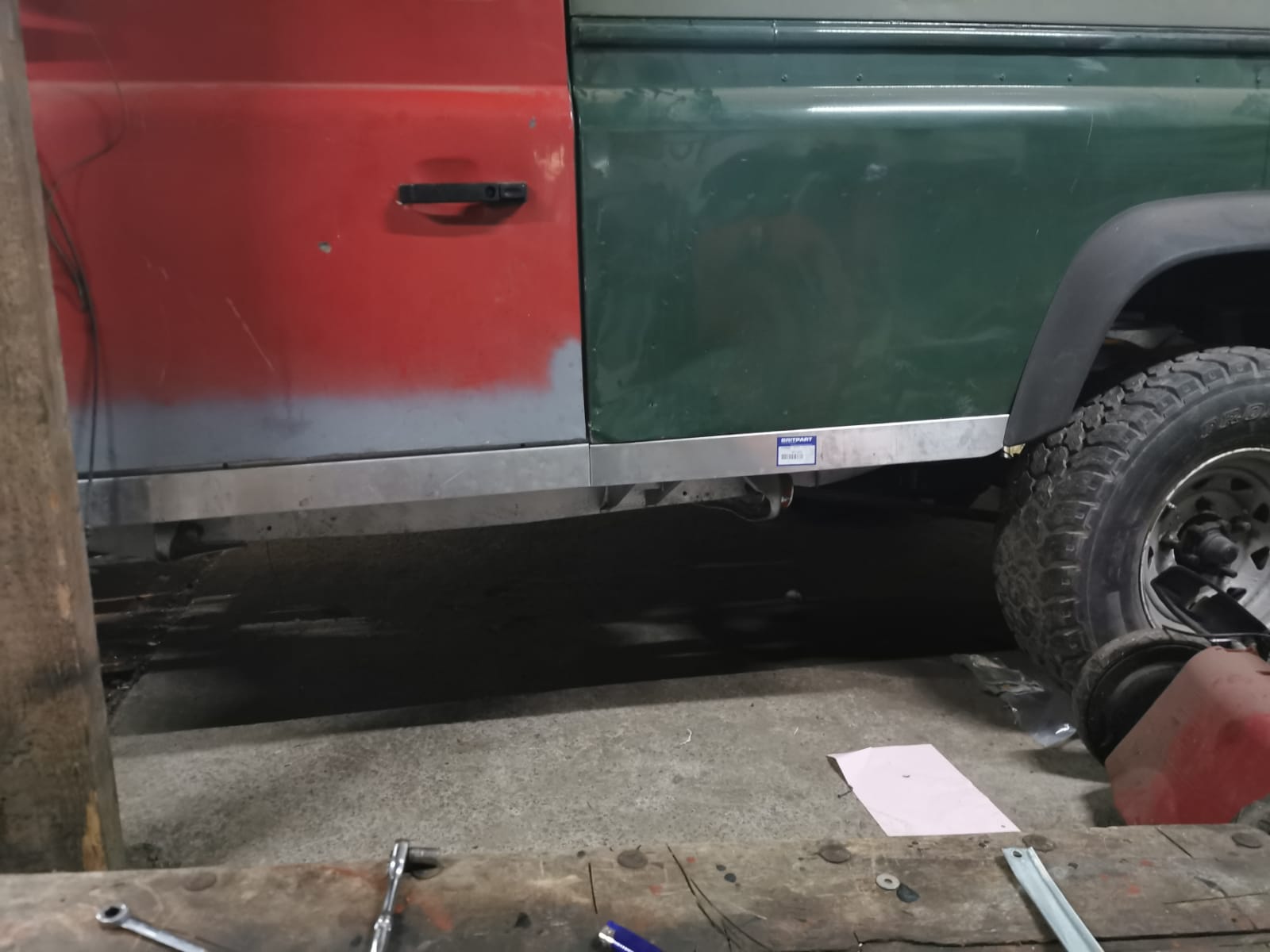

Got one on today , think ive done it right, looks OK to me. apart from gap at bottom of Door but Im sure there is a rubber seal goes there ?, Have I got the Wing Stray in right position, its just placed there as there is no hole in body but can drill one,

border · Feb 8, 2020

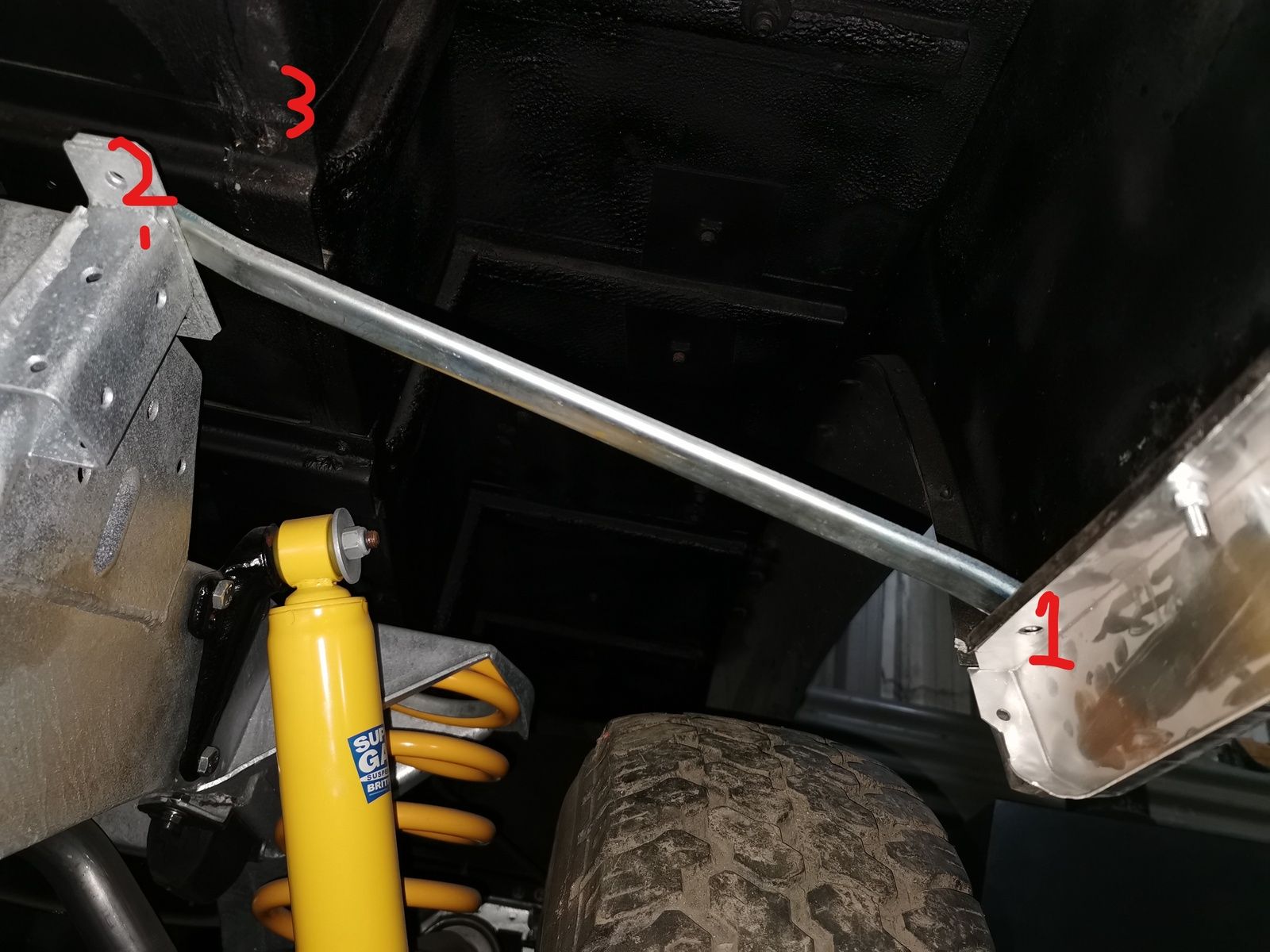

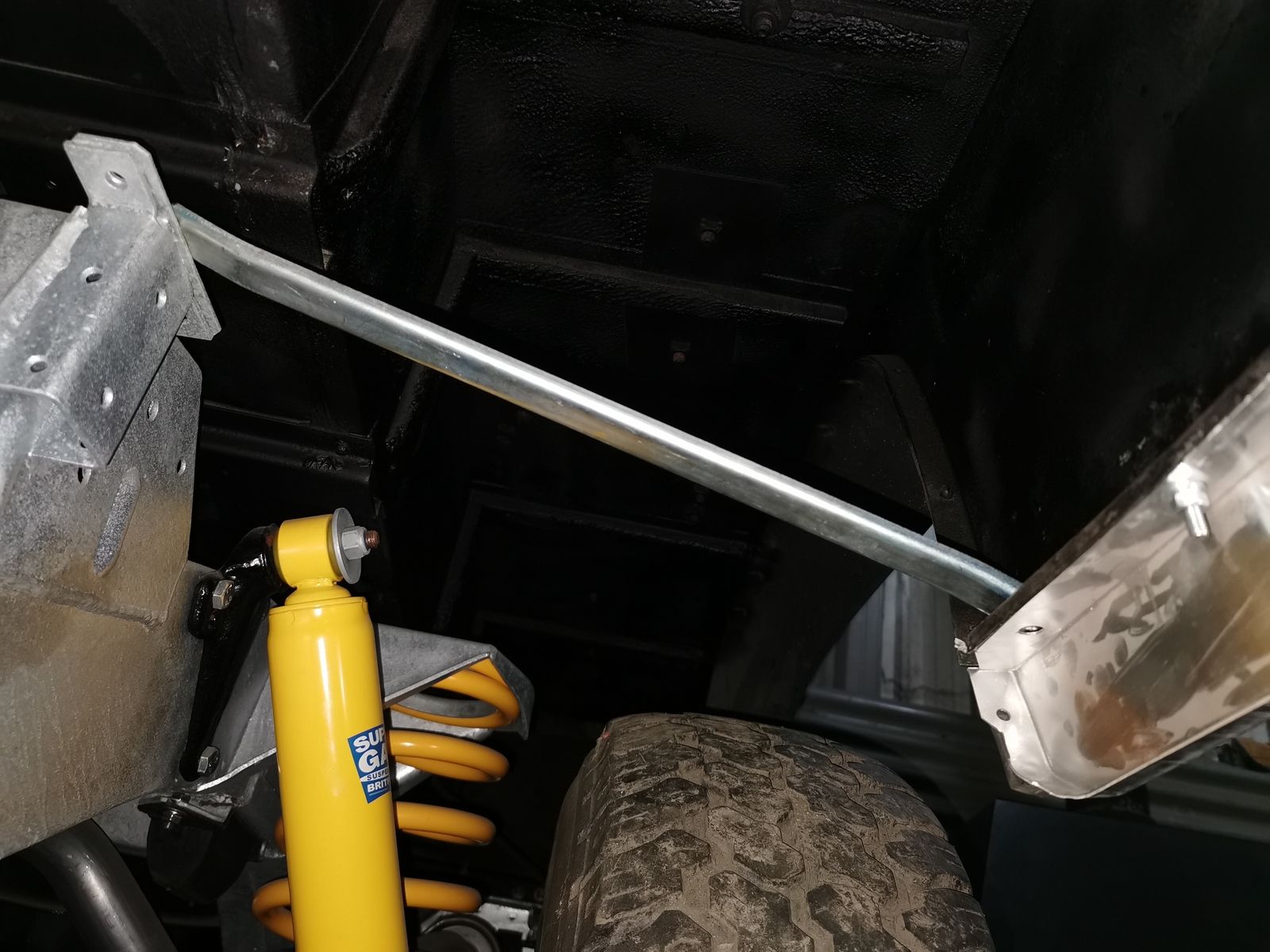

Im assuming the Stay thingy goes here in pic. There is no hole at number 1 but I can soon pop one in, does the other end go to number 2 on chassis or number 3 on tub ??

jamesmartin · Feb 8, 2020

border said:
Im assuming the Stay thingy goes here in pic. There is no hole at number 1 but I can soon pop one in, does the other end go to number 2 on chassis or number 3 on tub ??

it goes to the under side of the tub

border · Feb 8, 2020

jamesmartin said:
it goes to the under side of the tub

Thanks . it lines up to number 3, not sure if there nuts on there as Ive covered them with Shultz stuff, will see tomorrow.
