Discussion in 'Defender 90 / 110 / 130' started by Mackers, Nov 12, 2019.

< Previous Thread | Next Thread >
  1. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    3,230
    Likes Received:
    2,137
    Location:
    UK
    I did create a thread last week but no one's answered my update so you might have been able to see it?

    I'm missing something still. My brake lights work on their own. When I put the side lights on and press the brake pedal, the reversing light comes on and the side lights and brake lights go off. I've moved the earth for the one faulty side light and reversing lamp to a different earthing point (which is a good earth). What's going wrong?

  2. Europa486

    Europa486 Well-Known Member

    Joined:
    Sep 28, 2019
    Posts:
    511
    Likes Received:
    428
    Location:
    London
    Usually it’s a bad earth so run a separate good earth to make sure it’s not that,
    Then check bulb holders and the bulbs them selves,
    Work back from the rear lights along the loom checking any multi block connections,

    Turboman likes this.
  3. kermit_rr

    kermit_rr Can't Really Re-Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    10,626
    Likes Received:
    8,766
    Location:
    North Shropshire
    Almost certainly earthing

  4. swisstoe

    swisstoe Well-Known Member

    Joined:
    Sep 28, 2019
    Posts:
    655
    Likes Received:
    425
    Location:
    Lancashire
    You've got Christmas tree lights up already ???

  5. mystery

    mystery Well-Known Member

    Joined:
    Jan 11, 2010
    Posts:
    826
    Likes Received:
    155
    Location:
    torquay Devon
    what year and model

  6. Disco1BFG

    Disco1BFG Well-Known Member Full Member

    Joined:
    Mar 18, 2015
    Posts:
    5,203
    Likes Received:
    2,697
    Location:
    Buxton
    As I said in your other fred:- ( I was agreeing with @mick the builder BTW )

    So, It's a bad earth - jury rig a "new" temporary one with cable outside the vehicle to the light fitting in question, and keep testing.... when the problem goes away .... you've found the problem, and you'll have your answer :)

    mick the builder likes this.
  7. zeaphod

    zeaphod Well-Known Member

    Joined:
    Aug 13, 2013
    Posts:
    3,040
    Likes Received:
    850
    Location:
    Belfast, Norn Iron
    There should be an earthing point at the rear offside of the tub. Give it all a good clean - and run a temporary earth from the battery to it to test if it is causing the faults. There should be an earth connection back from all the lights to it.

  8. Interceptorxj

    Interceptorxj Well-Known Member Full Member

    Joined:
    Oct 20, 2013
    Posts:
    1,152
    Likes Received:
    817
    Location:
    Bolton, Greater Manchester.
    Check the earth connection in the bulb holder and the actual condition of the bulb holders too not just where it earths to the body.

  9. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    3,230
    Likes Received:
    2,137
    Location:
    UK
    I thought it was bulb holders so I've bought new side lights. I'll try all of the above and thanx y'all

  10. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    4,380
    Likes Received:
    3,115
    Location:
    Sligo,Wild West of Ireland.
    So are you absolutely sure what needs to be done now?

    Disco1BFG likes this.
  11. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    4,380
    Likes Received:
    3,115
    Location:
    Sligo,Wild West of Ireland.
  12. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    3,230
    Likes Received:
    2,137
    Location:
    UK
    I am, it's just that it only started happening when my bulb melted in the side light, I put two new ones on, all the connectors are fine and unchanged and tight, and I sanded and cleaned the earth. I had a few days where everything was OK, but now it's back to square one. But there's new things to try now :0)

  13. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    3,230
    Likes Received:
    2,137
    Location:
    UK
    Just wondering, why would the reverse light come on instead of the brake light when they're wired separately? I've made sure that both the new rear lamp and the reverse light are very well earthed to the chassis.

  14. Disco1BFG

    Disco1BFG Well-Known Member Full Member

    Joined:
    Mar 18, 2015
    Posts:
    5,203
    Likes Received:
    2,697
    Location:
    Buxton

    Disco1BFG said:
    it's always a bad earth - either cos the thing has gone completely open circuit - or like in this case where one circuit has lost its designed / designated earth return, and is therefore "forced" to use another circuit for the return...

    I.E. - the brake light earth is missing/bust/fecked/etc.! , so it is earthing through the reversing light

    300bhp/ton likes this.
  15. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    3,230
    Likes Received:
    2,137
    Location:
    UK
    Wrong. I put a new lamp unit in. When it was mentioned on here that it was the earth, I took the earth out of the triple bullet connector which earths the side light and reversing lamp and another AND EARTHED THE NEW PRE-wIRED LAMP UNIT TO THE CHASSIS ON IT'S OWN. I still have the same problem, which is: Brake light out, reversing light ON when I press the brake pedal. So, I have also removed the reversing lamp earth from the bullet and earthed it to the chassis earth point. My thought, could the live from the reversing lamp be earthing to the chassis?

  16. Disco1BFG

    Disco1BFG Well-Known Member Full Member

    Joined:
    Mar 18, 2015
    Posts:
    5,203
    Likes Received:
    2,697
    Location:
    Buxton
    NOT wrong at all - now you explain it as above - it seems you have wired the reversing light to the brake light circuit o_O

  17. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    39,600
    Likes Received:
    22,901
    Did these faults only happen after the melted bits problem? Could you have crossed the wires over? Or do the nee units need wired differently?

  18. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    3,230
    Likes Received:
    2,137
    Location:
    UK
    I
    Gonna try wires. I get wires crossed all the time :0(

  19. 300bhp/ton

    300bhp/ton Well-Known Member

    Joined:
    Jun 20, 2011
    Posts:
    3,375
    Likes Received:
    1,095
    Location:
    Near MK
    +1 to it being a dodgy earth of some kind. The wiring is pretty simple, just work through it with a circuit tester on each circuit until you find the issue. Clearly something is becoming live when it shouldn’t.

  20. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    3,230
    Likes Received:
    2,137
    Location:
    UK

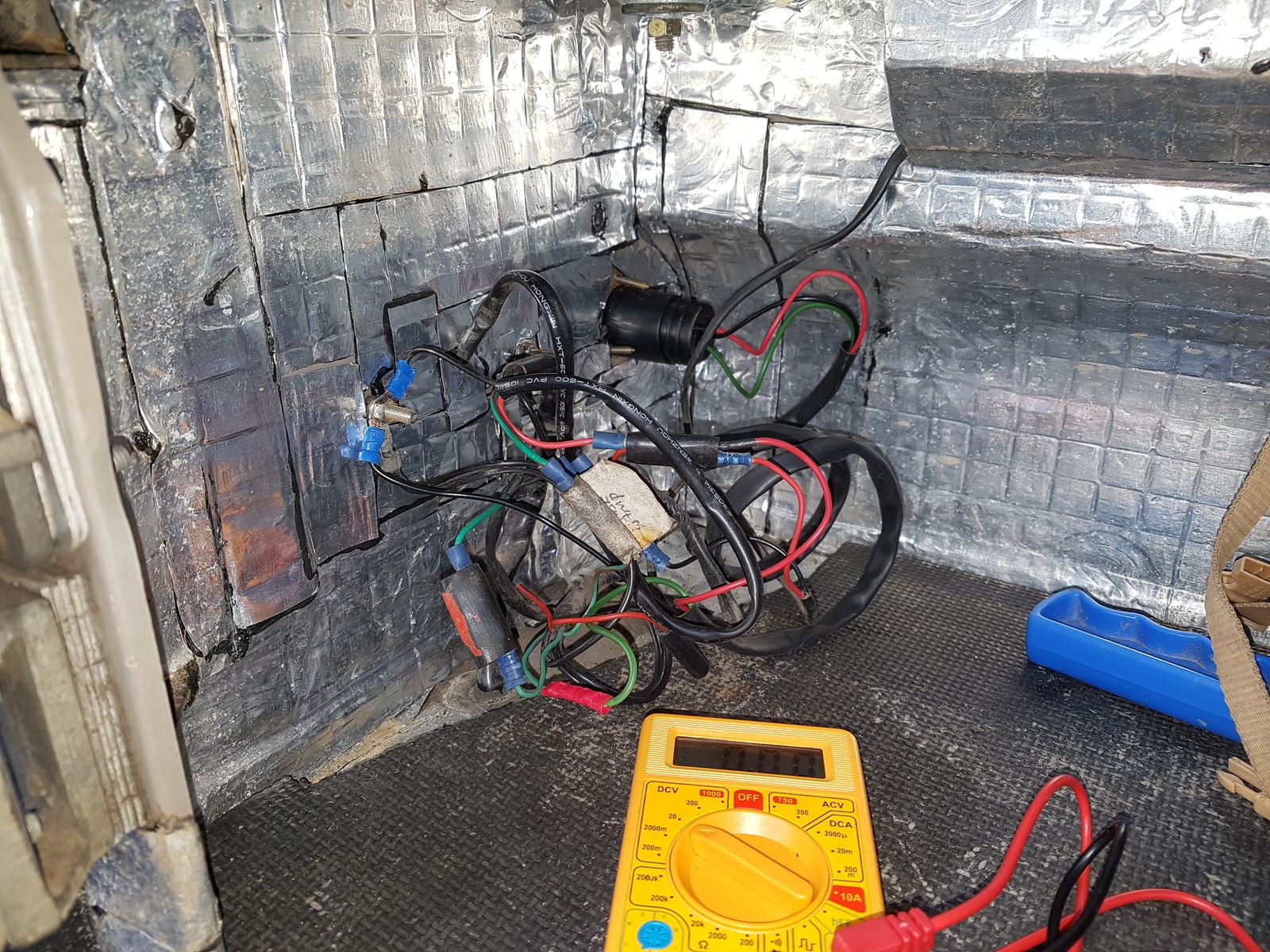

    Seriously this is turning into one mother F#@king nightmare. Reverse light going out with brake light. I want to die! Any diagrams or sugg 20191116_122326.jpg estions?
