Series I 80" restoration

R

Rice

New Member

Posts

99

• Feb 3, 2013

• #1

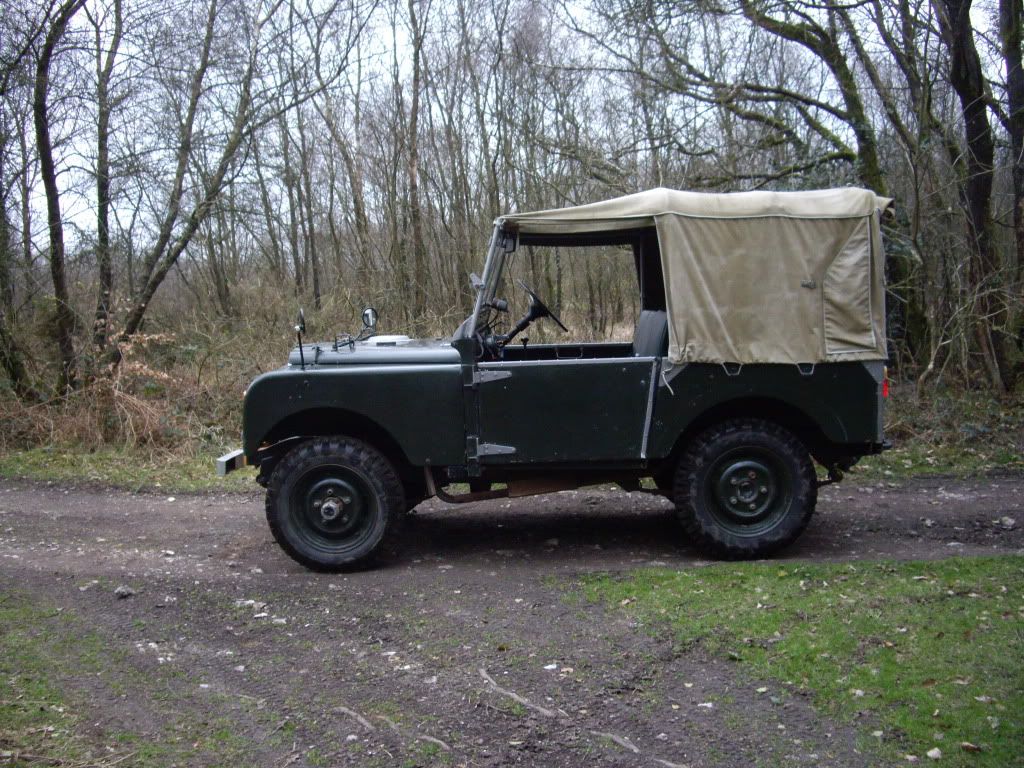

Hi all, do a lot of surfing of this site but haven't really introduced myself, or more importantly my land rovers to the site... So here goes, this is my series 1.

Had it for about 6/7 years, when we got it it had been sat in a barn for 5 years untouched, so the brakes were a little on the seized side! But didnt need much work before we got her on the road. And we've been using her since then, but its come to the stage where she needs a bit of tlc. A bit of rust on the chassis and bulkhead, some bodywork issues, and just needing a good tidy up. Dont worry it will still be used as a land rover when its finished. Although ill leave the tricky/damaging green lanes down to my discovery.

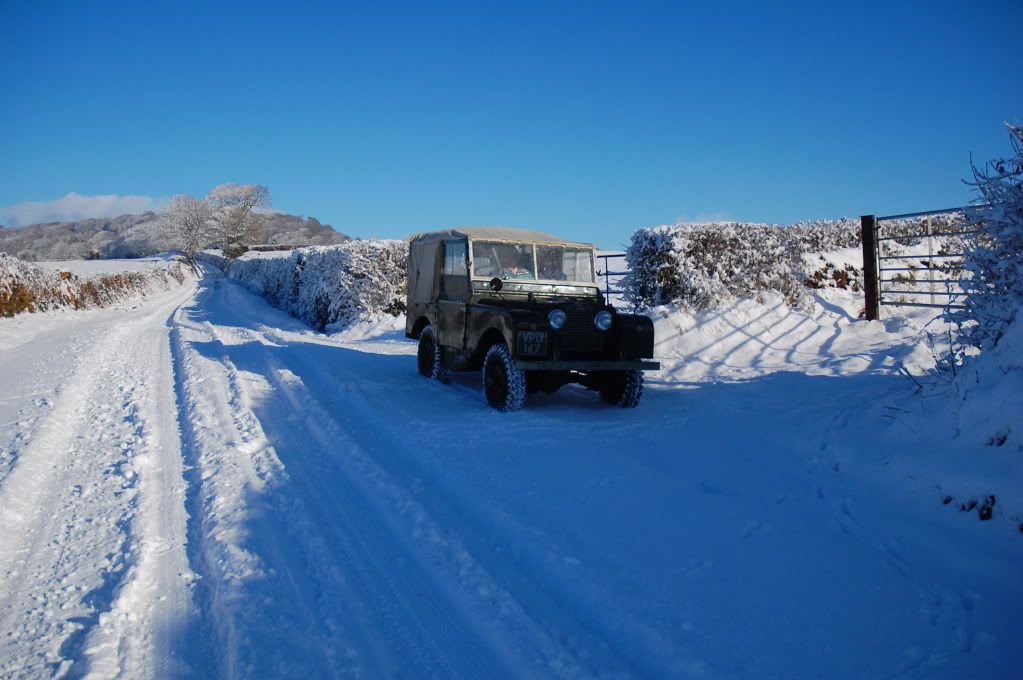

This is what she looked like a couple years ago in the 2010 white-out.

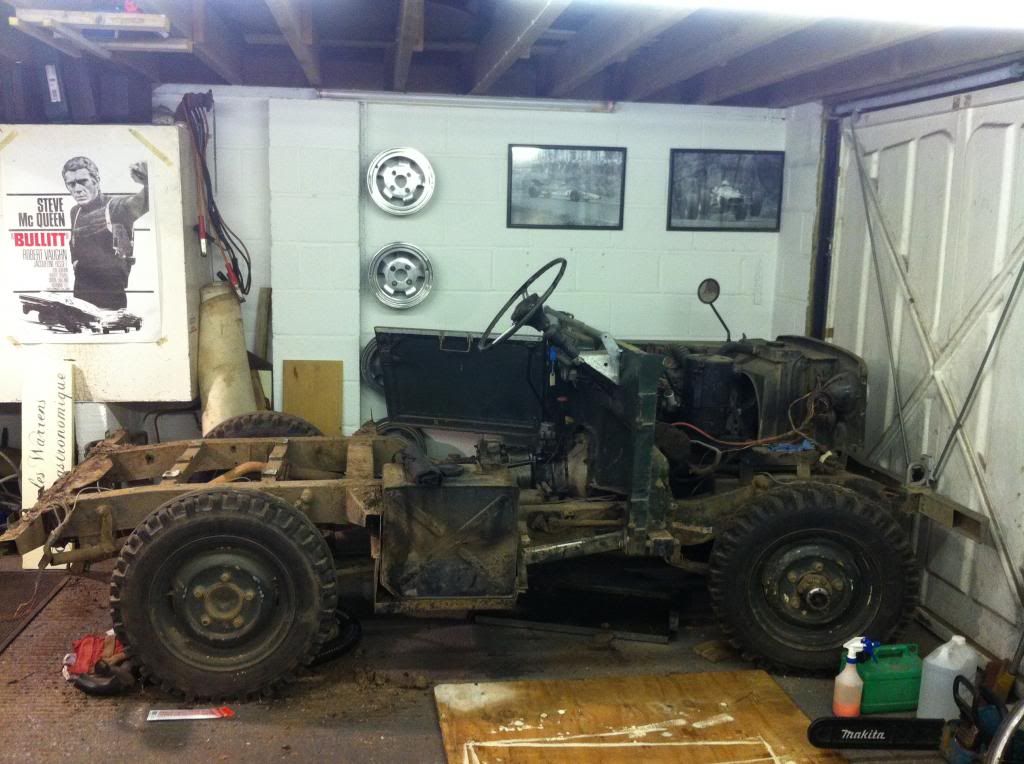

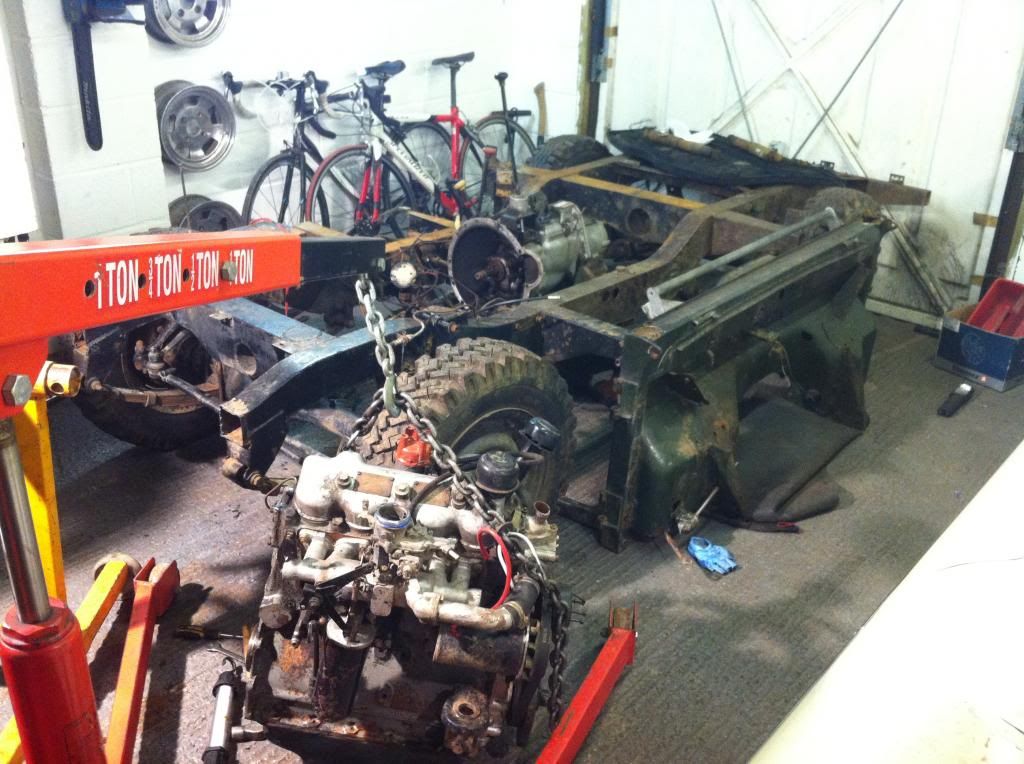

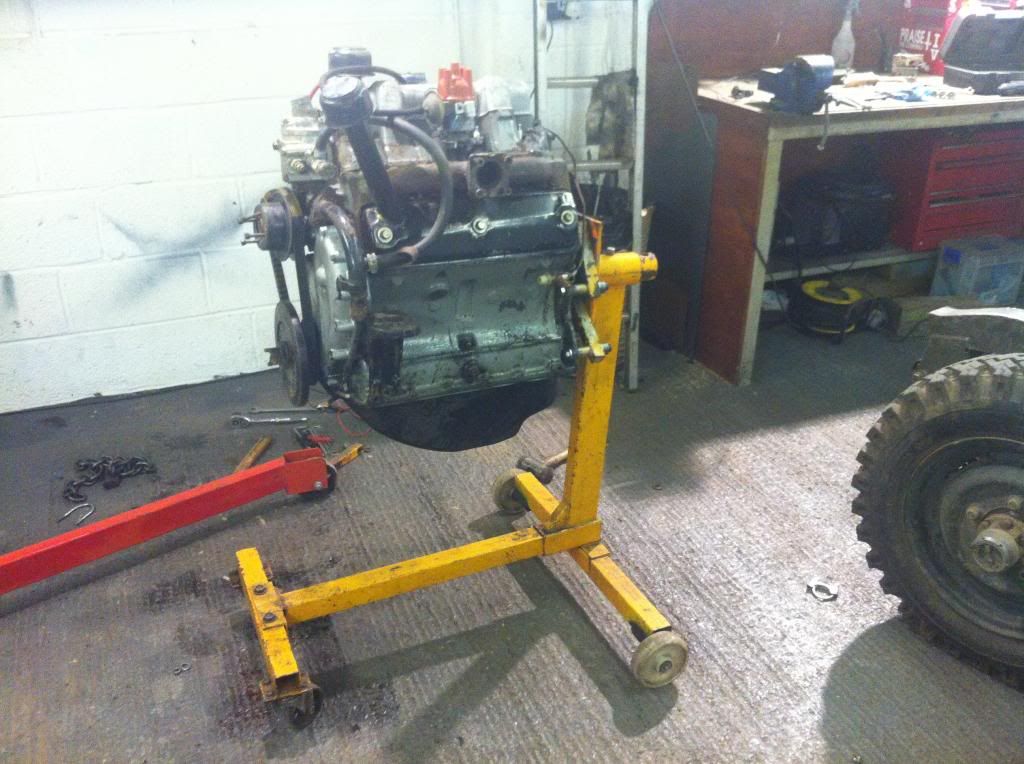

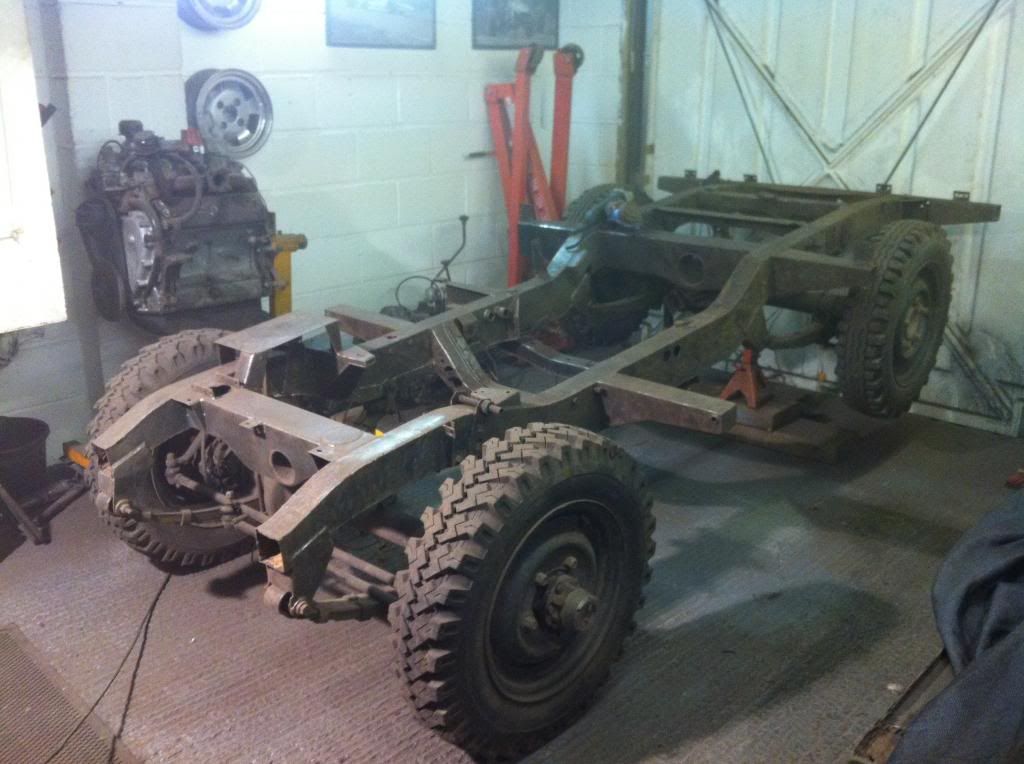

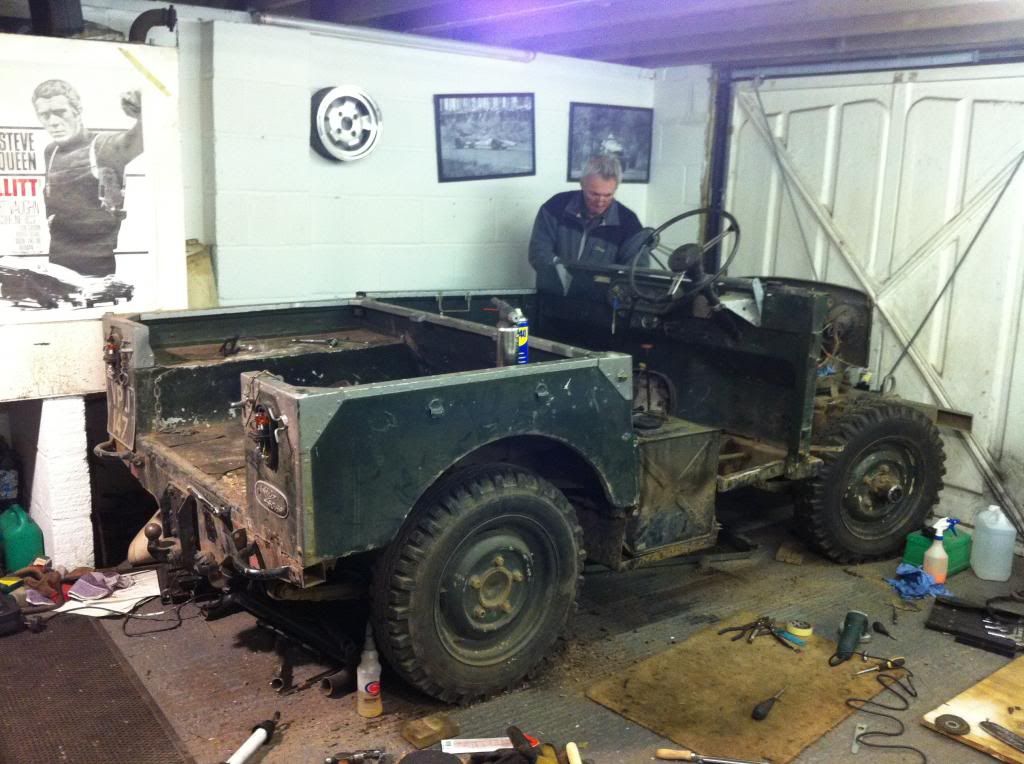

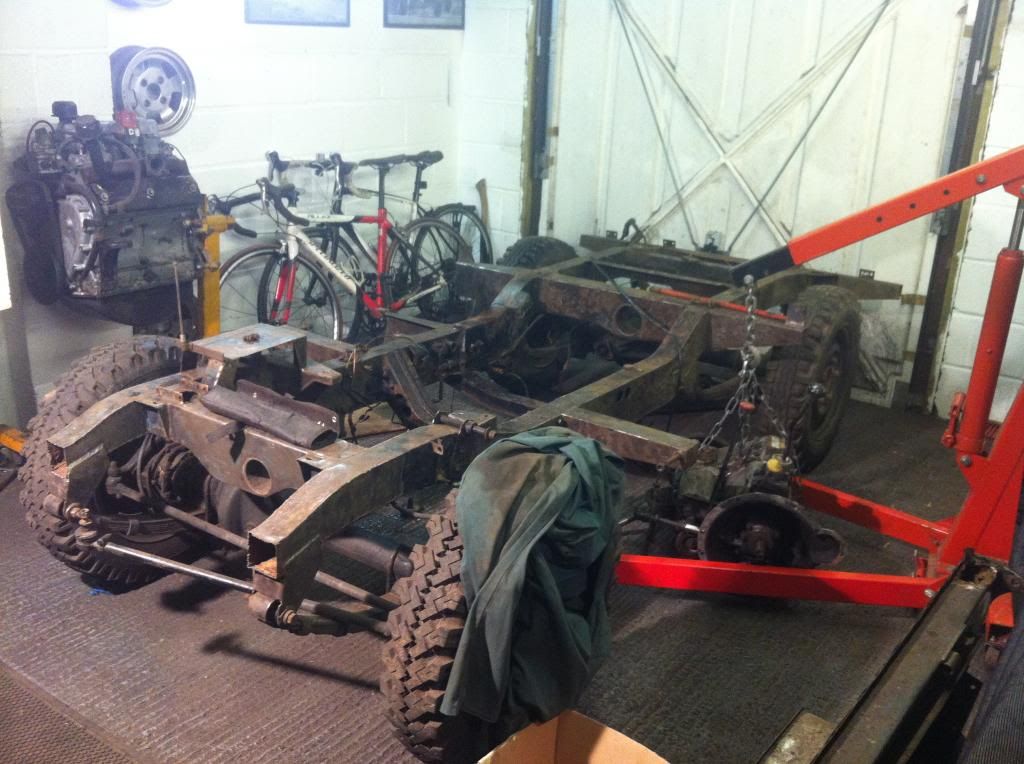

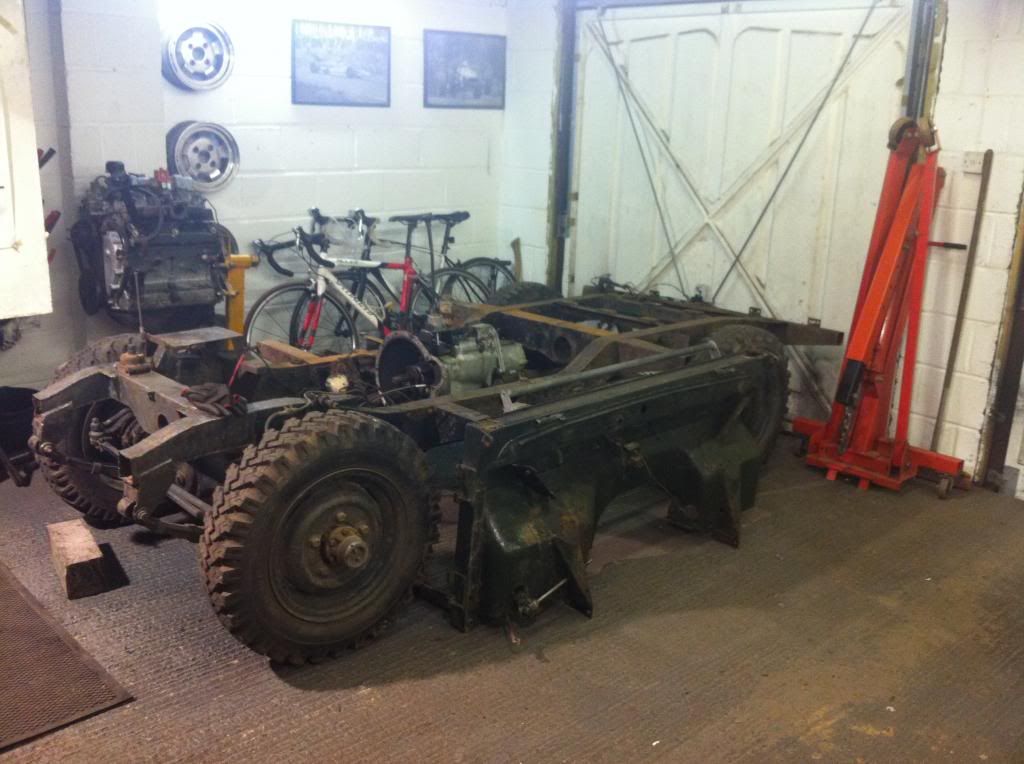

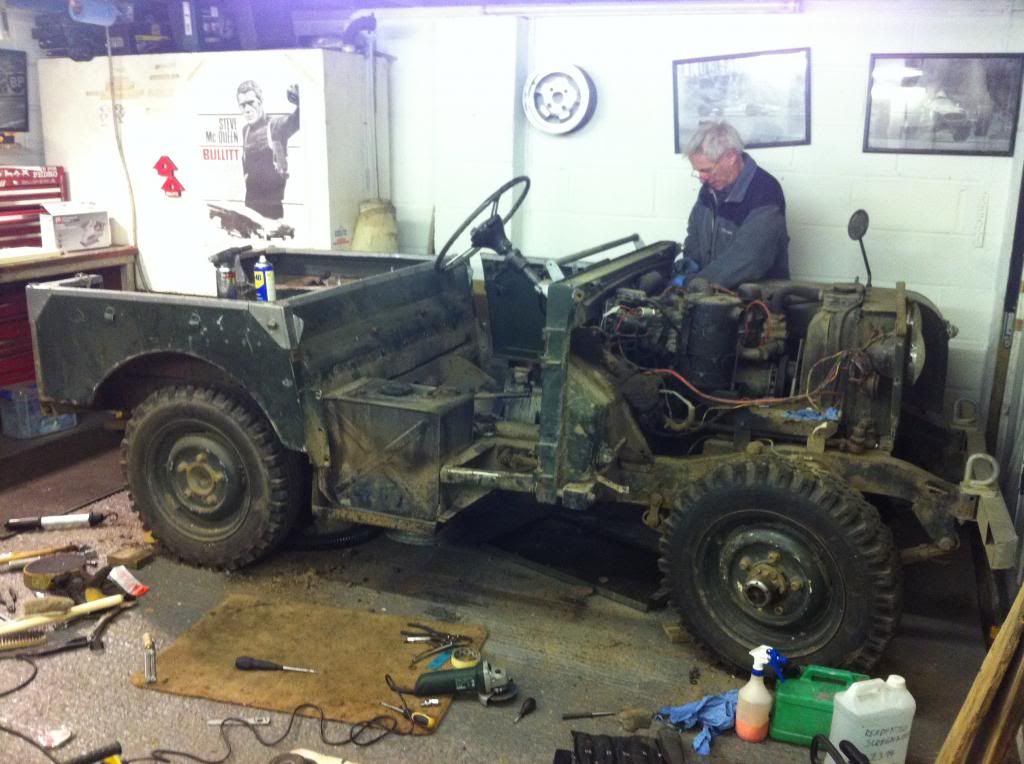

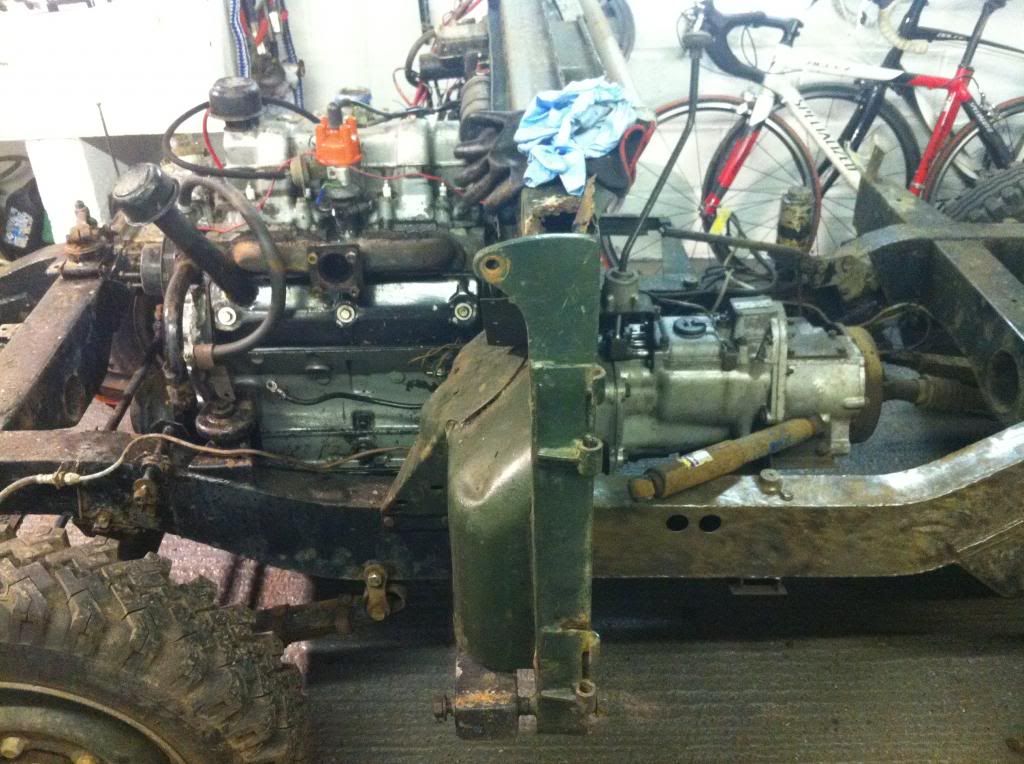

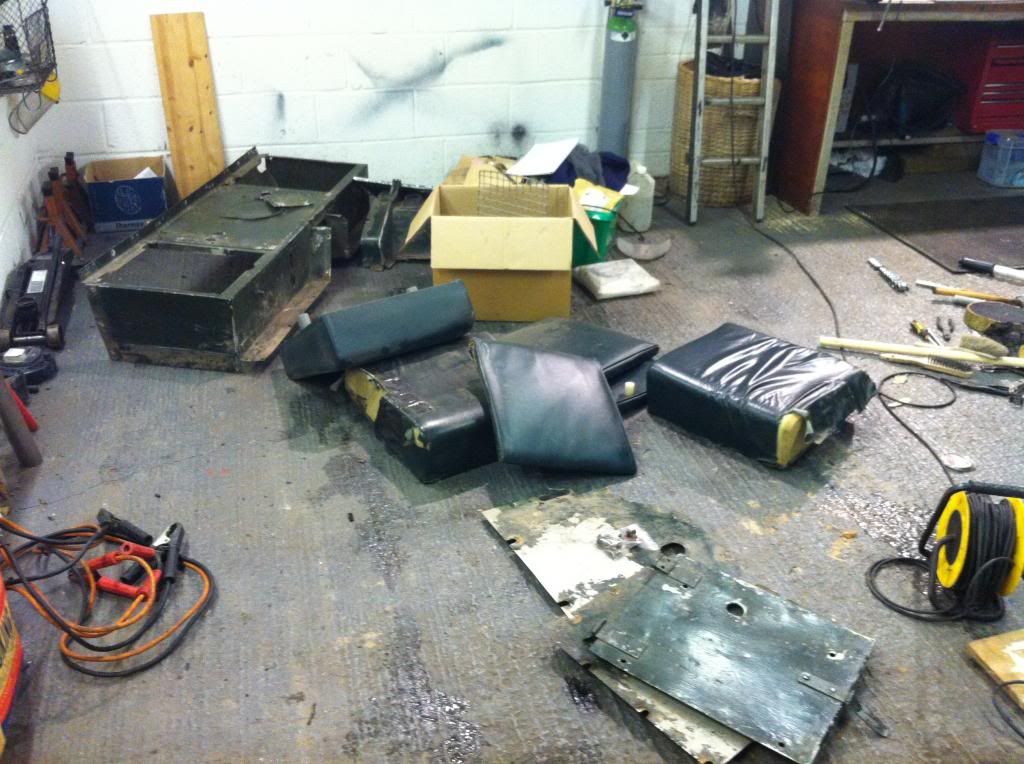

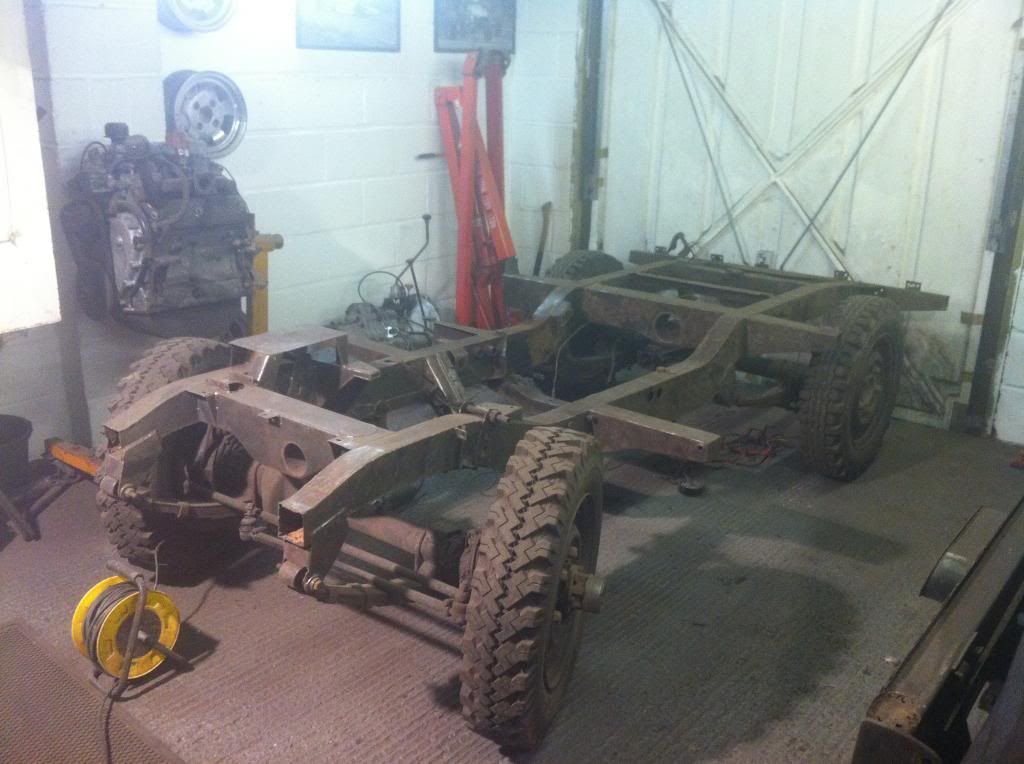

Anyway ill crack on with the restoration pics from the last couple weeks.

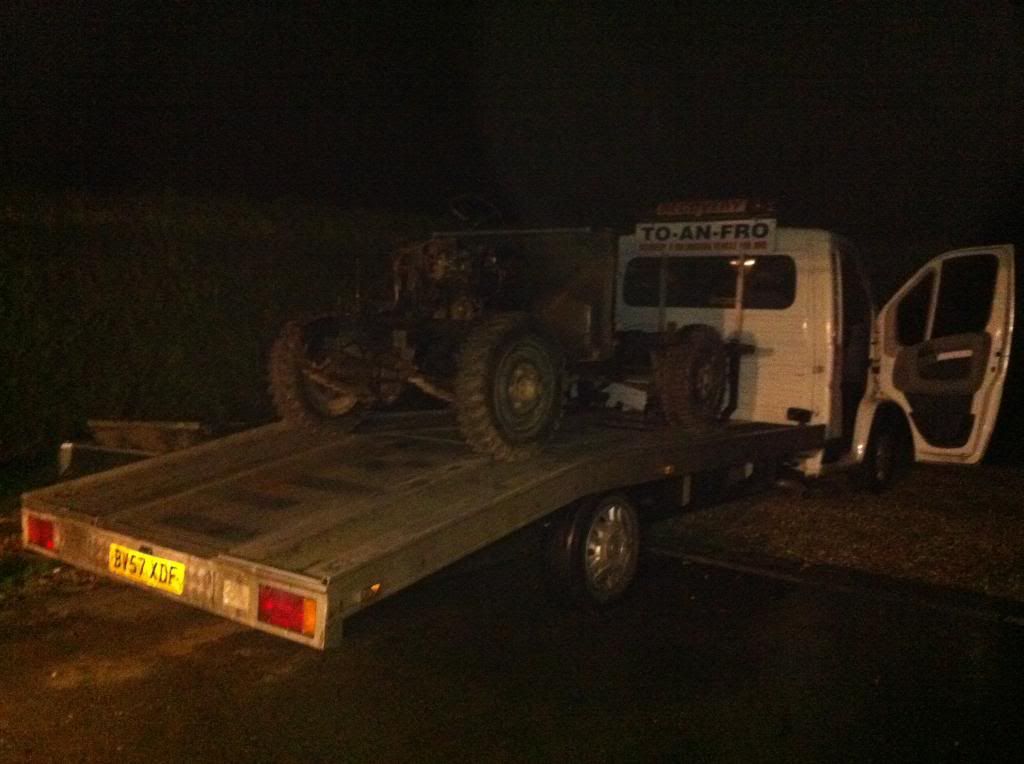

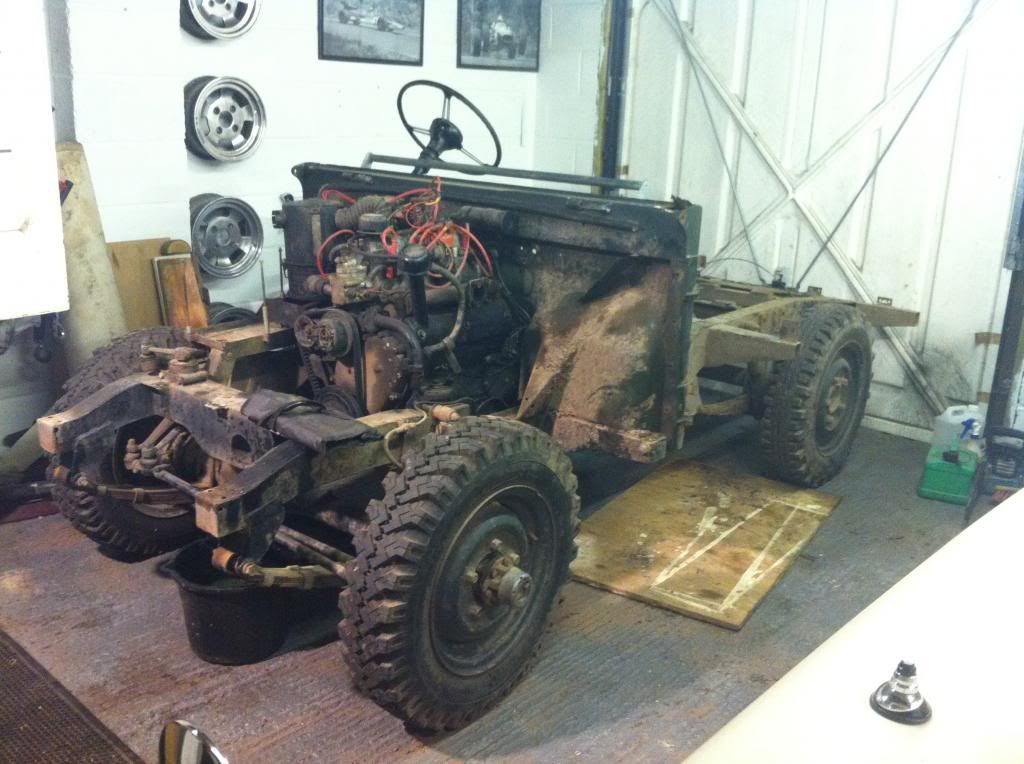

Took it into honiton to steam clean it down

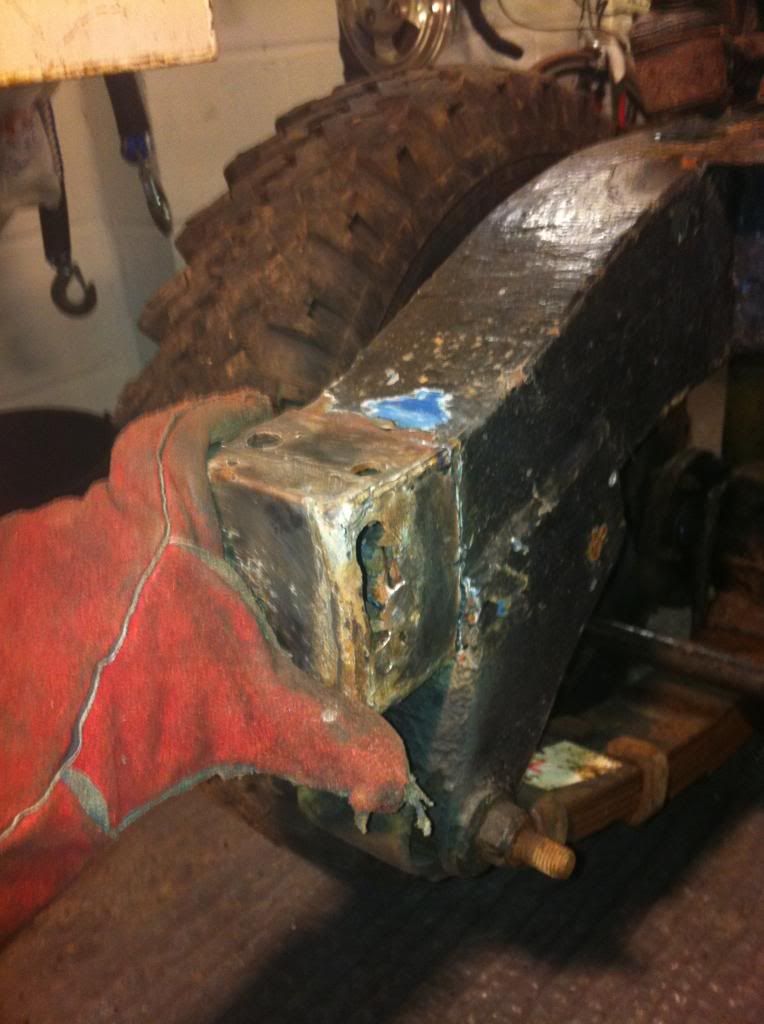

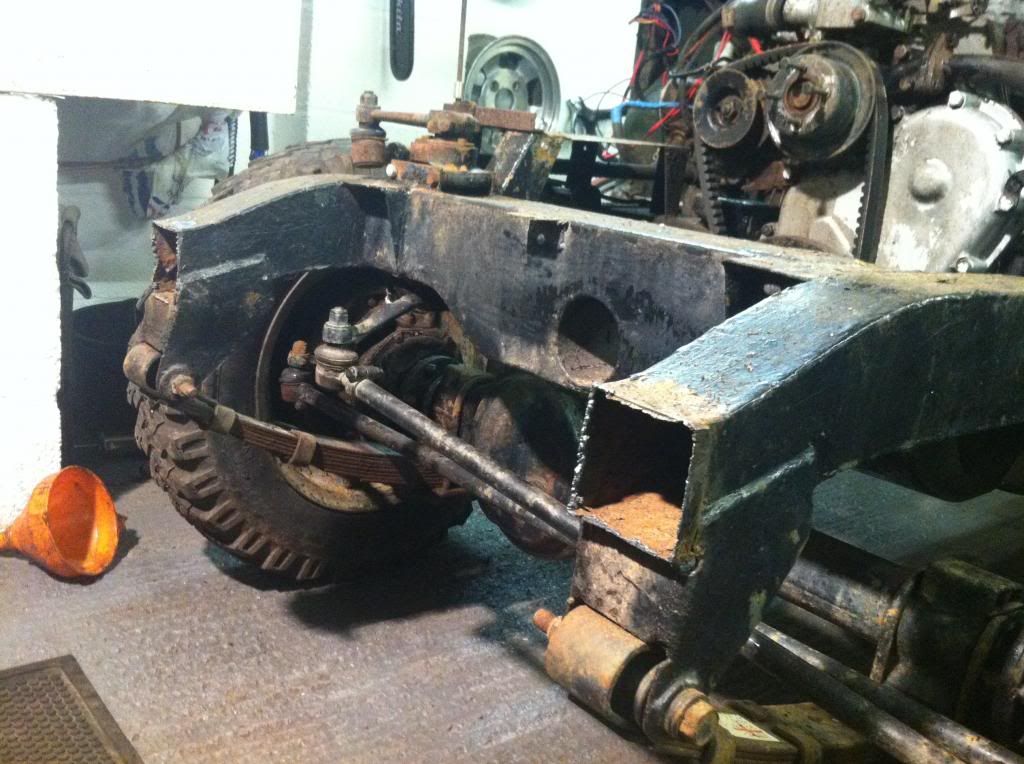

The worst bits of rust are here, so cut the ends off with the plasma cutter.

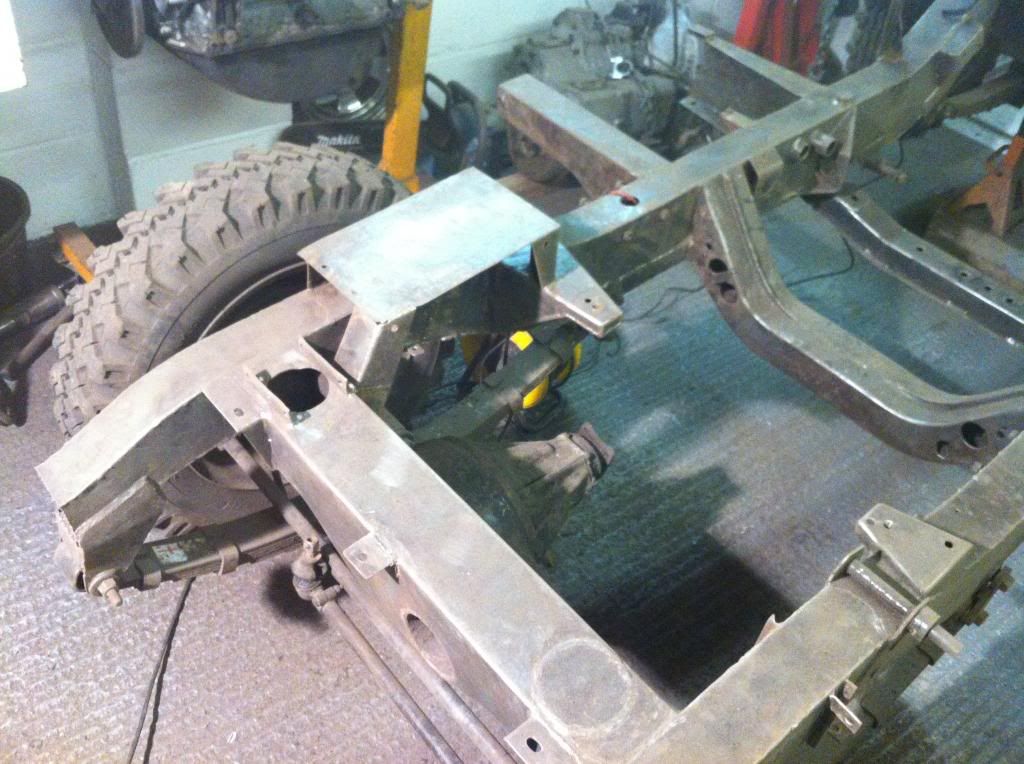

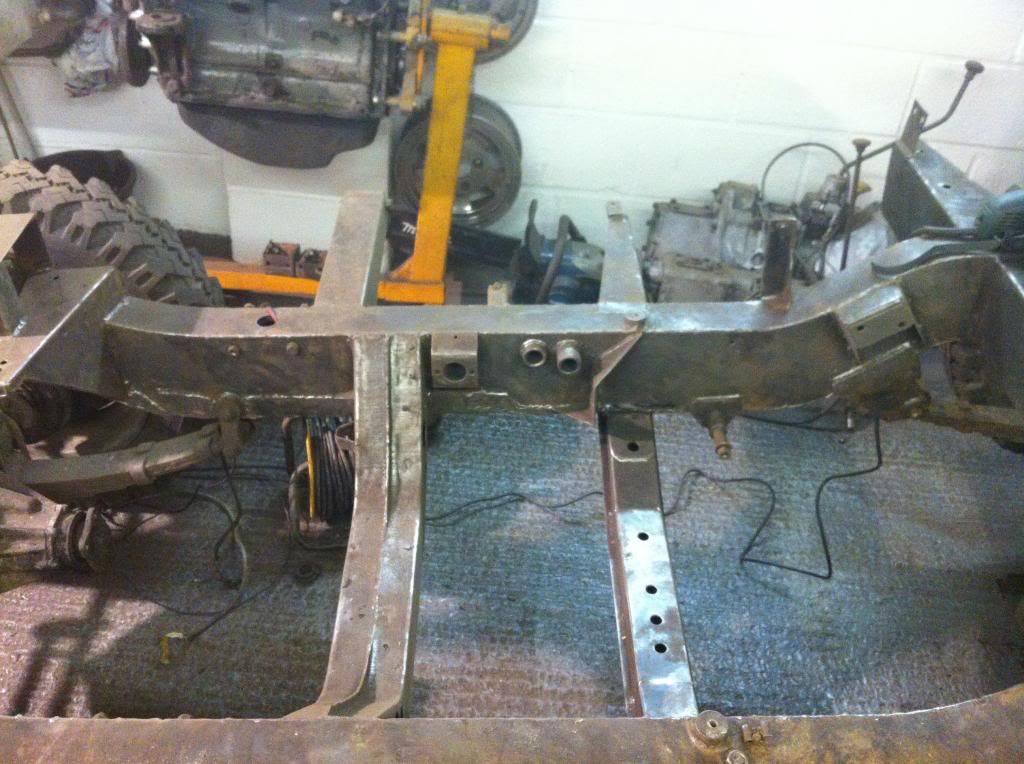

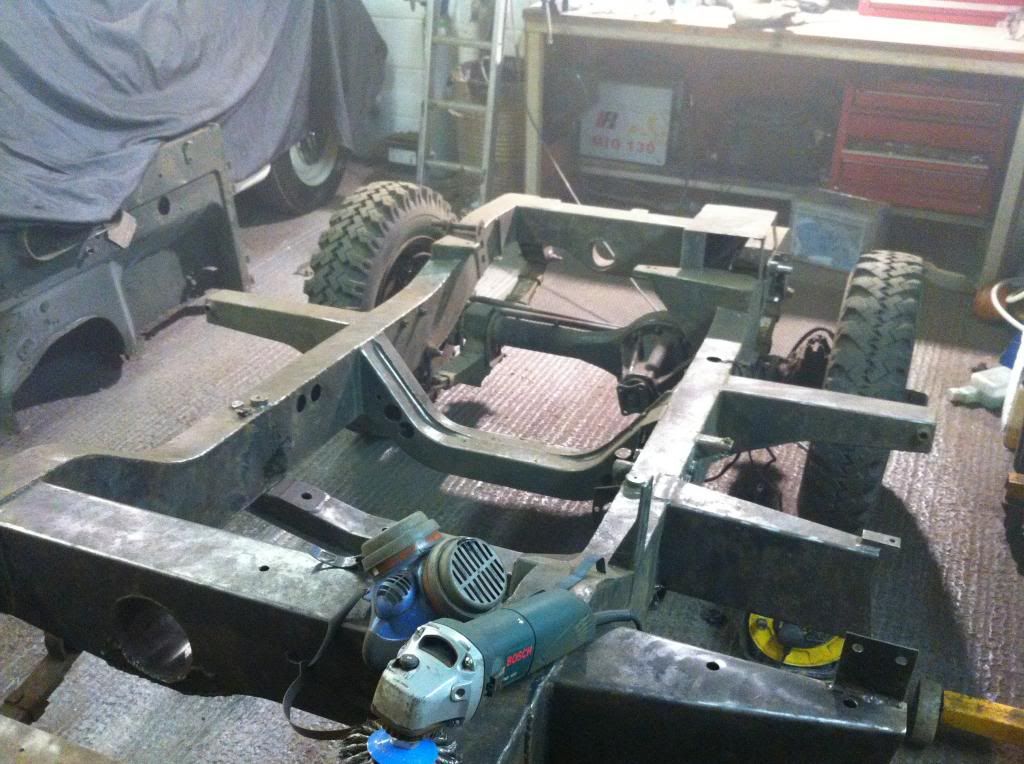

Got the angle grinder with the ripper attached, and started to pick wires out of my clothes

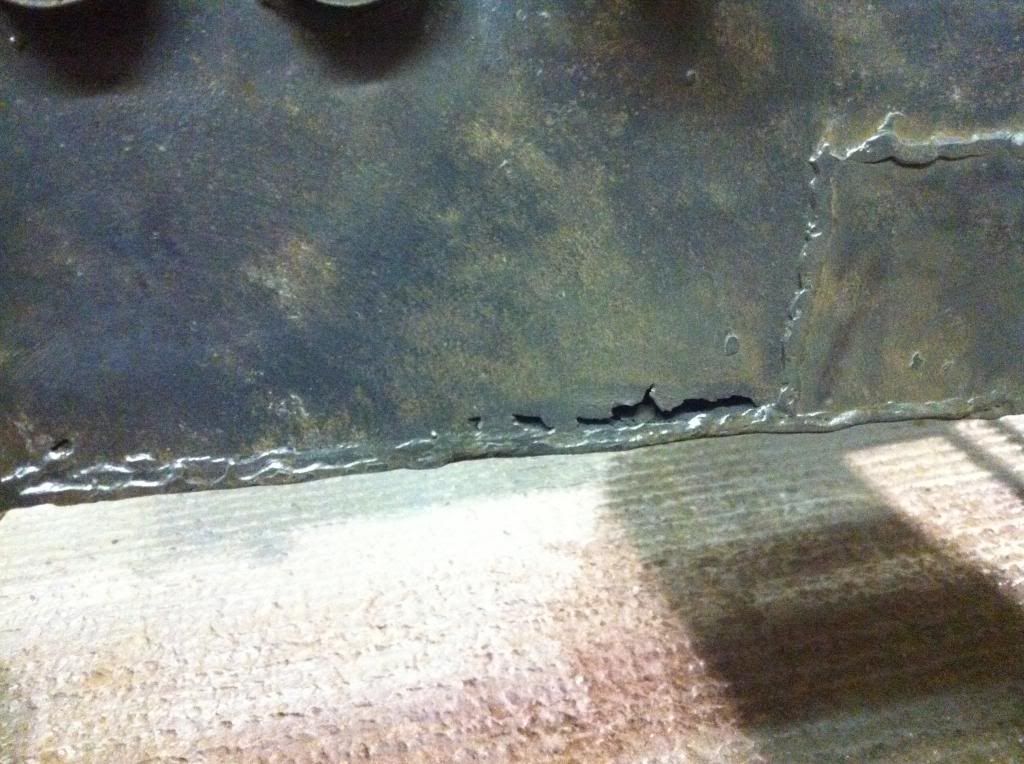

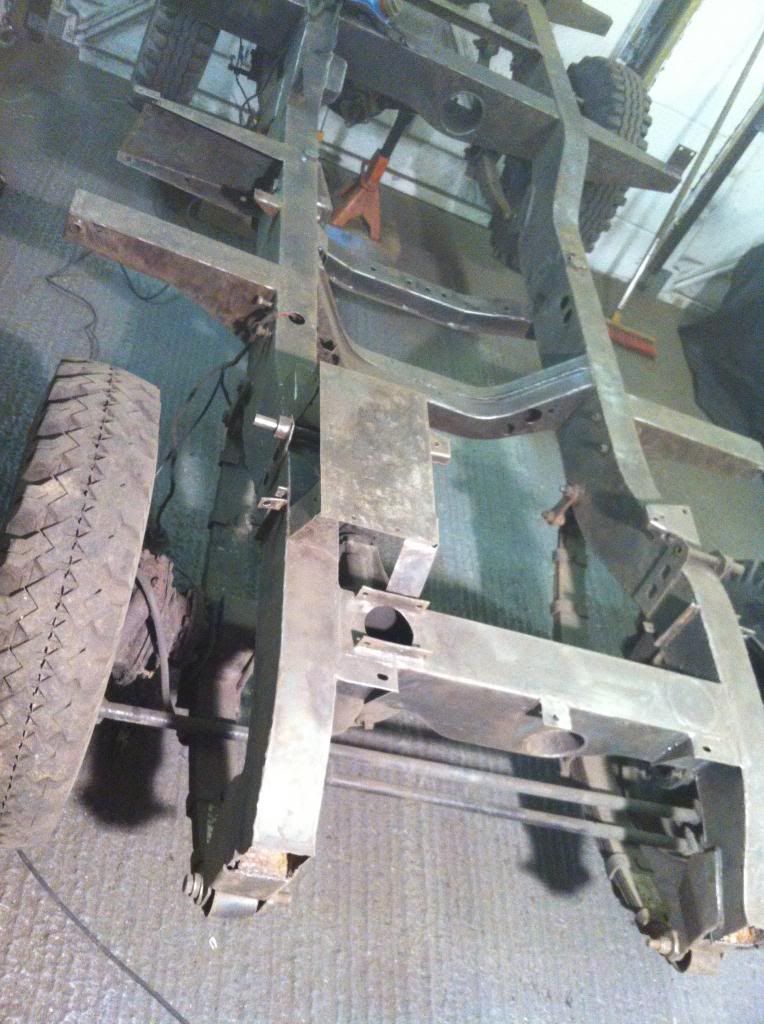

Small amount of rust

Thats about it for now. Anyone got any recommendations for good chassis paint? Used por-15 before, but heard that there are better products out there.



H

honolulujoe

Well-Known Member

Posts

6,137

Location

richmond surrey

• Feb 3, 2013

• #2

nice to see an s1 being restored, you could give it a base coat of fertan - and spray it inside the chassis - that reacts with any rust and stabilises it, also acts as a primer afaik.

How to use Fertan

it is water based so sprays really well but you really need to wear a mask it stinks and hangs in the air



H

honolulujoe

Well-Known Member

Posts

6,137

Location

richmond surrey

• Feb 3, 2013

• #3

btw s1 galvanised chassis are available via the series one club but they aren't cheap, i was quoted almost £2k.



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Feb 3, 2013

• #4

now that is real landrover,i used to use hammerite smooth satin black ,but im doing a series 1 86 and the customer bought me the paint he wanted using ,black bitumen paint id recommend it since using it ,really does protect well,



Freelaner

Landy Driver

Posts

24,848

Location

Yorkshire

• Feb 3, 2013

• #5

That is in remarkably good nick


a joy to behold, keep the piccies coming



Rattlegun

Well-Known Member

Posts

970

Location

Rhondda, Wales

• Feb 3, 2013

• #6

Great progress! Looks like a good decision to tear it down now and get it sorted before the problems get horrible. Now you've got the ends off the chassis, you can get DIY chimney sweep stuff very cheaply. You could cut a brush down to rectangle section and sweep it out maybe? I know there's cross tubes inside but the ones I've seen would push past them (I was going to do it to mine if I'd ended up using it).



tom1disco.300

Active Member

Posts

389

Location

southwater/horsham westsussex

• Feb 3, 2013

• #7

red oxide paint,and then a good coat of flexible undercoat,cant chipp off,and cause water to get under your paint,witch leads to rust again! and give it a good thick layer while you have the whole body off,to be sure placeses u cant see are going to stay sound,as the top of the chassis can get quite bad,and you cant get to it with a welder,with the body on! nice restoration soo far,dosent look all that bad for an old series one!



Last edited: Feb 3, 2013

mad git

New Member

Posts

2,234

Location

Eire

• Feb 4, 2013

• #8

Very nice!!



chunkymunky

New Member

Posts

9,901

Location

worcestershire

• Feb 4, 2013

• #9

Erm why not repair and galvanise? Good for life then surely



R

Rice

New Member

Posts

99

• Feb 4, 2013

• #10

Thanks for the replies everyone ! That fertan look interesting. Ive been looking into epoxy-mastic on rust.co.uk. Its got some good reviews from people i know. Definitely going to need some rust converter too i think.
I hadnt thought of galvanizing, probably a bit more than id want to spend to be honest. but its definately something to think about!

Going to do a bit of welding tonight i think. Bored of wire brushing! Anyway cant chat got work to be done ! I'll try and stick up some welding pics later!



P

Paulmitchell1984

Well-Known Member

Posts

1,819

Location

Leeds

• Feb 4, 2013

• #11

love to see an s1 being restored ansd will be worth it in long run..i thought the outroggers on an s1 were a funny shpe almost ? like..if that makes sence?



90truckcab

Well-Known Member

Posts

4,739

Location

staffordshire

• Feb 4, 2013

• #12

looks nice that, brings back some memories, to galv a chassis is round £100, how much is paint ? to use hammerite is prob £50-75 , hmmm ,

galv is worked on weight with a minimum starting weight say first 50kg,



R

Rice

New Member

Posts

99

• Feb 4, 2013

• #13

Oh didn't realise it was that cheap! I saw somewhere that it was £5-600 to get it done. I presume it gets dipped? This is talking a company doing it right?


Did a bit of repair work earlier - don't expect a lot in hardly a welding expert ha!

So started off by making two cuts with the angle grinder, then realised I couldn't cut between them, so used the plasma cutter.

Cut out some card to fit, always takes longer than I think!

Then cut out of 2.5mm mild.

Welded. Slightly annoying how it pushed back at the top. And the bottom run didn't go quite so well, probably due to surface rust causing it to splatter slightly.

Ground back



Last edited: Feb 4, 2013

johnny curt 1

Well-Known Member

Posts

9,118

Location

manchester

• Feb 4, 2013

• #14

heres a liccul tip

grab an old motor ( 12 volt wiper motors are good fer this ) and gently dismantle the bugger with a 2 1/2lb lump hammer to obtain the magnet

then next time yer do a patch like that the magnet will hold all of the patch perfectly flush all the way round leaving both hands free

and tack all 4 corners of the patch first then the middle of the longest sides



jai_landrover

Well-Known Member

Posts

13,408

Location

Luton

• Feb 4, 2013

• #15

If you need any little 80 bits let me know I'm slowly pulling all the little bits off a trials motor was going to send them to the S1 Club way but a fellow LZ member you can have first Dibs. I think I'll have a few rear tailgate latches, brake pedal and a few other bits n bobs circa 1951 80 inch



R

Rice

New Member

Posts

99

• Feb 5, 2013

• #16

Thanks for the tip ! I've got a welding magnets in the garage, one of them red ones that you can do different angles at, I just thought I wouldn't need it. Ah well live and learn.

Thanks for the heads up about the parts jai_landrover. I'll try and think of any bits I need and I'll give you a shout .



Rawly86

Active Member

Posts

571

Location

Bedfordshire

• Feb 5, 2013

• #17

Sorry but :nothingtoadd:



jai_landrover

Well-Known Member

Posts

13,408

Location

Luton

• Feb 5, 2013

• #18

Off topic,

Rawly we having our local pub meet in Dunstable tomorrow evening everyone welcome thoiught I'd spread the word Jai



R

Rice

New Member

Posts

99

• Feb 5, 2013

• #19

Some more pictures of a patch I cut out and welded in tonight - you can't say I'm not good to you lot !

Went better than the other side, used a magnet this time!

The offending article

Moving swiftly on... 2.5mm mild cut out and in position

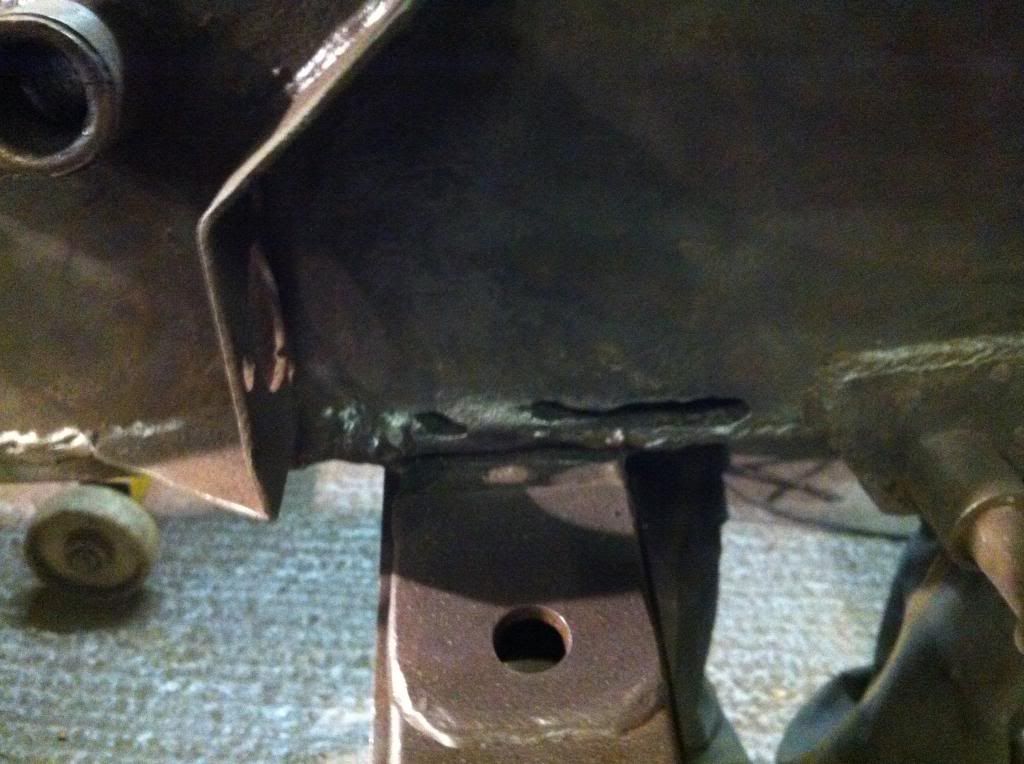

Welded! Had to stitch weld the bottom run as it started to burn through on the thinner bits

Ground back.

Waiting for my tea to cook as we speak but will be back out to cut another patch out in a minute .



samc88

Drivels spiritual representative

Posts

2,838

Location

Anglesey, North Wales

• Feb 5, 2013

• #20

Its looking good
