Series 3 Main gearbox Gearstick Bolts/Studs/Nuts

wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Jun 5, 2020

• #1

I need the 2 small bolts (that attach to the bellhousing) and the 2 studs (I think) and nuts that attach the gearstick frame to the gearbox. Has anyone got the part numbers or got the size/thread of the parts I need?



steve2286w

Well-Known Member

Posts

4,579

Location

monkeyangerland

• Jun 5, 2020

• #2

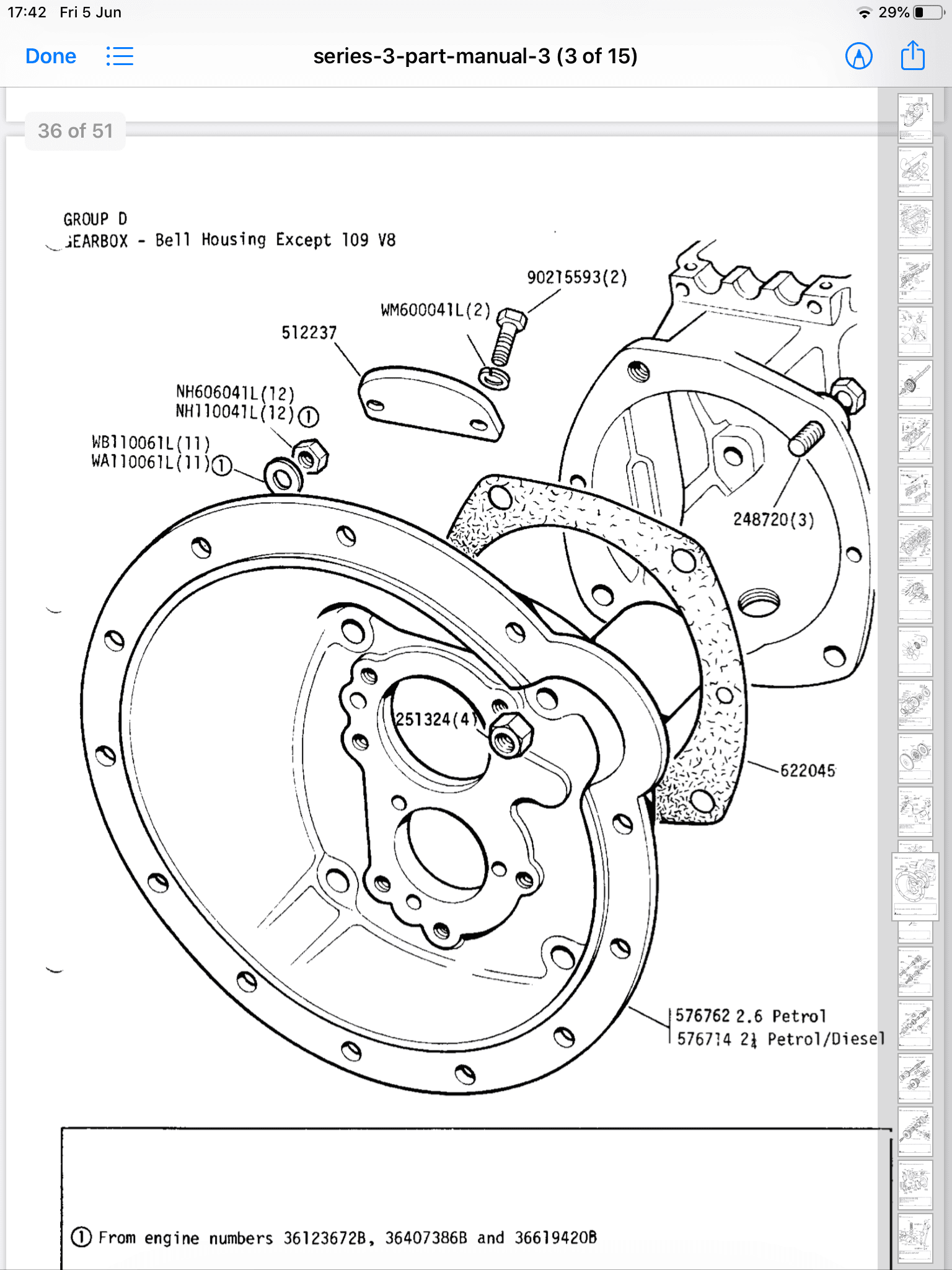

http://www.retroanaconda.com/landrover/category/resources/
manual and parts book here



wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Jun 5, 2020

• #3

Thanks, that's the bolts sorted. I can't see the back stud/nut combo though.



steve2286w

Well-Known Member

Posts

4,579

Location

monkeyangerland

• Jun 5, 2020

• #4

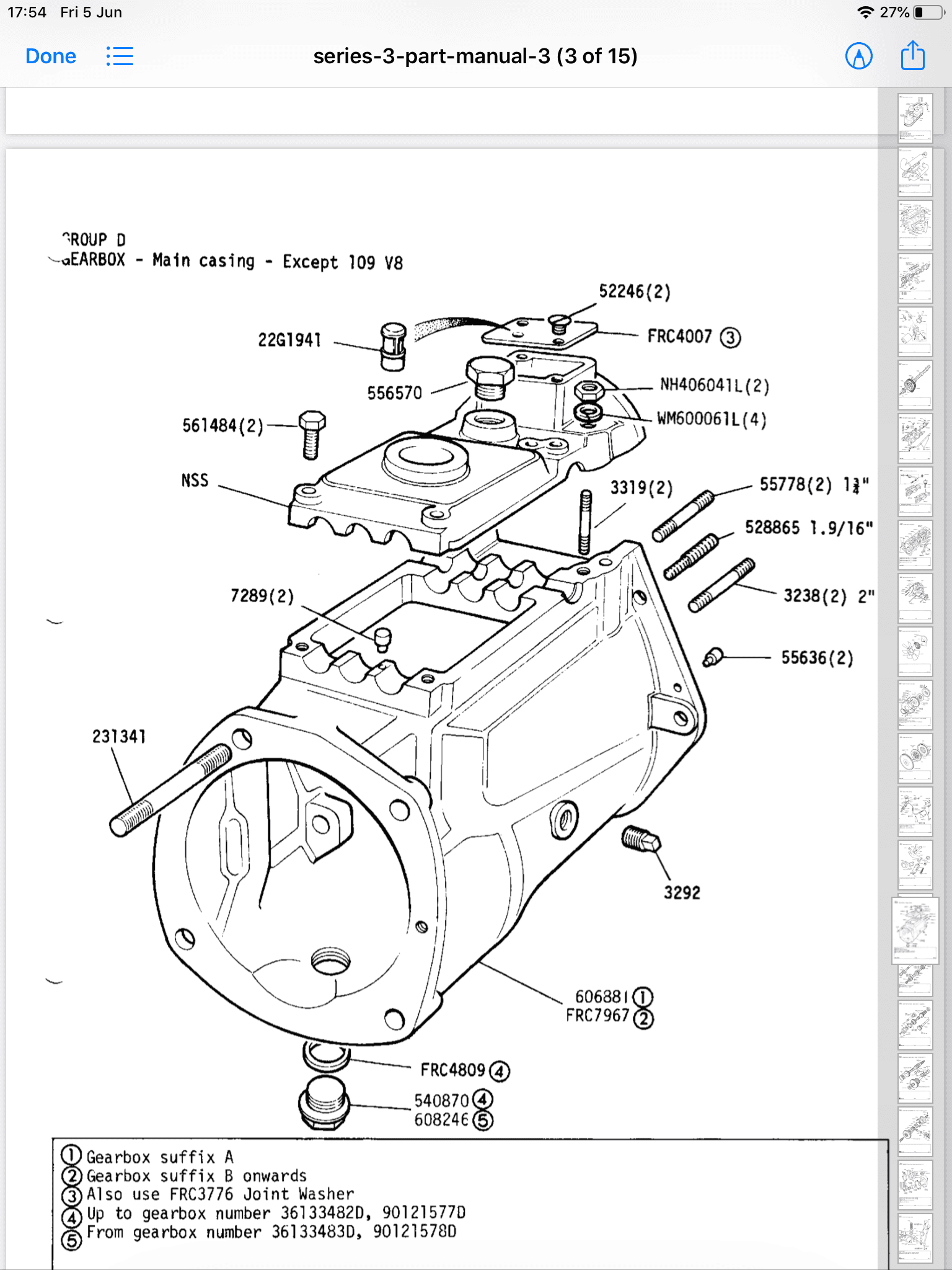

Back end secured by the studs nuts in top of gearbox Cover as below



wireman

Well-Known Member

Posts

1,169

Location

Warrington

• Jun 5, 2020

• #5

I think I've found them, part number 3319... or is it 561484(?). I'll keep googling
