Had the landy about 3 months now, only issues i have is my passengers in this weather ask me to turn heater off (mine actually does push out a reasonable amount of heat) even when heater is off. I think the cause is just heat from the exhaust warming up the passenger side footwell. I don't have a heat shield on the manifold - would a heatshield lower the passenger foot temperature at all? It runs fine without one so thought i would see if it would help before spending out on one.
series 3 exhaust manifold heat shield
- Thread starter CohPC
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 31,386
- Location
- North Shropshire
if i recall the heatshield is an attempt to limit vapour-lock in the carburettor, if your passengers are too hot in a landy with the heater off in this weather, they need to open the bulkhead vents
I thought that would be the case,if i recall the heatshield is an attempt to limit vapour-lock in the carburettor, if your passengers are too hot in a landy with the heater off in this weather, they need to open the bulkhead vents
- Posts
- 31,386
- Location
- North Shropshire
worth checking the coolant tap is working, do the heater pipes go cold when the tap is in the off position?
yes heater goes cold when off, i think a heat shield might make a slight difference as the manifold isnt far from the footwell, but probably easier (and cheaper) to put a bit of insulation under the mat on that side. probably will wait till summer as it wont be an issue as the weather gets colder
So theres no heat shielding on mine at all - seen the part number for the manifold heat shield but not the rest of the exhaust. Wondering if it would be cheaper to wrap it but not sure thats good for a standard exhaust
- Posts
- 31,386
- Location
- North Shropshire
the early 4 stud exhaust had exhaust pipe heat shields, the 2.25 engine with 3 stud doesn't
tottot
Well-Known Member
- Posts
- 7,464
- Location
- west wales coast
There was no heater in my 63 2a, only passenger had anything [ feet ] warm in the winter. In the summer it was a case of passenger putting feet up on dash when they started to roast.
Im lucky my heater works fine - maybe you should have rerouted the exhaust pipe through the cab, perhaps a double exhaust, one under the car for summer and one through the car for winter with a large diverter valve to change overThere was no heater in my 63 2a, only passenger had anything [ feet ] warm in the winter. In the summer it was a case of passenger putting feet up on dash when they started to roast.
Cant see wrap being an issue, shields would not be that hard to make.

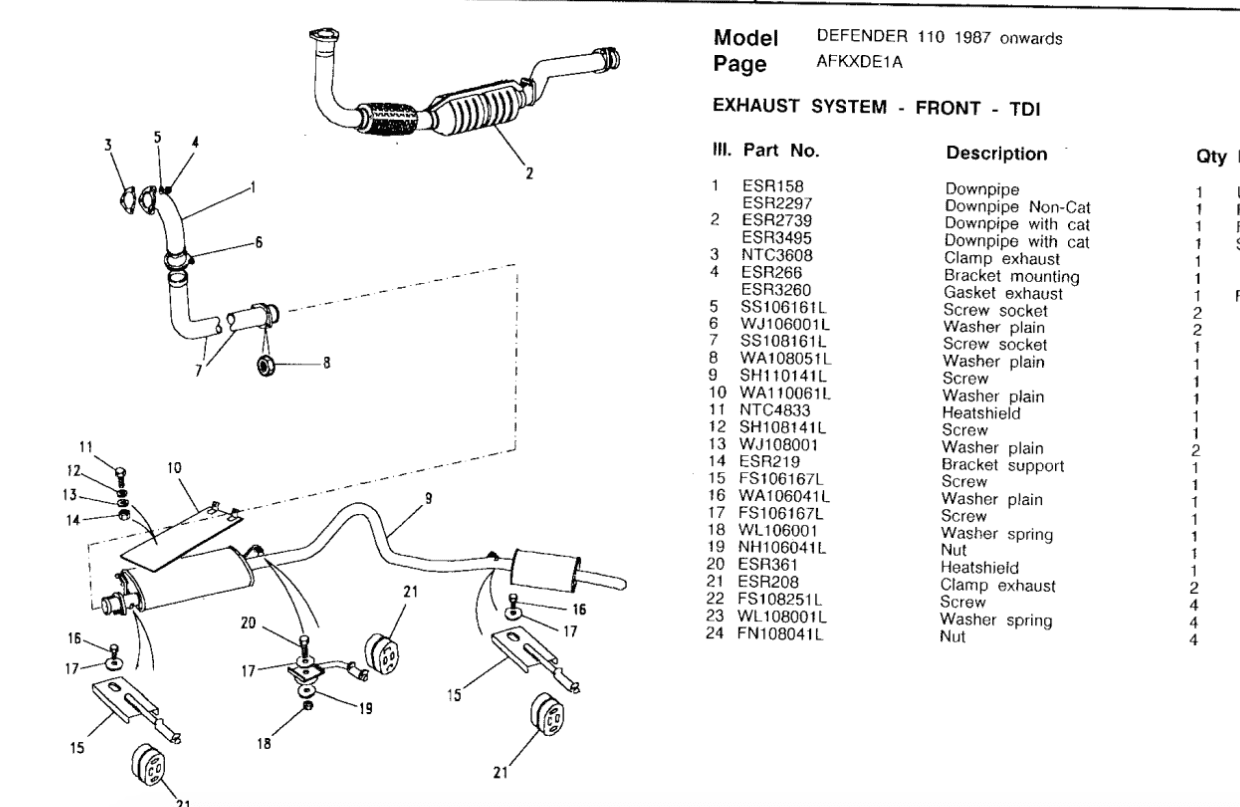

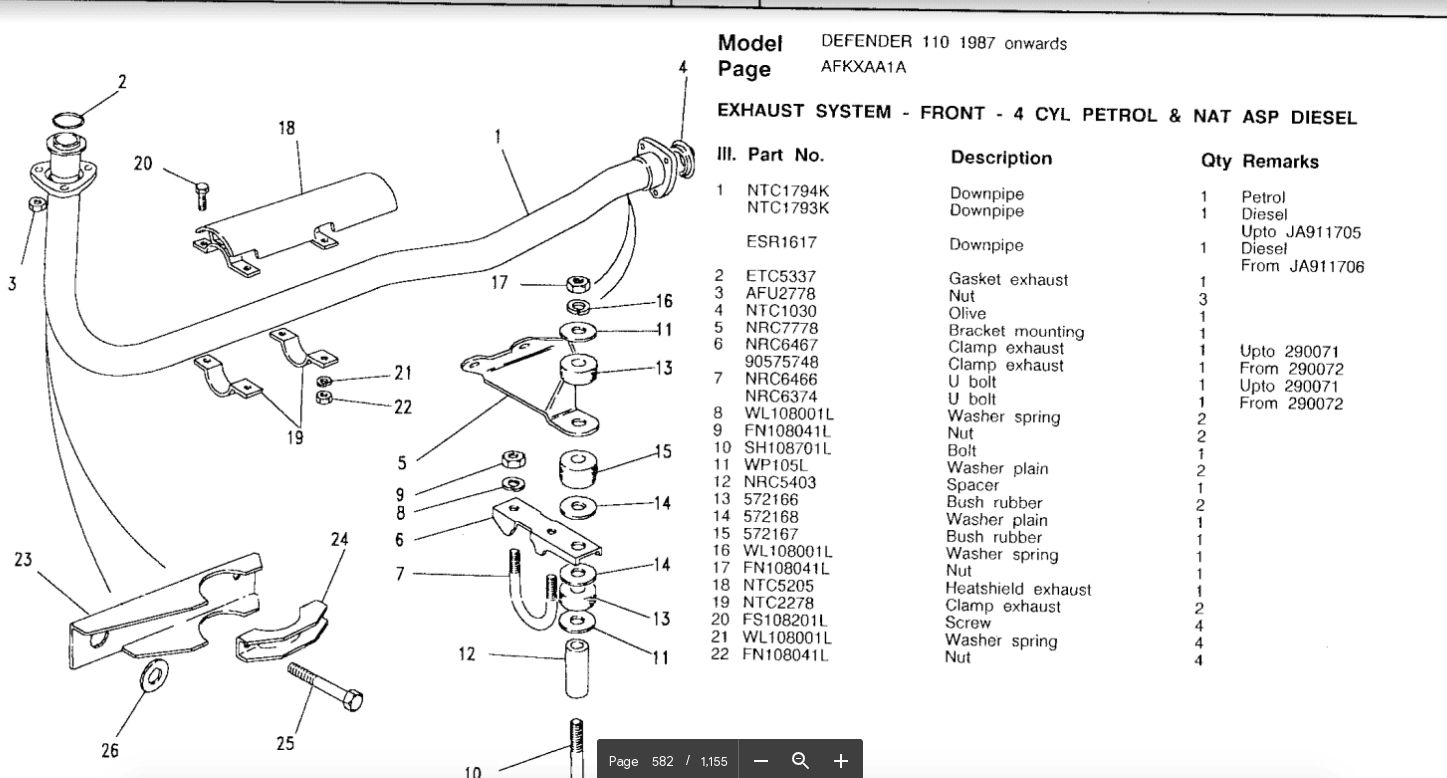

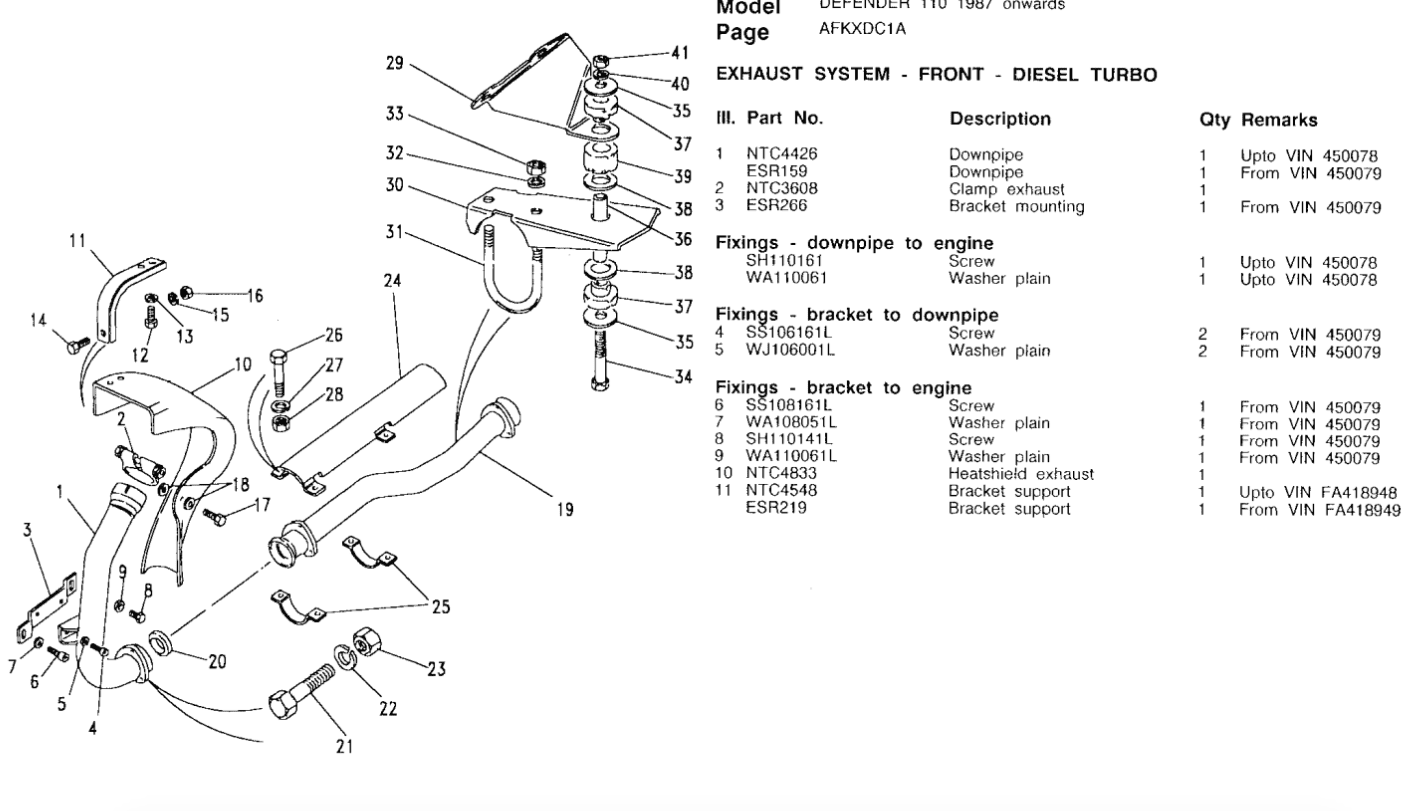

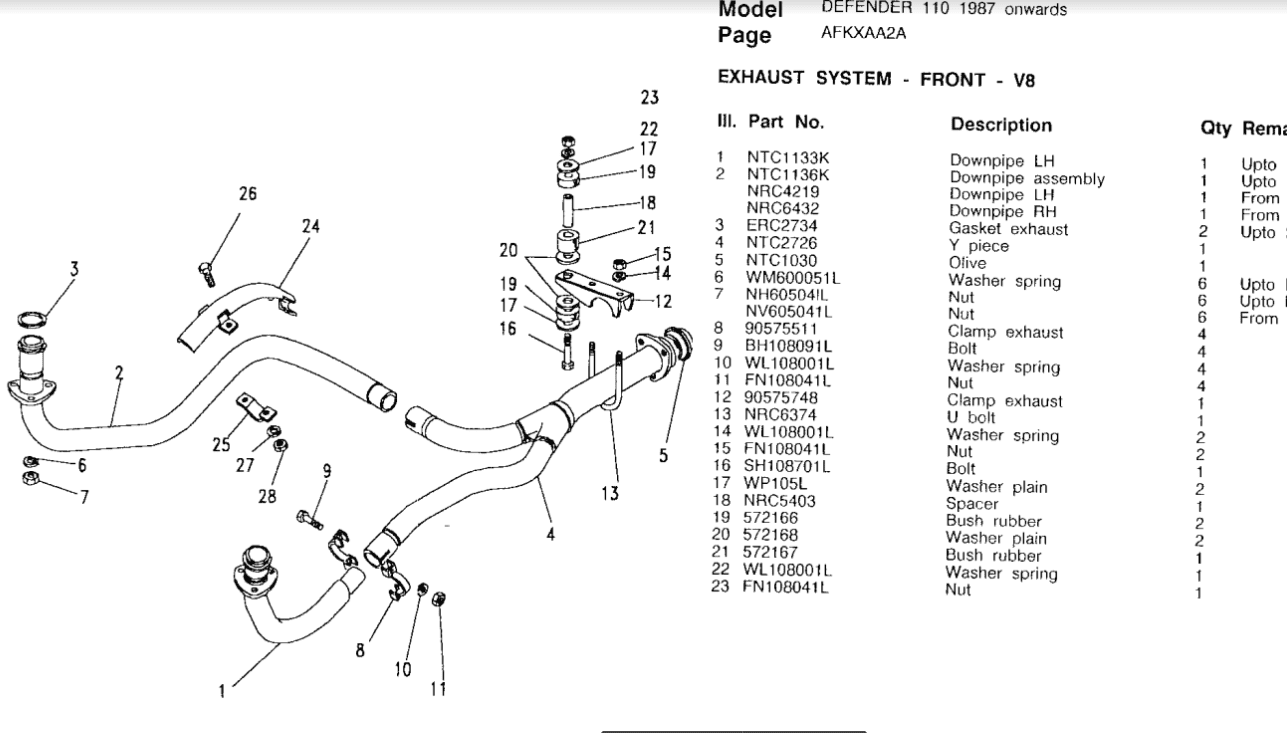

Pics for ideas, early 90/110
- Posts
- 31,386
- Location
- North Shropshire
my dads got one of these.. its great when the engine gets up to temp
http://www.land-rover-lightweight.co.uk/Winterised.html
http://www.land-rover-lightweight.co.uk/Winterised.html
Thanks, project for spring next year I think
LincolnSteve
Well-Known Member
- Posts
- 1,184
- Location
- Lincoln
Sorry for jumping into this thread but wanted to ask @lynall what parts book that is. Looks better than my one. Thanks.
Really useful site, https://www.landroverweb.com/landrover/pdf-land-rover-manuals-part-catalogue/
I think people upload manuals to the site.
Scroll half way down parts catalogue 1987 onwards.
LincolnSteve
Well-Known Member
- Posts
- 1,184
- Location
- Lincoln
Lovely job. Thank you.
