Series 3 109 2600cc

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.


New Member
Hi, I have a Series 3 109 2600cc built in the Blackheath Plant South Africa. It was originally supplied to the South African Air Force but doesn't appear to have a military chassis. There's none of the obvious signs like Square rear cross member, removable gearbox crossmemer and longer leaf shackles.
So I assume its a standard chassis, my question is were the South Afican chassis the same as UK ones as I need to replace some sections. The chassis number does come up as a standard 109 2600cc.
Welcome to Landyzone
any Piccies.

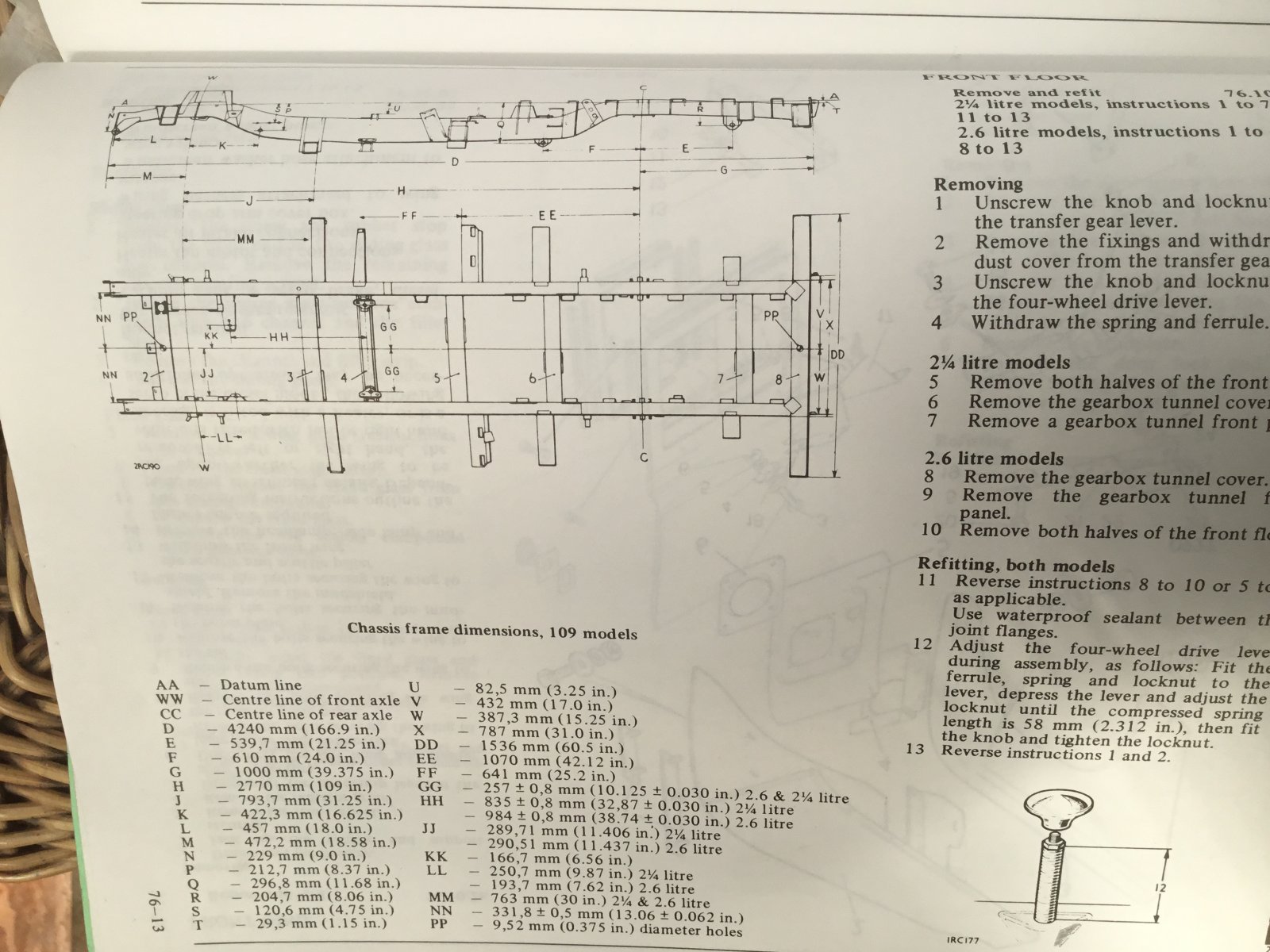

you could take a few measurements to confirm from the LR workshop manual chassis dimensions

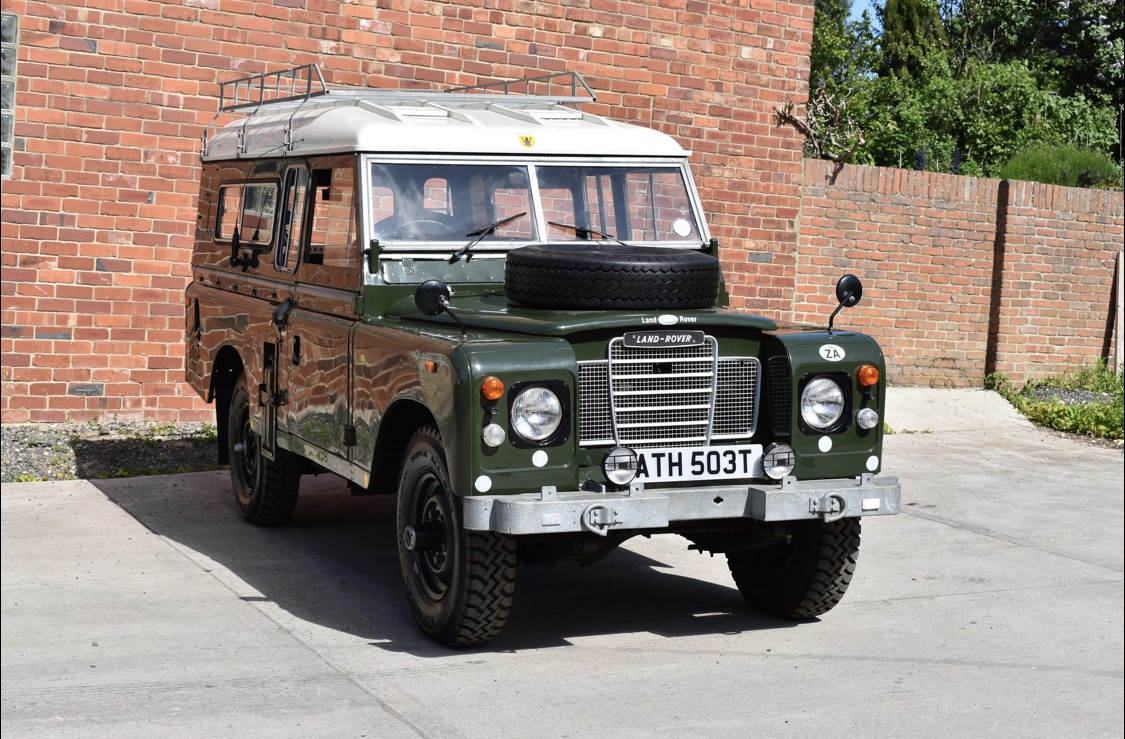

  • thumbnail_IMG_2436.jpg
    285.1 KB · Views: 92

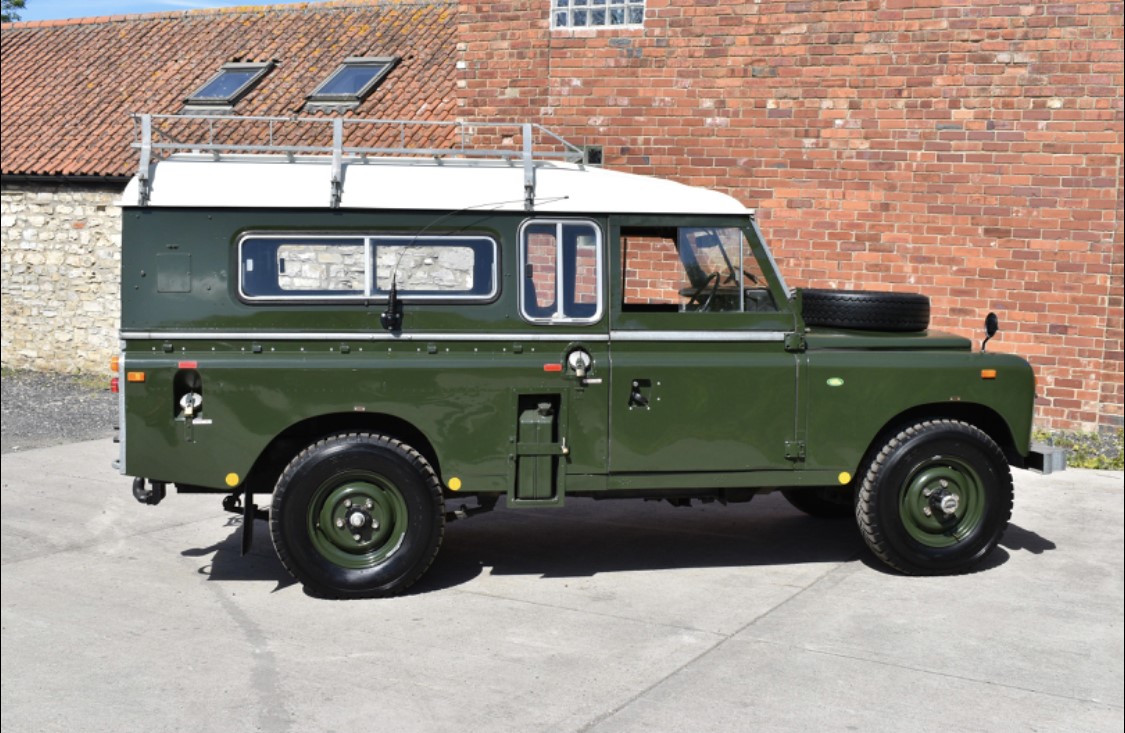

  • thumbnail_IMG_2438.jpg
    212.7 KB · Views: 91

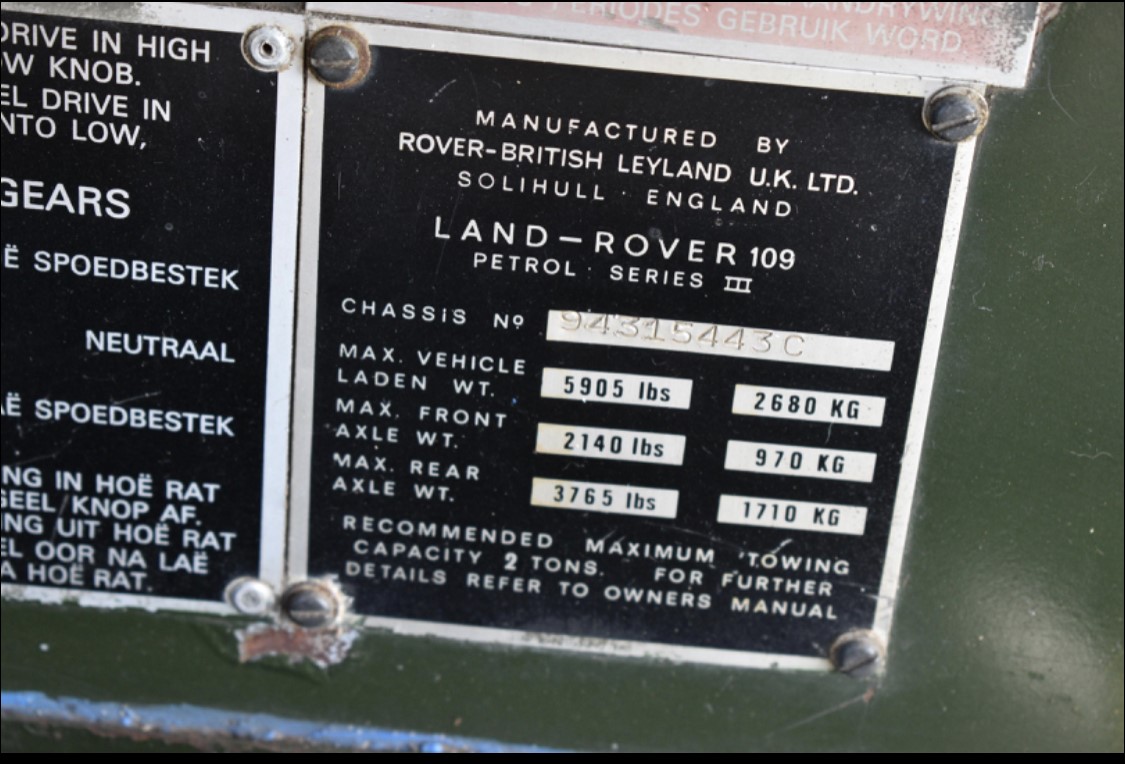

  • thumbnail_IMG_2439.jpg
    179.2 KB · Views: 101

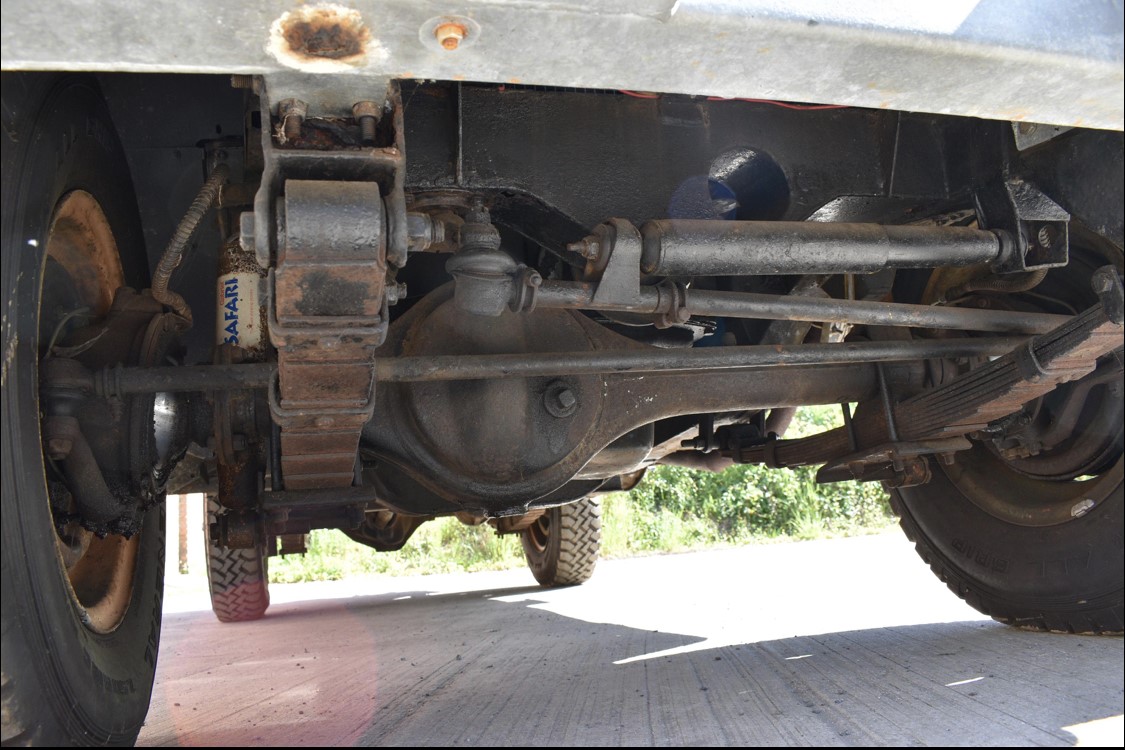

  • thumbnail_IMG_2440.jpg
    196.9 KB · Views: 99

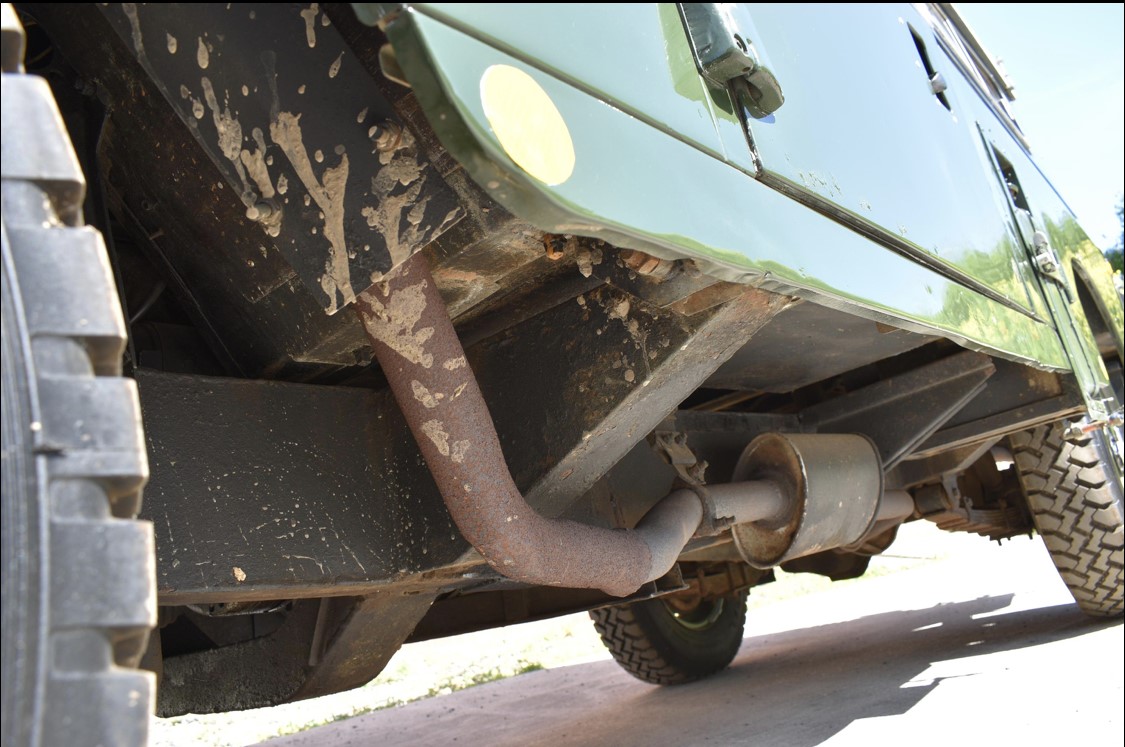

  • thumbnail_IMG_2442.jpg
    185.9 KB · Views: 110

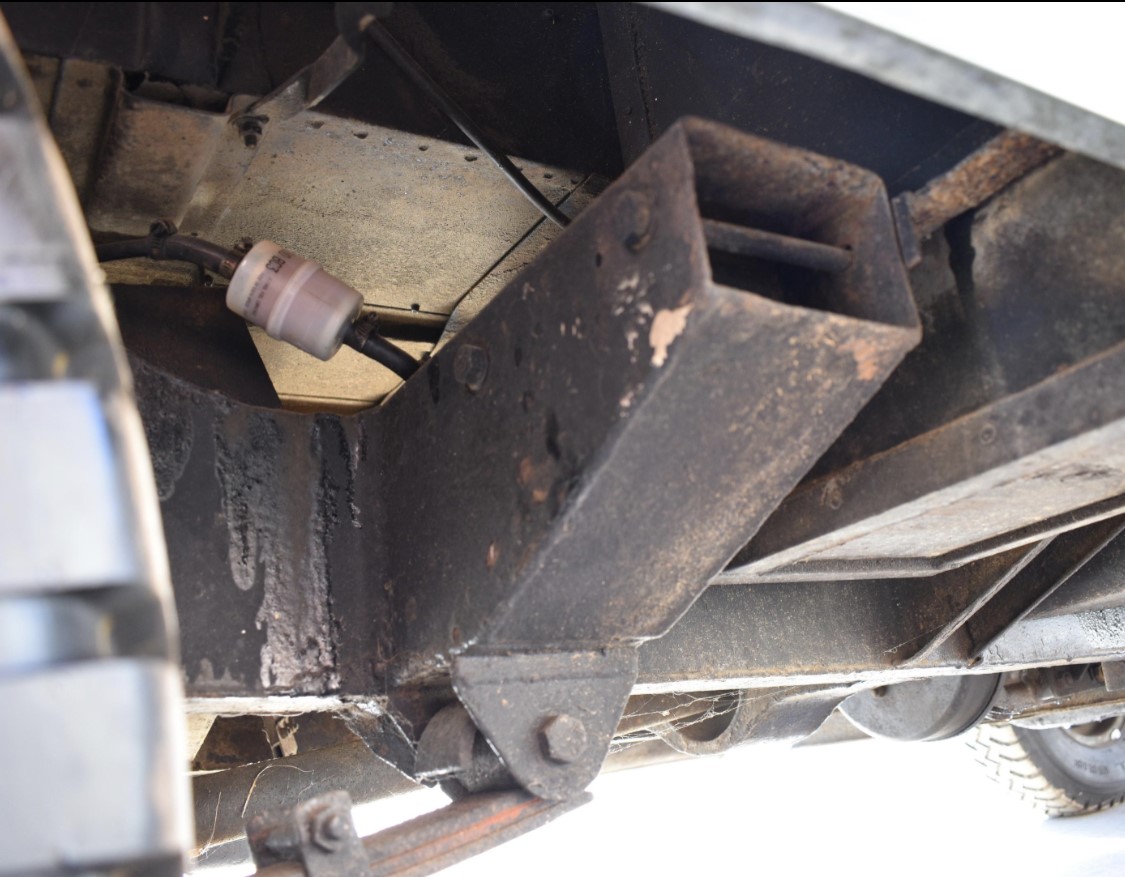

  • thumbnail_IMG_2445.jpg
    174.4 KB · Views: 92
That’s a tidy landy, its Probably an easy weld repair with the bumper off cut out the bad and weld in a plate
Thanks Steve
She's got an amazing history, left the SA Air Force in 1993 and everything is documented since then, only been here for a year.
Whats your Landy?
Mines an 84 series 3, which I’ve had for maybe 15 years, I put a 200di in about 3 years ago and rebuilding the original 2286 now, I keep on refurbing bits over time with little improvements, makes it an enjoyable drive, the furthest I went was the NC500 about 4 years ago and most challenging was the Gatesgarth pass last month
