series 2 suspension and clutch?

fred_110 · Feb 17, 2009

hi,
just wondering if i can raise my series 2 by adjusting the leaf springs or whether it would be a case of replacing them for different one's? i have seen other series land rovers with the leaf springs but the ride hight is alot greater! if so how do i do it?
also the clutch has nearly gone on it is there a way of adjusting the clutch without changing it for now?
cheers
fred

jai_landrover · Feb 18, 2009

You coud do alot worse that replacing the springs with new ones and grease them up loads (messy job but worth it) mabe fit some 1 tone shackles but reckon you should do new springs first. If they are original they are most likley well past it and rusted together and not performing well as a spring.

Clutch somone will be along but I would guess if it needs changing just change it. Jai

Beast o Bodmin · Feb 18, 2009

get a new clutch in there.
You can do well with extended shackles and parabolic springs.Also fit bigger tyres.
If you get standard springs to replace do as said.Grease em up and remember the springs are side specefic.easy job but slow and messy.

andyb66 · Feb 18, 2009

Make sure that replacement springs are made with British 'Corus' steel. Unfortunately Chinese ones sag rather quickly.

As for clutch. Make sure that you have the push rod (goes from clutch release piviot to slave cylinder) adjusted correctly. Also check that there is no or little wear in the clutch release pivot itself. Both of these are 'use up' some of the clutch pedal movement before the actual clutch starts to move.....

.....unless of course it is slipping, in which case it is new clutch time

discojamz · Feb 18, 2009

my series has parabolics and what looks like extended shackles. definately looks higher. and is running on 750's

Beast o Bodmin · Feb 18, 2009

discojamz said:
my series has parabolics and what looks like extended shackles. definately looks higher. and is running on 750's

Thats tha way........

fred_110 · Feb 18, 2009

nice 1 cheers

jmattley · Feb 18, 2009

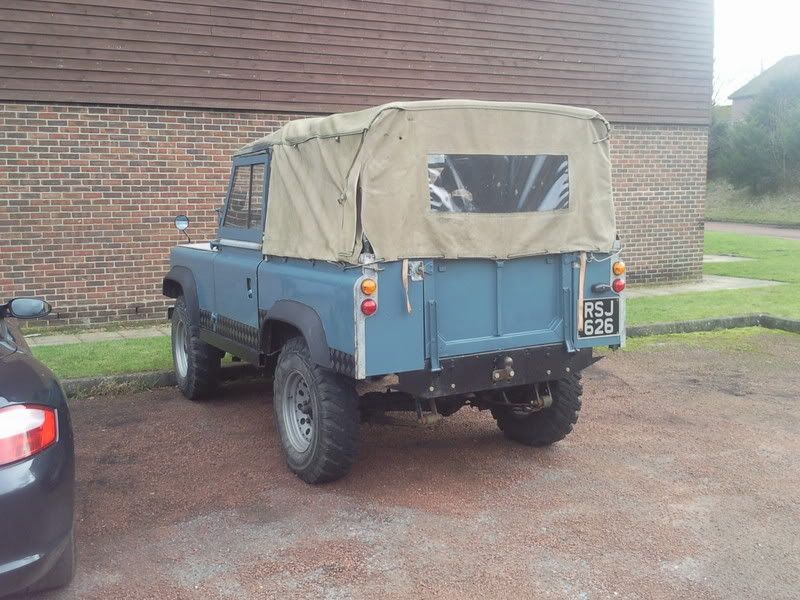

Whats with your rear x member? Wheres the pto hole? What you gonna to when you want to run farming machinery!!!!!

discojamz · Feb 18, 2009

I don't know whats up with the cross member, not seen one like it before.

jai_landrover · Feb 18, 2009

Looks like somone has cut it down to the chassis rails and then plated over it oversize I dunno, how does the rear tub mount is it behind the plate?? I dunno Jai

Ash3010 · Feb 18, 2009

looks the dogs nuts im trying to get hold of a set if anyone knows were i can get them. looked on ebay but its cr**p

discojamz · Feb 18, 2009

jai_landrover said:
Looks like somone has cut it down to the chassis rails and then plated over it oversize I dunno, how does the rear tub mount is it behind the plate?? I dunno Jai

not sure, i'll have a look in the morning

redwingslandrover · Feb 20, 2009

Think i have a clutch going spare if you want it, bring it along sunday if your going
