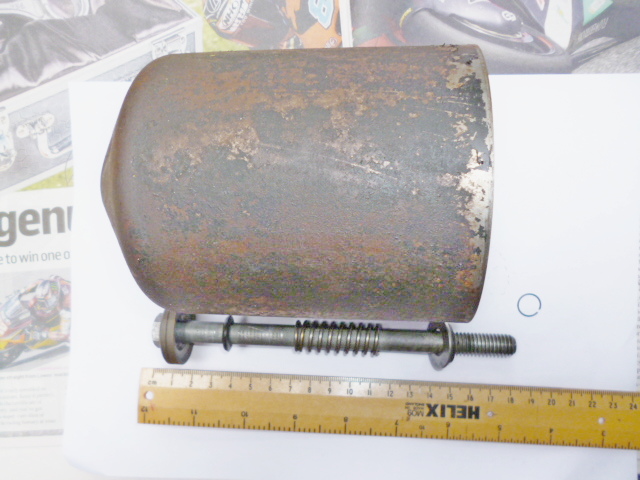

Hello all, I wonder if anyone has a photo/parts diagram of 2.25 petrol oil filter assembly, I ordered a filter RTC3184 but the top/bottom holes are too large for the rod & couple of washers in mine to hold it in an oil tight position. I have looked on the web but cant find anyone selling the correct sized washers/seals (if anyone knows where to get them please let me know) so looks like I will have to make them on the lathe. But I need sizes so any pics showing your oil assembly internals used to hold the RTC3184 would be gratefully recieved. see att pic of what I have inside of mine. What should I have as opposed to whats there?
series 111 oil filter
- Thread starter dwdw
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 33,948
- Location
- North Shropshire
I've got the parts manual at home somewhere, will dig it out
- Posts
- 33,948
- Location
- North Shropshire

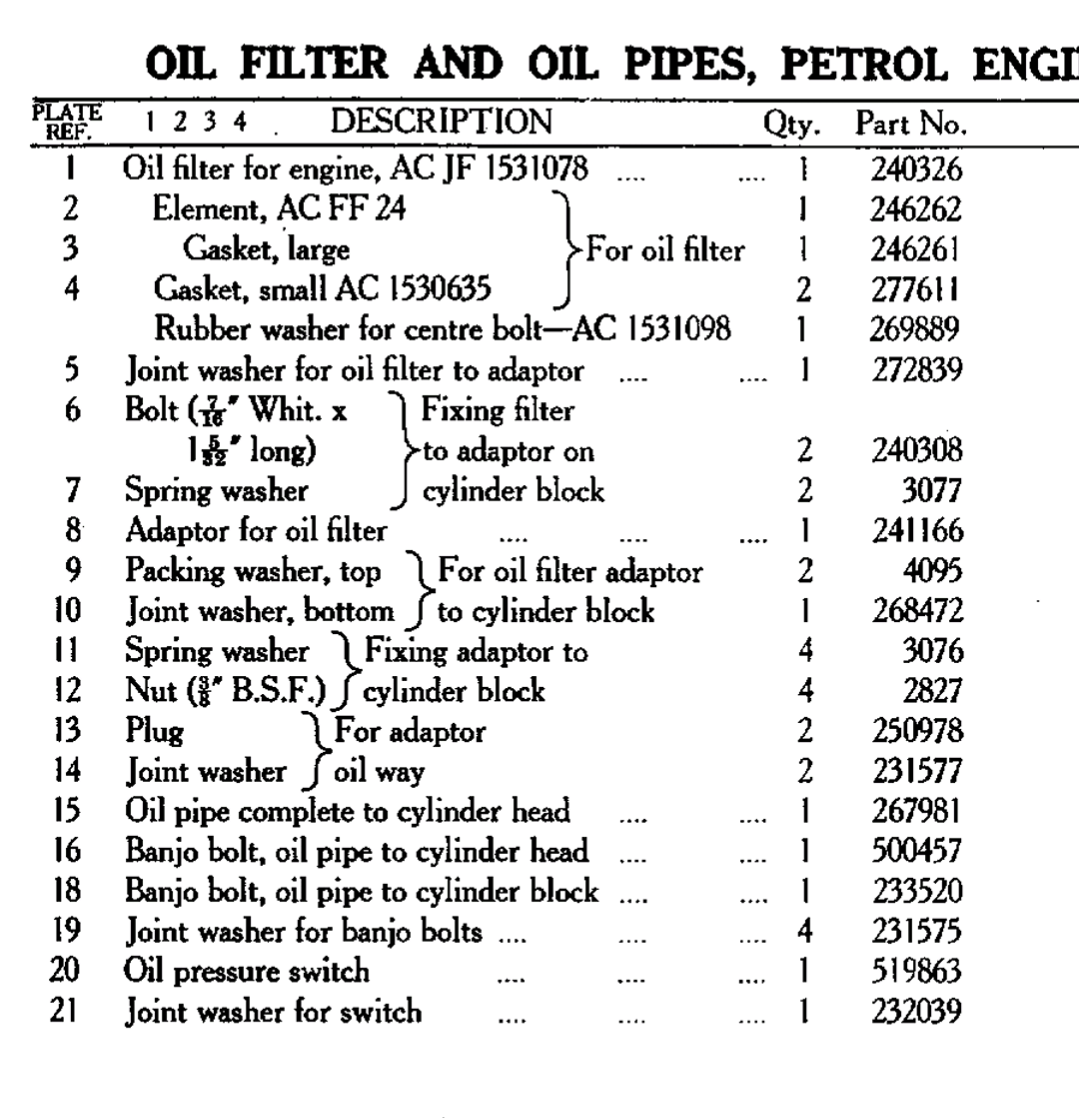

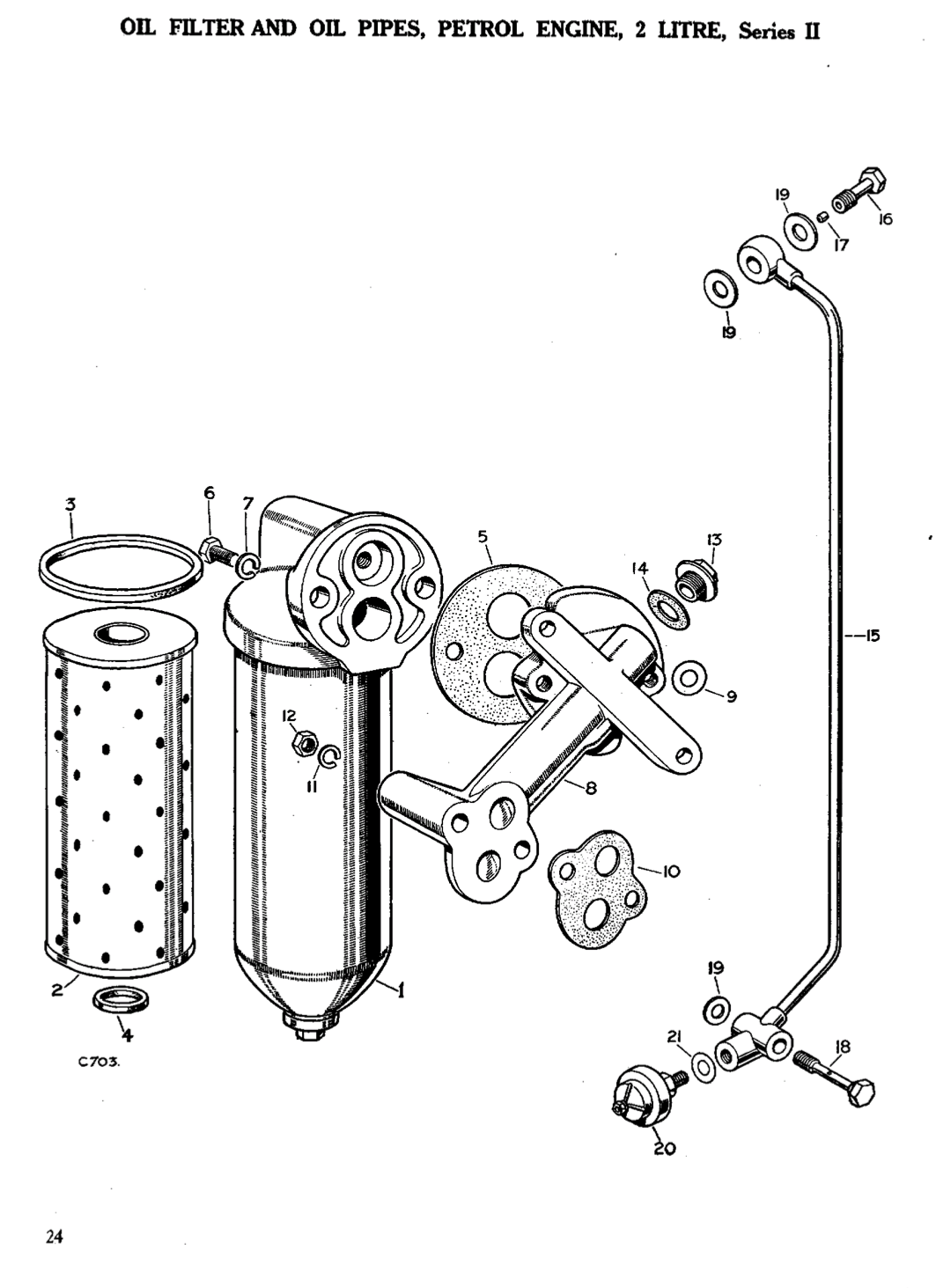

Right this is the long early/diesel one but i think it's all the same parts just a different length
Many thanks for your prompt reply, that gives me something to go on when making bits on lathe, one thing missing seems to be the spring. Rgds DW.
- Posts
- 33,948
- Location
- North Shropshire

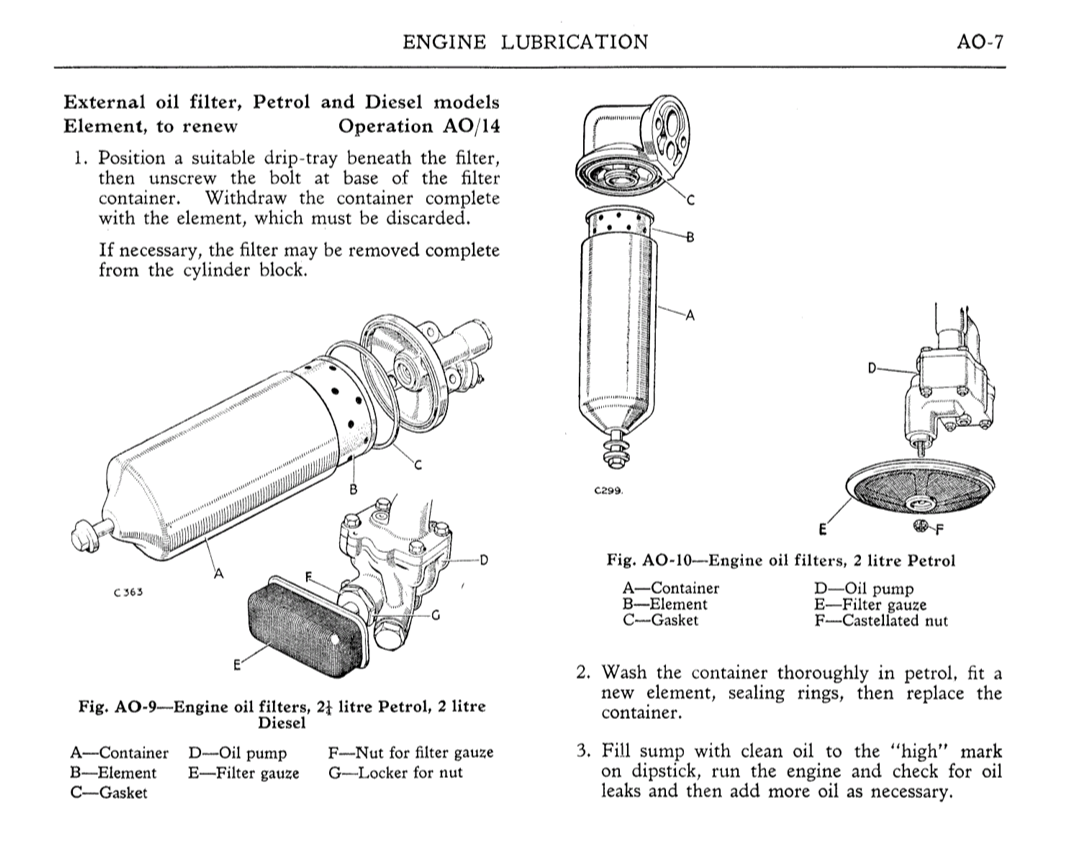

Found this as well in the workshop book for a different view
- Posts
- 33,948
- Location
- North Shropshire

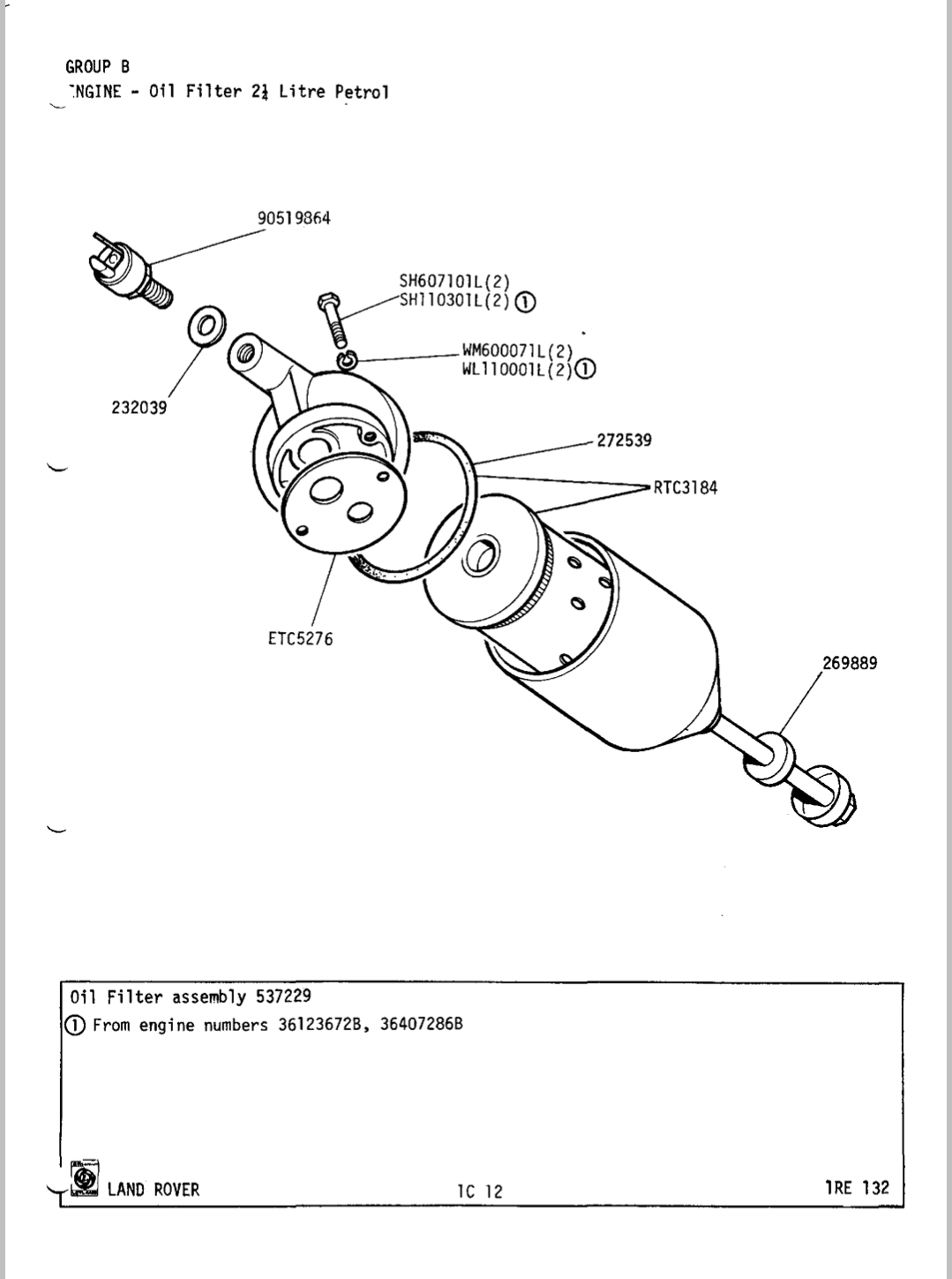

Finally found the SIII one
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
That is a short oil filter assembly, as found on petrol Series.
And it is complete, apart from the rubber seal under the head of the bolt has been replaced with a much smaller O ring.
You need to get a nitrile rubber O ring about the right size, I should think about 6mm internal diameter. It doesn't have to be that exact, as the special head of the bolt crushes it into shape.
