oil filter housing APC 26222 BCD1

dwdw · Oct 12, 2023

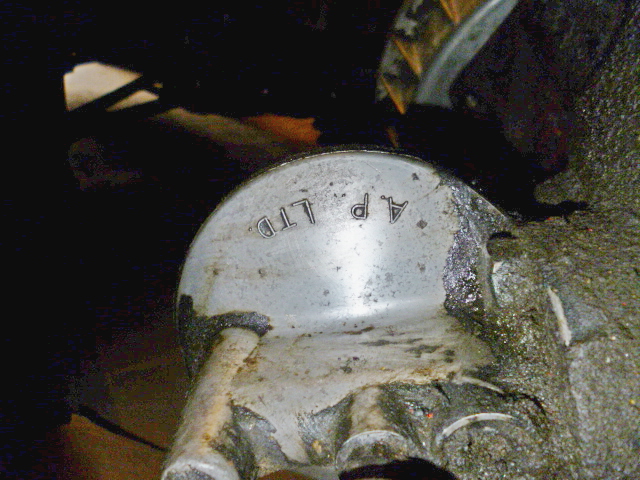

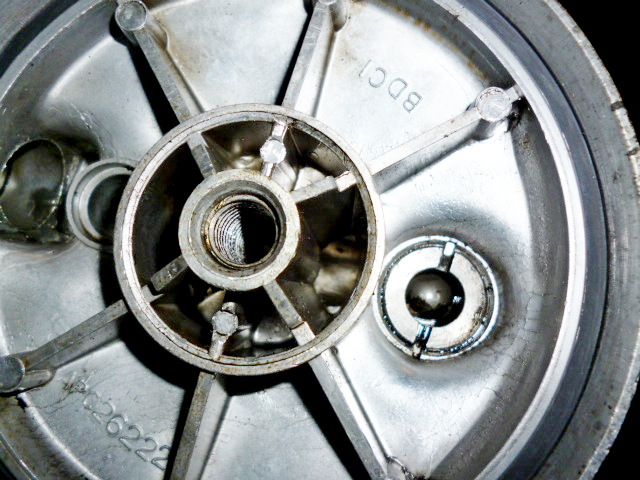

Have just bought oil filter for my series 111 petrol 2.5. RTC 3184. BUT holes are far too large to fit the rod holding it & the actual housing all together, on looking at the oil filter housing its marked APC 26222 BCD1 & is totally different from the series three oil filter assembly (537229). I have googled APC 26222 BCD1 & cant find anything. Any one know where I can find the washers,seals, spring etc that hold the filter cartridge in place? Or which landrover the oil filter housing APC 26222 BCD1 is meant to fit so that I can find its part number? Or which filter will fit this housing?

Thanks in anticipation DW.

Wildefalcon · Oct 12, 2023

Photo of filter element please? And the rest of the filter canister.

dwdw · Oct 12, 2023

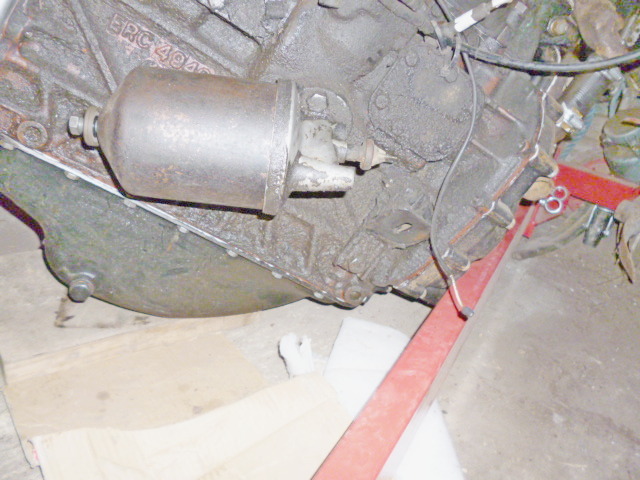

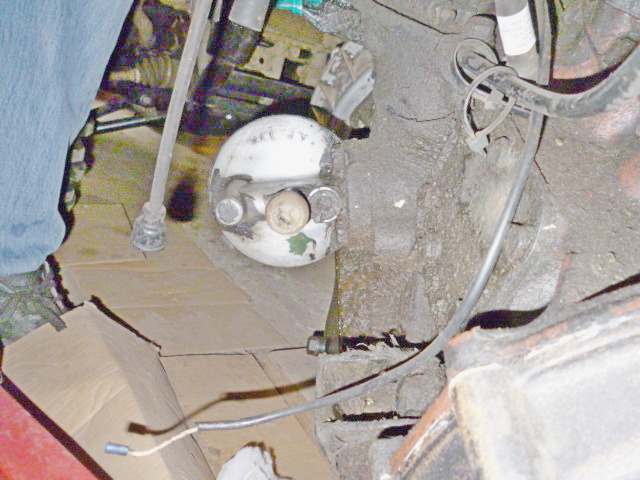

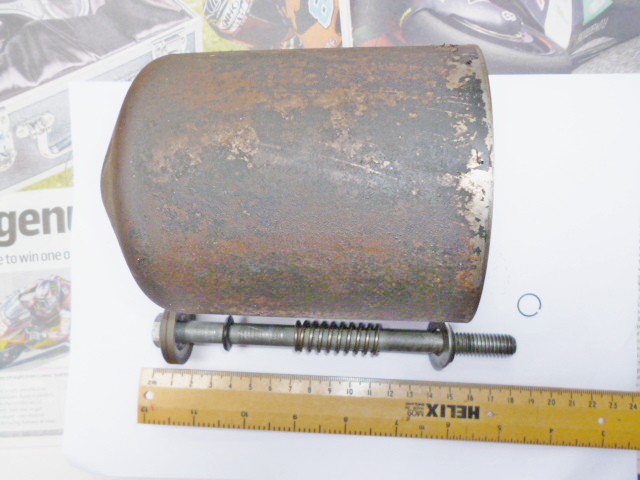

unfortunatly filter has been thrown away pics of bolt, housing & the few washers, spring that held filter on is att

Wildefalcon · Oct 12, 2023

Those numbers are casing and manufacturing process numbers, not rover part numbers.

That looks like a series filter. The RTC 3184 is right.

Buy a genuine Landrover oil filter assembly, it comes with the o rings and seals, as well as the paper element.

You say it's a 2.5, is it 17H engine?

Wildefalcon · Oct 12, 2023

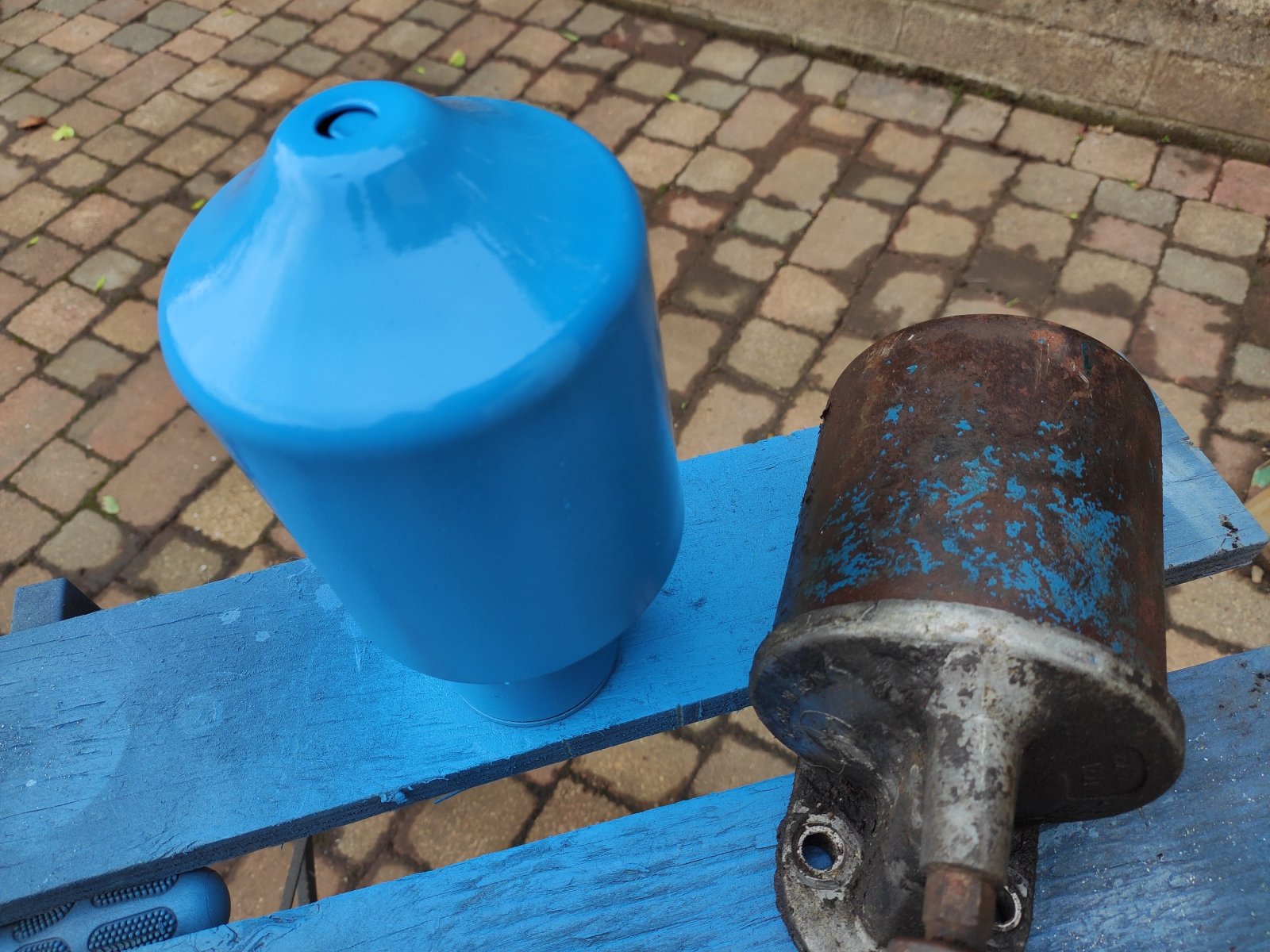

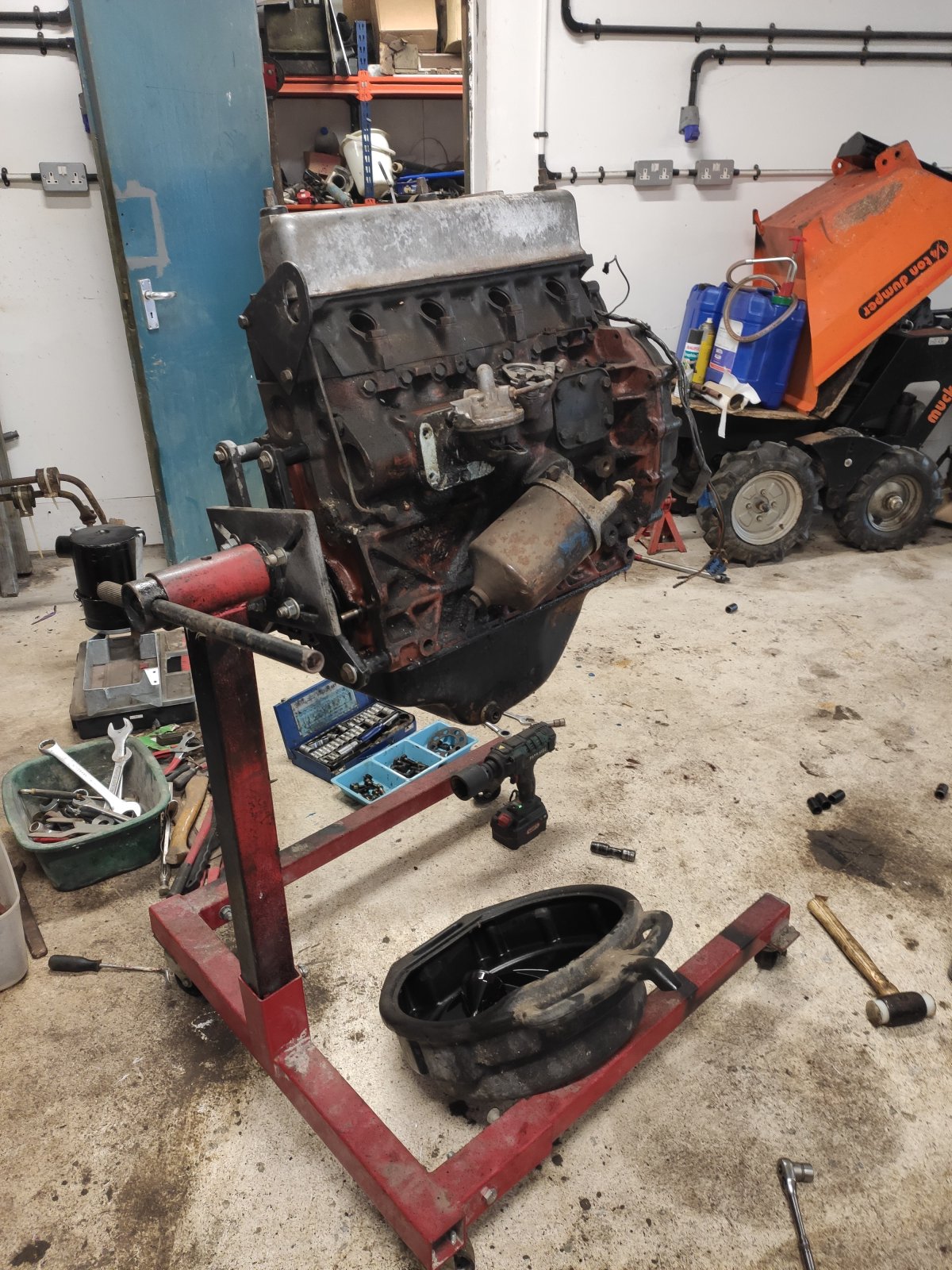

My 2.5 17H 110 engine dressed as a series engine.

dwdw · Oct 12, 2023

Wildefalcon said:
Those numbers are casing and manufacturing process numbers, not rover part numbers.

That looks like a series filter. The RTC 3184 is right.

Buy a genuine Landrover oil filter assembly, it comes with the o rings and seals, as well as the paper element.

You say it's a 2.5, is it 17H engine?

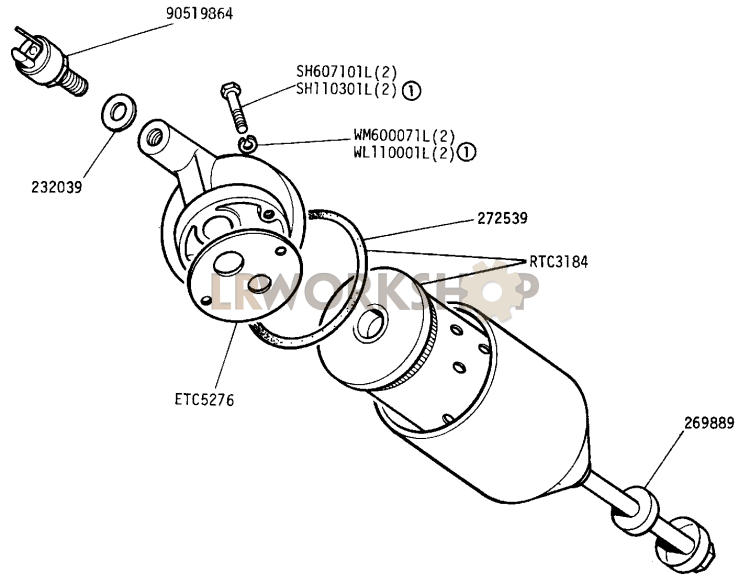

series housing seems to have only one input (electrical) see att part diag, mine has electric input in middle not at the end, also has extra bits/bumps coming out of the top. What is a 17H engine?

Wildefalcon · Oct 12, 2023

17h is a 2495cc 90/110 petrol engine rather than a series 2286cc engine.

dwdw · Oct 12, 2023

Thanks for that, mine is the 2.25 petrol, I seem to be missing some of the inner bits I have the spring a small wire "C" clip which fits the threads, but havent got the washers/seals that would take up the large spaces made by the holes in top/bottom of the cartridge. If I had parts dia showing those bits I could make them on the lathe. Any idea where I could get a drawing the landy one only shows the cartridge & one large O ring/seal that goes into top of the housing.
