Self-harming the body. Where's the best place to put 2 bullet holes?

Discussion in 'Defender 90 / 110 / 130' started by Mackers, Feb 12, 2019.

< Previous Thread | Next Thread >
  1. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK
    So I need to drill through a 1992 body, unspoiled for all them years, to mount 2 reversing cameras at the top back corners of my tratter. I might put each bracket camera on the roof rack, or just under the rim of the roof. They're wired sony tvl 700's. I'm guessing it'll be an M8 or M10 hole. Where would you drill the holes? Cheers in advance if you reply.


    Last edited: Feb 12, 2019
  2. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,911
    Likes Received:
    1,952
    Location:
    South London/North Kent
    I put my cam in the xmember towing leccy hole.

    Ironstrike and Mackers like this.
  3. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK

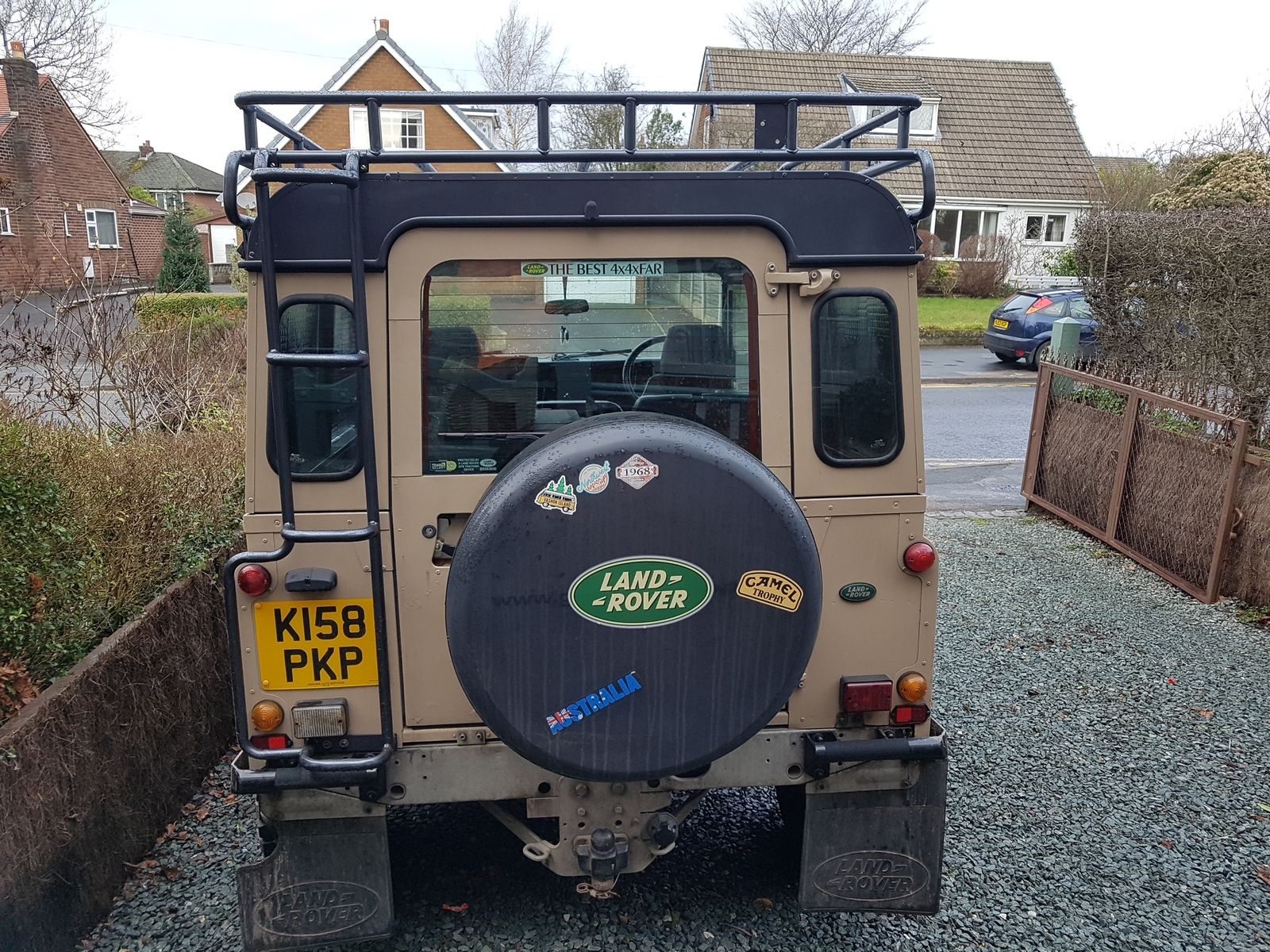

    Mine are for looking down the sides, if you can see on the pic, if I drive onto drive rather than reversing, I can't see pedestrians, especially in summer through the hedges when reversing onto the busy road. Because I live next to the hospital, there's about 500 pedestrians walking the path and I've already had some near misses. The cameras will point to see down the pavement when the back end of my tratter gets to the driveway/pavement boundary. How do you find muck and dirt management with cams so low?

  4. slomofo

    slomofo Well-Known Member

    Joined:
    Jan 18, 2010
    Posts:
    902
    Likes Received:
    297
    Location:
    Bardsville
    Mackers likes this.
  5. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,763
    Likes Received:
    686
    Location:
    west wales coast
    I brought the cable out for my rear work light by freeing the roof to rear quarter bolts and made a gap in the seal strip for it to pass through.

    Mackers likes this.
  6. Disco1BFG

    Disco1BFG Well-Known Member

    Joined:
    Mar 18, 2015
    Posts:
    4,142
    Likes Received:
    1,795
    Location:
    Buxton
    Think I'd be mounting them on the rack if you can - probably with insulated p clips ( or two ;) ) - and then feeding the wires as tottot says in post #5 .... I'd avoid drilling any more holes in a deafener o_O

    Mackers likes this.
  7. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK
    I'll to see if it's something I can do. Sounds a bit complicated. Is there more detail to how the roof prizes off?

    UsInWorld likes this.
  8. doriz

    doriz Well-Known Member

    Joined:
    Feb 18, 2015
    Posts:
    6,908
    Likes Received:
    3,398
    Location:
    Cowroast
    Have you really bin to Australia in that?

    Mackers likes this.
  9. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK
    No. It's a friends and family sticker bomb board. When they go on holiday or emigrate, their mission is to try and send a sticker, the idea being that I rember them on my travels. The type of friends I have means in reality that by August it's gonna have Benidorm and Ibiza all over it lol :D:D

    Hicap phill likes this.
  10. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,763
    Likes Received:
    686
    Location:
    west wales coast
    No need to remove anything,roof is held to rear quarter by a few small bolts.Just slacken them and the corner will lift [ I used my back ] enough to push the wire through near the door opening.

    Mackers and Disco1BFG like this.
  11. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    If you remove the door seal from the roof section, you should see where the roof and side panels meet. Chances are this area will have some dumdum in it for sealing purposes. If you squash the cable into the dumdum, and then replace the door seal, it should give you what you want.

    Mackers likes this.
  12. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,911
    Likes Received:
    1,952
    Location:
    South London/North Kent
    Ahhh sorry dude. I didnt see the pic on my phone! As for the cam being low not much of an issue with muck gets a bit dusty every now n then but nothing major. I tried the cam on the number plate light, roof and a few other places. Couldnt get a long with it as I couldnt see what I wanted to see, if you see what I meant? lol

    Stuck in the towing leccy hole I can see exactly what I want makes parking super easy

  13. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK

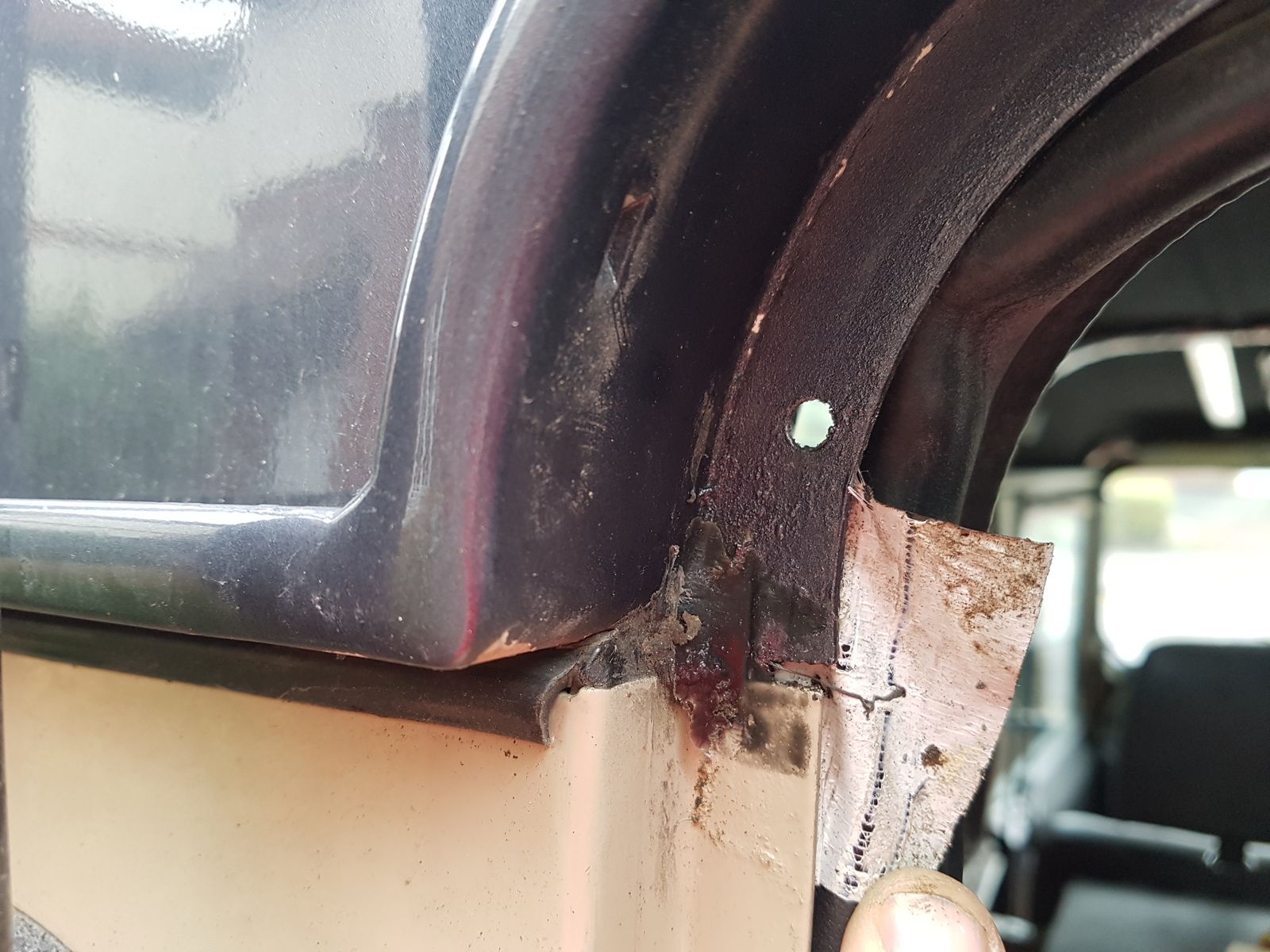

    Do you mean somewhere here Mick?

  14. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    That’s the place. Under that black tape should be dumdum paste, and that should be blocking a hole. If you push the wire into it, it should shape the dumdum around it.

    Mackers likes this.
  15. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK
    BRILL. Thanks

  16. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    No problem. Hopefully it will give you the effect you want, without drilling holes.

    Mackers likes this.
  17. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK

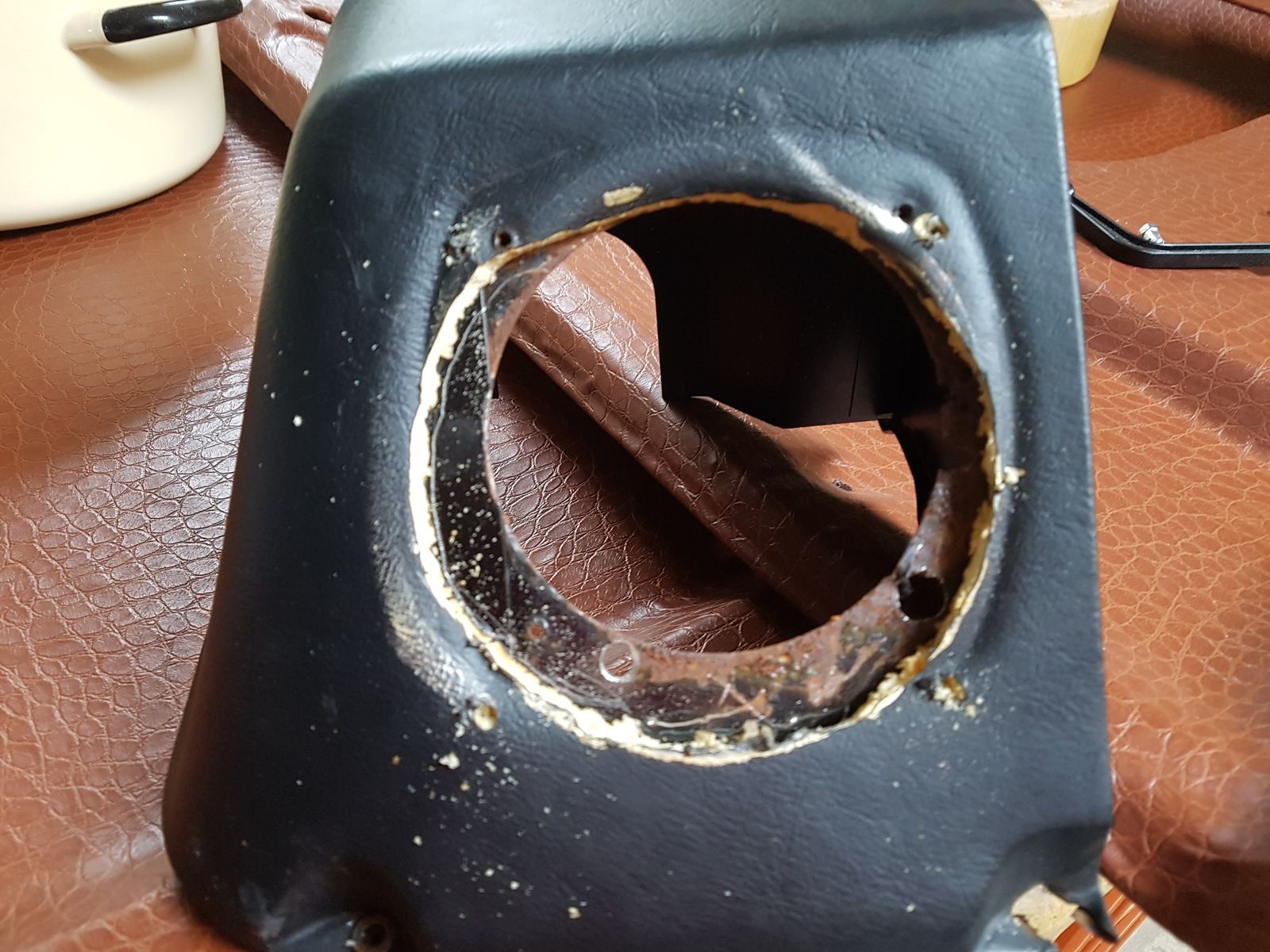

    Wasn't expecting this btw! Metal!!!! Anyone know how best to cut it out?


  18. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    1,759
    Likes Received:
    402
    Location:
    Lost
    A jigsaw (with a metal cutting blade) would cut it, as would a hacksaw. I’m not sure which would be best though.

    Mackers likes this.
  19. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    2,876
    Likes Received:
    1,489
    Location:
    Henley on Thames, Oxfordshire
    As Mick has said, a jigsaw with metal-cutting blade would cut that nicely from the other side

    Mackers likes this.
  20. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    2,432
    Likes Received:
    1,492
    Location:
    UK
    I went down to ARGOS and bought their cheapest Jigsaw after Mick's post Went through it easy and done now :0)

    bluedog333 likes this.
