sankey wide track - high roofs

Discussion in 'General Land Rover Forum' started by vilguy, Feb 12, 2015.

< Previous Thread | Next Thread >
  1. vilguy

    vilguy Do'er of stuff and the like

    Joined:
    Mar 4, 2010
    Posts:
    9,915
    Likes Received:
    593
    Location:
    Dumfrieshire
    I want to fit a cover and hoops to my sankey wide track trailer so it can carry more stuff (under a cover surprisingly)

    Does anyone know what type of hoops I need? Do ones off a hi cap fit?

    I was going to fit a wolf roll cage that i have kicking about but i think thats going to go in my 110 instead :)

  2. the_wolf

    the_wolf Well-Known Member

    Joined:
    Jan 22, 2012
    Posts:
    16,305
    Likes Received:
    3,648
    Location:
    Hamilton, Central Scotland
    I'll have the roll cage if you don't want it ;)

  3. vilguy

    vilguy Do'er of stuff and the like

    Joined:
    Mar 4, 2010
    Posts:
    9,915
    Likes Received:
    593
    Location:
    Dumfrieshire
    choof off keeping trying to buy my stuff. its not for sale. Its going in me 110!

    I found the info I needed. A set of 109 sticks and canvas will fit with a bit of persuasion :)

    Last edited: Feb 12, 2015
  4. mistericeman

    mistericeman Active Member

    Joined:
    Feb 22, 2007
    Posts:
    977
    Likes Received:
    92
    Location:
    peoples republic of ashton-under-lyne ,lancashire

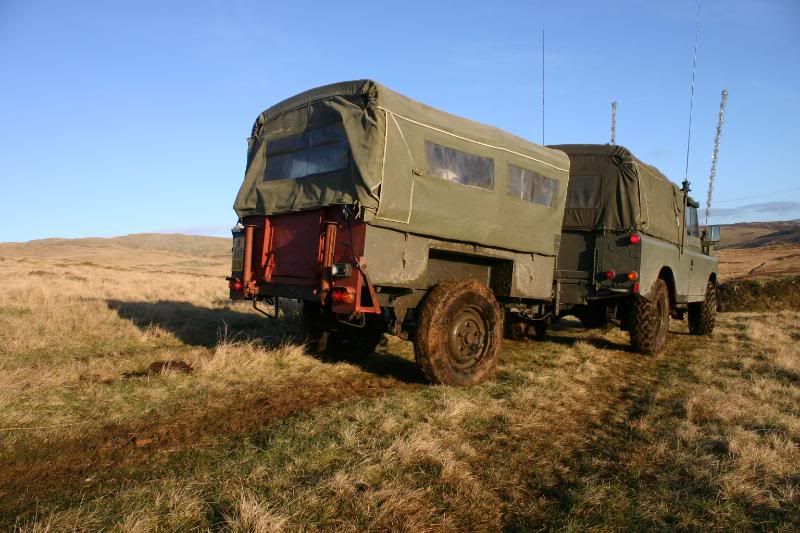

    I stuck some spare 3/4 hoops and a used 3/4 tilt on my narrow track

    [​IMG]

    Bloody useful it was too....

  5. vilguy

    vilguy Do'er of stuff and the like

    Joined:
    Mar 4, 2010
    Posts:
    9,915
    Likes Received:
    593
    Location:
    Dumfrieshire
    thats just what i want :)

    now i need to find some sticks and a canvass :doh:

  6. mistericeman

    mistericeman Active Member

    Joined:
    Feb 22, 2007
    Posts:
    977
    Likes Received:
    92
    Location:
    peoples republic of ashton-under-lyne ,lancashire
    I had to 'nip' the sticks in slightly on the Narrow track.... So you may find the wide track fits even better.

    Opened four holes up in the top rail with a cone cutter to allow the sticks to sit in and a middle hoop bolted through its foot into the top rail.
    4 spreaders/braces out of 15mm copper pipe and jobs a good Un.

  7. vilguy

    vilguy Do'er of stuff and the like

    Joined:
    Mar 4, 2010
    Posts:
    9,915
    Likes Received:
    593
    Location:
    Dumfrieshire
    just got to find a set of cheap hoops and canvass for a not extorionate price - stuffs going for mega bucks on ebay!

  8. vilguy

    vilguy Do'er of stuff and the like

    Joined:
    Mar 4, 2010
    Posts:
    9,915
    Likes Received:
    593
    Location:
    Dumfrieshire
    Well I cant find what I am after for this job. So I think I am going to have to make a heavy duty set of hoops.

    Im thinking some 42.4mm CHS for the hoops and braces and I will notch them etc to suit. I want a canvas cover so thinking an exmoor trim 130 hicap cover.

    Then I want 4 no. tubes sticking up with fasteners to mount the roof tent on top of this. (so I will have to have the canvas modified to fit around these)

    Ive got a tube bender in the garage (but never used it) Do the bottle jack and die ones produce reasonable bends or do you have to use a spring on the inside to stop the wall collapsing?

  9. Brown

    Brown Well-Known Member

    Joined:
    Jul 11, 2012
    Posts:
    5,991
    Likes Received:
    2,522
    Location:
    East Midlands
    If I was you I'd buy the cover first and then construct the frame to fit its attachment points. That'll define what you need.

    I've bent a few pipes in my time and my experience tells me it's something you just have to try out. Sacrifice a short length and see how acute a bend you can put in it without creasing or kinking it. I've been pleasantly surprised what can be achieved with iron heating pipe and one of those jack-in-a-frame benders. Or for thin walled stuff, one of those things for bending steel electrical conduit. Get bending and see what happens.

    We made a cover many years ago for a series 2 forward control truck bed with a discarded lorry tarpaulin and 1/2" iron heating pipe bent to shape. Turned out reasonably well too.

  10. vilguy

    vilguy Do'er of stuff and the like

    Joined:
    Mar 4, 2010
    Posts:
    9,915
    Likes Received:
    593
    Location:
    Dumfrieshire
    ill give it a go. Biggest faff is picking up the pipe from the steel stockist haha.

  11. Brown

    Brown Well-Known Member

    Joined:
    Jul 11, 2012
    Posts:
    5,991
    Likes Received:
    2,522
    Location:
    East Midlands
    I've recently fitted an Exmoor Trim tonneau cover to the back of a friend's 110 double cab (very nicely made, lovely fabric) and that had seams stitched into it to accept the metal tubes, so that defined where you needed to fit them to the truck bed sides. So get the cover first and make the frame to fit, if it doesn't sound too back to front.

  12. Varsity

    Varsity Member

    Joined:
    Feb 1, 2015
    Posts:
    94
    Likes Received:
    2
    Location:
    Slovakia
    Do youhave mode detailed pics? also of the antenna setup?

  13. mistericeman

    mistericeman Active Member

    Joined:
    Feb 22, 2007
    Posts:
    977
    Likes Received:
    92
    Location:
    peoples republic of ashton-under-lyne ,lancashire
    Just a standard ex mili 3/4 tilt over 3 standard series hoops two (Front/rear ones are rear hoops that drop into holes cut in top rail of Sankey middle one is standard middle hoop that bolts through top rail )
    And some 15mm copper plumbing tube to make side braces ....Piece of marine ply at front to close that end off ....
    Rear flap laces up pretty much same as if on a series .

    Antennas are standard Clansman 2 sections mounted on wing mounted TUUAM's and extended side mounts (Standard length ones are ...standard BUT I happened on the extended ones at the right price .)

  14. listerdiesel

    listerdiesel Well-Known Member Events Planner

    Joined:
    May 3, 2009
    Posts:
    3,275
    Likes Received:
    277
    Location:
    Rushden, Northants, UK
    There's a set of hoops and cover in the for sale section, been there for a while now....

    Peter

  15. livers

    livers Well-Known Member

    Joined:
    Oct 23, 2009
    Posts:
    3,905
    Likes Received:
    8
    Location:
    suffolk A12/A14 junction
    While you are out visit your local tarpaulin place they will do made to measure at less than you might expect.

  16. Varsity

    Varsity Member

    Joined:
    Feb 1, 2015
    Posts:
    94
    Likes Received:
    2
    Location:
    Slovakia
    Peter do you have a link? cant seem to find it

  17. listerdiesel

    listerdiesel Well-Known Member Events Planner

    Joined:
    May 3, 2009
    Posts:
    3,275
    Likes Received:
    277
    Location:
    Rushden, Northants, UK
