S3 diesel brake vacumn tank location help needed

neo2 · May 17, 2023

Hi guys does anyone have any pictures of how and where the brake servo vacumn tank mounts on the inner wing, Iam on about the 12" black metal bottle that is the vacumn resovior, I never took it off and ive a windscreen washer bottle to fit there too, just cant seem to get the room for both, unless its the wrong bottle maybe... Its a 1983 Y reg landy... Thank in advance guys...

dag019 · May 17, 2023

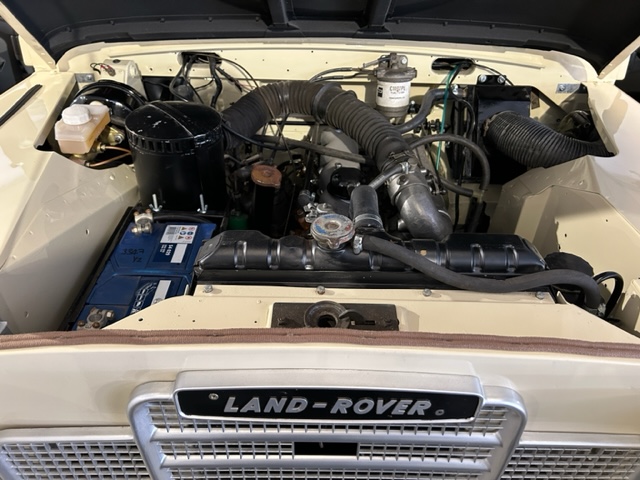

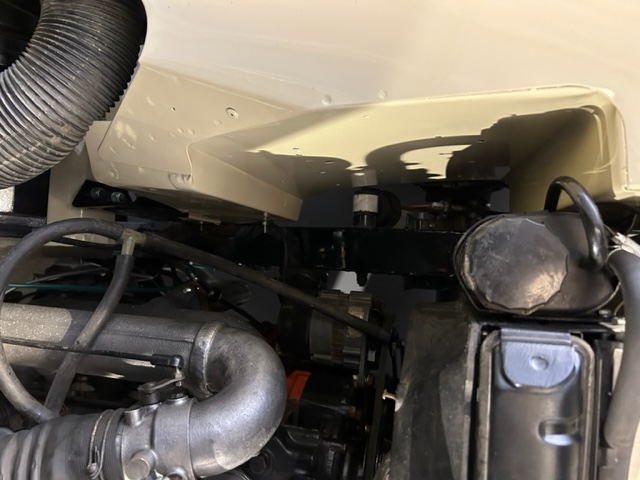

I will be with my '82 series 3 tomorrow for a classis car evening. I have both the tank and a washer bottle so will try and get some pics for you if I remember.

LordOWar · May 17, 2023

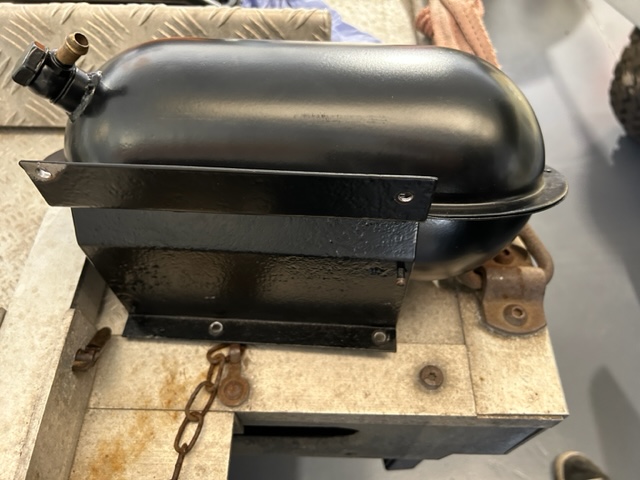

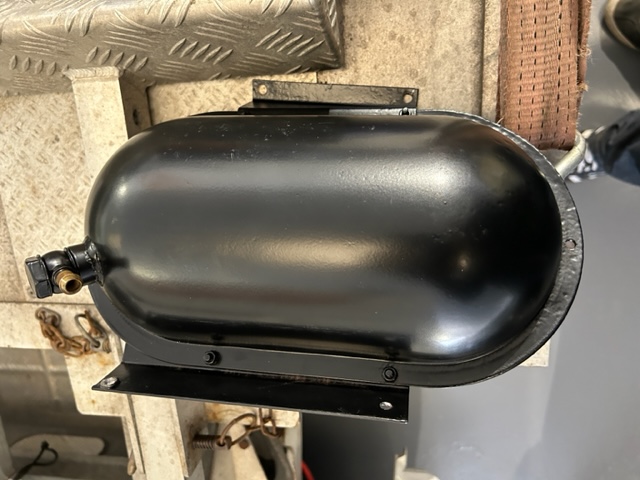

Washer bottle mounts to the bracket the tank is on Then all the gubbins fits where the washer bottle was fitted. I have one but it is 14 miles away at the minute.

steve2286w · May 18, 2023

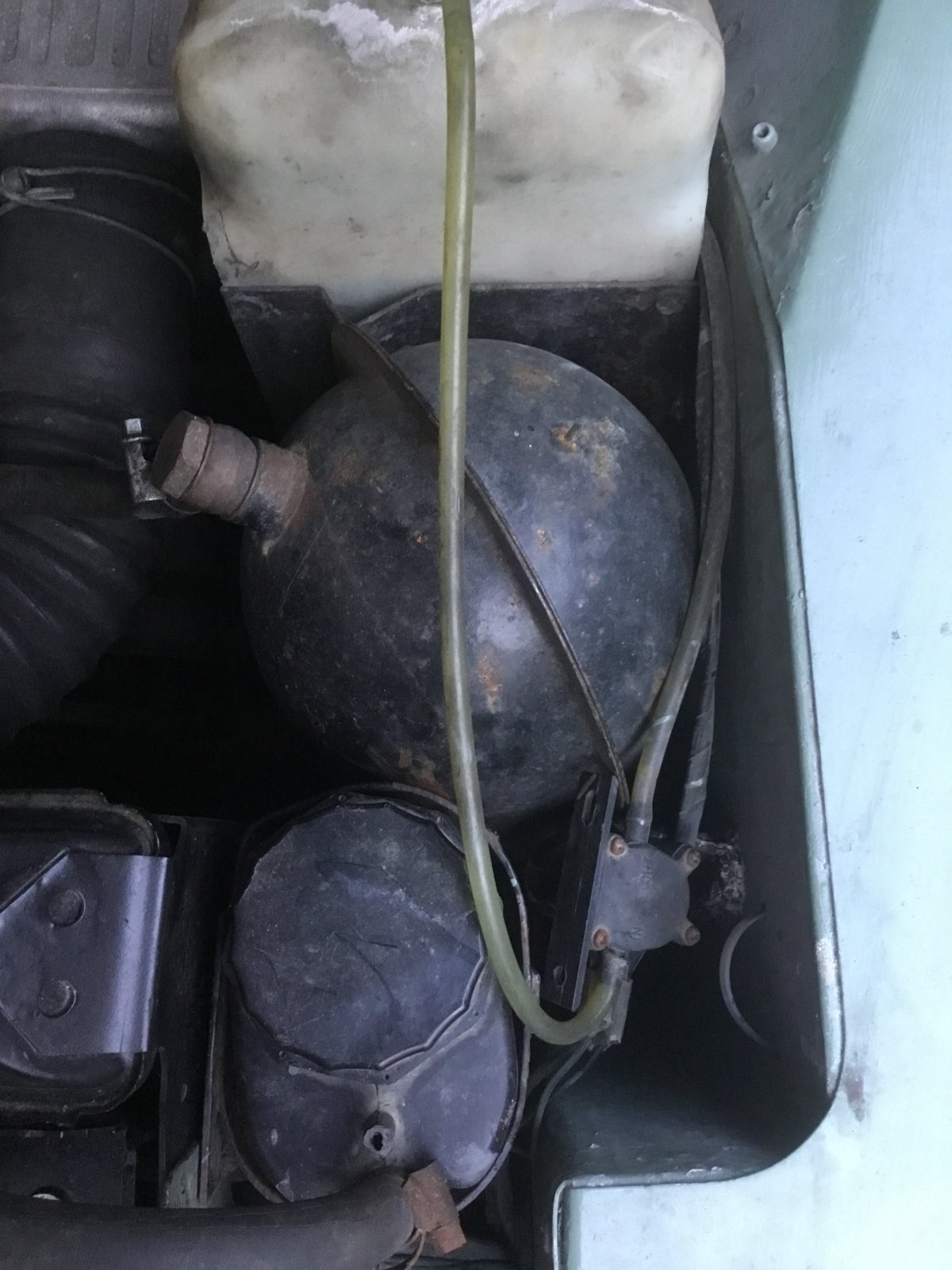

ignore the washer pump it was held in place with the tie wrap but came out

neo2 · May 18, 2023

Thank you guys that really helps i was having a nightmare working out how it fitted makes sense now.. Thank you..

dag019 · May 23, 2023

neo2 said:
Thank you guys that really helps i was having a nightmare working out how it fitted makes sense now.. Thank you..

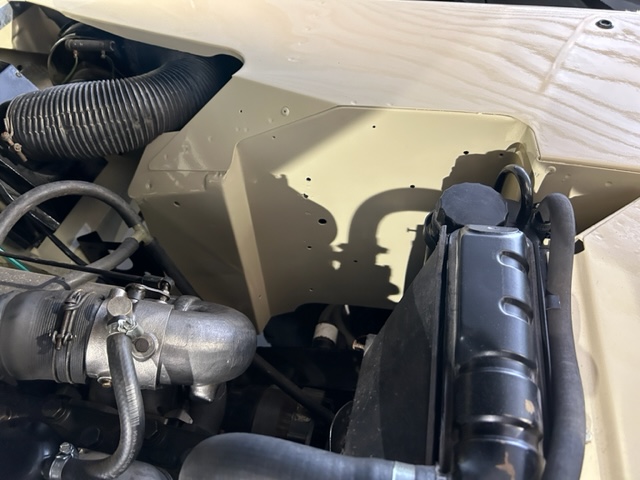

Apologies I completely forgot to take a picture but mine is the same setup as pictured above by @steve2286w
