RR sport sc start / turnover issue

Discussion in 'Range Rover' started by dunners, Sep 14, 2018.

< Previous Thread | Next Thread >
  1. dunners

    dunners Member

    Joined:
    Mar 18, 2015
    Posts:
    25
    Likes Received:
    4
    Hi all,
    Have an issue with my 2005 RR sport sc, when I turn the key to start it dose its checks but doesn't always turn over first time I have to turn key back then retry sometimes two or three times, It has always started and when it turns over it is at a good rate. Will check battery connection tomorrow but I don't think it is that as when it dose it the lights on the dash don't show signs of dimming ,
    Wondered if anybody had come across this before.
    Thanks
    Paul

  2. robhew86

    robhew86 Well-Known Member

    Joined:
    Mar 8, 2009
    Posts:
    1,216
    Likes Received:
    45
    Location:
    Beds
    Good Battery connections and earths always a good start as you say.
    Could also be the starter relay or starter motor showing signs they are on their way out. HTH

  3. dunners

    dunners Member

    Joined:
    Mar 18, 2015
    Posts:
    25
    Likes Received:
    4
    Yes thank you I will do some investigation tomorrow

  4. gold rover

    gold rover Well-Known Member

    Joined:
    Nov 22, 2010
    Posts:
    4,005
    Likes Received:
    1,737
    Location:
    Scotland,
    Could it be your ignition switch? Dont know if the sport suffers with issues there, the way the L322 can.

  5. dunners

    dunners Member

    Joined:
    Mar 18, 2015
    Posts:
    25
    Likes Received:
    4
    It's posible I think it's a case of elimination, I will check the simple things first and then I will have to find information on how to test the different components .

  6. dunners

    dunners Member

    Joined:
    Mar 18, 2015
    Posts:
    25
    Likes Received:
    4
    Update was out for most of the day but when I got back had a look at the RR. Checked battery connections found the positive was not as tight as it should be. Then I changed the starter relay over with another one which was the same. Neither of these things sorted the problem. I suppose the next thing is the starter motor or the ignition switch as gold Rover suggested, problem is it doesn't do it every time.

  7. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,560
    Likes Received:
    853
    Location:
    Kent
    If you can get a wiring diagram and find out what fuses supply and are supplied by the ignition then that may help you narrow it down by checking the voltage when it happens. Am I right in thinking it is a close cousin to the disco ?

  8. gold rover

    gold rover Well-Known Member

    Joined:
    Nov 22, 2010
    Posts:
    4,005
    Likes Received:
    1,737
    Location:
    Scotland,
    I think it is Norfolk cousin close ;) @gstuart is the guy for that one






    NOT the Norfolk cousin close, for the Sport / Disco connection :)

    1988smithy and gstuart like this.
  9. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,560
    Likes Received:
    853
    Location:
    Kent
    As in - I’d like you to meet my sister and my mum , here she comes now :)
    The disco forums are pretty clued up I have found

    gold rover and gstuart like this.
  10. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    19,183
    Likes Received:
    4,965
    Location:
    Swanley , Kent
    Hi

    If I’m reading it right the engine doesn’t always crank over when the key is turned

    Easiest thing I found was, use a multimeter , VDC , one test lead on the postive battery post , then other test lead onto the engine bracket that sits on top of the engine , ensuring there’s a good voltage reading

    Standing battery voltage needs to be around 12.6 Vdc and running will be around 14.6 Vdc , alternator will charge up to 15.6 VDC

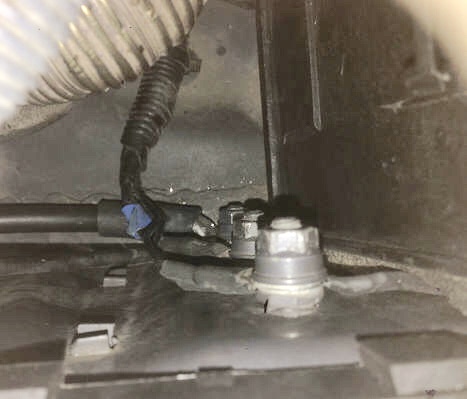

    If op hasn’t got a multimeter , remove drivers side headlight and air filter box, the body and starter motor earths are tucked down the front , as per picture , these can come loose and cause issue with the starter motor not always operating

    Suppose can at least start there , if not multimeter will indeed help considerably testing the circuits out


    Last edited: Sep 17, 2018
    holidaychicken likes this.
  11. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    19,183
    Likes Received:
    4,965
    Location:
    Swanley , Kent
    U rang my lady ;):D

    Sounds like an earth issue , but indeed possibly an ign switch, all part of eliminating things, lol

    sheriff and gold rover like this.
  12. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    19,183
    Likes Received:
    4,965
    Location:
    Swanley , Kent
    Hi mate

    Indeed sport up to around 2009 , and D3 have the same engine, gearbox , suspension, etc, inc most of the electronics

    Sport chassis is shorter than the D3

  13. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,560
    Likes Received:
    853
    Location:
    Kent
    hi, very occasionally mine will just make a bump noise when i turn the key and then off and on it starts so very difficult to trace.

    gstuart likes this.
  14. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    19,183
    Likes Received:
    4,965
    Location:
    Swanley , Kent
    Ur not wrong there ref tracing faults, took me nearly 3 x months to find an airbag fault , found it eventually in the main loom tucked down by the passenger seat , that was also after I had to replace , 2 x curtain airbags, seat airbag and one pre tensioner , alas that’s why it was sold as a project D3 , only blessing was I bought it for peanuts because they couldn’t get a mot on it because of the airbag light , total outlay was £100

    Removing all sorts of panels and headlining was all good fun , kept thinking , how many more panels can they fit in a car, lol

    Also managed to at last find a battery drain after going through nearly 100 x fuses

    Think having a multimeter and diagnostics is a must now considering there complexity

    Still wouldn’t have any other vehicle though

    sheriff likes this.
  15. dunners

    dunners Member

    Joined:
    Mar 18, 2015
    Posts:
    25
    Likes Received:
    4
    Thank you all for your knowledgable replies , you have saved me a lot of time, I do have a multimeter and will perform the suggested test and take a look at the two earths at the weekend and keep you informed.
    Thanks again,
    Paul

    gstuart likes this.
  16. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    19,183
    Likes Received:
    4,965
    Location:
    Swanley , Kent
    Hi Paul, glad the info helped, the ladies and gents members here are very knowledgeable and helpful

    Great u have a multimeter as that will at least prove 100% what circuits are ok

    Indeed, plse let us know how it goes,also saves u trying to just change parts for the sake of it

    Where’s about in the uk are u plse

    dunners likes this.
  17. dunners

    dunners Member

    Joined:
    Mar 18, 2015
    Posts:
    25
    Likes Received:
    4
    Hi , I am from Southend on sea Essex , not to far from you.

    gstuart likes this.
  18. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    19,183
    Likes Received:
    4,965
    Location:
    Swanley , Kent
    Hi Paul

    Thks , see how u get on, as ur local always happy to help where I can, have a driveway so can easily put ur landy there so don’t have to worry about working in the road

    Have always helped other fellow landy owners FOC as it’s nice making new friends along the way

    Ie , two people does make life easier where one can turn ign key whilst other person tests etc

    Just know what it’s like pulling ur hair out and I’ve had help so always nice being able to pass it on

    Grrrrrr and dunners like this.
  19. dunners

    dunners Member

    Joined:
    Mar 18, 2015
    Posts:
    25
    Likes Received:
    4
    That's really good of you, like wise if I can assist you along the way at any time always happy to.

    gstuart likes this.
  20. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    19,183
    Likes Received:
    4,965
    Location:
    Swanley , Kent
    Ur very welcome and many thks , plse feel free to give me a shout

    Jobs I’ve got left are changing the oils in the gearbox, diffs , transfer case , then replace the AC condensor

    Alas urs being a sport they are the virtually the same mechanically to my D3

    Only had mine 2 x years and suprising what knowledge u pick up over time , also saving a fortune by keeping away from the garages , lol

    Plse update us how things go , thks

    gold rover likes this.
