Rocker assembly?

Bobsticle · Dec 26, 2020

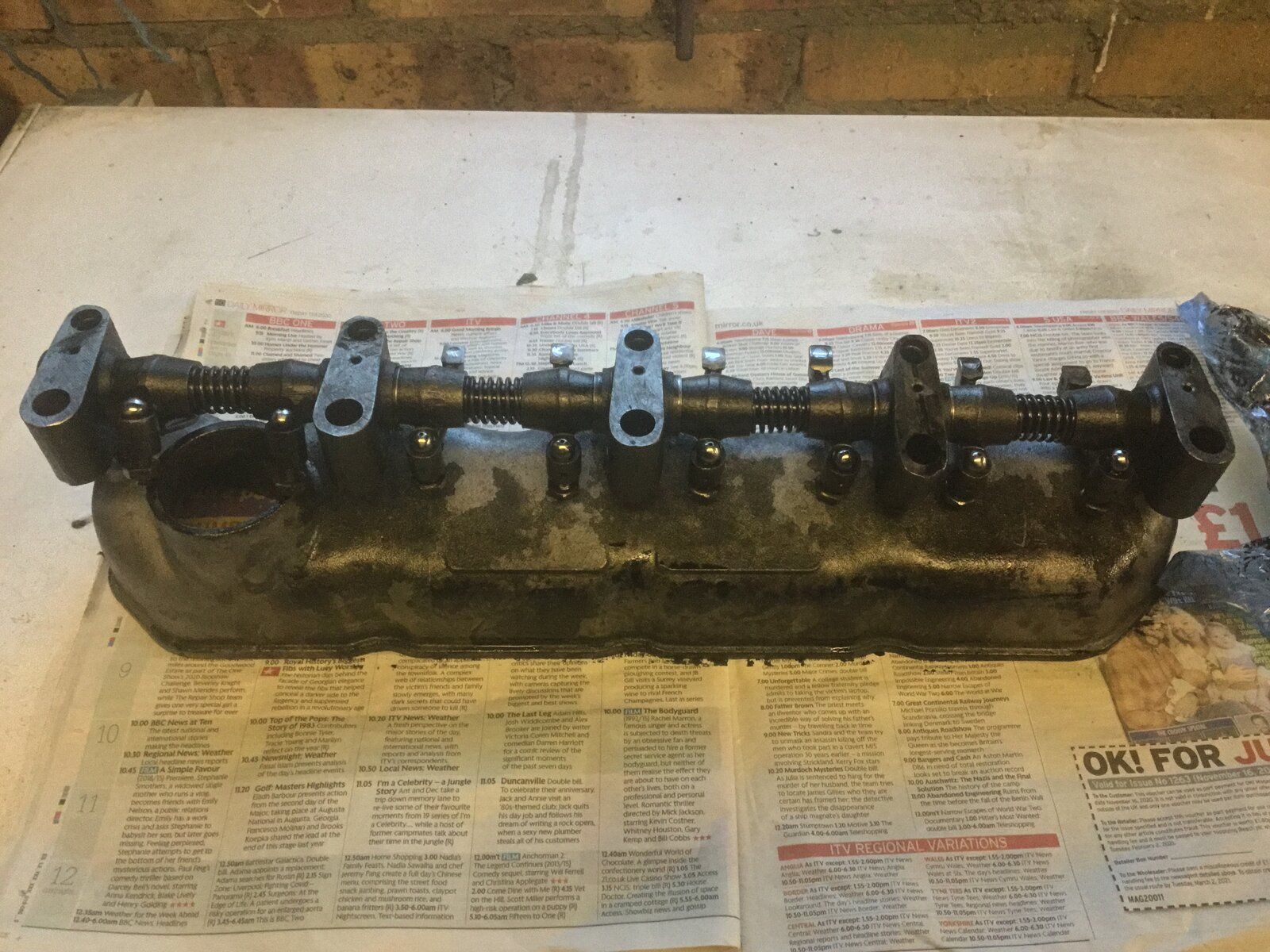

Got round to the rockers today and reground and polished the faces. While re assembling them on the shaft (kept everything in order) I have noticed the center block has two washers either side and a few others scattered throughout the gubbins. The end blocks however aint got a washer between them and the end rockers. They are chewed up slightly on their mating faces and when dry fitted they look like they would benefit from a 1mm shim to center them on the valve top.

Is there a 'thing'......................

Bobsticle · Dec 26, 2020

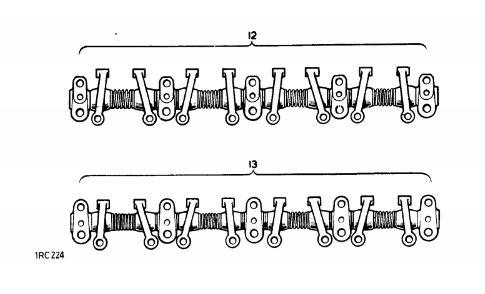

You can see on t'thinsrucions there dunt look like there was one originally

which seems a little strange but would adding one cause an uge hexplosion

Colthebrummie · Dec 26, 2020

Have you put a straight edge on all the mounting surfaces to see if there is a gap. I wouldn't have thought spacers were needed originally. If there is a gap it will need to be spaced or the rocker shaft may twist slightly and affect the movement of the rockers.

Col

steve2286w · Dec 26, 2020

Can’t see it causing a problem
My cyl head on bench , I’ll have a closer peak tomorrow

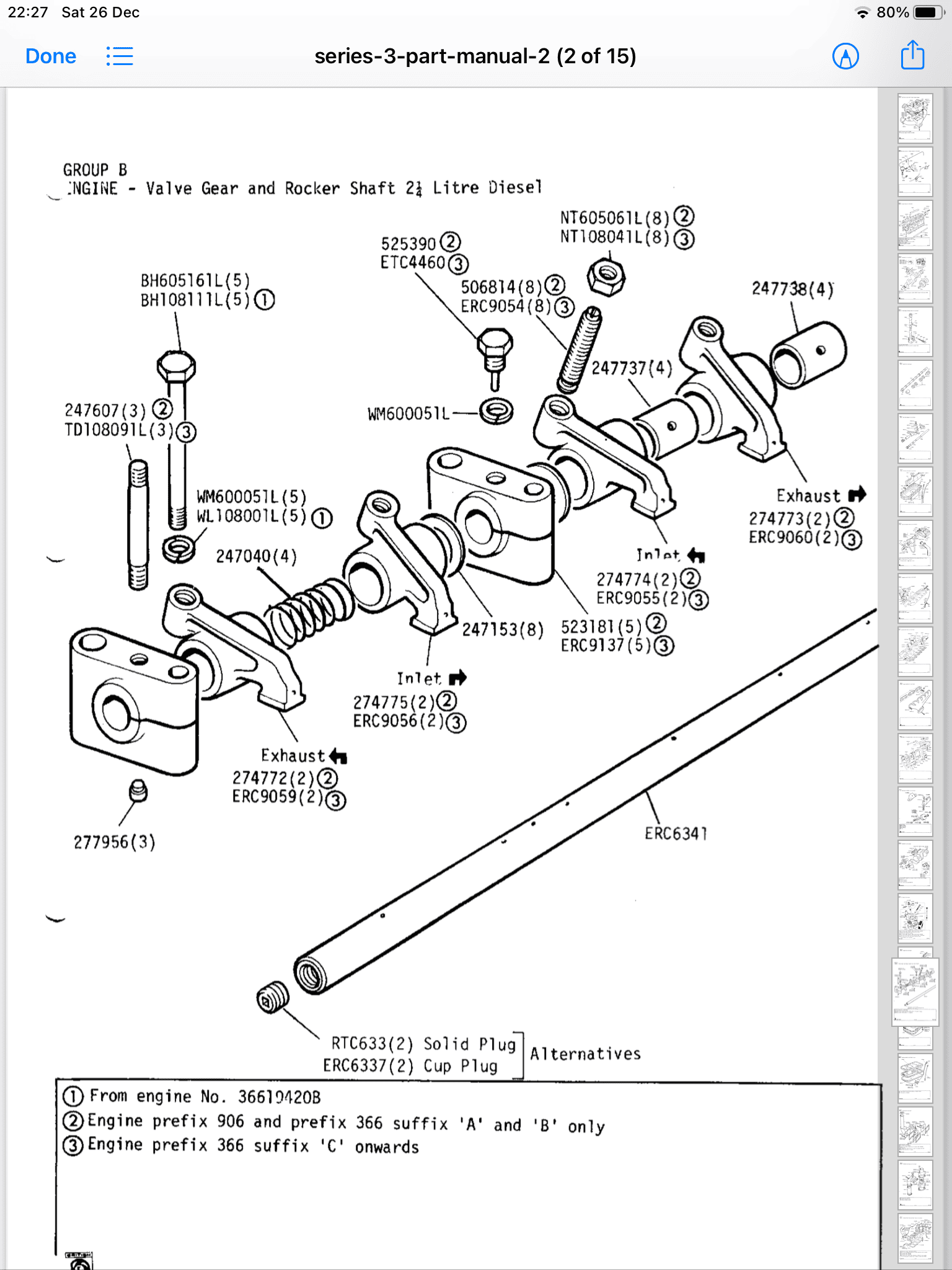

It says 8 reqd on attached

Bobsticle · Dec 26, 2020

steve2286w said:
Can’t see it causing a problem
My cyl head on bench , I’ll have a closer peak tomorrow
It says 8 reqd on attached

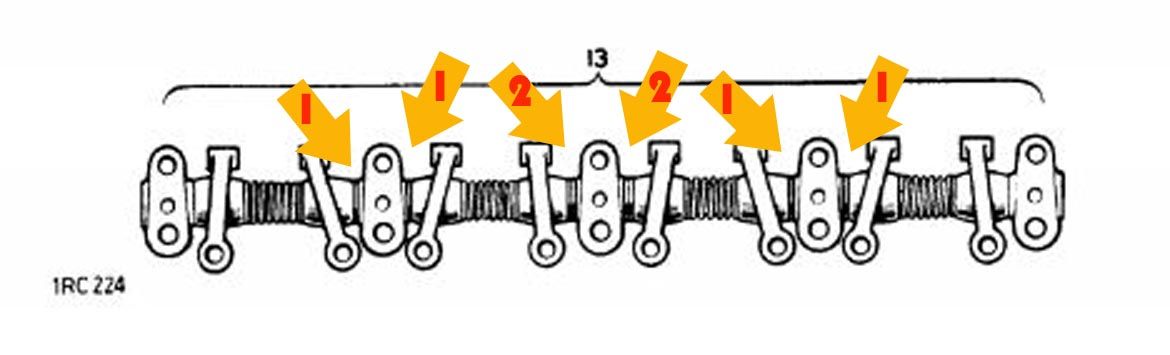

It duz indeed. Two on each side of the central pillar and one either side of two and four pillar. Seems strange not to have one inside pillar 1 and 5. The mating faces are bound to wear over time but as they do the spring obviously moves it outwards moving it off the valve. Its only half a mill so I doubt the pushrod would be worried.

freelance · Dec 27, 2020

Does it need two washers either side of centre pillar to line up, or would one each side suffice?

Bobsticle · Dec 27, 2020

freelance said:
Does it need two washers either side of centre pillar to line up, or would one each side suffice?

I actually thought Id put it together wrong at first but yes it needs the two. I may just order a couple of half mill shim washers and slip them in the ends to protect the faces. I cant see it doing any harm. I realise some form of pre load is built into the springs but Im probably only replacing whats worn out.

steve2286w · Dec 27, 2020

mine is as your diagram , 8 fitted, as long as pocket pads central on valve head not an issue, I would guess the original ones have good

surface finish

Bobsticle · Dec 27, 2020

Could have been gummed up oil ports at some time that have allowed a bit too much friction. As I say, it’s not terrible and I’ve run the faces over a diamond stone to remove any burrs.
I may just wack it back on today, save waiting for the shims. The rocker face is in full contact with the valve top, it’s just getting a little close to the edge for my liking.
Just waiting for the rain to clear a bit

Bobsticle · Dec 27, 2020

Right. Stuff it, it’s on.

just got to set the timing and put the chain on and I can start rebuilding the damn thing.
