P38A Replacement of OBD2 port?

T

TallPaulB

Active Member

Posts

146

Location

Manchester, UK

• Aug 23, 2018

• #1

My OBD2 port in my 2001 P38 is knackered (due to water ingress). Has anyone replaced this on theirs? I know I can look at Rave, figure out how to get the connector out etc, just wondering if this is common enough for their to be a 'how to' anywhere?



wammers

No longer with us, RIP

Donater

Posts

58,170

Location

Preston Lancs.

• Aug 23, 2018

• #2

Has been done, no write up that i know of.



Datatek

Well-Known Member

Posts

45,023

Location

Near Poitiers SW France

• Aug 23, 2018

• #3

TallPaulB said:

My OBD2 port in my 2001 P38 is knackered (due to water ingress). Has anyone replaced this on theirs? I know I can look at Rave, figure out how to get the connector out etc, just wondering if this is common enough for their to be a 'how to' anywhere?

Click to expand...

Just drop the panel and you can access the connector. Get a spare from a breaker with a length of wire in place, then cut off your duff connector and solder the wires colour to colour on your new one insulating with glue filled heat shrink tube. Make sure the wire colours are the same on old and new before you start.



pwood999

Well-Known Member

Full Member

Posts

3,957

Location

Near Heathrow.

• Aug 23, 2018

• #4

generic OBD socket. . . . .or clean the green off the contacts. Dip the entire connector into a solution of white vinegar & salt. Leave for an hour or so to remove all the green corrosion. Then rinse the vinegar off in cup of water & dry with hairdryer. Spray with regular contact cleaner & test.



Datatek

Well-Known Member

Posts

45,023

Location

Near Poitiers SW France

• Aug 23, 2018

• #5

pwood999 said:

generic OBD socket. . . . .or clean the green off the contacts. Dip the entire connector into a solution of white vinegar & salt. Leave for an hour or so to remove all the green corrosion. Then rinse the vinegar off in cup of water & dry with hairdryer. Spray with regular contact cleaner & test.

Click to expand...

Just check the wires have not corroded off at the back.



brianp38dse

Well-Known Member

Posts

20,094

Location

heathrow

• Aug 23, 2018

• #6

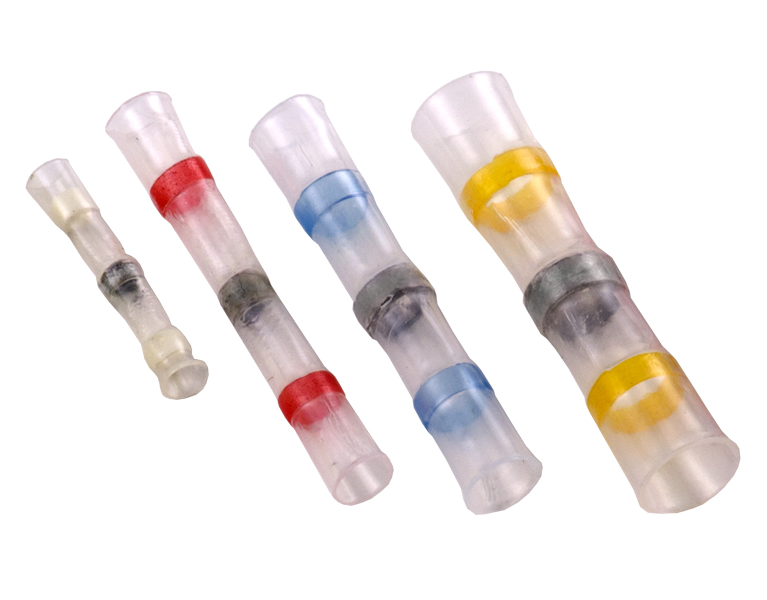

If you renew the connector these are very handy and just need heating up.
https://www.ebay.co.uk/itm/Heat-shr...hash=item1edf6bc3a6:m:mTP-HRpyIs6ie2a6ZwCT5Pg



Wazzajnr

Well-Known Member

Posts

2,391

Location

Chorley

• Aug 25, 2018

• #7

Farnell sell obd2 connectors.
I'm on my phone so not easy to look up but if you search the site they should be easy to find.



Datatek

Well-Known Member

Posts

45,023

Location

Near Poitiers SW France

• Aug 26, 2018

• #8

Wazzajnr said:

Farnell sell obd2 connectors.
I'm on my phone so not easy to look up but if you search the site they should be easy to find.

Click to expand...

Cheaper on Ebay.



Wazzajnr

Well-Known Member

Posts

2,391

Location

Chorley

• Aug 26, 2018

• #9

Datatek said:

Cheaper on Ebay.

Click to expand...

OK, I was just offering options as I was looking for a new one a while back.
How much are the ebay ones and do they come with the pins and wires already?



Datatek

Well-Known Member

Posts

45,023

Location

Near Poitiers SW France

• Aug 26, 2018

• #10

Wazzajnr said:

OK, I was just offering options as I was looking for a new one a while back.
How much are the ebay ones and do they come with the pins and wires already?

Click to expand...

Lots of options, so you need to be careful. With & without pins and some with a length of cable.
Not looked at the price recently, I mainly buy the plug ends in batches of 50 to make EAS diagnostic cables. Not selling so many these days so still have stock.
