Removing Wheel Stud..

ccoaton · Jun 26, 2009

Ok I had to replace a few wheel studs today....Was Flicking through Haynes Manual,.And it look like you have to remove the Hub to get these out...

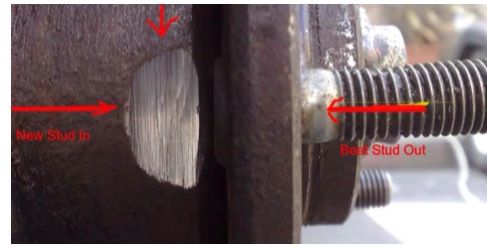

I removed the Caliper,.Then Disc,.And made a small groove in side of the Hub (shown in Pic),.Just a few MM..Then rotate wheel to each stud is at groove and they pop out easy...You could probably do it a lot tidier than i have...

Chaser · Jun 27, 2009

Helpful info and pic and thanks for taking the trouble to post.......

gemsdad · Jun 27, 2009

ccoaton said:
Ok I had to replace a few wheel studs today....Was Flicking through Haynes Manual,.And it look like you have to remove the Hub to get these out...

I removed the Caliper,.Then Disc,.And made a small groove in side of the Hub (shown in Pic),.Just a few MM..Then rotate wheel to each stud is at groove and they pop out easy...You could probably do it a lot tidier than i have...

well done,a great idea.

ianda12 · Jun 27, 2009

Nice post 'ccoaton' could save someone a lot of time and effort.

jumble_jobs · Jul 13, 2013

ianda12 said:
Nice post 'ccoaton' could save someone a lot of time and effort.

Like me

thanks.

Optimus Prime · Jul 13, 2013

great tip, maybe worth protecting the ground back surface with some hammerite or similar

phil78 · Jun 20, 2014

got a broken wheel stud in the rear of my freelander but cant se pic is it still on here on just me who cant see it ?

zefrench · Jun 20, 2014

I found this picture in my talkapp cache. I hope it helps.
