Rear Rover diff guard fitting - what size bolts?

Discussion in 'Defender 90 / 110 / 130' started by ogb, Jun 9, 2017.

< Previous Thread | Next Thread >
  1. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    288
    Likes Received:
    81
    Location:
    Moray, NE Scotland

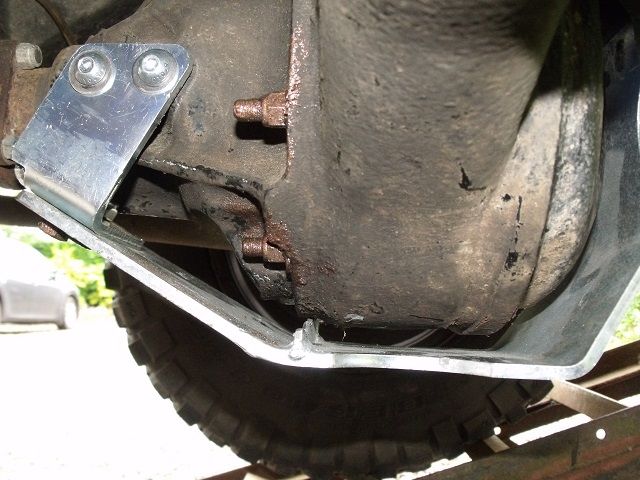

    I've almost got my new rear diff guard fitted but have found a problem with 2 bolts that hold the front part of the guard to the diff casing.diff.jpg
    The 2 socket head screws at top left are the problem (and are only there temporarily). The holes seem to be M10, at least they can be run through with a M10x1.5 tap. However, when I try to use M10 bolts/screws they won't "bite", being obviously slightly too small. The supplier has included 2 M12 bolts to do the job which are clearly too big. It's a TD5 Rover axle and diff (post 2002) so why the confusion/problem? Anyone any suggestions? Are the threads AF perhaps?

    If I can't solve it the proper way I'm prepared to bodge it for one trip. I'm thinking of putting some locking wire in the hole and "forcing" an M10 bolt to fit..any other ideas, folks?

    Just had a look at the post and there's no pic even though the draft shows that it's attached. Just in case it never appears, the holes I'm talking about are on the nearside of the diff "nose", about halfway up the case roughly in line with the prop shaft. diff.jpg

  2. alexc2701

    alexc2701 Active Member

    Joined:
    Mar 25, 2017
    Posts:
    680
    Likes Received:
    77
    Location:
    Nottingham
    Could always tap it to m12. Wire idea doesn't sound too great

  3. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    9,270
    Likes Received:
    1,051
    Location:
    Tynemouth
    It sounds as though you might have 3/8 x 16 UNC, which has a pitch of 1.5875mm, as opposed to M10, which has a pitch of 1.5mm, which is possibly why your M10 tap goes through without any problems.

    zeaphod likes this.
  4. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    288
    Likes Received:
    81
    Location:
    Moray, NE Scotland
    After a trip to the local tractor shop to get some alternative bolts, it seems that they're Imperial. Spanner size is 5/8 AF if that's any clue. Not happy that the the supplier included metric stuff in the kit. Anyway, problem sorted without recourse to bodging.
    Thanks to those who responded.

  5. alexc2701

    alexc2701 Active Member

    Joined:
    Mar 25, 2017
    Posts:
    680
    Likes Received:
    77
    Location:
    Nottingham
    They're kit is probably designed with newer models in mind, I was just thinking they could have been metric fines but least you found some now!

  6. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    85,351
    Likes Received:
    14,809
    Location:
    louth lincs
    the 2 bottom threaded holes are 3/8 bsf left over from early land rovers which used whitworth prior to unc and unf
