rear door lock barrel

Rorie · Nov 20, 2018

Any ideas how to remove the rear door lock barrel WITHOUT the key? It was all corroded up when i got the car and never got a key for it. I'm ready to get it replaced!

I read that i need to push a bin into the hole half way down the barrel, but everything says i need to turn the key at the same time!

potus · Nov 20, 2018

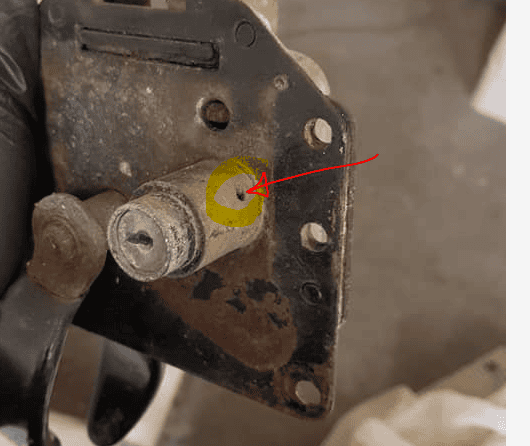

Tap a small pin punch down the hole you see in the barrel holder and wiggle/break the old one out.

potus · Nov 20, 2018

Hicap phill · Nov 20, 2018

Can you Drill the barrel out so the inners fall out.
Turn with screw driver then push the pin in?

I think a rivit stem fits in the hole as the spring & ball may be stuck.

potus · Nov 20, 2018

Screwdriver is your key

Rorie · Nov 20, 2018

I thought i needed to turn the key prior to putting the pin in that hole though? If i put a screwdriver (i assume we're talking about putting flat head into the key slot?) in, will that allow it to turn enough, or do i need the 'locking' parts to turn too?

potus · Nov 20, 2018

The small hole has a spring ball bearing which when you put the pin down depresses the spring to release the lock barrel.

Problem is likely to be the barrel is seized in the outer sleeve.

Punch the spring ball down and wiggle the lock with a screwdriver, try to grab the end of the barrel in a vice alternatively to pull the blighter out. But you do need to depress the spring loaded pin to make it happen

potus · Nov 20, 2018

Basically if all else fails, as Hicap Phill says drill it out or alternatively smack **** out of it.

Rorie · Nov 20, 2018

haha, thanks for the help. I'll give this a try tomorrow night!

mick 1986 · Nov 21, 2018

Rorie said:
haha, thanks for the help. I'll give this a try tomorrow night!

Try some release spray down the hole and around the barrel before you try and remove it. If it is corroded in, it should help with getting it out.

Hicap phill · Nov 21, 2018

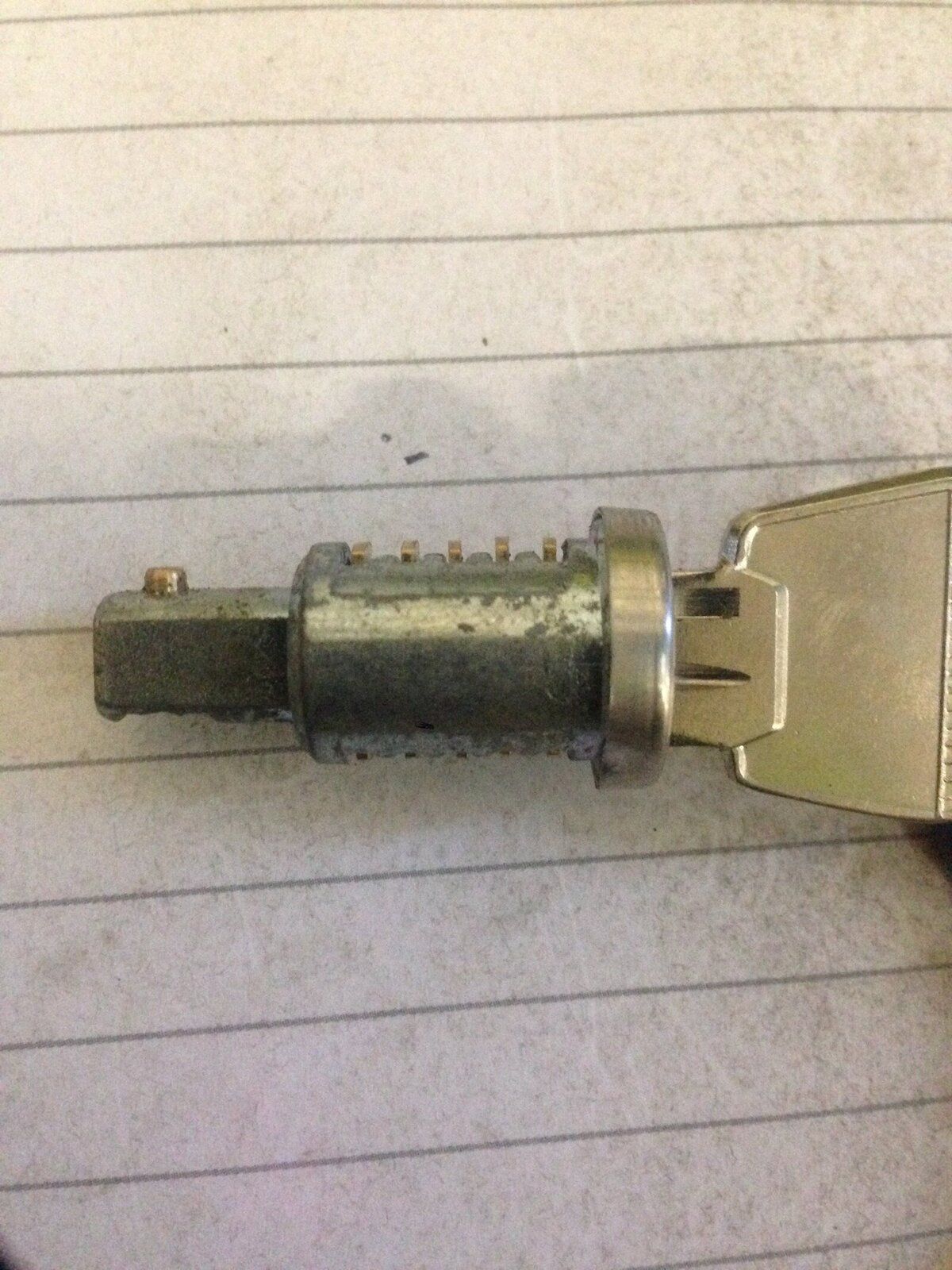

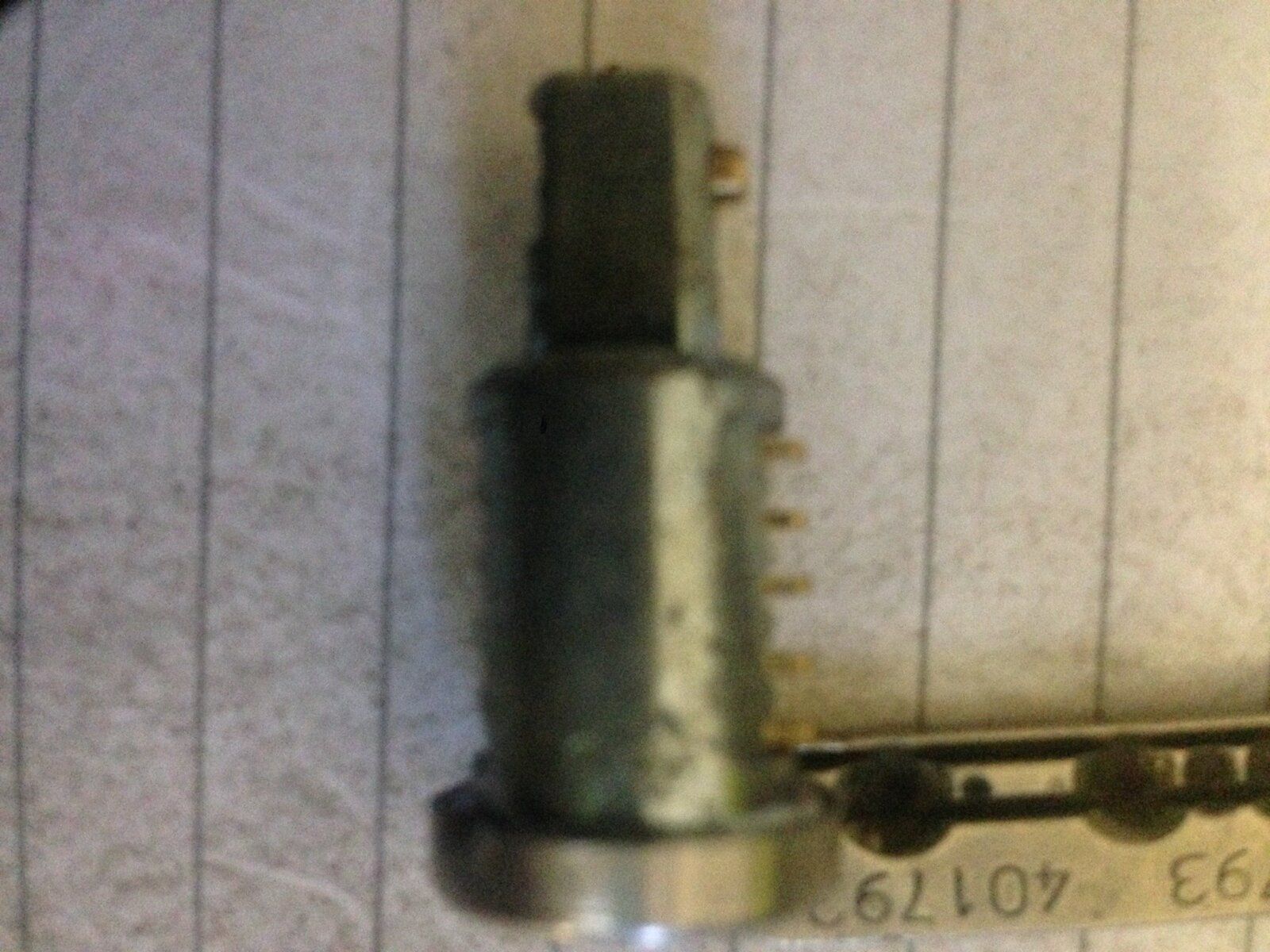

Just checked. Brass inserts need to be down like when the key is inserted. & the pin pressed

neilp1 · Nov 21, 2018

I tried drilling out and ended up buying a replacement door handle

Colthebrummie · Nov 21, 2018

If it's anything like my rear door lock, almost any key of the right size will open it.

Col

dag019 · Nov 21, 2018

Colthebrummie said:
If it's anything like my rear door lock, almost any key of the right size will open it.

Col

That's every defender isn't it? Doesn't even have to be a key, just something vaguely key shaped that will fit in the barrel hence the screw driver reference earlier.
