Freelander 1 Rear Diff Mount Replacement - How to Guide

Discussion in 'Technical Archive' started by Hippo, Mar 20, 2010.

< Previous Thread | Next Thread >
  1. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    33,964
    Likes Received:
    11,904
    Updated 29 July 2015

    This write-up shows the steps I took to change the rear diff mounts on my Freelander 1 2001 v6. The front (centre) mount failed, so needed replaced. One of the rear mounts was starting to fail too, so I changed all 3 rear diff mounts at the same time. The video below shows the movement of the failed front mount. If yours is ok, it won't move as much as this.

    YouTube- Freelander 1 2001 v6 Centre Diff Mount Fail

    Note: I have no financial gain from writing this guide or being a member of the forum. I don't sell parts or own a business. I own a Freelander and have done for many years which is why I'm a member of this forum.

    To access the underside of my Freelander I use 4 wooden HippoRamps, which I can drive up. This lifts the car 6 inches in the air for better access underneath. Also keeps it stable and level to work under.

    HippoRamp build instructions over ere: http://www.landyzone.co.uk/land-rover/hipporamps-how-to-guide.257760.html

    Warning: You need to chock the front wheels to stop your Freelander rolling. Don't rely on the handbrake on its own.

    [​IMG]
    hipporamps EGR3kqR

    Land Rover produces a special jig to correctly align the rear diff when replacing the mounts. As I don't have access to the jig, I took several different measurements to help me locate the diff in the same place later on. It's easy to replace the mounts without the jig. The measurements I took were optional.

    [​IMG]
    P2271801 QllJ1VB

    Disconnect the rear propeller (prop) shaft to rear diff connection shown above. E12 torx bolts and 17mm nuts x4. If you can't reach the nut at the top, drive the car forwards 10 inches. This will rotate the propeller shaft 90 degrees.

    [​IMG]
    reardiff i6x8NPF

    Separate the prop shaft from the rear diff and support. I used an axle stand. The rear prop shaft weighs 7kg. If it's allowed to drop, you risk damaging the universal joint at the other end.

    [​IMG]
    rearprop QG4NFDX

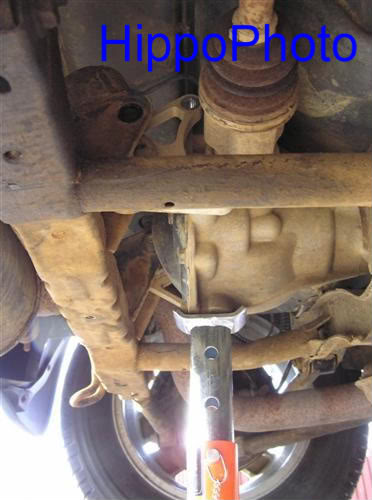

    Support the rear diff. I used an axle stand.

    [​IMG]
    P3061827 uBNMKIg

    All the diff mounts use captive nuts. Hence you only need to remove the bolts.

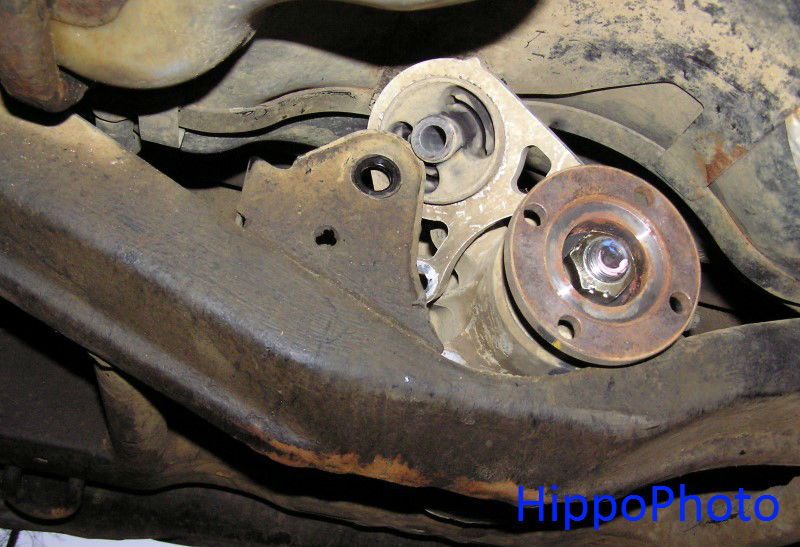

    Pictured below is the right hand side (RHS) diff mount. Loosen the 2x 13mm bolts securing the mount to the diff. Now loosen the 15mm bolt securing the mount to the frame.

    [​IMG]
    P3061813 K9worUT

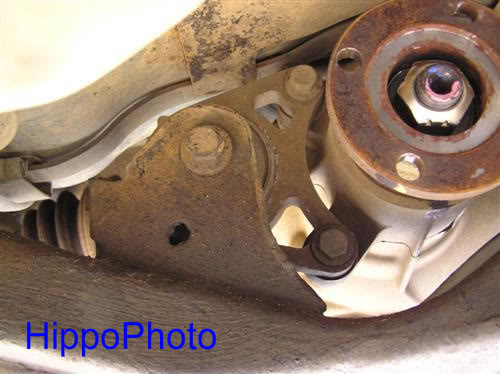

    Pictured below is the left hand side (LHS) diff mount. Loosen the 2x 13mm bolts securing the mount to the diff. Now loosen the 15mm bolt securing the mount to the frame.

    [​IMG]
    P3061814 3dNzYIv

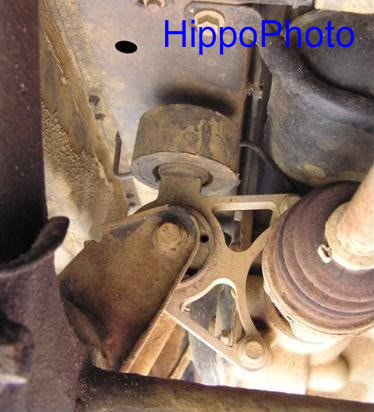

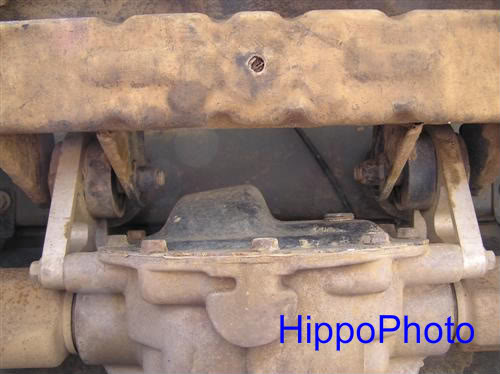

    View of both the LHS and RHS rear diff mounts from underneath.

    [​IMG]
    P3061820 xdmolvD

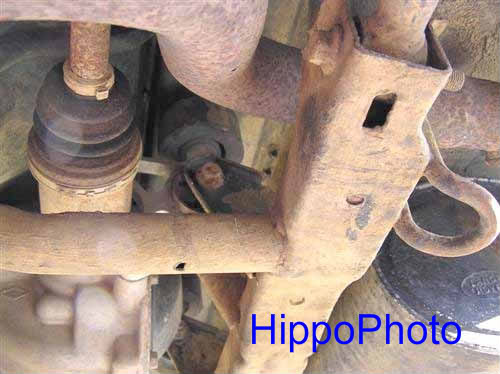

    Rear view of the centre (front) diff mount.

    [​IMG]
    P3061824 VAqs8HP

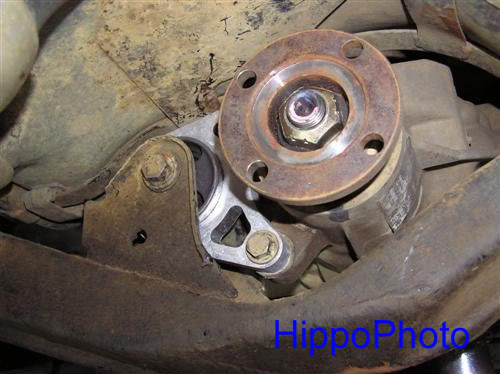

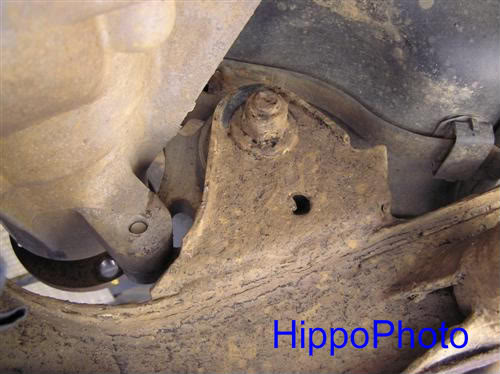

    Pictured below is the centre (front) diff mount. Loosen the 2x 13mm bolts securing the mount to the diff. Now loosen the 15mm bolt securing the mount to the frame.

    [​IMG]
    P3061826 ZZ618yE

    With the diff still supported, remove all 3 bolts on the RHS rear diff mount. Remove the mount from the bracket and replace with a new mount. Fit the larger bolt through the bracket first, then the other 2 bolts holding the diff. Leave the bolts finger tight for now.

    [​IMG]
    P3061827 uBNMKIg

    New RHS diff mount pictured below fitted.

    [​IMG]
    P3061868 1IHnblt

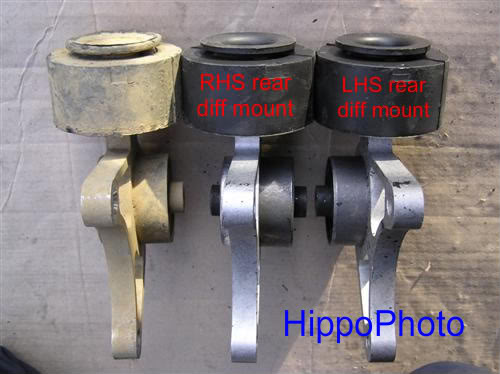

    3 rear mounts pictured below. Note the difference between the RHS and LHS new mounts.

    [​IMG]
    P3061831 STTohMi

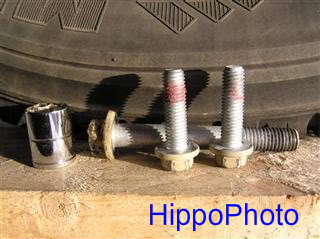

    Below are examples of the length of bolts securing each diff mount.

    [​IMG]
    P3061839 jkBKNIK

    With the diff still supported, remove all 3 bolts on the LHS rear diff mount. Remove the mount from the bracket and replace with a new mount. Fit the 15mm bolt through the bracket first, then the other 2 bolts holding the diff. Leave the bolts finger tight for now. The bolts on the mount are a little difficult to get to. Easily done if you have an extension bar and elbow. New LHS diff mount pictured below fitted.

    [​IMG]
    P3061867 0QChPQc

    The centre diff mount is the most difficult to replace due to lack of space. Make sure you remember how you took it out of it's bracket to help you to know how to fit the new one. Support the diff and remove the RHS rear mount centre bolt, then remove the diff centre mount bolts, then replace the centre mount. Lever the diff a bit with a length of wood if you need too. Be careful and don't force anything. Removing the RHS rear mount centre bolt allows you to push the front of the diff away from the centre mount, to allow for more room to replace the mount. You can then replace the centre mount, reposition the diff and refit the rear RHS mount centre bolt.

    With the diff supported, loosen and remove the 15mm bolt securing the RHS rear diff mount to the bracket. Push the front of the diff away from the centre mount whilst taking care to continue to support the diff, and remove the old centre diff mount and replace with a new one. Push the diff back to it's central position and refit the 15mm bolt through the RHS rear diff mount. Now fit the bolts which secure the centre diff mount. Fit the larger bolt through the bracket first, then the other 2 bolts holding the diff. Leave the bolts finger tight for now.

    [​IMG]
    P3061840 WMMV0t3

    [​IMG]
    P3061860 CLBwewX

    With all the bolt loose the diff should locate itself naturally. If you took measurements before then use them to confirm the alignment/position of the diff whilst following the steps below.

    Whilst all 9 diff mounts are finger tight, allow the diff to sit centrally and align.

    Torque the 2x 13mm bolts securing the centre diff mount to the diff, to 65Nm.
    Torque the 2x 13mm bolts securing the RHS diff mount to the diff, to 65Nm.
    Torque the 2x 13mm bolts securing the LHS diff mount to the diff, to 65Nm.
    Torque the 15mm bolt securing the centre diff mount to the bracket to 120Nm.
    Torque the 15mm bolt securing the RHS diff mount to the bracket to 120Nm.
    Torque the 15mm bolt securing the RHS diff mount to the bracket to 120Nm.

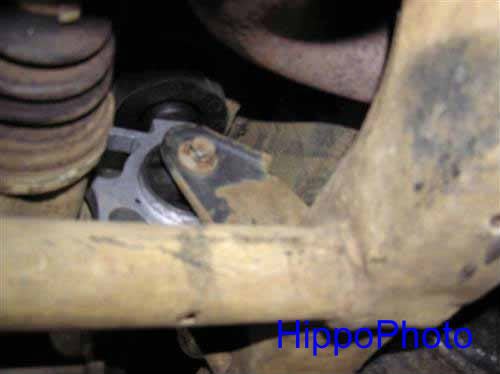

    New centre diff mount pictured below fitted.

    [​IMG]
    P3061864 UQyevJD

    Connect the rear propeller shaft to the rear diff. Use a small amount of grease on the mating faces. E12 torx bolts and 17mm nuts x4. Torque is 65Nm. If for some reason the prop has turned and the holes don't line up, put a long screw driver through the rear prop shaft universal joint and turn the rear prop shaft. Make sure the Freelander is held stationary whilst doing this.

    [​IMG]
    P2271801 QllJ1VB

    Lower your Freelander to the ground and test-drive.

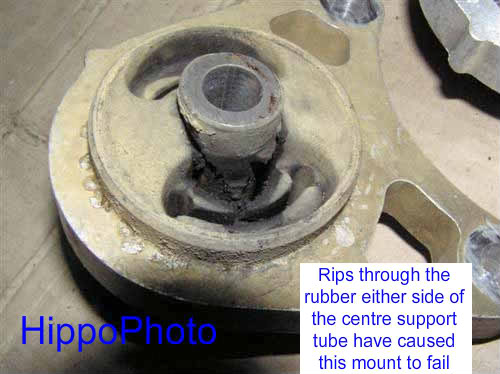

    Old centre diff mount pictured below. Rips through the rubber either side of the centre support tube have caused this mount to fail.

    [​IMG]
    P3061855 U4CjDMW

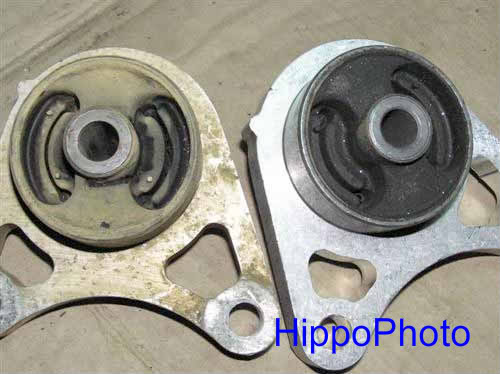

    Old and new mounts.

    [​IMG]
    P3061857 PRjB7mo

    Last edited: Aug 13, 2017
    ARCXJ, PopRivet, Dab90 and 2 others like this.
  2. sailorden

    sailorden New Member

    Joined:
    May 7, 2010
    Posts:
    29
    Likes Received:
    1
    Hippo,

    Just a word of thanks. With your excellent guide I was able to replace my diff mounts. There was some pain, sweat and tears, but at least I knew what I was doing (which is unheard of!).

    I'm now doing repairs that I never thought possible which in the past would have had me running to the nearest expensive garage.

    Thanks again keep up the good work.

    Now for me its a creaky rear off side to tackle (cracked sub frame bolt/captive nut?). I'm sure that I will find a guide to that on here as well.

    Good luck
    Sailorden

    Hippo likes this.
  3. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,651
    Likes Received:
    8,296
    Location:
    Embasinga stocæ
  4. sailorden

    sailorden New Member

    Joined:
    May 7, 2010
    Posts:
    29
    Likes Received:
    1
    Hi

    Forgive me but where is the Q & A section. I cant seem to find it?

    Thanks
    Sailorden

  5. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,651
    Likes Received:
    8,296
    Location:
    Embasinga stocæ
  6. bg_freelander

    bg_freelander Active Member

    Joined:
    Mar 4, 2009
    Posts:
    120
    Likes Received:
    1
    Thank you for the photos!

    My question: How should i recognise while im driving, that one of the mountings has failed?

    Thanks in advance

  7. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    7,255
    Likes Received:
    3,329
    Location:
    essex and beyond
    knocking under the floor when driving harshly, ie quick take off, hard gearchange etc.

  8. bg_freelander

    bg_freelander Active Member

    Joined:
    Mar 4, 2009
    Posts:
    120
    Likes Received:
    1
    On my vehicle i hear constantly a knocking coming under the car when i change the gears by leaving the clutch pedal..Are these the same symptoms?Thank you Freelance!:)

  9. sailorden

    sailorden New Member

    Joined:
    May 7, 2010
    Posts:
    29
    Likes Received:
    1
    Hi

    Yep, or maybe the sub frame mount. Have a look at your diff mount 1st. Here's mine (good condition eh!)

    Sailorden


    Attached Files:

  10. themadbadger

    themadbadger New Member

    Joined:
    Oct 4, 2013
    Posts:
    40
    Likes Received:
    2
    Location:
    Oxford
    HIPPO.....
    Your a legend! I used your guide to do my mounts on tuesday!

    Great guide!

    I even had my laptop under the car with me.:D

    Hippo likes this.
  11. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,576
    Likes Received:
    297
    Location:
    Westmidlands
    Nice how to and good photo's thank's for sharing

    Hippo likes this.
  12. flanagaj

    flanagaj Active Member

    Joined:
    Jan 30, 2013
    Posts:
    248
    Likes Received:
    9
    Location:
    Blandford, Dorset
    I love LandyZone!! I too never used to tackle car repairs, but with this forum I have to date done.

    HP Pump overhaul
    LP Pump replacement
    New Turbo
    Injectors
    ....

    Without this forum I would not have been able to do this.

    Now that I too have a knocking under the floor on a hard gear change I will follow this guide and replace the rear diff mounts.

    Thanks for posting this!

    Hippo likes this.
  13. Jon.g1

    Jon.g1 Member

    Joined:
    Oct 29, 2015
    Posts:
    13
    Likes Received:
    1
    Location:
    Cannington
    I done my mounts on saturday, although i hadn't first seen this thread, took me, about an hour and a half including a quick stop for a coffee in the middle, what i found is that my removing all three center bolts, the nose of the diff could be moved towards the nearside (without first removing the prop) and the mount came out over the top. by lifting the rear of the diff i had good access to remove the mount to diff bolts on both of the rear mounts, then lower the tail of the diff and the mounts easily passed over the top of the subframe.

    Hippo likes this.
  14. 61jason61

    61jason61 Active Member

    Joined:
    Nov 28, 2015
    Posts:
    109
    Likes Received:
    12
    Location:
    wiltshire
    excellent guide, and having read the replys i now know that the knocking i thought was the exhaust is actually the rear diff moving, blew a tyre today and thought/think i may have an issue with nsf bearing, not sure but when moving the wheel which seemed strangely ok i heard the knocking from the rear of the vehicle which i had been thinking was the exhaust until now.

    bloody eck, that diff has an inch or more of movement. will be replacing bloody soon lol. wheres best to get them are they all the same or engine model specific?

    done loads on this truck since last posting, keep getting regular clutch issues, thats another thread lol

    cheers jason

    Hippo likes this.
  15. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    7,255
    Likes Received:
    3,329
    Location:
    essex and beyond
    Buy oem mounts, they last longer!!

    Hippo likes this.
  16. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    33,964
    Likes Received:
    11,904
    The rubber in oem mounts help to reduce vibration transfer as it's softer rubber than some of the aftermarket mounts, or the polly bush type. But not too soft which would make them fail quickly. Also the shape of the rubber helps it flex too. ;)

    Edit: The 2nd best option is to buy a genuine front rear diff mount, an 2x quality after market mounts if required. This would overall be a lot cheaper if you intend to keep the FL.

    Edit: there are differing quality of after market mounts. Look around the Freelander section for what other have bought.

    Last edited: Nov 9, 2016
  17. 61jason61

    61jason61 Active Member

    Joined:
    Nov 28, 2015
    Posts:
    109
    Likes Received:
    12
    Location:
    wiltshire
    considering i can get on eb*y for 35 quid, and landrover oem are 85 per lh/rh side theres no contest. don't mind having to replace them for cheap ones in future, if the car lasts as long as new mounts lol. can't afford the oem ones, would scrap the car for 180 quid worth of mounts, not to mention the tyres and abs sensor still needed. all adds up.

    would break it and sell parts but need to replace it immediatly if i did that lol and need the money out of this car to buy new one lol, tow trailers every/every other day including horsebox so need 4x4 truck lol

  18. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    33,964
    Likes Received:
    11,904
    Ok. The 2nd best option is to buy a genuine front rear diff mount, an 2x quality after market mounts if required. This would overall be a lot cheaper if you intend to keep the FL.

    61jason61 likes this.
  19. 61jason61

    61jason61 Active Member

    Joined:
    Nov 28, 2015
    Posts:
    109
    Likes Received:
    12
    Location:
    wiltshire
    awesome. thanks for the advice hippo think i'll try and do that then.

    Hippo likes this.
  20. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,576
    Likes Received:
    297
    Location:
    Westmidlands
    Hi Jason.
    I tried the after market ones lasted 4 months so keep well away if I were you, I then fitted DURAFLEX ones and have never looked back still going strong, and I expect them to out live the car,I used red ones but you can get yellow or black.

    Very easy to fit the Duraflex into the original mounts Arctic2
    http://www.ebay.co.uk/itm/Land-Rove...858490?hash=item3ab988e07a:g:ZNcAAOSwEK9T0ljn

    http://www.ebay.co.uk/itm/Land-Rove...009705?hash=item3ab6aec329:g:HqEAAOSwQItUEand

    http://www.ebay.co.uk/itm/Land-Rove...582279?hash=item3d09276707:g:F08AAOSwnDZT0laJ


    Attached Files:

    ARCXJ and PopRivet like this.
