Range Rover sports NON Starter!
- Thread starter Qosmio
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Datatek
Well-Known Member
- Posts
- 45,015
- Location
- Near Poitiers SW France
May be the immobiliser, you could try reading the owners manual if you haven't already done so as to the procedure for disconnecting/reconnecting the battery.
Yes car turns over ok But appears to be not getting any fuel. Half a tank too!!
No code reader! It is my son's car, I think it is a Jaguar engine, 2005 plate, RR Sport Supercharged ....
Thank you for your Help
gold rover
Well-Known Member
- Posts
- 10,288
- Location
- dùthaich Dhè fèin
Without a code reader you are chasing your tail. We could all give suggestions but you really do need diagnostics.
In the meantime check the engine earths.
Now have the car running, But the Air susspension keeps blowing off & not raising !!! Thank you.
gold rover
Well-Known Member
- Posts
- 10,288
- Location
- dùthaich Dhè fèin
Glad to hear it's running. What was the solution? As to the new problem, I cannot stress enough that you need diagnostics. You are asking people to guess at a problem they cannot see, with very little information. Please help us to help you. Don't forget , we are all real people, with real lives, doing this to help other owners. No-one gets paid, to help those who need it. So you have to do some of the work.
Describe the issue in detail " the Air susspension keeps blowing off & not raising", with lots of exclamation marks is not detail, it's drama. Calm down, tell us the issue. Get diagnostics, tell us the codes . Then the Gurus and apprentice Gurus may be able to help you.
Plus 1 what @gold rover has mentioned
In the mean time , so we know plse , is ensure u have no leaks, use some soapy water and check all ur connections around the air compressor , pipes etc etc
Also if ur son intends to keep his RRS having ur own diagnostics is key , pays for themselves very quickly along with the convenience
In the mean time , so we know plse , is ensure u have no leaks, use some soapy water and check all ur connections around the air compressor , pipes etc etc
Also if ur son intends to keep his RRS having ur own diagnostics is key , pays for themselves very quickly along with the convenience
Last edited:
gold rover
Well-Known Member
- Posts
- 10,288
- Location
- dùthaich Dhè fèin
S'not a Disco. Though it is really
Ah nuts , sorry ur right should have least put sports, lol
Hi Sorry for the lack of information. The info i had was second hand. I have been round to have a look at what is going on, The Car started after disconnecting the fuel pipe & reconnecting. What is happening with the suspension is, The front end will raise then you hear a discharge of air from the rear of the car, but not from the air bags. the compressor keeps pumping air, then it will discharge again every 10 to 15 seconds, the rear of the car does not raise at all.
I Jacked the rear up & put axle stands under it. started the car, the front went up & compressor stopped, Did not discharge any air. The dash said ride height met. We had a Code reader on it & No Codes!! I hope this helps. Thank you for your Time & patience.
Datatek
Well-Known Member
- Posts
- 45,015
- Location
- Near Poitiers SW France
Sounds like a valve block problem or a leak.
Hiya
You’ve got a leak, use some soapy water round the air compressor

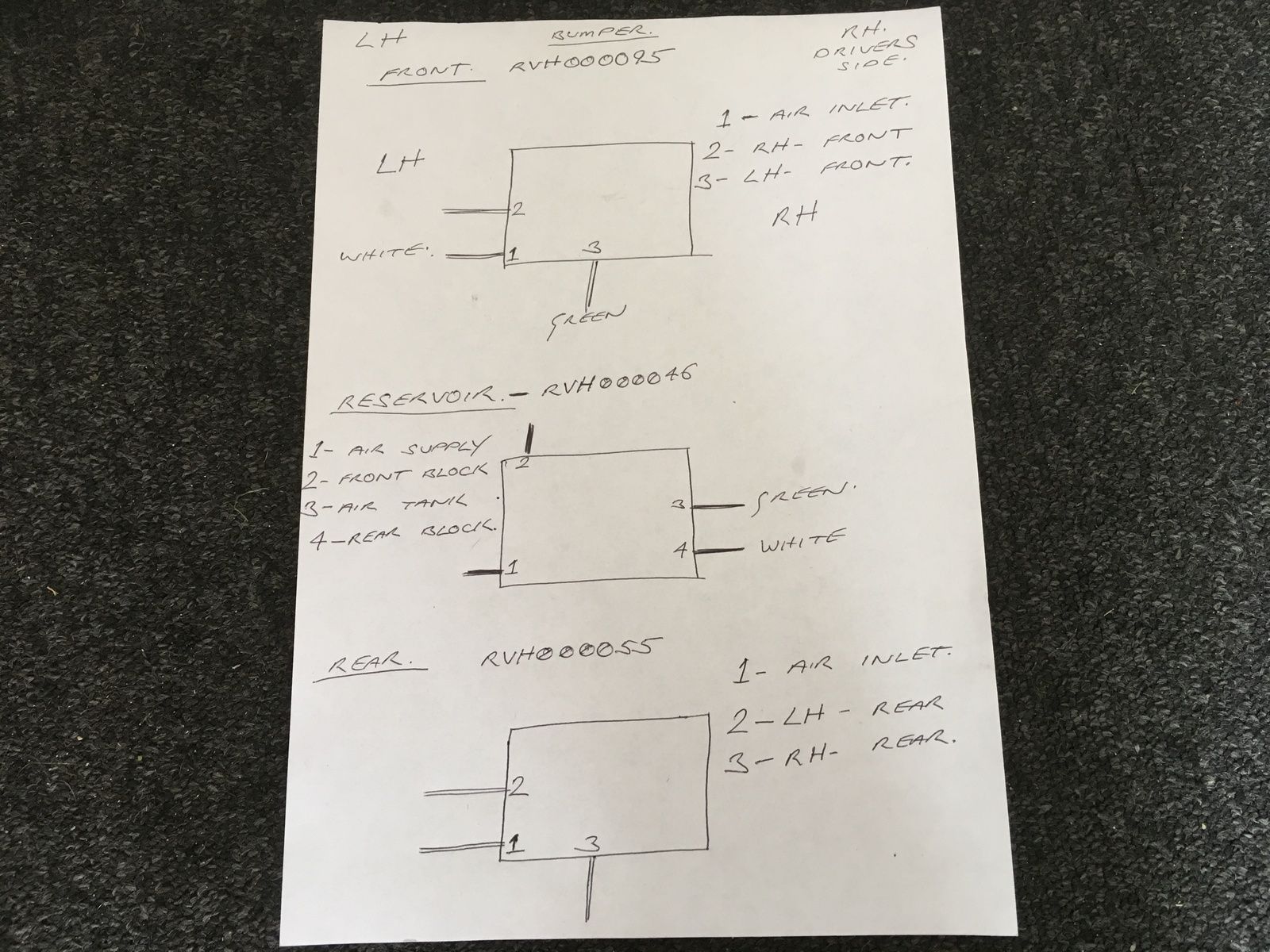

Enclosed a pic of the pipes and ur see from the reservoir valve block where it goes to the rear
Also if I may say , u should never jack the vehicle up without disabling it , u might have done some damage to the suspension system , but might have got away with it
When u jack them up in future , u set the suspension into off road height, turn the engine off, pull fuse F26 under the bonnets fusebox , then u can jack it up and think ur already aware , with these vehicles never ever get under them without axle stands
When finished and the vehicle is back on the ground axle stands removed, be careful when u reinstall the F26 fuse as the landy will drop to access height
If I may suggest m remove jack and axle stands , start the engine , raise the suspension , turn the engine off and listen for any leaks
What make of compressor did u fit please
Hope that’s helps
It was a Like for like AMK, Have checked for leaks around compressor, all fine...& with the engine off, can not hear any leaks. The release of air sounds like it discharges somewhere around the big plastic box above the axle/chassis area. I have checked for leaks where ever i could, but not found any. Thank you.
Datatek
Well-Known Member
- Posts
- 45,015
- Location
- Near Poitiers SW France
Air release will be the pressure release valve I would guess. Have checked the rear airbags with soapy water and all the joints?
Thks,
Did the AMK come with a cover for it , if so , remove the cover, start the engine up and lay next to the landy and See if u can hear anything
also check that the pressure sensor wire connector is plugged in on the reservoir valve block, it’s the one next to the compressor
Near the rear of the landy is a large silencer, so when the exhaust valve opens it discharges the air near the back
Does indeed sound like it can’t build pressure up because the pressure sensor isn’t getting the correct signal
Hope that helps
