Thank you, for response not sure how to do this jump wire, do I need to take the relay apart?
Range Rover p38 2.5 auto
- Thread starter Faizey76
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Flossie
Well-Known Member
- Posts
- 10,752
- Location
- Shropshire
No. Just join the two terminals together in the relay socket with a piece of wire cable. I don't have one spare.
Flossie
Well-Known Member
- Posts
- 10,752
- Location
- Shropshire
Terminal numbers should be moulded or printed on the relay so you know which is which on the fuse box itself.
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
Thank you for the information, do you mean take the relay out then take it apart? Solder the contacts together?
Flossie
Well-Known Member
- Posts
- 10,752
- Location
- Shropshire
No. Take the relay out and put it in your pocket. Identify terminals 30 and 87 in the fuse box where that relay plugged in and join those two terminals with a bit of wire cable. Just hold or wedge it in. If everything now works your relay is faulty because you've by passed the relay. Only a test, don't run around with just that wire in.
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
Thank you for explaining this to me, I will do this in the morning and report back
Datatek
Well-Known Member
- Posts
- 44,207
- Location
- Near Poitiers SW France
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
I have just jumped the the wire from 30 to 86 the pump came on at once
Datatek
Well-Known Member
- Posts
- 44,207
- Location
- Near Poitiers SW France
So the relay is faulty or the line that switches the relay on has a fault, the relay input can be checked with a meter.
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
I do have a meter, the relay smells like it’s burnt out, I will check the line as you say just in case
- Posts
- 12,271
- Location
- Sud ouest France !
Try another relay just to confirm
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
I don’t have another relay like this one ,
- Posts
- 12,271
- Location
- Sud ouest France !
Is it a black or yellow one kiddo?
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
It’s black, 4 pin but one pin is narrow
Datatek
Well-Known Member
- Posts
- 44,207
- Location
- Near Poitiers SW France
It's a special Mark, not interchangeable with any other relay in the box.
Datatek
Well-Known Member
- Posts
- 44,207
- Location
- Near Poitiers SW France
Get one from a breaker. It would cost too much for me to post one from here after Brexit.
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
Ok new relay fitted but still not fixed, the pump is not activating but when I use the jumper it’s working? Not sure what else I can try?
- Posts
- 15,423
- Location
- Benfleet, Essex
If jumping the switch contacts out makes it work then the voltage required to operate the relay is missing across its coil pins. Earth one side, switched volts on the other.

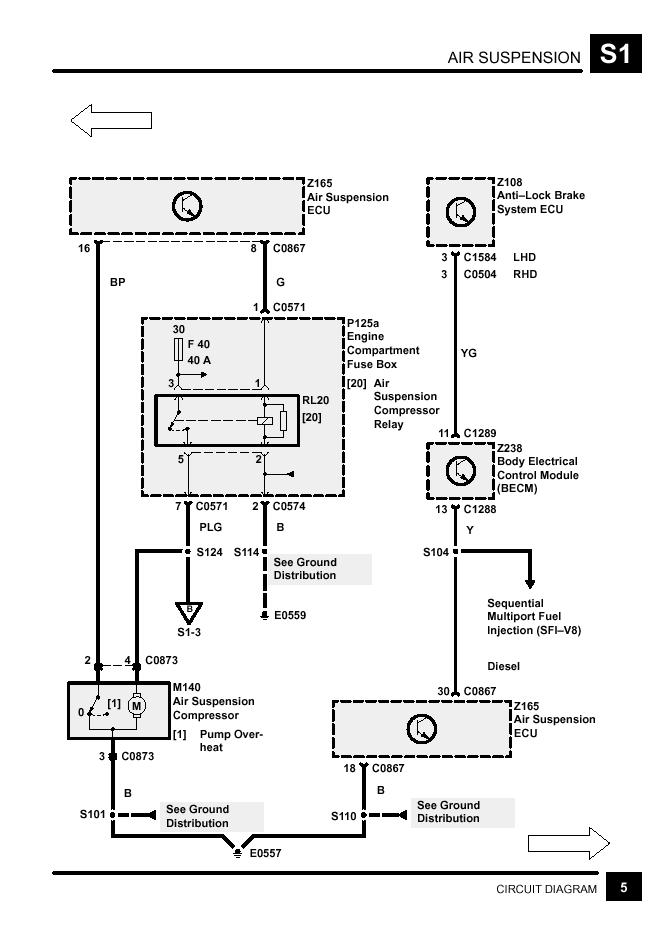

Have you used the electrical troubleshooting guide? Section S1 covers the EAS and all of the electrical connections. Either the ground is missing, the wiring has broken or your EAS ECU is toast.
Faizey76
Active Member
- Posts
- 92
- Location
- Malvern Worcestershire
Hi thank you for your response, the Range Rover was converted to springs before I bought it, breaks were working fine a week ago then nothing I have the red warning light for the breaks on and it flashes up abs fault, I’m not savvy enough to understand the electrical side unfortunately, and help in layman terms would be gratefully received as always
