Range Rover 2008 tdv8 auto - Part help!

kayleigh8586 · Jun 2, 2024

Hi does anyone know what this sensor/pipe part is called? It perished today and dumped all of what I'm assuming is the ATF all over the engine bay and out the bottom of the l322 tdv8. Trying to buy a replacement but no idea what to search for. Please help!

Graculus · Jun 2, 2024

That looks like the injector bleed-off line with the fuel temperature sensor incorporated - is the plug red? if so, then part number is 1423955

kayleigh8586 · Jun 2, 2024

Graculus said:
That looks like the injector bleed-off line with the fuel temperature sensor incorporated - is the plug red? if so, then part number is 1423955

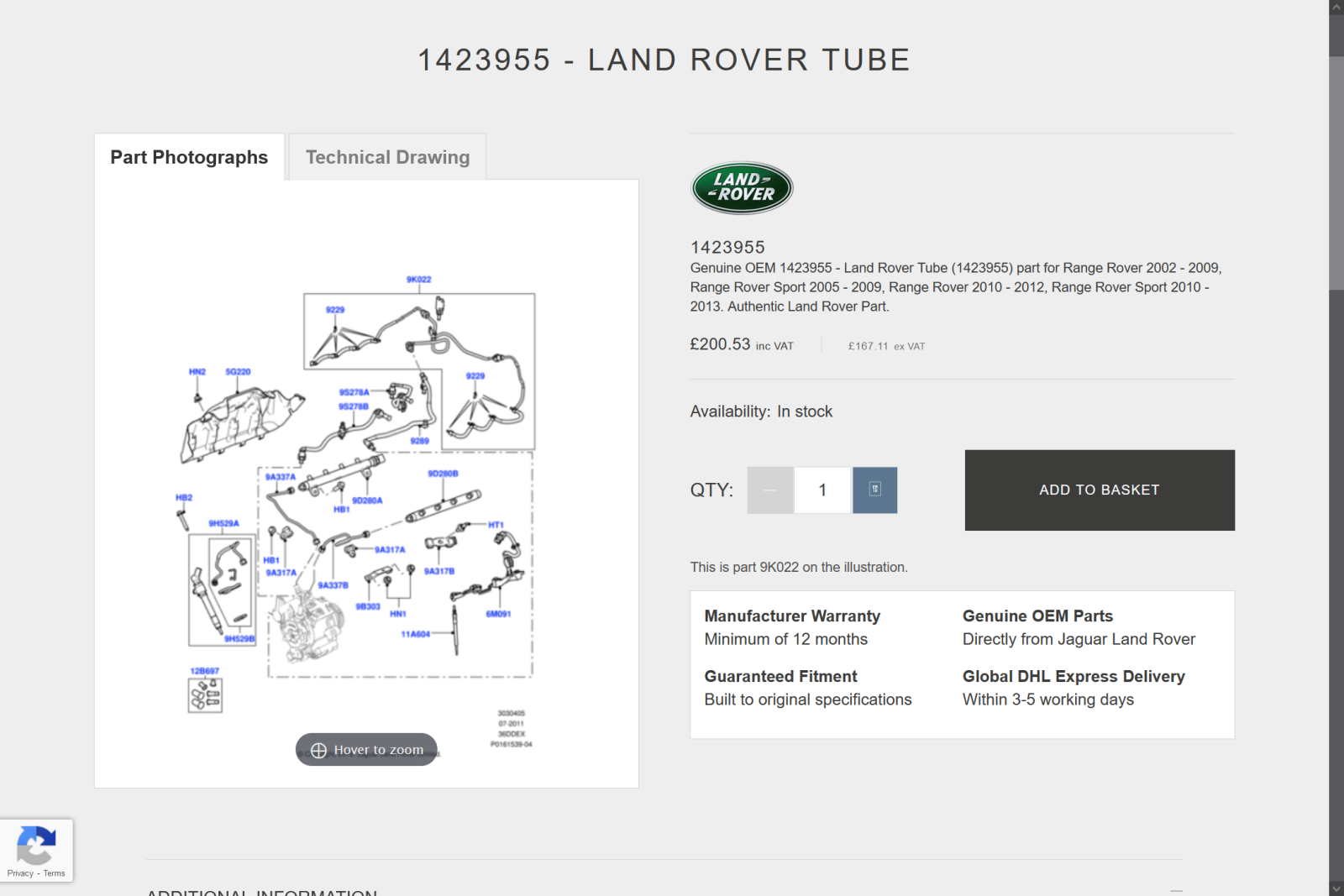

View attachment 318547

Thank you so much - you are spot on just had a look at some images on google. Any idea on how difficult is it to replace? Anyone point me to a YouTube video or guide?

Graculus · Jun 3, 2024

It's not the easiest! you need to remove the shield plates over the fuel injectors - and don't lose the 'R' clips holding the bleed-off line in the side of the injectors!
