Range rover 2.7td v6 oil seal

Hello you good folks ,i brought a 2005 2.7td v6 range rover with a major oil leak thought id take a gamble lol,anyway i started to strip engine down as the oil leak was very bad and found the cam belt an pullies look like new and so does the oil pump which looks like its been changed to the upgraded 1 , anyway after removing crank bolt the pulley came off easy only to find the oil seal about a 1" from the oil pump sitting place ,question is should the seal have been locktighted in ?

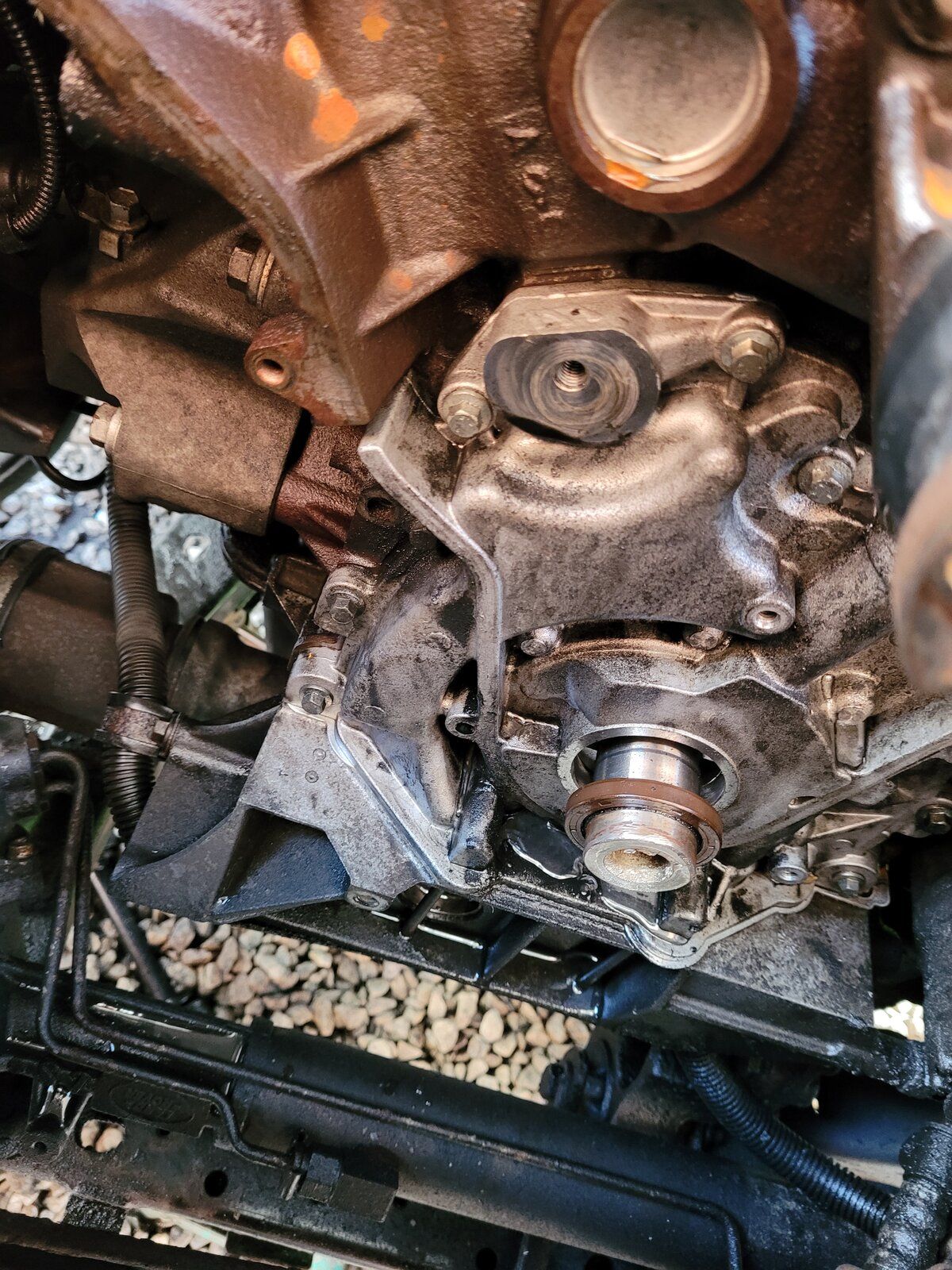

Picture of the position of oil seal once i removed pulley

Get a new seal and refit correctly no lock tight needed

I can't imagine why that would leak!

Some seals need a quick wipe of grease on the lip to stop it being damaged on the first rotation.
Some new seals come with a touch of grease already coated on the lip. I'd maybe loctite it around the outside incase the oil pump opening isn't quite exact the size it should be... As we all know some parts aren't worth the box they come in..

https://www.landyzone.co.uk/land-rover/oil-seal.374299/écho !!!!!!!

Mark Piercy said:

https://www.landyzone.co.uk/land-rover/oil-seal.374299/écho !!!!!!!

Click to expand...

"Requested page could not be found"

Use genuine parts seals.
Some aftermarket ones are utter garbage even though the seller might describe them as 'A quality aftermarket part'.

Mark Piercy said:

Some seals need a quick wipe of grease on the lip to stop it being damaged on the first rotation.
Some new seals come with a touch of grease already coated on the lip. I'd maybe loctite it around the outside incase the oil pump opening isn't quite exact the size it should be... As we all know some parts aren't worth the box they come in..

Click to expand...

These seals must be installed dry, any oil/grease screws the seal up.

You mite need to get creative to install the new seal correctly.

Mark Piercy said:

Some seals need a quick wipe of grease on the lip to stop it being damaged on the first rotation.
Some new seals come with a touch of grease already coated on the lip. I'd maybe loctite it around the outside incase the oil pump opening isn't quite exact the size it should be... As we all know some parts aren't worth the box they come in..

Click to expand...

Hi All, I wanted to add to Mark’s comment about the Loctite on the outside edge. Make sure it’s fitted straight as it could be very difficult to remove again if it leaks. Use a retaining product not a studlock grade as they cure slower and deliver a more durable seal.
Good luck, Tricky.

Genuine LR seal used and new cam belt etc now its all back together and running perfectly no leaks well happy here. just need to sort the hot air in cabin as coolant was drained and its a bit late in the evening so sort that tomorrow

Sean12345 said:

Genuine LR seal used and new cam belt etc now its all back together and running perfectly no leaks well happy here. just need to sort the hot air in cabin as coolant was drained and its a bit late in the evening so sort that tomorrow

Click to expand...

Just be sure those three little waterpump bolts weren't /aren't over tightened!!

Mark Piercy said:

Just be sure those three little waterpump bolts weren't /aren't over tightened!!

Click to expand...

Took the RRS for a spin today and it warmed up in cabin nice and drove spot on well happy sure there will be some issue along the way to sort out ,as ive enjoyed fixing this motor
