Freelander 1 Radio wiring

bukko · Apr 18, 2019

I want to get one of these for my 02 TD4 but I think they were for earlier ones (had one in my '99 XDi).
Does anyone know if the wiring is different?

td4van · Apr 18, 2019

You’ll need the radio display/clock and the wiring to/from it and the connector depends on the existing headunit fitted

Have to ask why you’d want to go down this route?

bukko · Apr 19, 2019

The current head unit is an aftermarket one.
I want an LR one and just for impractical nostalgic reasons thought I'd get one like my '99 had, although that had a CD changer as well.
I'll whip it out and take some photos.
And then I'll look at the stereo...

bukko · Apr 19, 2019

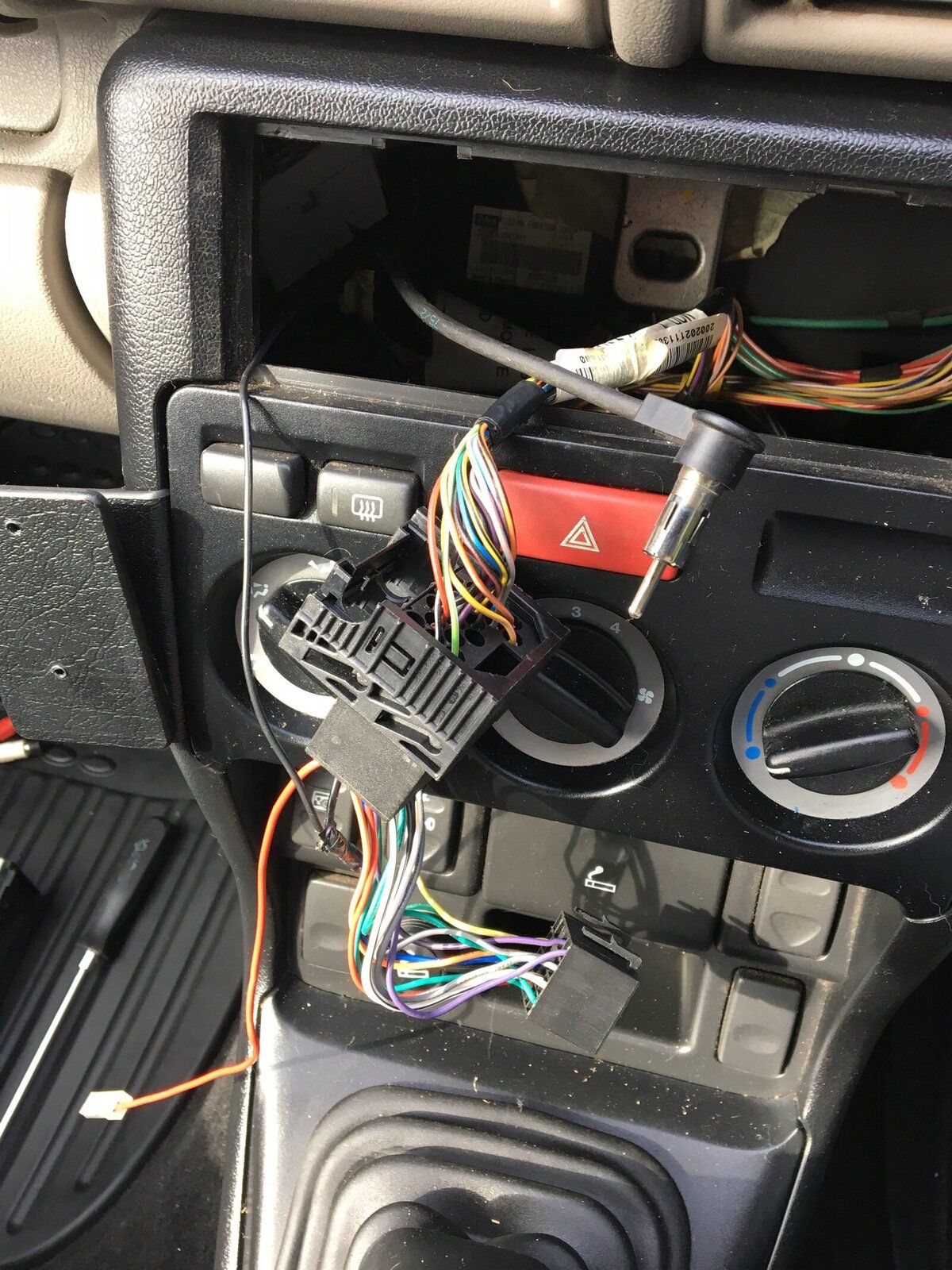

This is with the head unit out.
Someone has added an additional earth and a live output, although that wasn't connected to anything..
How much of what's left do I need? Does that big block come apart? (Can't figure out how)

Nodge68 · Apr 19, 2019

I might have a standard FL1 radio in storage. I'll take a look, later in the weekend, if it helps?

td4van · Apr 19, 2019

That’s a Quadlock connector and the outer part of the connector slides to release the two sections

The standard radio at that age (and connector) was known as C42

bukko · Apr 22, 2019

Nodge68 said:
I might have a standard FL1 radio in storage. I'll take a look, later in the weekend, if it helps?

Thanks that would be helpful, if not too inconvenient!

td4van said:
That’s a Quadlock connector and the outer part of the connector slides to release the two sections

The standard radio at that age (and connector) was known as C42

Thanks - yes I managed to slide part of it sideways but wasn't sure what it did. I'll see what I can pull out

bukko · Apr 22, 2019

Nodge68 said:
I might have a standard FL1 radio in storage. I'll take a look, later in the weekend, if it helps?

In fact @Nodge68 would you be interested in selling the one you have?
I'm down your way in a few weeks if it helps.

Nodge68 · Apr 22, 2019

bukko said:
In fact @Nodge68 would you be interested in selling the one you have?
I'm down your way in a few weeks if it helps.

If I've still got one, you're welcome to it. I'm not sure what I've got in storage, but I'll have a look tomorrow.

Fritz · Apr 24, 2019

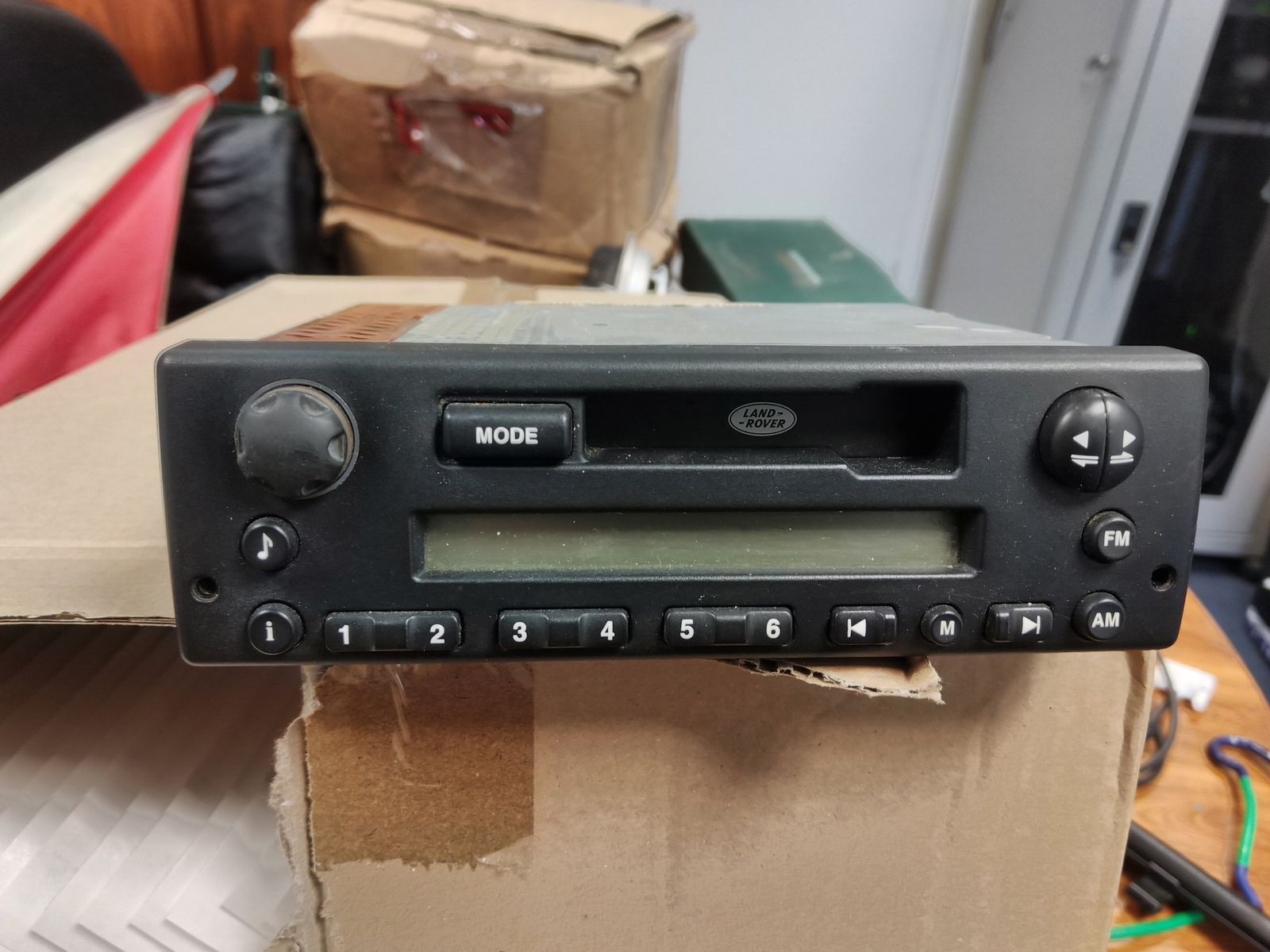

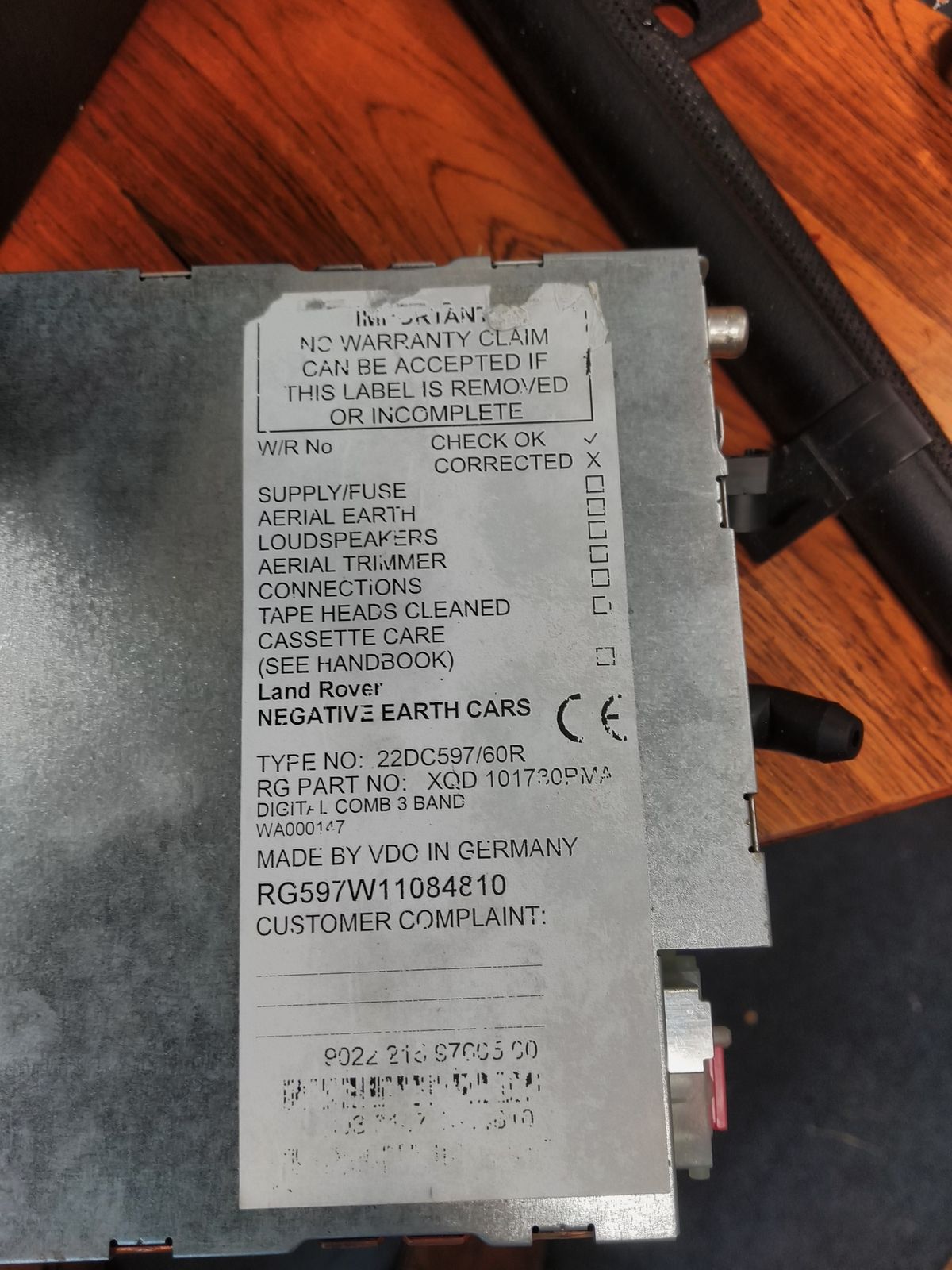

OP if Nodge can't find his I have one as attached.

Happy to send it to a good home.

Fritz

EDIT: forgot to says, it's out of an 02 GS (3 Door)

Nodge68 · Apr 24, 2019

Fritz said:
OP if Nodge can't find his I have one as attached.

That's lucky, as it appears I got rid of a lot of Freelander stuff a while back, an early FL1 HU with it.

I have a CD changer, which I think might be FL1 though.

bukko · Apr 25, 2019

Fritz said:
OP if Nodge can't find his I have one as attached.

Happy to send it to a good home.

Fritz

View attachment 176348 View attachment 176349 View attachment 176348

EDIT: forgot to says, it's out of an 02 GS (3 Door)

That would be amazing!
I'll PM you

bukko · Apr 25, 2019

Nodge68 said:
That's lucky, as it appears I got rid of a lot of Freelander stuff a while back, an early FL1 HU with it. I have a CD changer, which I think might be FL1 though.

I hadn't thought of a CD changer. I see that the Alpine units they used were £700 though

How much were you thinking for yours?

Nodge68 · Apr 25, 2019

bukko said:
I see that the Alpine units they used were £700 though

The multi changer was always expensive, even second hand they're expensive.

bukko said:
How much were you thinking for yours?

You can have it, but you need to make sure it's the correct one for your HU, as I believe there are a couple of models. And you'll need the wiring to go with it, as I don't think I have that.
If you can find out what model multi-changer you need, I'll check I've got it.

bukko · Apr 26, 2019

Nodge68 said:
The multi changer was always expensive, even second hand they're expensive.
You can have it, but you need to make sure it's the correct one for your HU, as I believe there are a couple of models. And you'll need the wiring to go with it, as I don't think I have that.
If you can find out what model multi-changer you need, I'll check I've got it.

This one is the "C42" changer - I'm hoping that means it works with the C42 radio - no necessarilly true I realise.
[edit]
It also looks like you can get the wiring for between £35-£45 depending on supplier and model.
Or maybe a breakers might be a better bet for that.
[/edit]

Nodge68 · Apr 26, 2019

bukko said:
This one is the "C42" changer - I'm hoping that means it works with the C42 radio - no necessarilly true I realise

Ok. I'll check what I've got. Hopefully I'll have what you need. I think I've got 3 or 4 multi-changers in storage, but no idea what vehicles they came out of now.
