R380 Emulsified Oil

Discussion in 'Land Rover Discovery' started by Defender91, Jan 15, 2022.

< Previous Thread | Next Thread >
  1. Defender91

    Defender91 Active Member

    Joined:
    Sep 13, 2018
    Posts:
    127
    Likes Received:
    24
    Location:
    Ipswich
    Hi,
    Got round to doing the oil change on the gearbox in my Disco 2 a month or so back, but when I drained it it looked more like beige Dulux. I only bought the car back in march so don't know when the oil was last changed, but I know it did sit for a while so hoped it would be fine once it had been refilled. However, changed it again yesterday and there was still a very definite beige colour to the oil. Anyone got any ideas where the most likely point of entry is for water getting in? I've never taking it through water of any depth, or is it possible that it wasn't completely gone from the first drain/ refill?
    I took a sample of the first lot of oil and let it sit, took about three weeks before it started to seperate.
    Pics:
    1- First drain
    2 - Second drain
    3 - Seperated oil
    IMG-20211204-WA0001.jpeg IMG_20220113_101645_205.jpg IMG_20220112_133717_596.jpg
    Thanks in advance.

  2. Landmark2

    Landmark2 Well-Known Member

    Joined:
    Aug 1, 2013
    Posts:
    665
    Likes Received:
    141
    Location:
    Shropshire
    Hi, Can I assume it's a manual g/box? There is a breather pipe I believe, so make sure that hasn't come off. It definately looks like water has got in. If a manual box make sure you use MTF94 oil.
    If it was mine I'd run it for a short while then change it agine to be sure.
    Griff

  3. Defender91

    Defender91 Active Member

    Joined:
    Sep 13, 2018
    Posts:
    127
    Likes Received:
    24
    Location:
    Ipswich
    Thanks for the reply, yes its a manual.
    I'll have a look at the breather, guess the centre console has to come out to see it?
    Meant to change the oil as you say not long after I found it the first time, but weather and other things got in the way, but I'll order another batch to do it again ,just hope it hasn't done too much damage,there was a fair bit of metal on the magnet.
    Is there an oil cooler for the gearbox or anywhere else you think it could be getting in?

  4. TheMunster

    TheMunster Active Member

    Joined:
    Jul 31, 2007
    Posts:
    328
    Likes Received:
    39
    A few r380s had oil coolers but not usually UK spec Discos. You'll have a pair of pipes running forward from the side of the box if you have a cooler. You should be able to get at the breather to feel if its disconnected from below. It runs froward then up the bulkhead.
    If its been stood for a long time in the right circumstances then condensation can cause it. I would agree with landmark and do 2 or 3 changes a few 100 miles apart to flush the oil through.

    Defender91 likes this.
  5. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    19,157
    Likes Received:
    18,103
    Location:
    Kent
    Cheap atf, drain refill do a few miles repeat oil change, maybe repeat agian then refill with the correct oil.
    Never seen water in oil on a 77 or 380 before, have seen it on trucks, and there was always an entry point, ie breather pipe was not high enough, or in one case sewage tanker had a split tank right above the axle breather.
    Assuming breather set up is the same as 200/300 then the pipe will go up into the engine bay, so maybe pipe can somehow get water into it?

    TheMunster likes this.
  6. TheMunster

    TheMunster Active Member

    Joined:
    Jul 31, 2007
    Posts:
    328
    Likes Received:
    39
    Aye dexron II is ok to use in these boxes, it's cheap and has cleaning stuff in it. Then you can fill with what you prefer when it comes out clean

    lynall likes this.
  7. P38 Monkey

    P38 Monkey Well-Known Member

    Joined:
    Aug 28, 2021
    Posts:
    262
    Likes Received:
    326
    Location:
    Cambridge
    Just to make sure it is not coolant getting in through a crack in the head or block, or a failed head gasket, you might consider putting UV tracer dye in the coolant. Cheap enough stuff, and you can buy a UV torch for a few quid. That way you can see if there is any UV dye in the oil.

  8. Defender91

    Defender91 Active Member

    Joined:
    Sep 13, 2018
    Posts:
    127
    Likes Received:
    24
    Location:
    Ipswich
    Thanks for all the replies.
    I've ordered another batch of Mtf94 , I've got a load of atf so will run that through at the weekend.
    I will have a look at the breather on my lunch break today.
    Ive been warming it up first before draining it, is this right?

  9. Defender91

    Defender91 Active Member

    Joined:
    Sep 13, 2018
    Posts:
    127
    Likes Received:
    24
    Location:
    Ipswich

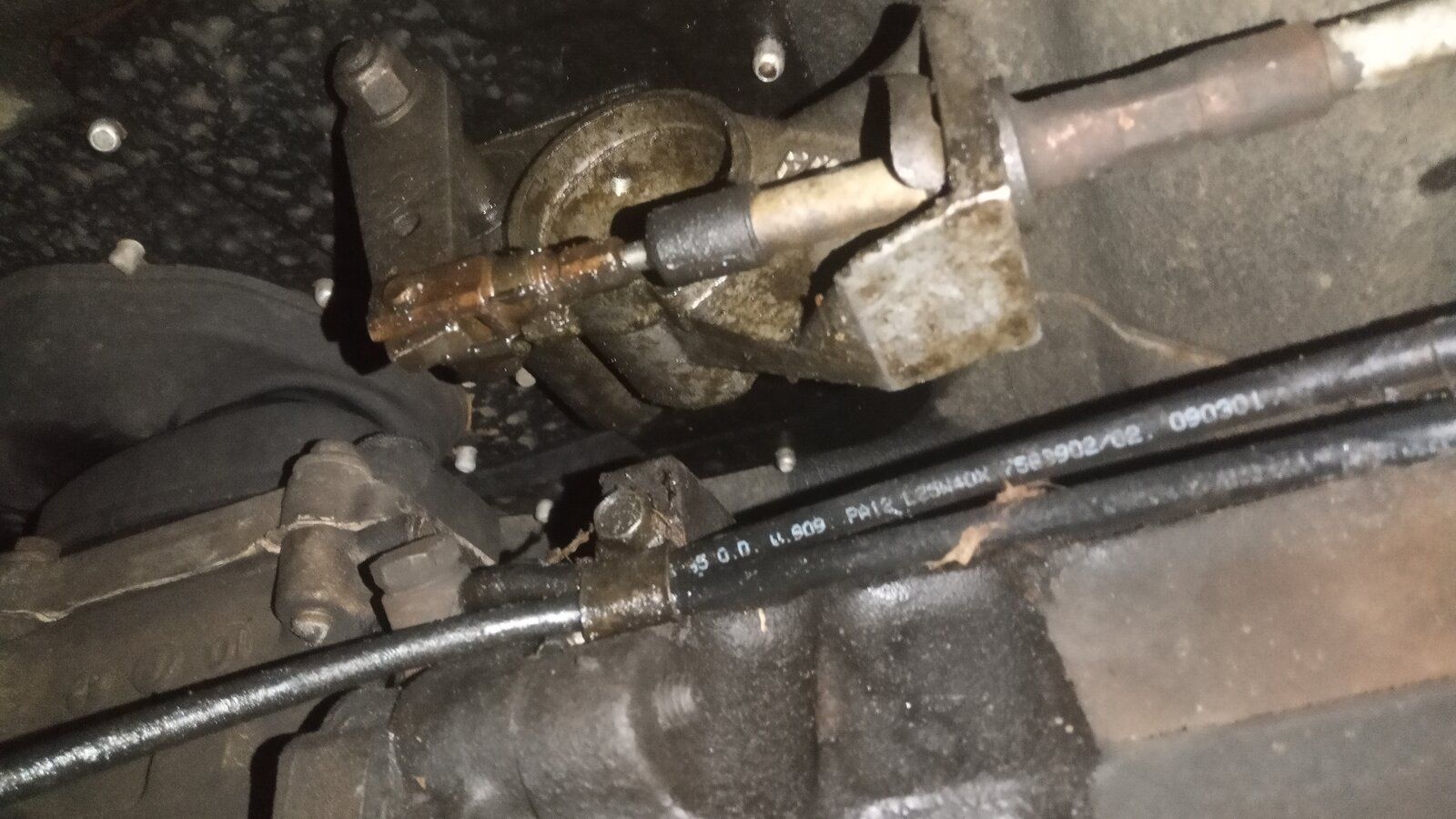

    Just had a look underneath, the breather looks fine both under the bonnet and on the gearbox. IMG_20220118_132901_991.jpg

  10. Defender91

    Defender91 Active Member

    Joined:
    Sep 13, 2018
    Posts:
    127
    Likes Received:
    24
    Location:
    Ipswich
    Had a minute to pull the centre console out today, looks like I should have done it sooner.

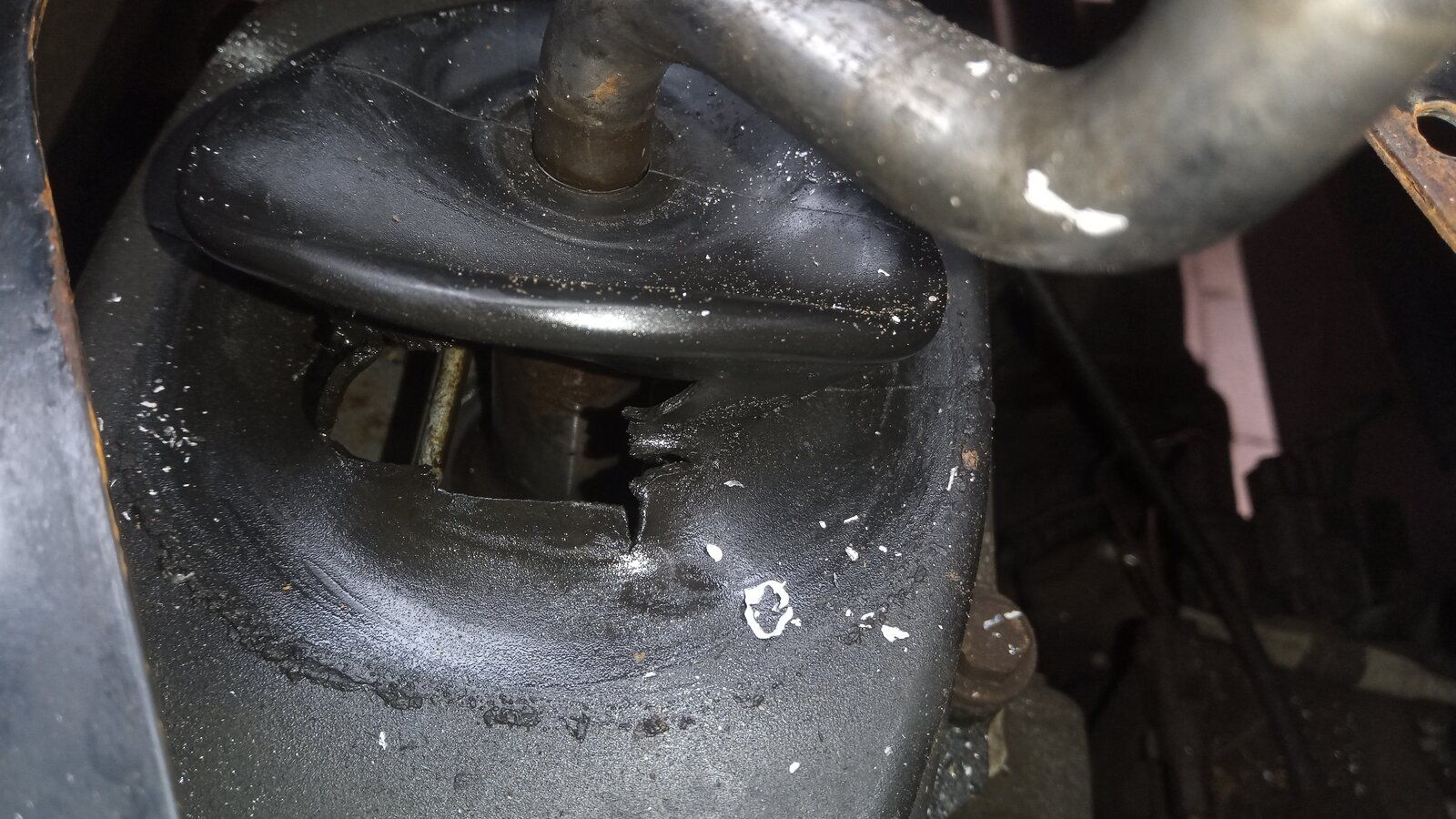

    The selector housing gaiter had multiple splits in it, I'm guessing that the water was splashing up the inside of the tunnel then dripping back in through.
    Suffice to say a new one is in the way.
    Thanks for the help. IMG_20220123_140253_595.jpg
