Properly F****d Propshaft

Discussion in 'Series Land Rovers' started by Simon Perks, Jan 23, 2018.

< Previous Thread | Next Thread >
  1. Simon Perks

    Simon Perks Active Member

    Joined:
    Jan 9, 2018
    Posts:
    129
    Likes Received:
    28
    Location:
    Switzerland East
    On my drive from the railway station up the mountain to home the Landrover developed a reall shuddering rumble...

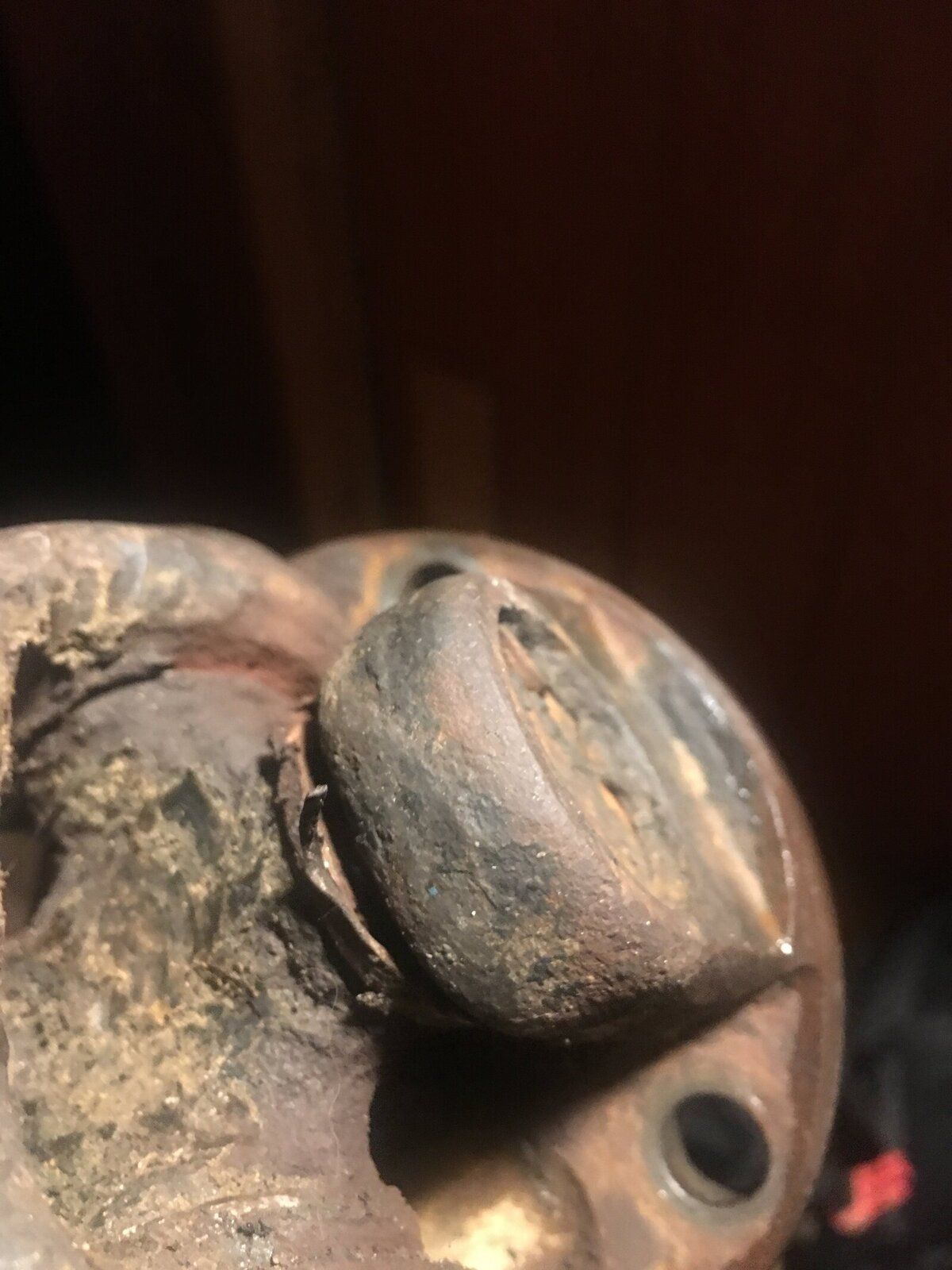

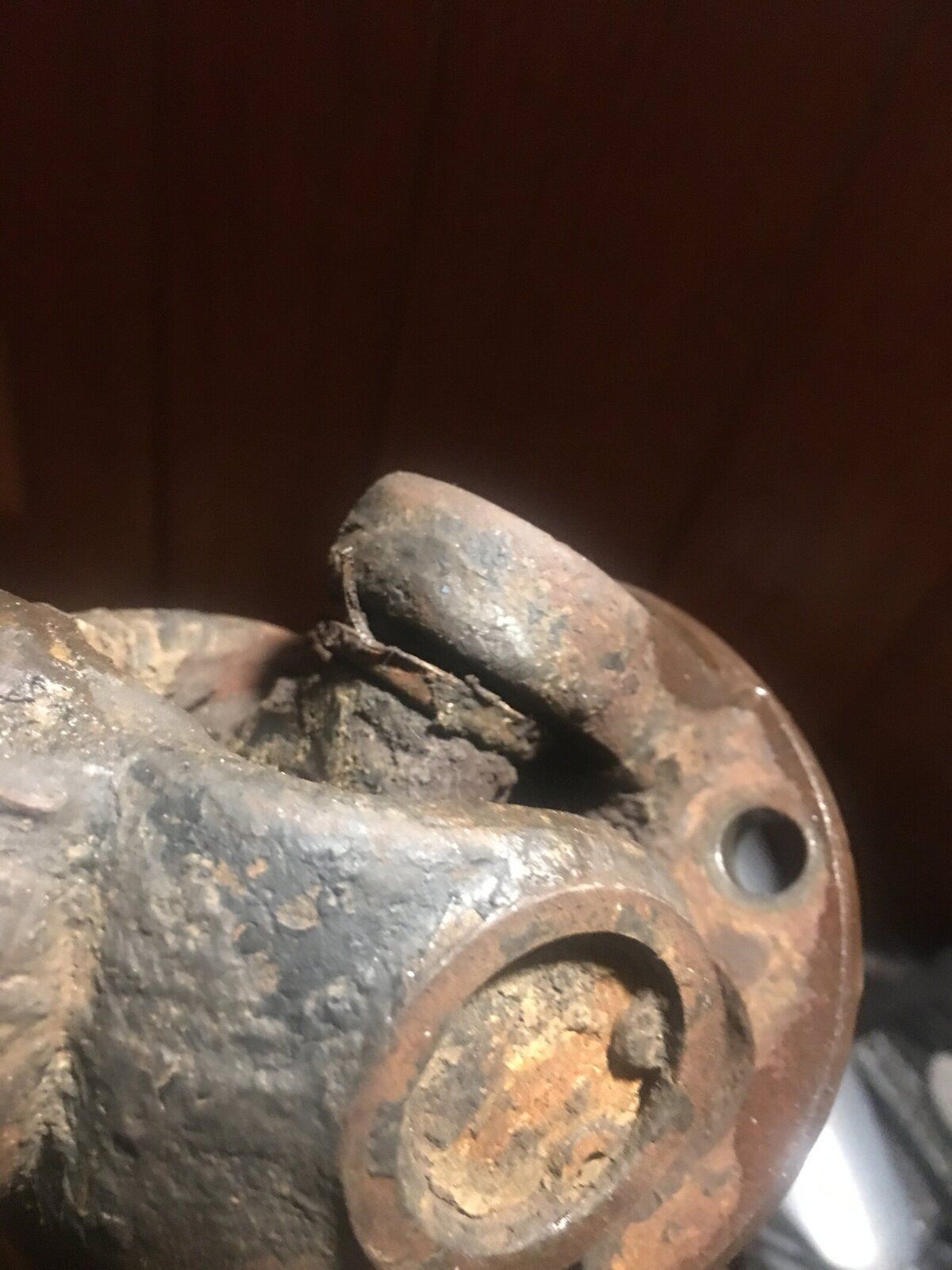

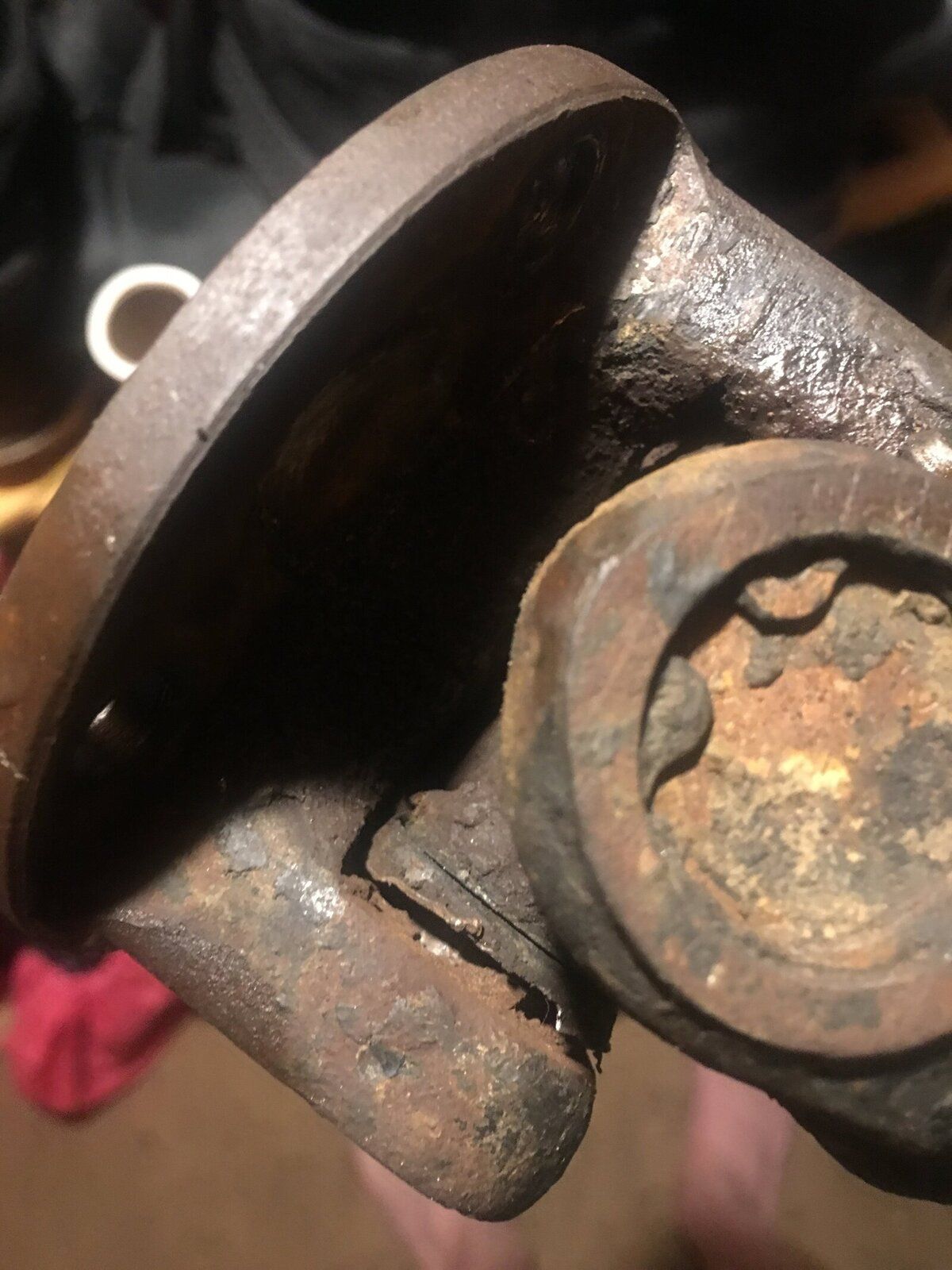

    this is the culprit... i guess ..
    anyone ?


    Attached Files:

  2. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    5,111
    Likes Received:
    295
    Location:
    Manc chester
    It probably was fitted properly at some point and has worn over time :)

  3. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,206
    Likes Received:
    7,777
    Location:
    Oxfordshireness
    Do they not have grease nipples on them?

    Cheers

    Thor1950 and Stone56 like this.
  4. Simon Perks

    Simon Perks Active Member

    Joined:
    Jan 9, 2018
    Posts:
    129
    Likes Received:
    28
    Location:
    Switzerland East
    Yes .... but i dont think any amount of grease can fix this ...

    Thor1950 likes this.
  5. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,514
    Location:
    Doncaster
    Prop should be OK, just change the UJ .. An hour tops ... if you stop for a cuppa ... ;)

    flat likes this.
  6. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    17,206
    Likes Received:
    7,777
    Location:
    Oxfordshireness
    May have done if added previously.................:D:D.

    Cheers

  7. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    6,774
    Likes Received:
    2,514
    Location:
    essex and beyond
    Been overgreased, there is residue on one spigot !

  8. Simon Perks

    Simon Perks Active Member

    Joined:
    Jan 9, 2018
    Posts:
    129
    Likes Received:
    28
    Location:
    Switzerland East
    I thought about changing the UJ's however there is also a lot of play in the splines and the thing is very corroded. I can imagine that it's the original part .. so as a complete one from Paddocks is only 50 quid or so ... i'm going that route ...

    John S and Paul D like this.
  9. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    54,235
    Likes Received:
    8,909
    Location:
    Preston Lancs.
    Been well maintained then? :D:D

    freelance likes this.
  10. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    5,111
    Likes Received:
    295
    Location:
    Manc chester
    Nowt wrong with the BP props aslong as you keep them well greased got them on mine I'm in the middle of rebuilding always have and always will they are great value

  11. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    2,273
    Likes Received:
    812
    Location:
    Warwick
    They are great but make sure you get the ones with greasable uj’s. I have had two of them. One came with sealed for life uj’s which failed after about 12 months. Replaced with greasable ones and not been a problem since. The second one came supplied with greasable ones and is still going strong.

    Simon Perks likes this.
  12. Simon Perks

    Simon Perks Active Member

    Joined:
    Jan 9, 2018
    Posts:
    129
    Likes Received:
    28
    Location:
    Switzerland East
    Thanks for the tip there CR, i'll check on that ...
    Sadly She wasn't well looked after at all by the previous owner, I have done a lot to it (timing chain, head gasket, rebuild carb, 123 ignition and so on ) He off roaded it for a season but after kissing a tree (front right wing is crumpled and the roof corner) decided that a Defender was better suited so sold it to me for under 5grand (with a Swiss MOT - which means no oil leaks!!)
    I am taking part in the Swiss 4x4 Navigation championships this year ( off road routes are on gravel or field ways.. ) so i need to get this done

    Simon

    Paul D likes this.
  13. Land Raver

    Land Raver Well-Known Member

    Joined:
    Nov 24, 2011
    Posts:
    1,933
    Likes Received:
    380
    Location:
    In the dog house
    That UJ looks dryer than an Arab's sandal. I replaced my props with Hardy Spicer branded ones a couple of years back. They were't much dearer than Britpart at the time and have grease nipples to play with in all the right places.

    Thor1950 likes this.
  14. Simon Perks

    Simon Perks Active Member

    Joined:
    Jan 9, 2018
    Posts:
    129
    Likes Received:
    28
    Location:
    Switzerland East
    Guys,
    So finally took delivery of the new prop shaft + fitting tool ( plus a new front bumper & door mirrors ).
    Firstly I have to say the fitting tool is a pain in the arse when it comes to the front end of the prop shaft, no matter at what angle we turned the prop it was a right fiddle.. however on the rear it was great.

    The drive down the mountain valley this morning to the station was adream .. no more rattle scrape, bump n baging, no phantom tick tock noises from the gear box and a much lower sound from the rear axle, one thing i did find was that the castle-ated nut on the output shaft was very very loose. So much so that with the split pin removed i was able to take it off by hand.. so i did this up not to a torque setting but by eye and feel.

    Front bumper looks great, although I have to drill new holes for the towing eyes & the door mirrors took around 10 minutes each ( the hinges were already the right type, so I have 2 spares if anyone is looking for such)

    One last thing about Paddocks, this time they sent me 3 times too many nuts n bolts compared to last time where i had 8 bolts and only 7 nuts!! so that was nice. I have also had a lot of agro with UPS in the past with them charging me extra, not for weight but volume - having paid the flat £20 charge per package sometimes having to pay anything upwards of another £90.
    Paddocks are now using DPD .. soooo much better, no xtra charge and 2 days earlier than promised.

    Take care folks
    Blessing from up the Alp
    Simon

    Last edited: Feb 6, 2018
    Land Raver likes this.
