Project Freebie...

Discussion in 'Members Vehicles/Projects' started by Landy-Pandy, Mar 4, 2019.

< Previous Thread | Next Thread >
  1. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    6,845
    Likes Received:
    4,967
    Location:
    Back in the UK, Sunny Hampshire.
    It was the liners that made me ask as I remember being offered a FL1 2.5 V6 for £100 that had cracked/slipped/porous liners and a little bit of googling showed the same part for both engines, I didn't buy it but wish I had :oops:

  2. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    4,366
    Likes Received:
    2,953
    Location:
    Hereford
    Fancy a KV6 myself to have a play with..

    Always fancied a Rover 825 auto with the 2.5 :eek::oops::D

    dieseldog69 likes this.
  3. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    16,401
    Likes Received:
    3,079
    Location:
    Near Newquay
    The HG is more likely to be the problem, than the liners of the FL1 KV6. By the time the FL1 went into production, the KV6 had been sorted to the point that it was Rover's most reliable engine. The HGs go because the thermostat leaks, unseen, which allows the coolant level to drop. This results in air locks and overheated HGs, which is why they fail.

    dieseldog69 likes this.
  4. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    This is interesting stuff chaps. The longer i spend on here, the more i learn about the K-Series engine. I like the look of the Kv6 too.
    Anyway, i've spent an hour or so working on the Hippo this morning and have managed to get as far as re-fitting the cylinder head.

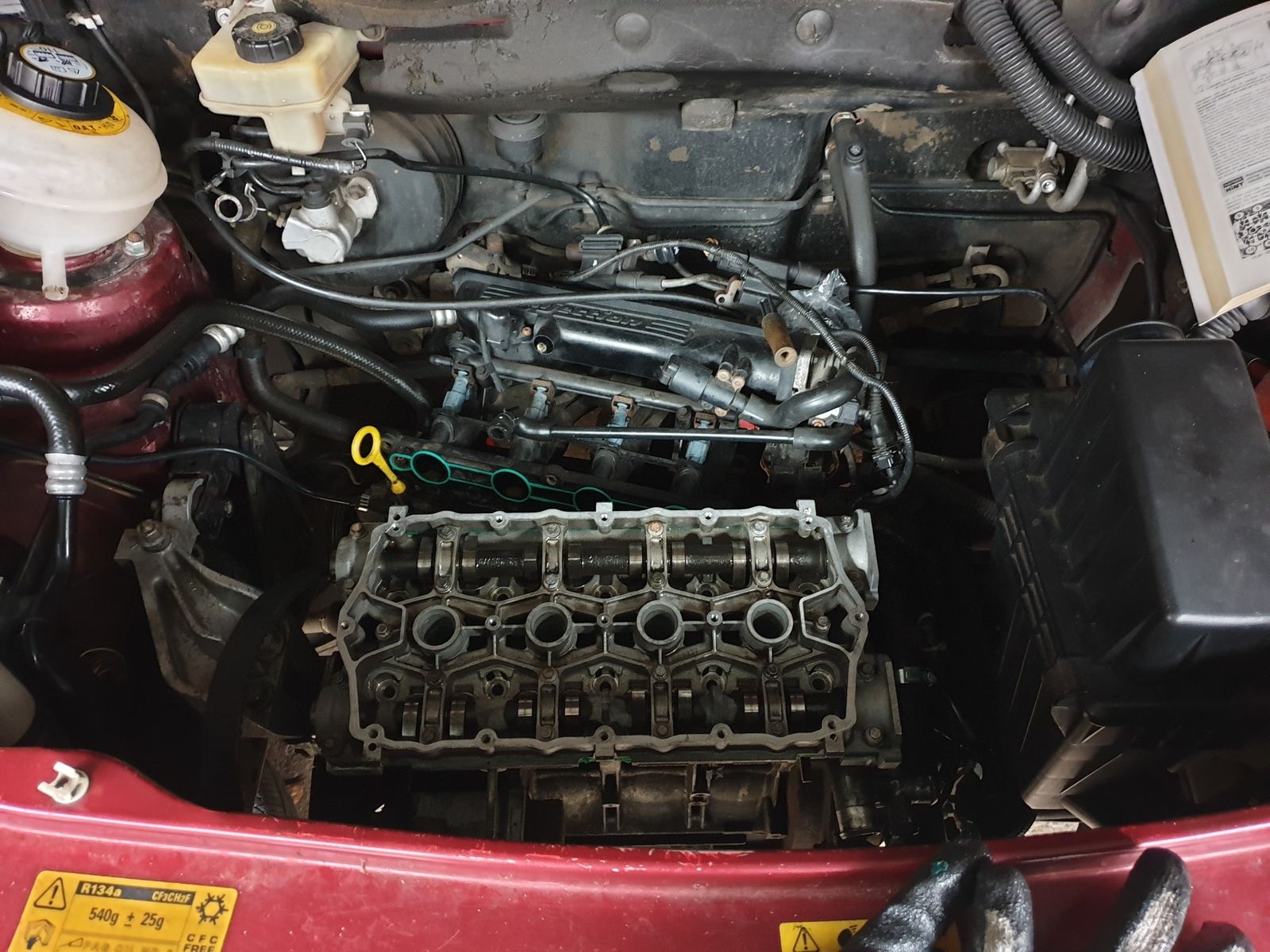

    20190317_114443.jpg 20190317_115256.jpg
    Obviously, the uprated MLS head gasket (with steel shim) and inlet manifold gasket have been fitted.
    The cylinder head bolts have been replaced and are all torqued down!
    The next job is too replace the timing belt, tensioner and water pump.

    dieseldog69 likes this.
  5. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    6,845
    Likes Received:
    4,967
    Location:
    Back in the UK, Sunny Hampshire.
    Smashing job there :)

    Landy-Pandy likes this.
  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    16,401
    Likes Received:
    3,079
    Location:
    Near Newquay
    Looks good. Although there's a trap for young players here.

    In my experience the MLS gasket isn't good for all engines, so often leaks coolant out the block, or into the bores if the liners aren't exactly in spec.

    I always use the latest Payen BW750 gasket, as it's guaranteed to seal the joint correctly.

  7. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    I have read a few posts about the Payen gaskets and how they seal better than the MLS gaskets if the liners are sitting low in the block, but this Camtech gasket kit was recommended and supplied by the cylinder head specialists that i used... so i'm gambling a little and trusting in there wisdom but it's definitely something that i already considered.

    dieseldog69 likes this.
  8. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    16,401
    Likes Received:
    3,079
    Location:
    Near Newquay
    Not low liners, as no gasket will work correctly if the liners are below the level of the block. The Payen BW750 elastomer gasket is designed for the K series, especially if liners are slightly uneven in hight. This is something that the MLS gasket doesn't tolerate at all. For a MLS gasket to work correctly and reliably, then all the liners need to protrude from the block by 1 to 3 thousandths of an inch. However more importantly, all liners MUST be within 1 thou of the adjacent liner. If not, then the MLS gasket can't compensate for the difference in the same way the elastomer gasket can, with failure is the result.
    I don't know how the head builder can say your liners are suitable, unless they actually measured them for you. There's nothing worse than taking someone's word that a product will do the business, if it's not the case. Hopefully it'll be ok for you, but in my experience, this isn't always so.

    Last edited: Mar 19, 2019
    dieseldog69 likes this.
  9. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    I think it may be the gasket kit that they supply with every K-Series rebuild.
    Having said that, it seems to have some great reviews on the internet, although i understand that the issue with liner heights is a fault of all MLS gaskets.

  10. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    Heads on... belts are on... new tensioner, new water pump, cam cover gasket, coolant elbow gasket, inlet manifold gasket, exhaust manifold gasket, oil filter, spark plugs, air filter and fresh 10W 40...
    But most importantly, she runs!

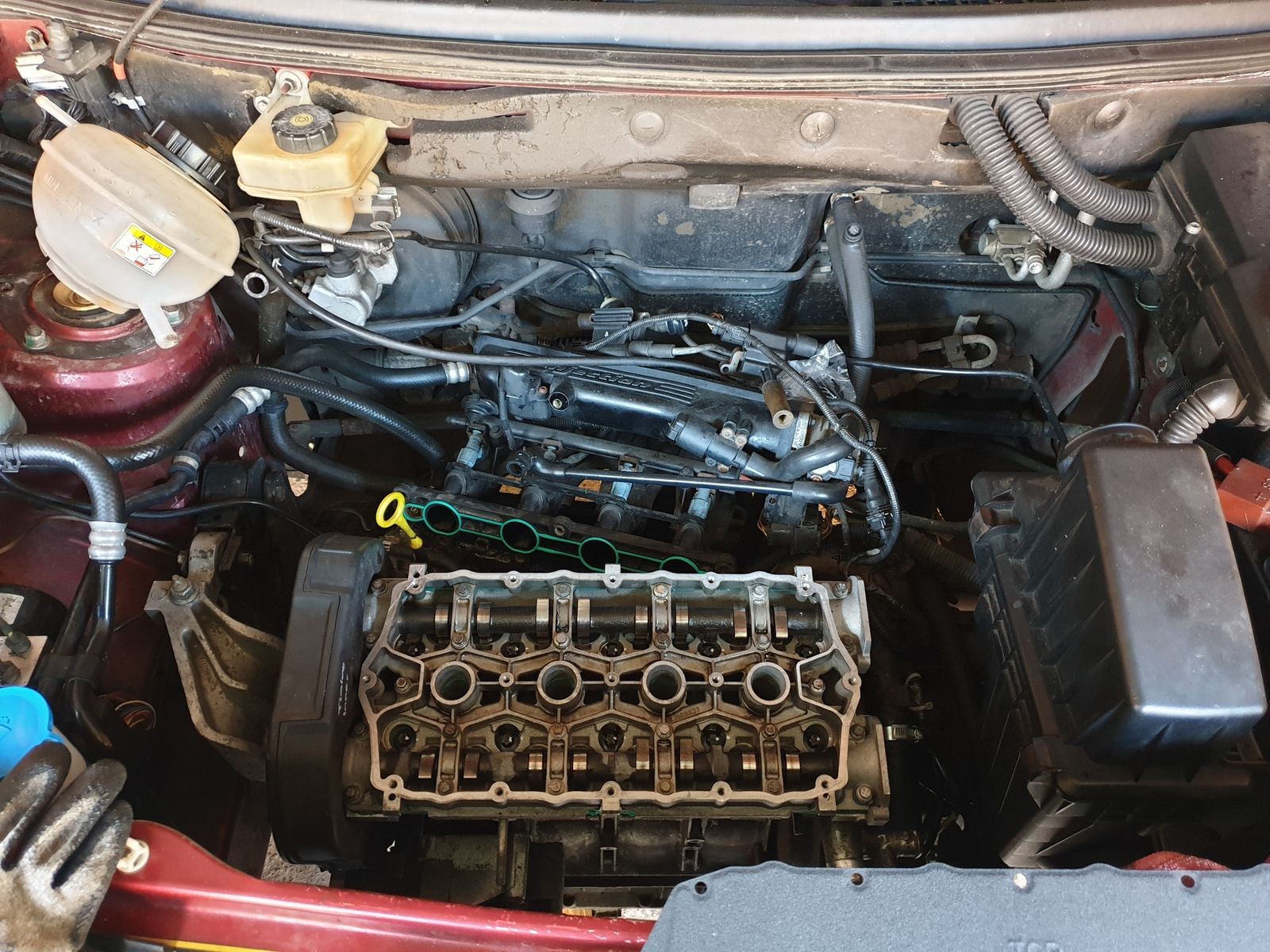

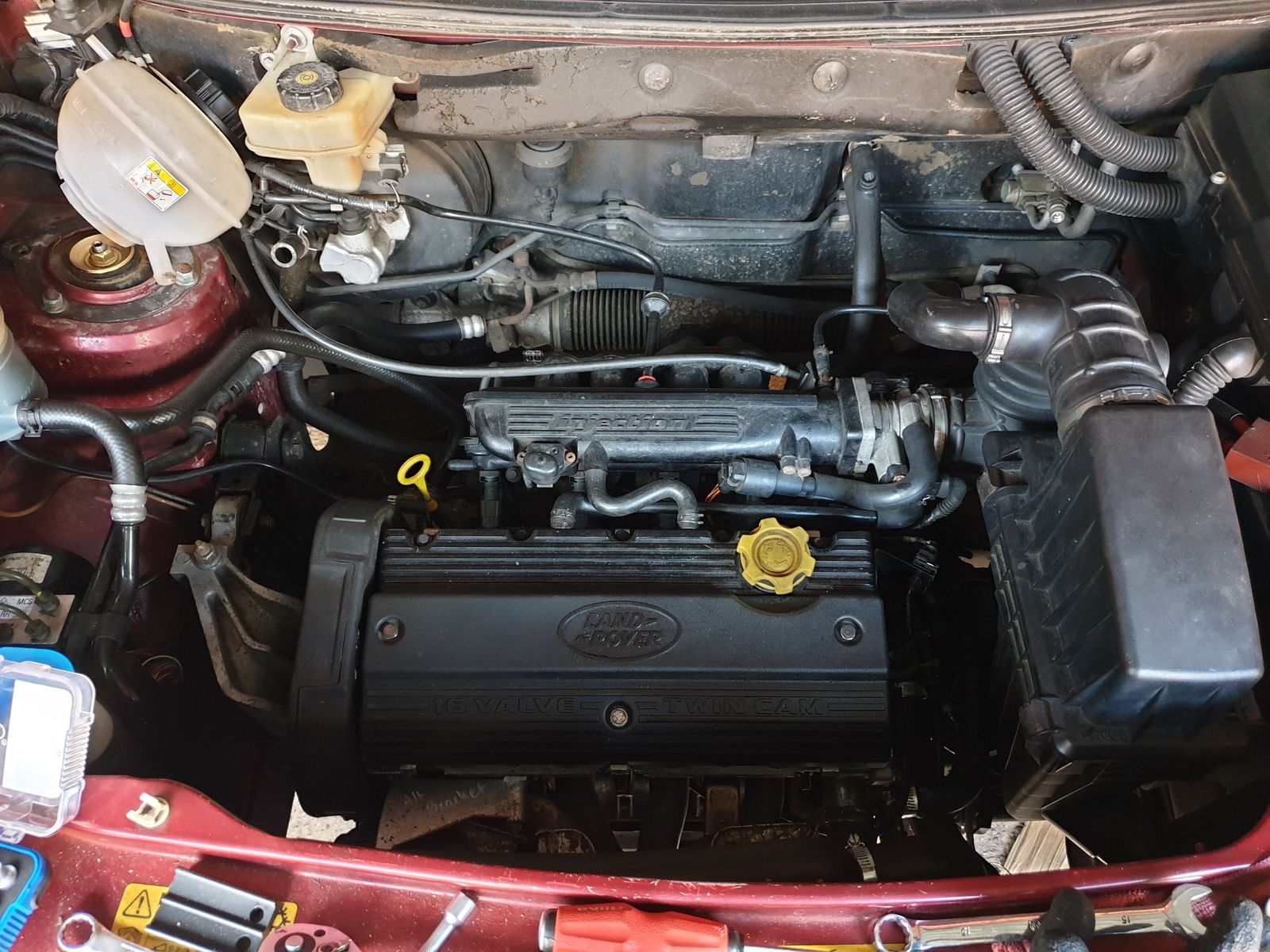

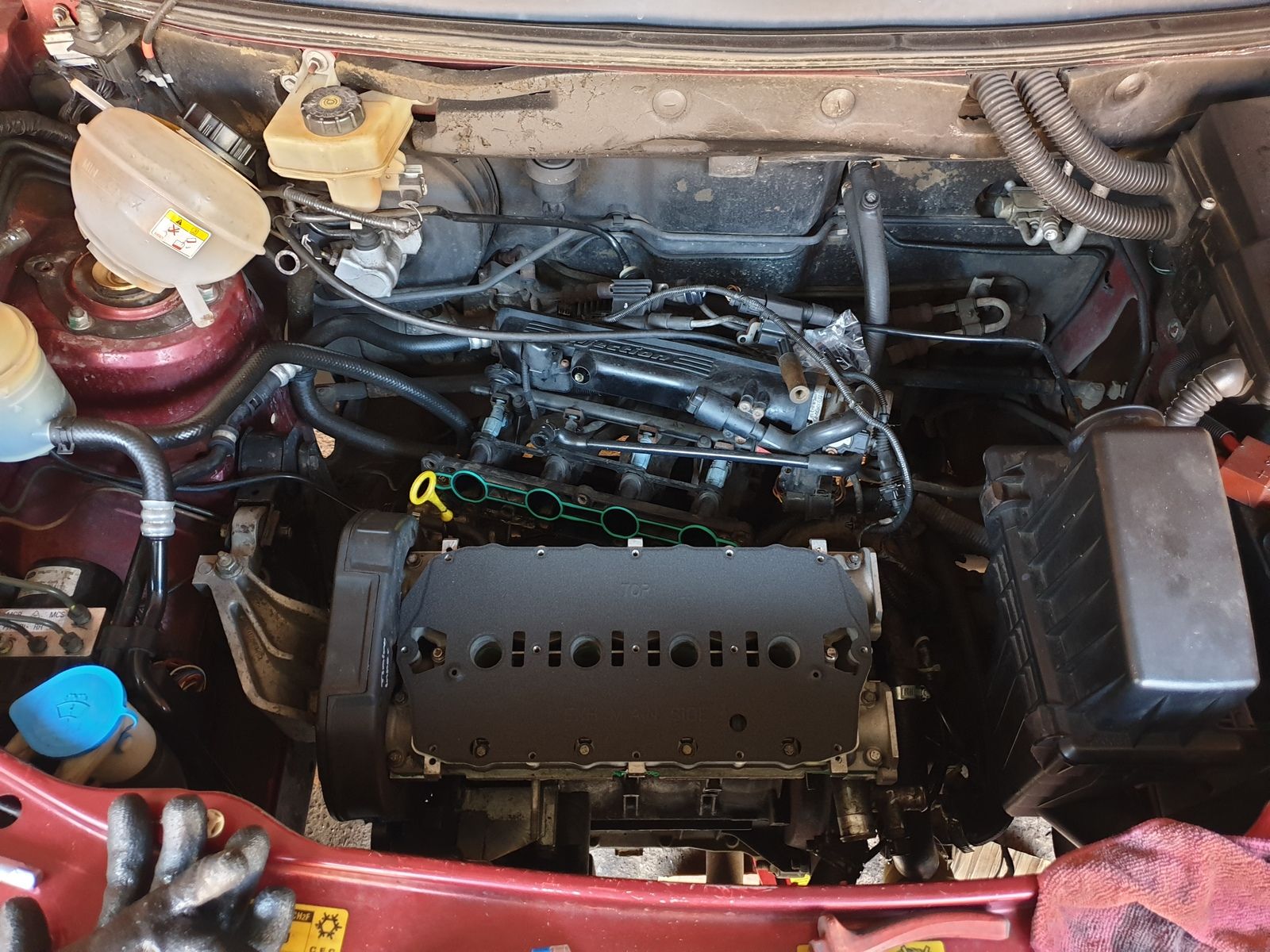

    20190320_133327.jpg 20190320_133439.jpg 20190320_134157.jpg 20190320_155016.jpg
    I'll be flushing the coolant system throroughly, bleeding repeatedly, checking for leaks and filling her up with some good quality OAT before getting on the road again.

    dieseldog69 likes this.
  11. callisr

    callisr Well-Known Member

    Joined:
    Jun 21, 2005
    Posts:
    486
    Likes Received:
    173
    Location:
    Burton-on-Trent, Staffs
    I’ve just read, and enjoyed this thread! Keep up the good work.
    Personally I’d go for mud terrain tyres and a touch of lift. I reckon it’d be quite a capable machine.......

    RangeRoller dt likes this.
  12. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    2,328
    Likes Received:
    831
    Location:
    Aberdeenshire
    Don't know much about FLs and enjoying this. Keep it up.

  13. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    Thankyou!
    I'm glad you guys are enjoying the thread. I've actually discovered a leak since my last post and am in the process of replacing the radiator.
    Once this has been done, the whole coolant system (more or less) will have been renewed!

  14. RangeRoller dt

    RangeRoller dt Well-Known Member

    Joined:
    Dec 23, 2018
    Posts:
    1,107
    Likes Received:
    380
    Location:
    S.Wales
    Well done, nice to see a proper thread with a proper hippo ;)

    Did you clean up the bores/crowns at all after?

    Landy-Pandy likes this.
  15. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    I did! Although it was just a case of using some wet 'n' dry on the cylinder liners, some grease to keep the dirt away from the piston rings and a hand held vacuum cleaner to remove it.
    I also gave the crowns a going over with a long wire brush until they were relatively clean. :)

    RangeRoller dt likes this.
  16. exmed wayne

    exmed wayne Well-Known Member

    Joined:
    Jun 10, 2018
    Posts:
    198
    Likes Received:
    127
    Location:
    On my way to Scotlandshire
    I just so happen to have a set of 4 steel Freelander rims with nearly new Mud terrains fitted.
    I've got a Defender now, so would let them go nice and cheap to a fellow forum enthusiast.
    pm me if you're interested.

  17. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    Nice one! Thanks for the offer Wayne but i think i'm going to go with all terrain tyres. This is also my daily drive, so i don't want it to be too noisy or too rough.
    Thanks again though. :)

  18. exmed wayne

    exmed wayne Well-Known Member

    Joined:
    Jun 10, 2018
    Posts:
    198
    Likes Received:
    127
    Location:
    On my way to Scotlandshire
    You're Welcome mate.
    They'll probably be still in my storage next year, as they're just a tiny bit too small to go on my Defender.
    I've also got some other exciting Freelanderer bits from when I was going to do my TD4 up, but this isn't a sales thread so I'll leave it at that.

    Looking forward to some piccies of yours progressing.

    Seriously consider BFG if you're going A/T's.....they'll perish from old age after about 20 years before they'll wear out :D

  19. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    Nice.
    I've been looking at the Yokohama Geolander A/T GO15, although it could be a while until i free up enough funds to fit five of these...
    I'm just looking forward to having her back on the road at the moment!

    Last edited: Mar 24, 2019
  20. Landy-Pandy

    Landy-Pandy Member

    Joined:
    Nov 7, 2018
    Posts:
    67
    Likes Received:
    18
    Location:
    Shropshire
    Good news! She's back on the road and equipped with a new radiator...
    Bad news... she just failed her MOT...
    Two worn tyres (debatable), some rot under the offside sill and a leak on the rear diff.
    Very disappointed. :(
