Petrol Engine.

Discussion in 'Series Land Rovers' started by border, May 14, 2021.

< Previous Thread | Next Thread >
  1. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    19,505
    Likes Received:
    24,332
    Location:
    North Shropshire
    agree.. clean up, put the pistons back and see how much play they have. if its 'acceptable' ( there should be some), re-hone the bores and put new rings on. re-seat the valves and see how you get on

  2. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,354
    Likes Received:
    817
    Location:
    North East. UK

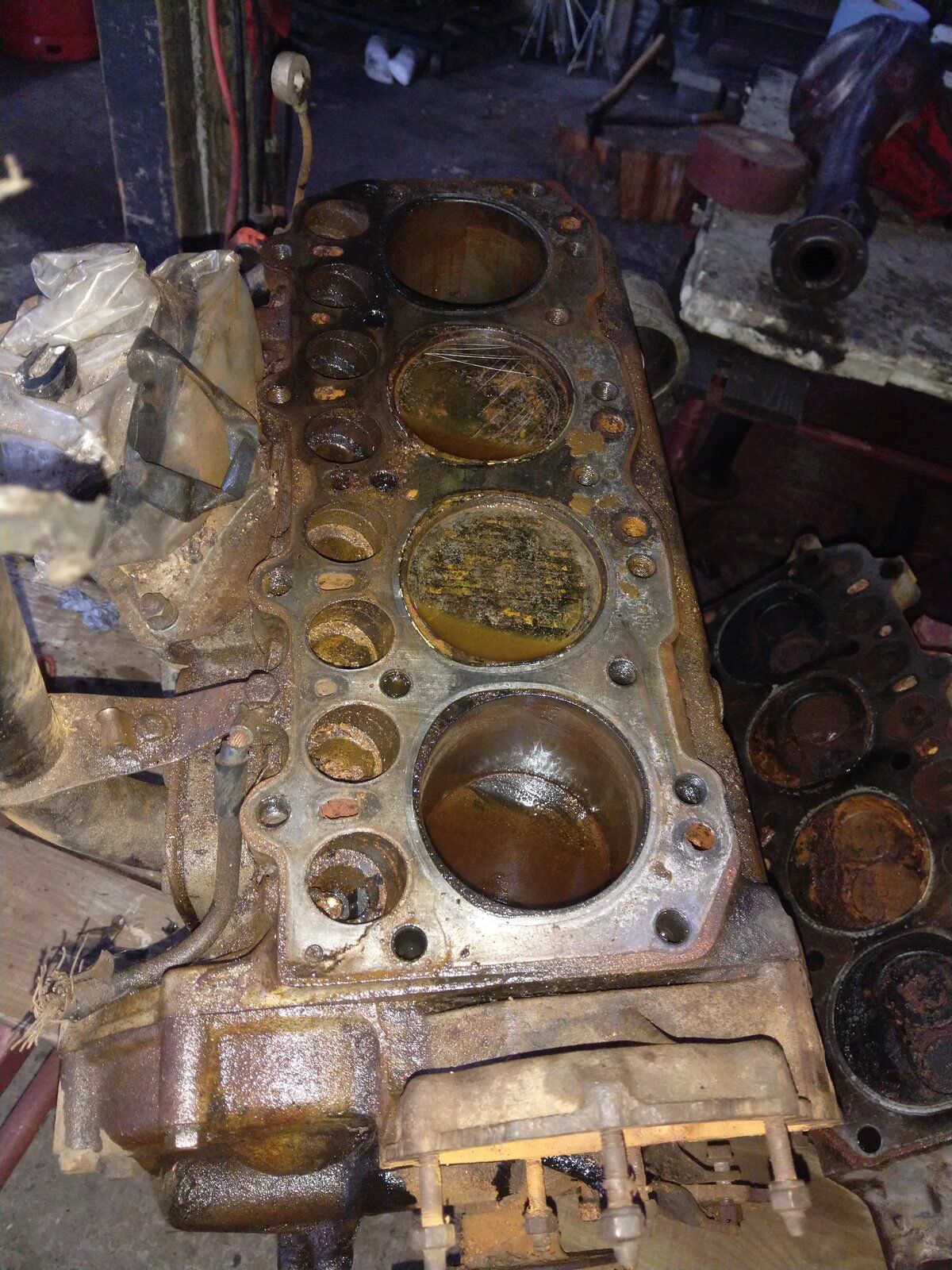

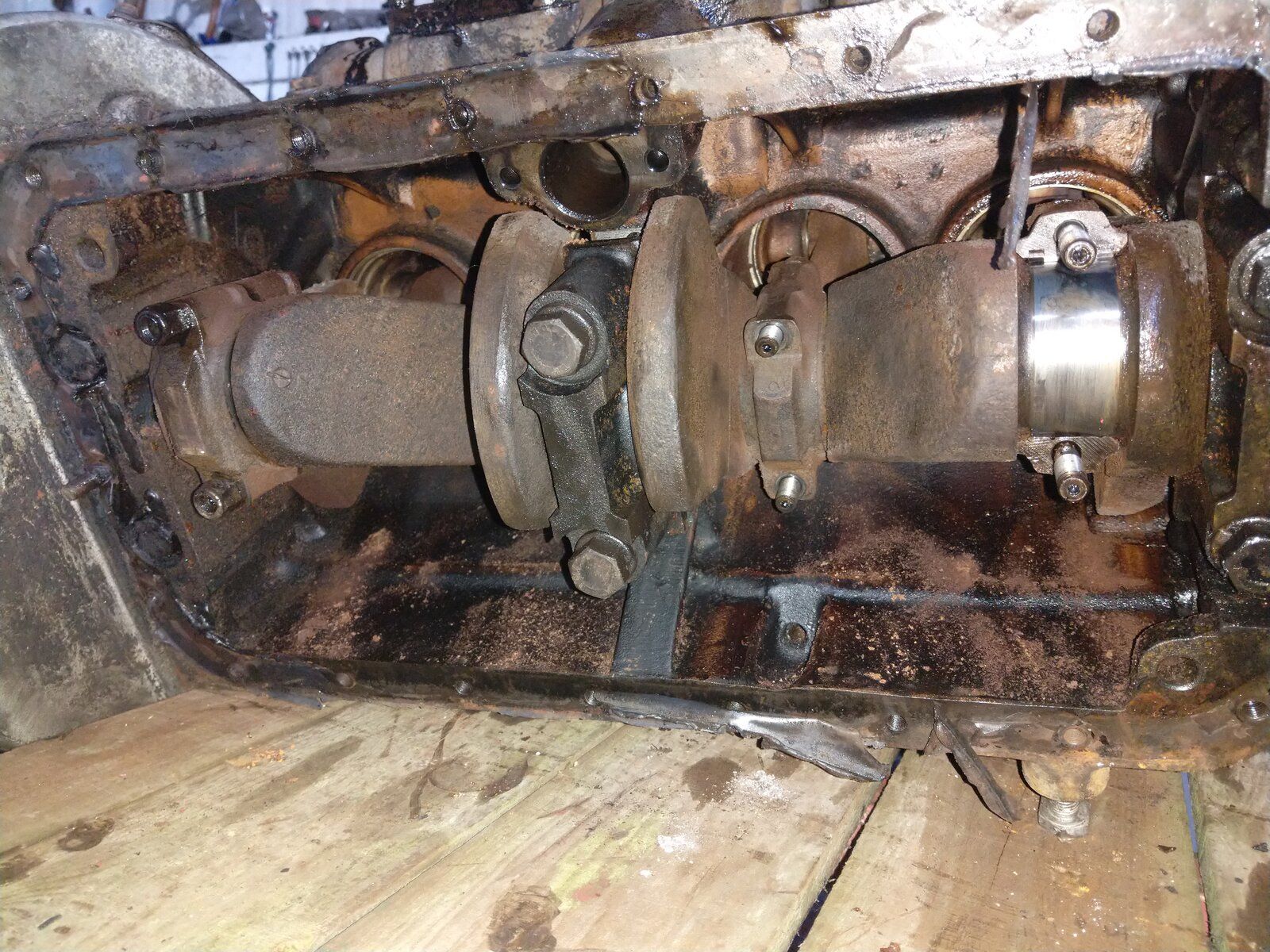

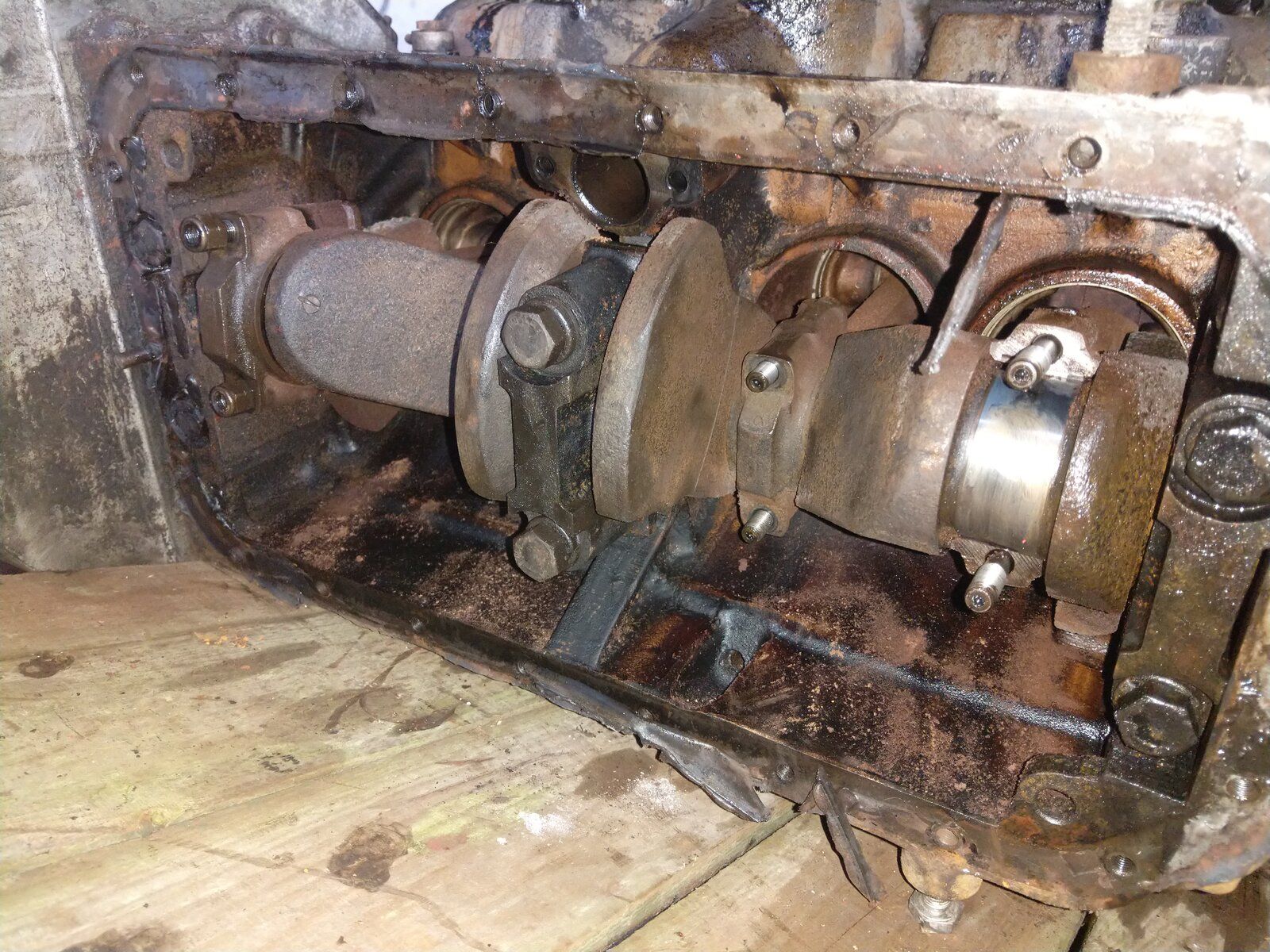

    Few more pics, got 2 pistons out the others wont budge, there is some rough bits on the edges of couple of the cylinders, lots of rust everywhere , not sure if this will come good or not, might be cheaper and easier looking for somthing thats already running. as spend on this and try and fix it.


    Attached Files:

  3. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    8,674
    Likes Received:
    9,529
    Location:
    Thatcham
    Think of it as an education. It will clean up, it just takes patience. at least by the end of it you will know your engine pretty well, it wont be an unknown quantity.

    col

    Disco1BFG and kermit_rr like this.
  4. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    19,505
    Likes Received:
    24,332
    Location:
    North Shropshire
    ^^^
    What he said

  5. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,294
    Location:
    louth lincs
    it will need a rebore and new pistons to start with,worth pricing up ,unfortunately most engines will be worn unless already redone and priced accordingly unless your very lucky

  6. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,354
    Likes Received:
    817
    Location:
    North East. UK

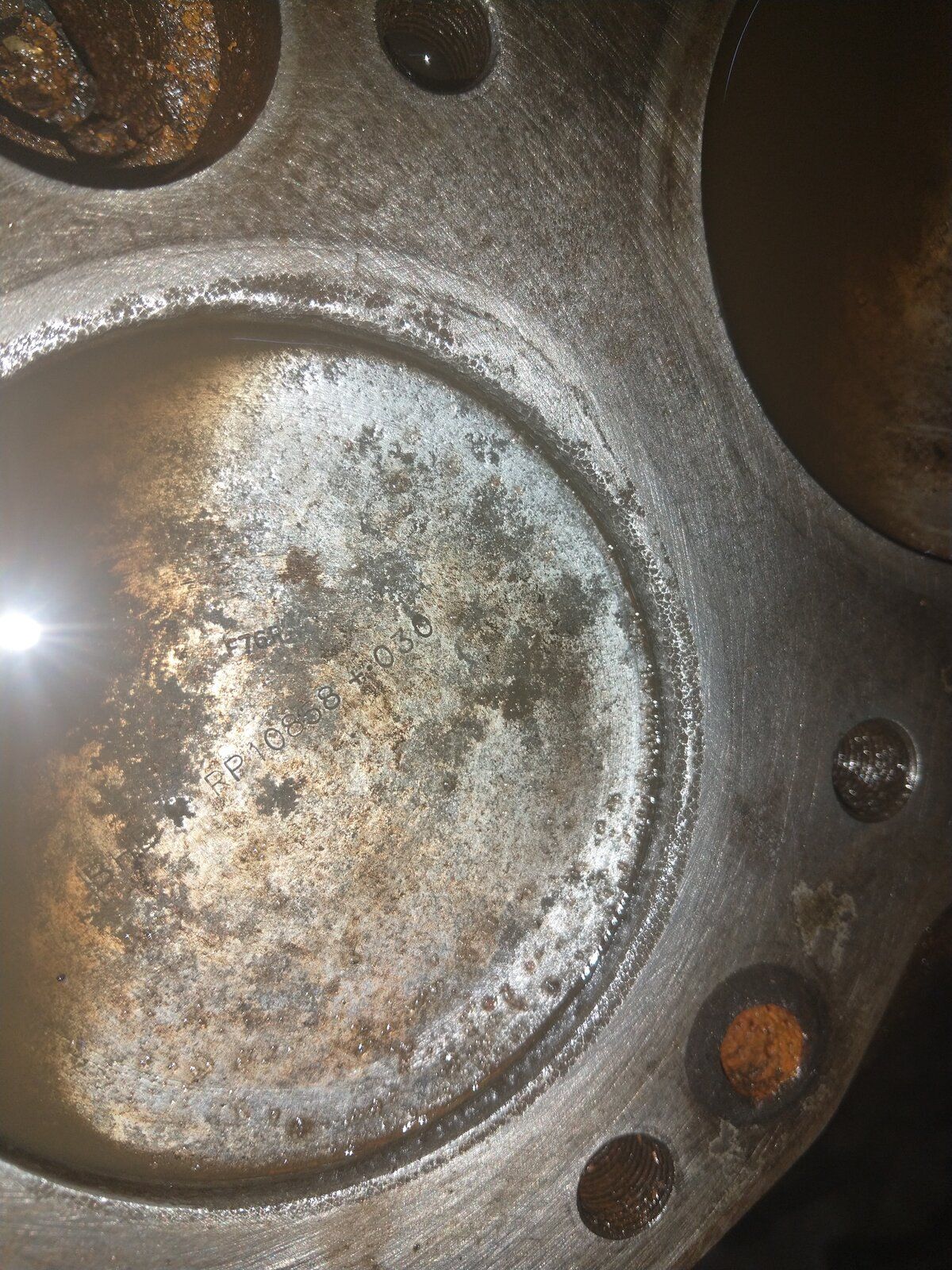

    Can the head surface in last pic above be skimmed looks a bit rough for head gasket ?

  7. Gord Wedman

    Gord Wedman Well-Known Member

    Joined:
    Feb 11, 2017
    Posts:
    440
    Likes Received:
    301
    Location:
    Chilliwack, British Columbia
    I would wonder if some of the cylinders could be so pitted that you could not bore them out smooth. Might say the same for valve stems and other bits.

  8. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    8,674
    Likes Received:
    9,529
    Location:
    Thatcham
    I fully understand peoples desire for perfection when it comes to stripping, refurbing and rebuilding engines but I wonder how much of the effort and cost is really necessary. Ive taken apart a few engines from cars and motorbikes that look something like the example in this thread. I have only replaced parts that are completely knackered and then Ive used scrapyard parts. lets be honest, you could spend a grand on it and it still wont win any races at Silverstone. Its a landy engine. Id get all the water out, clean off as much rust as possible, lap the valve seats, oil everything, maybe run to a new set of piston rings and a head gasket, bolt it back together and fire it up.

    col

    Disco1BFG, Shippers and kermit_rr like this.
  9. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,354
    Likes Received:
    817
    Location:
    North East. UK
    Had another go at getting the other 2 pistons out but they will not budge at all, wouldnt care but they are right at the top, the other 2 were at bottom and they knocked out after a bit of persuasion.

  10. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    19,505
    Likes Received:
    24,332
    Location:
    North Shropshire
    at least this engine doesn't have piston return springs :rolleyes:

    border likes this.
  11. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,354
    Likes Received:
    817
    Location:
    North East. UK
    Well I aint got a clue what hem are :confused:

    kermit_rr likes this.
  12. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    19,505
    Likes Received:
    24,332
    Location:
    North Shropshire


    :rolleyes:

    Flossie likes this.
  13. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    9,495
    Likes Received:
    8,295
    Location:
    Shropshire
    Tiz funny but he's just pulling yer leg:D

    kermit_rr likes this.
  14. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    19,505
    Likes Received:
    24,332
    Location:
    North Shropshire
    Blinker fluid is another goodun

    Flossie likes this.
  15. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,354
    Likes Received:
    817
    Location:
    North East. UK
    Easily done with me, I was thinking I wonder if the springs are missing :)

    Colthebrummie, Flossie and kermit_rr like this.
  16. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    3,560
    Likes Received:
    1,472
    Location:
    Slough and Bath
    OK that looks like an old engine that's been standing a long time, but its not terminal. Keep soaking the stuck pistons and plan carefully on how to shift them. Looking at the bores it may be better to go up and out. Do not hit the pistons in the middle as you can break the crown. Looking at the 2 you have out they look in good condition so its worth trying to save the whole set. If you get a piston to move at all then keep working it back and forwards in small amounts to work the oil in before you try to shift it out. If you can, get one to go down a little then clean off the cylinder above it and push it out the top.

    Disco1BFG and kermit_rr like this.
  17. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,104
    Likes Received:
    628
    Location:
    Tyneside
    If you turn the block upside down and put some diesel down the side walls of cylinder that may help , you could also try filling lower side of piston with crushed ice to shrink the piston or better still a plumbers freeze CO2 spray.
    At leasdt that would move piston on the stuck rings to let release fluid in.

  18. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,294
    Location:
    louth lincs
    yes

  19. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    3,354
    Likes Received:
    817
    Location:
    North East. UK

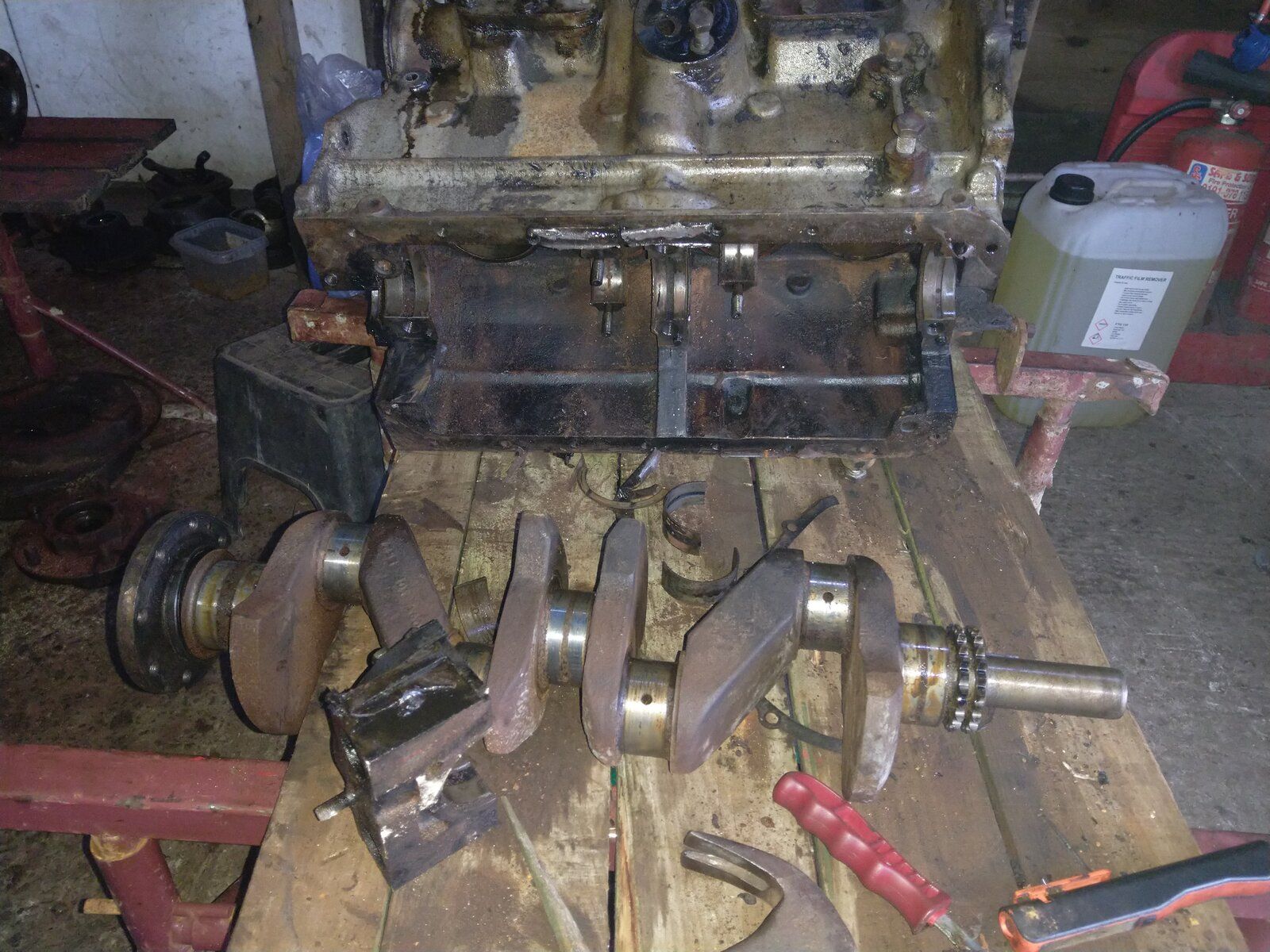

    Well think I've really gone and broke it now, this fu!!!ing thing fell oot whatever it is, pistons still wont move, bits and pieces allover the place I know I should of took my time and labelled everything I took off but to late now, that bloke off the fu!!!ing krypton factor couldn't put this back together :D
    Please dont think I have wasted everyone's time who have tried to help me as I have Genuinely learnt a lot from this so Thanks
    Anyway think this was Plan B time for Plan C


    Attached Files:

  20. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,883
    Likes Received:
    20,294
    Location:
    louth lincs
    looks like rear main cap its supposed to come out to remove the crank

    Disco1BFG and kermit_rr like this.
