Perkins/200TDI Conversion
- Thread starter Llew
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Teflon
New Member
- Posts
- 683
Perkins what, 2.0l 'Prima' or 4204 Dodge walk-thru motor, or any of the more quixotic Perkies as used in Jap motors, catapillar bull-dozers or even Hydrovane builder's compressors?
For the TDi conversion, use the search facility, or just click through a couple of pages of this board; question seems to get asked almost daily!
Its an oft done conversion, as the motors are readily available from dead Disco's, and it fits to the series bell-housing like it was meant to be bolted there, as the TDI shares the same flange drillings as all the series landies back to day one, though I think that they changed stud sixes to metric at some point and it fits better if you ream the bell-housing holes out.
BUT, in my opinion, its not a 'good' match, as the way a TDi makes its power puts an awful lot more strain than the numbers suggest on the series drive-line, which even if 'good' is being asked to deal with well over twice the power it was ever deemed good for.
Its to do with the way the power is applied, rather than the actual amounts, TDI power comes in with a big 'bang' from tick-over to 2000rpm, hitting the gear-box like a sledge hammer, and normally doing damage, or at teh very least hugely accelerating wear.
De-Turbo's TDi unit works better and gives the drive line an easier time.
But of the two, I think tha the little Perkins 2.0TD is quite a cracking engine, and though an out-dated conversion, still got a lot to commend it. Not as straight forward as a TDi, but knocks out useful power, (90 - 100bhp, almost as much as a 'good' TDi) without it loading the transmission, and reputedly the most ecconomical engine ever fitted to a series, with reports of 40+mpg not being uncommon, where the TDI rarely betters 30.
4203 Perkins, in normally aspirated form, is an old dog, loads of grunt, that twists series drive line bits to bits, and but very little 'go' as they dont rev out.
Turbo'd version works better, but not much and puts even more strain on teh transmission, and neither are wonderfully ecconomical.
But use your mouse, its ALL been said before......
For the TDi conversion, use the search facility, or just click through a couple of pages of this board; question seems to get asked almost daily!
Its an oft done conversion, as the motors are readily available from dead Disco's, and it fits to the series bell-housing like it was meant to be bolted there, as the TDI shares the same flange drillings as all the series landies back to day one, though I think that they changed stud sixes to metric at some point and it fits better if you ream the bell-housing holes out.
BUT, in my opinion, its not a 'good' match, as the way a TDi makes its power puts an awful lot more strain than the numbers suggest on the series drive-line, which even if 'good' is being asked to deal with well over twice the power it was ever deemed good for.
Its to do with the way the power is applied, rather than the actual amounts, TDI power comes in with a big 'bang' from tick-over to 2000rpm, hitting the gear-box like a sledge hammer, and normally doing damage, or at teh very least hugely accelerating wear.
De-Turbo's TDi unit works better and gives the drive line an easier time.
But of the two, I think tha the little Perkins 2.0TD is quite a cracking engine, and though an out-dated conversion, still got a lot to commend it. Not as straight forward as a TDi, but knocks out useful power, (90 - 100bhp, almost as much as a 'good' TDi) without it loading the transmission, and reputedly the most ecconomical engine ever fitted to a series, with reports of 40+mpg not being uncommon, where the TDI rarely betters 30.
4203 Perkins, in normally aspirated form, is an old dog, loads of grunt, that twists series drive line bits to bits, and but very little 'go' as they dont rev out.
Turbo'd version works better, but not much and puts even more strain on teh transmission, and neither are wonderfully ecconomical.
But use your mouse, its ALL been said before......
andyb66
Well-Known Member
- Posts
- 1,795
- Location
- Middle of Salisbury Plain, Wiltshire
200Tdi for ease of conversion and availability of parts. No question.
dr pepper
New Member
- Posts
- 1,438
- Location
- lancashire
I agree with andy, and its gonna be still all land rover which might preserve its value.
The 4203 is a really good engine though, bellhousing adaptors are expensive however, the only adaptor you need for the 200di is a 8.5mm drill bit and a 10mm tap.
The 4203 is a really good engine though, bellhousing adaptors are expensive however, the only adaptor you need for the 200di is a 8.5mm drill bit and a 10mm tap.
fenby1976
New Member
- Posts
- 1,036
- Location
- West Wales
A 200tdi conversion is a lot of work if you keep the turbo and intercooler, but they go extremely well in an 88" leafsprung landy.
dr pepper
New Member
- Posts
- 1,438
- Location
- lancashire
300tdi can be done, its even more work, speaking from experience.
fenby1976
New Member
- Posts
- 1,036
- Location
- West Wales
Agreed - It looks quite a bit more difficult to make the 300tdi fit, but it's worth considering for a 109 cos of the low mounted turbo on the disco 200tdi. I wander if the 300tdi manifolds and turbo can be fitted to a 200tdi engine?
dr pepper
New Member
- Posts
- 1,438
- Location
- lancashire
theres an idea, it is the same garret 'charger, so probably.
andyb66
Well-Known Member
- Posts
- 1,795
- Location
- Middle of Salisbury Plain, Wiltshire
Defender manifolds on a 200 with help with putting a TDi in a 109.
dr pepper
New Member
- Posts
- 1,438
- Location
- lancashire
Thanks andy I looked at that, but now I have the 300 tdi and it all fits, well I had to holesaw a hole in the n/s wing support bracket to get the hot air pipe in, but it fits ok.
I believe for those doing a non turbo di that the fanimold off the series engine does actually fit the 200, and probably the 300 block with a couple of minor mods.
I believe for those doing a non turbo di that the fanimold off the series engine does actually fit the 200, and probably the 300 block with a couple of minor mods.
mark 4x4
Active Member
- Posts
- 379
- Location
- nottingham uk
yes they fit, i have a good manifold, turbo and inlet manifold cheep if anyone wants one ( 300tdi) that is 07973539352
cornish rattler
Well-Known Member
- Posts
- 6,432
- Location
- Manc chester

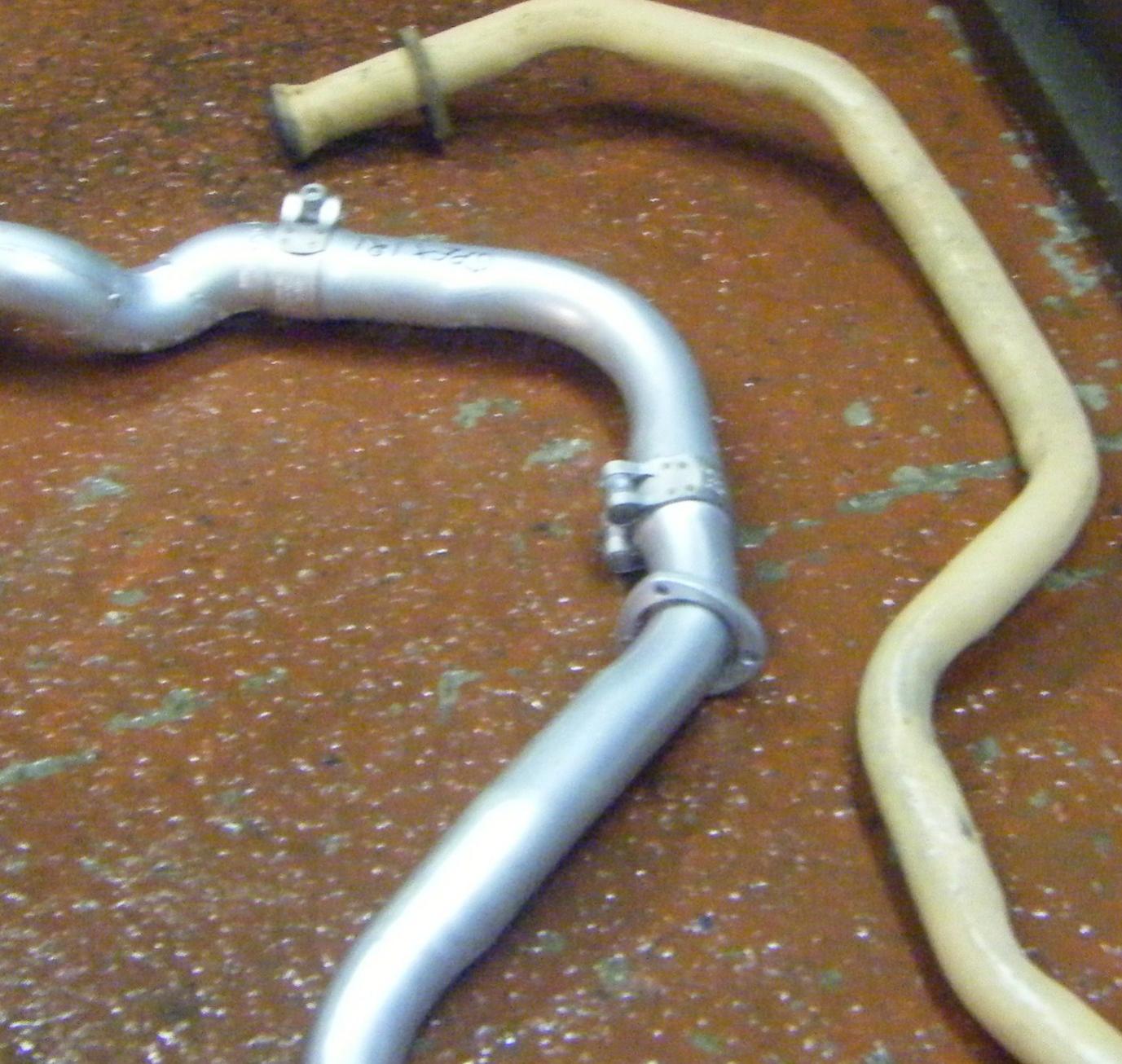

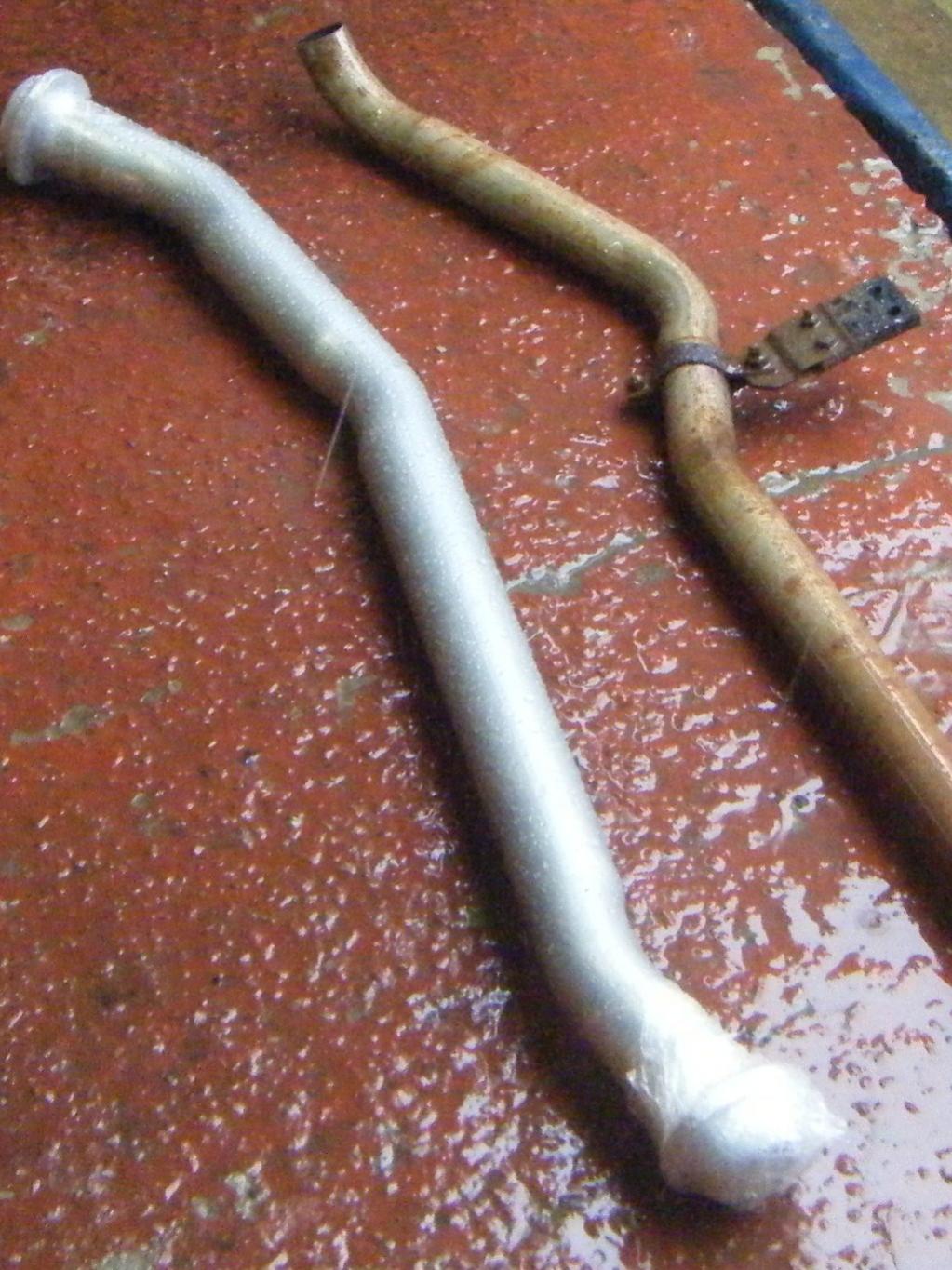

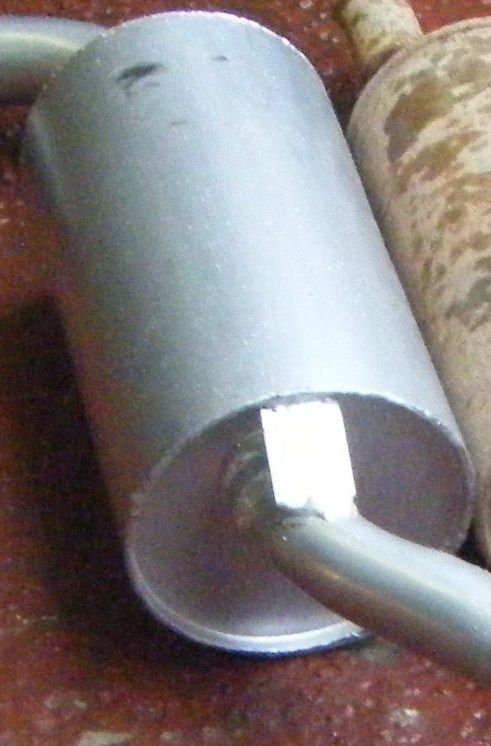

are you trying to use the std series exhaust aswell as keeping the turbo on the tdi engine it can be done but will restrict the engine going that way. there is a conversion kit that you can buy on ebay but you will need to make an exhaust to fit it or you could do what i did and buy a steve parker exhaust fits straight onto the manifold and runs eggsatly the route as the series exhaust did using same style brackets but made for the sp exhaust the sp exhaust is the same diamiter as the disco and defender exhausts 2 1/2".
graham
________________
98 d1 300tdi auto.
Attachments
ah, i see. I didn't relise you were describing a different option, than answering my question.
... With the sp exhaust, i've seen pictures showing it going under the chassis. Isn't this a bad idea due to been clouted by a protruding rock? .. or is this the same with the 2.25 exhaust?
cheers.
... With the sp exhaust, i've seen pictures showing it going under the chassis. Isn't this a bad idea due to been clouted by a protruding rock? .. or is this the same with the 2.25 exhaust?
cheers.
