PCV valve fix

I have a 2003 freelander 1 se3. Recently my PCV hose busted on me and need help on fixing it. I don't know if I have to replace the whole casket or just the PCV valve. Help please

thizzlemania91 said:

I have a 2003 freelander 1 se3. Recently my PCV hose busted on me and need help on fixing it. I don't know if I have to replace the whole casket or just the PCV valve. Help please

Click to expand...

Hi , need a bit more info , what engine is it ? the td4 has a pcv valve but I cant place the hose you refer to , post a picture and a bit more info , and someone might be able to help you

It's the crankcase breather hose to intake duct. On a 2003 freelander 1 v6 gas.

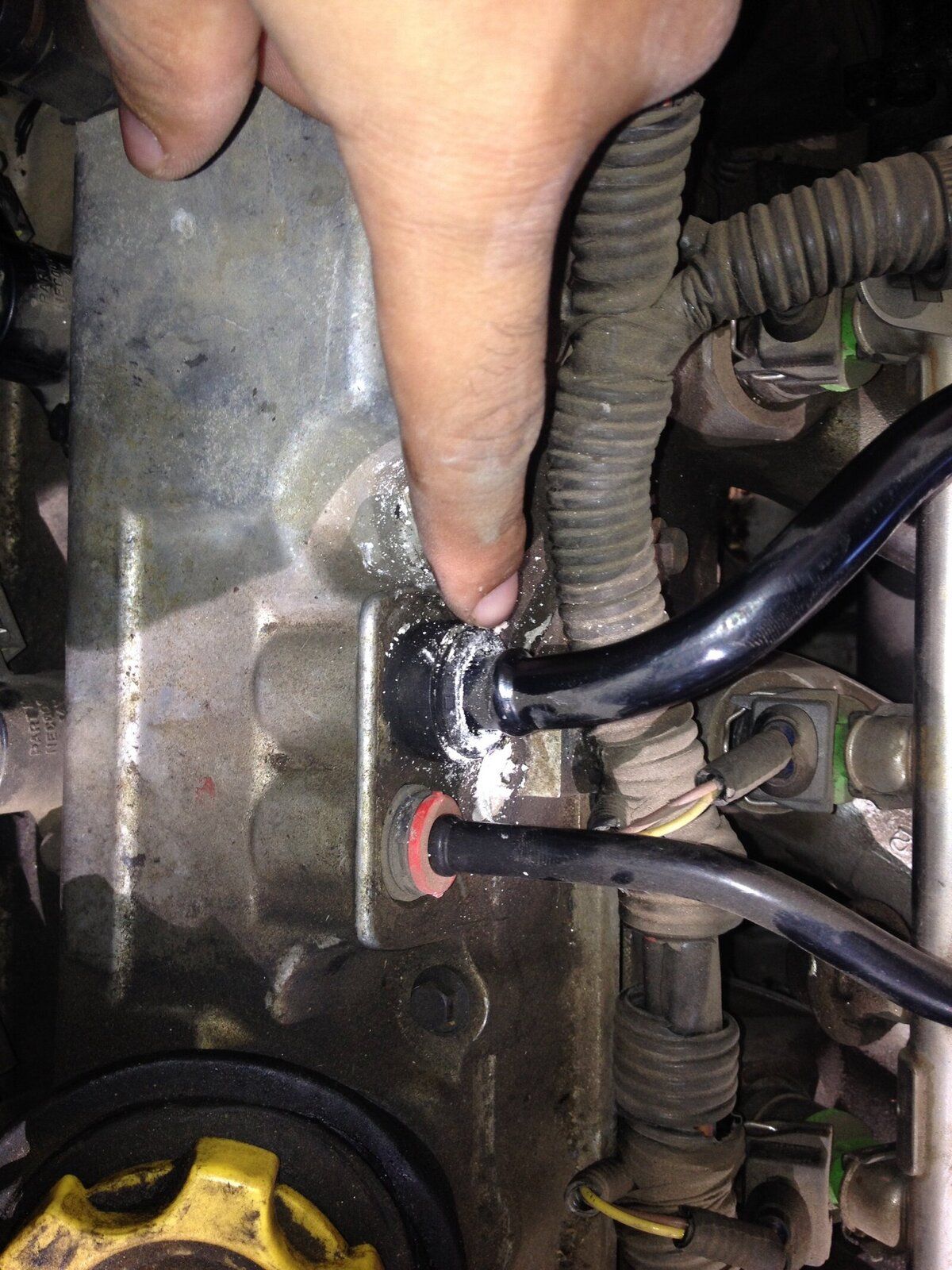

Here's the pic

If you search google for LLH102660L and look at pictures, how does it compare with yours?

I think that is the part you are after or perhaps you are after the part that LLH102660L connects into?

I find the mg forums have a lot more info on the kv6. Not a huge quantity of kv6 owners here.

What's mg forums? And I already have that connection hose. I'm after the black plastic part on the valve cover. It has that red sleeve to hold the pipe in.

It looks at though you have this issue:
Wanted - (red) clips for ends of breather pipes - The 75 and ZT Owners Club Forums

This has some details on the confusion with parts:

DISCO3.CO.UK - View topic - TLO could you possibly help with Freelander issue

Microcat is not clear.
LZN100220 9mm (black top)
LZN100220L 9mm (red top)
LZN100390L


Back in July 2012 you ordered this one: LZN100220L, was this for the same issue?

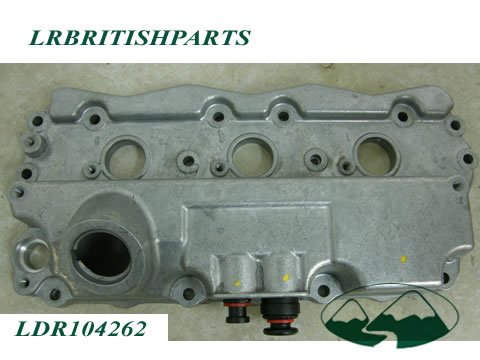

Look at this picture, do you need the big or the small one?

Land Rover Cover Camshaft Carrier for Freelander LH | eBay


FYI I bought from LRBRISTISHPARTS in the past, they shipped me a tank and craddle no problems.

These "Push in" fittings look the same as those used on the P38 Air suspension. On the P38, after removing the tube by pressing the collar down and then pulling the tube out, the collet can be removed by gently levering it out of its housing. There is a sealing "O" ring fitted which provides the seal. The P38 uses two sizes of tube, 6mm & 8mm O.D.
Maybe this Ebay link will enlighten you a bit more:
Range Rover P38 Air Suspension Airline 6mm Collets(5) Norgren | eBay

Mg rover post with the same issue, no details.
Inserts - MG-Rover.org Forums

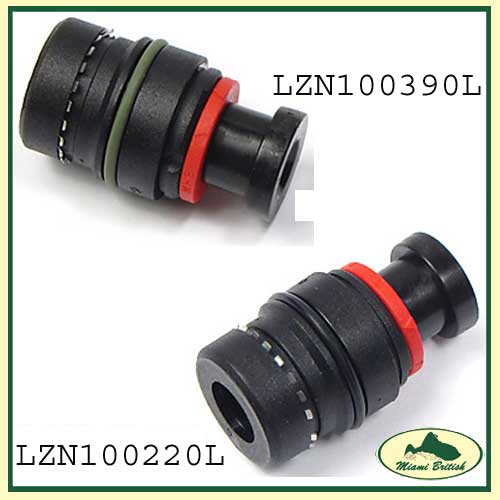

Actually these URL helped greatly (picture attached):

LAND ROVER FITTING PIPE TO VALVE COVER & INTAKE SERVO | Miami British

Part # LZN100390L FITTING PVC PIPE TO VALVE COVER
Part # LZN100220L INTAKE MANIFOLD BRAKE SERVO VACUUM

the parts look the same but the o-rings are different, one greenish one black.

So its a new part number altogether if you need the larger one.

Yeah I order the small one from an LR dealership in July but it was wrong size I new the bigger one which I believe is an 8 mm. You guys think I can just lever out the pipe ? If not I'm gonna have to buy te whole unit? :/ I actually need part # LZN100390L it's only like 20 US dollars

Looking at the picture in this thread seems to show a fitting similar to part number

LYC100510
or
LYC100510L

This forum post looks like they say the same:
Google Translate

Looking at the picture in this thread seems to show a fitting similar to LYC100510

The 75 and ZT Owners Club Forums - View Single Post - Damage from previous owner

(first picture)

If you try that part, please report back to see if that was the correct one!

Sure will. Thanks for the help bud

Would anyone know how to remove these breather pipes sorry guys I'm a complete noob and this is my first 4x4 i read on forums but they don't give specifics :/

Yoel from Lr British Parts said she confirmed it . She is selling it for

$40.00 + shipping

Here is her contact information. I bought a tank and cradle from there, without any issues.

Yoel Torres
Parts Manager
Lr British Parts
Roversland Inc
Phone: 305-754-8800
Fax: 305-687-7564
email: [email protected]

Dude you need a reward thanks buddy I jus need to know how to remove the PCV pipe now lol I know the red sleeve is removable ( I read it the forum you provided) I just need to remove the PCV pipe now

Did you try this ?

Irishrover said:

These "Push in" fittings look the same as those used on the P38 Air suspension. On the P38, after removing the tube by pressing the collar down and then pulling the tube out, the collet can be removed by gently levering it out of its housing. There is a sealing "O" ring fitted which provides the seal. The P38 uses two sizes of tube, 6mm & 8mm O.D.
Maybe this Ebay link will enlighten you a bit more:
Range Rover P38 Air Suspension Airline 6mm Collets(5) Norgren | eBay

Click to expand...

Yeah. He describes the removal of the red sleeve which is what's holding the intake hose. I need to remove the PCV pipe.

Sorry at the end of what I know. Maybe someone else can pipe in.

Well if you want, you can put a picture up and describe what you mean by PVC pipe and I can see what I can find.

Do you have a copy of Rave (the freelander service manual)?

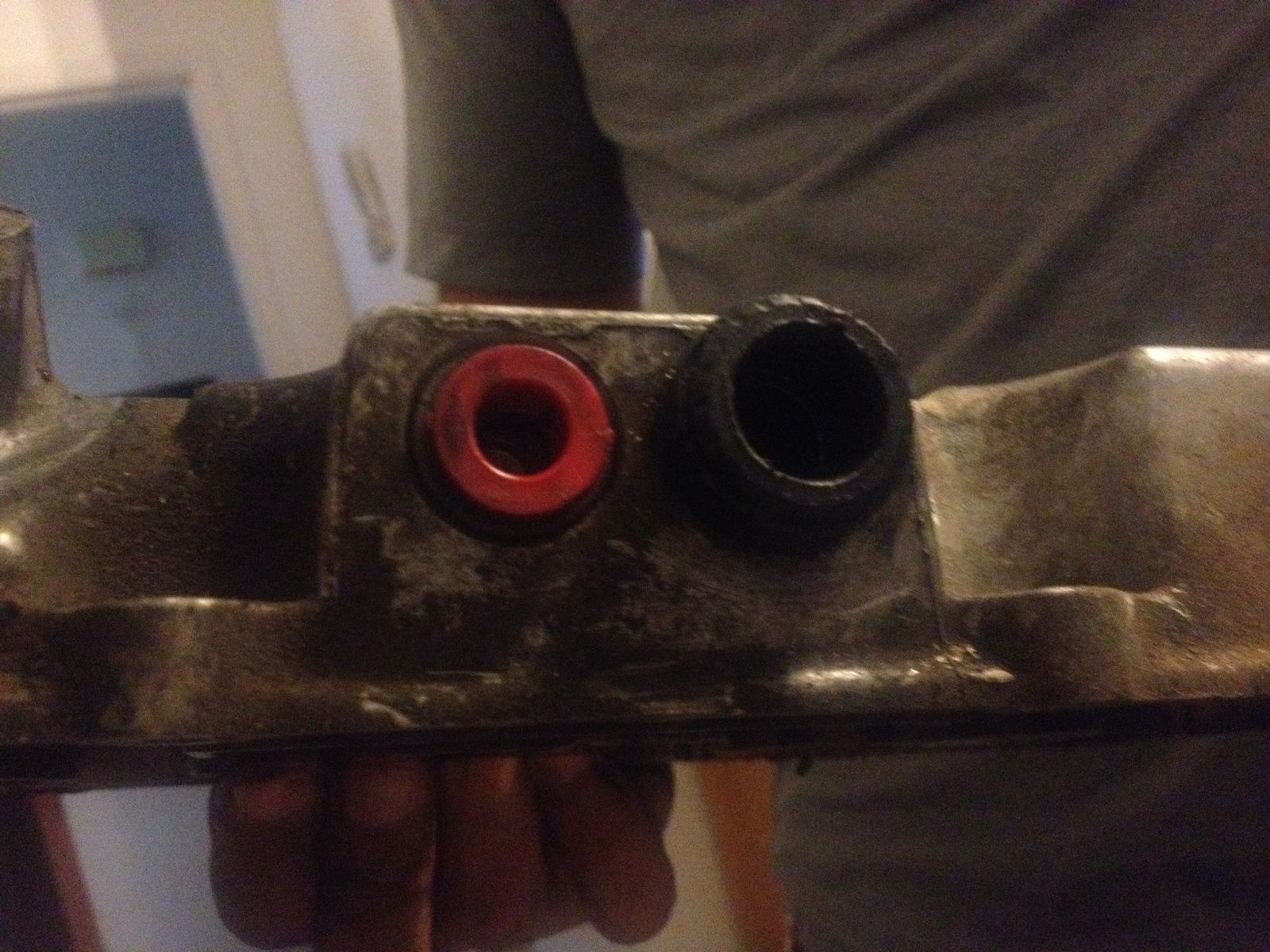

Yeah I have the copy but it doesn't show anything about the PCV pipe. The PCV pipe is the black piece on the right.
