Passenger seat
- Thread starter Stephen96
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 16,479
Again, it is all in the RAVE manuals I linked to the other day.
RangeRoller dt
Well-Sprung Member
- Posts
- 14,410
- Location
- Trapped inside my head @ LZ asylum
Search is working again now also
I must of over looked it @Saint.V8 I downloaded a pdf version on phone but theres so many pages I must of missed it
- Posts
- 16,479

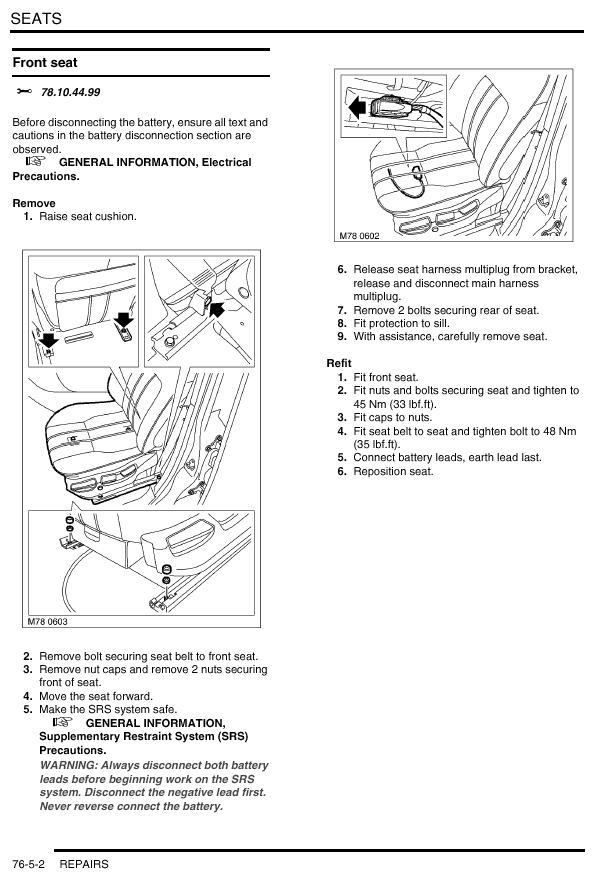

Because I am feeling generous, you can have this one:
Get it off your phone and onto a PC....much easier!
Get it off your phone and onto a PC....much easier!
Henry_b
Think outside, no box required.
- Posts
- 15,509
- Location
- somewhere else
£2 jeez that doubles the value of an L322

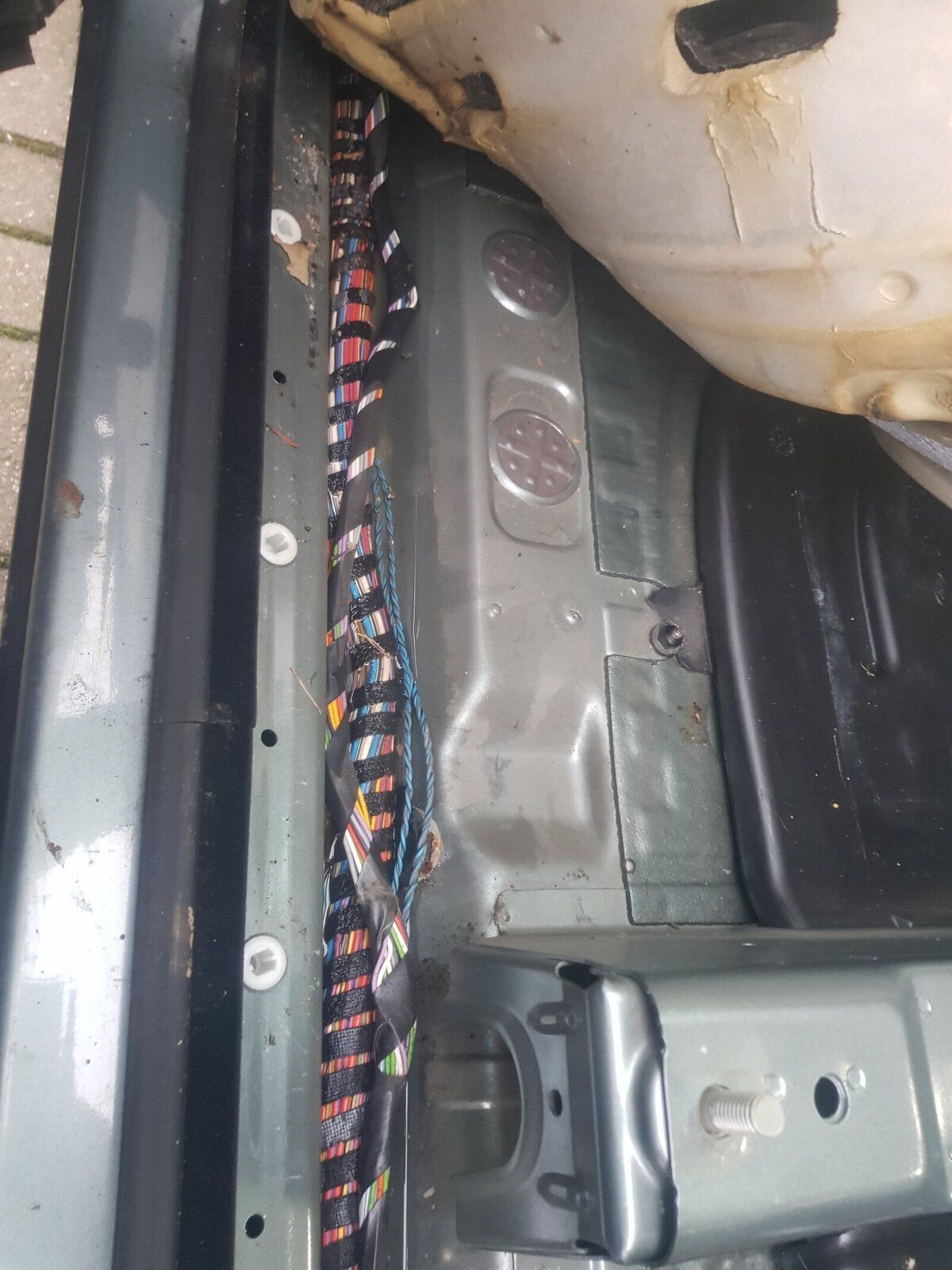

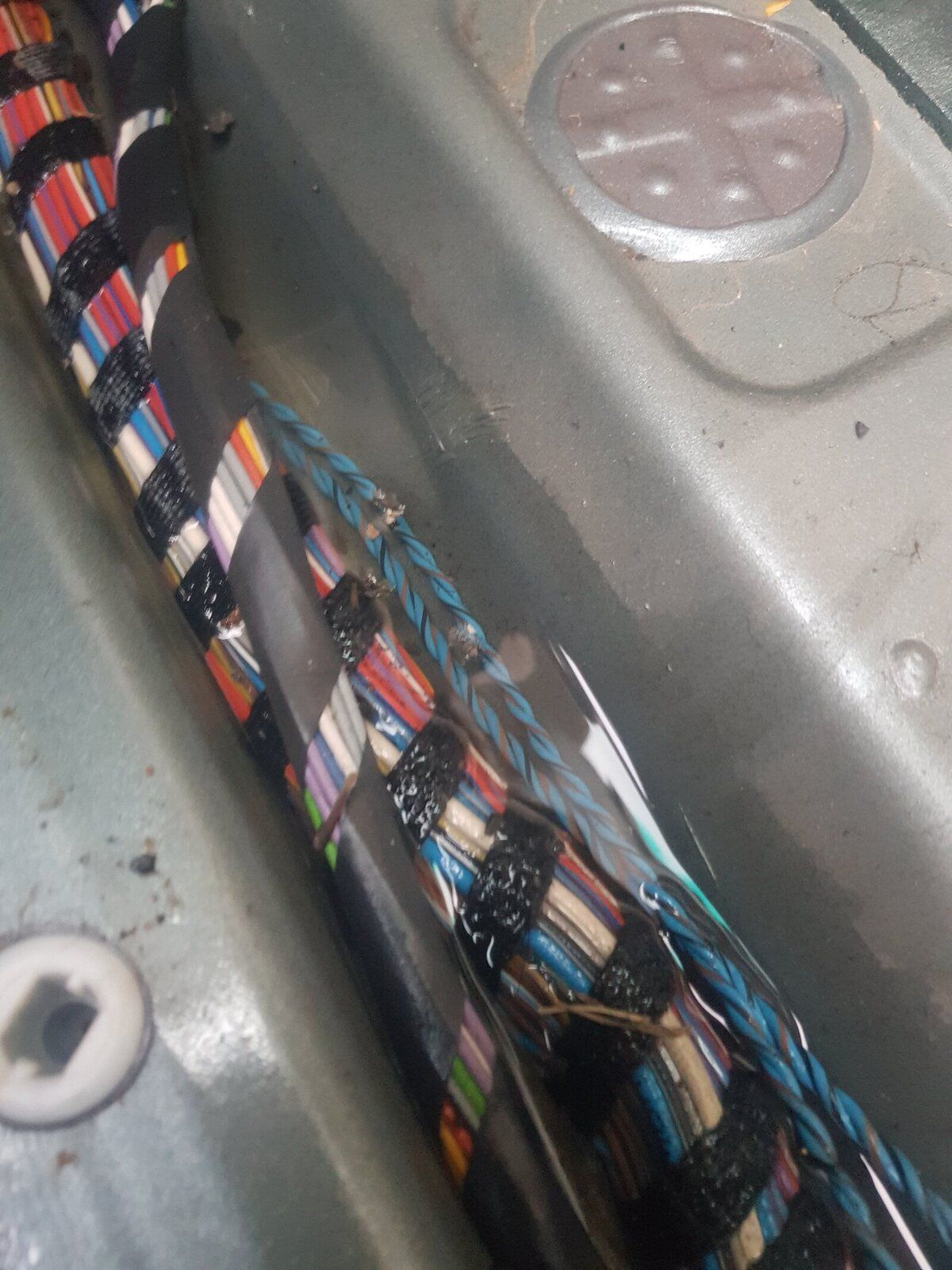

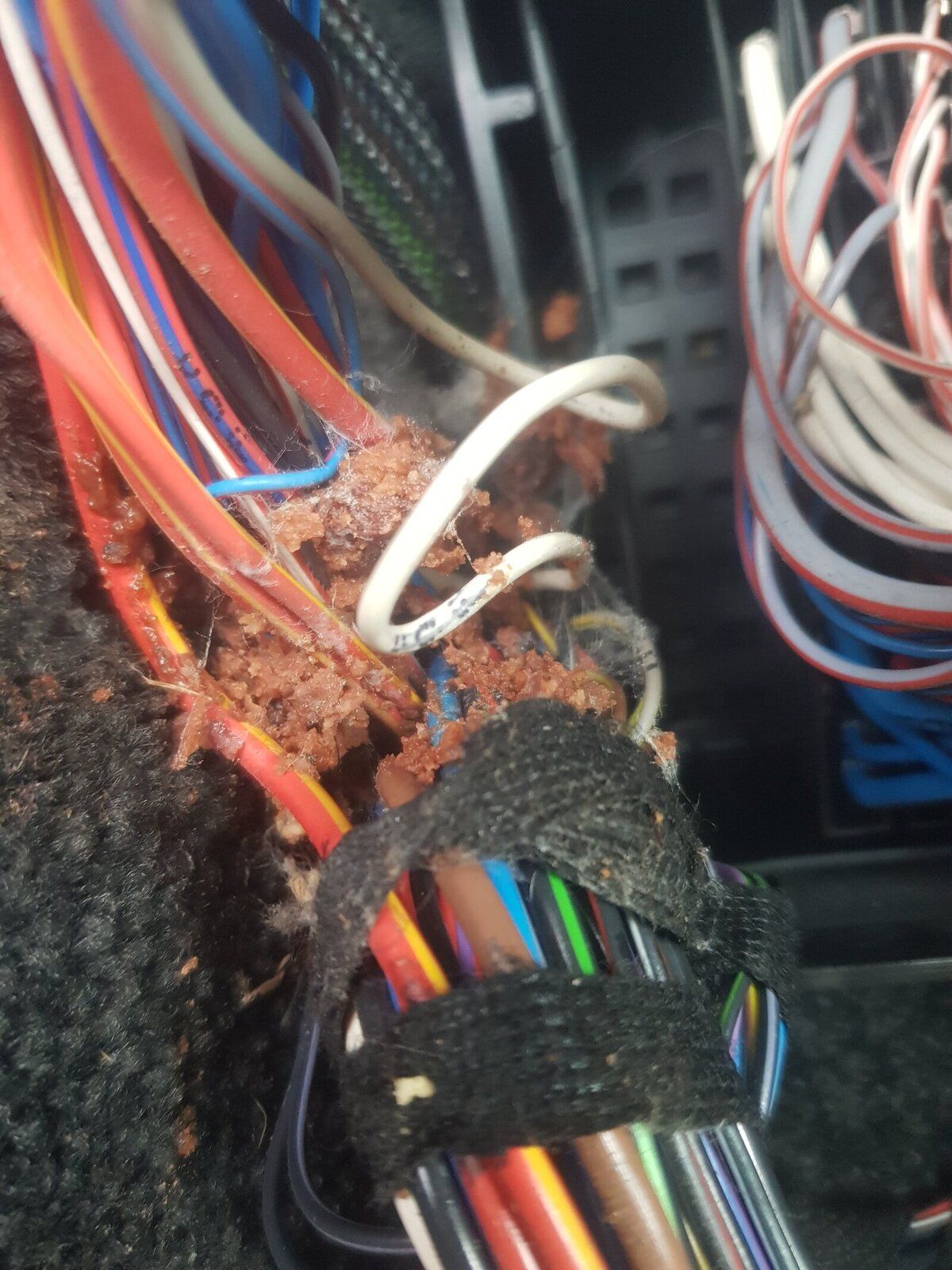

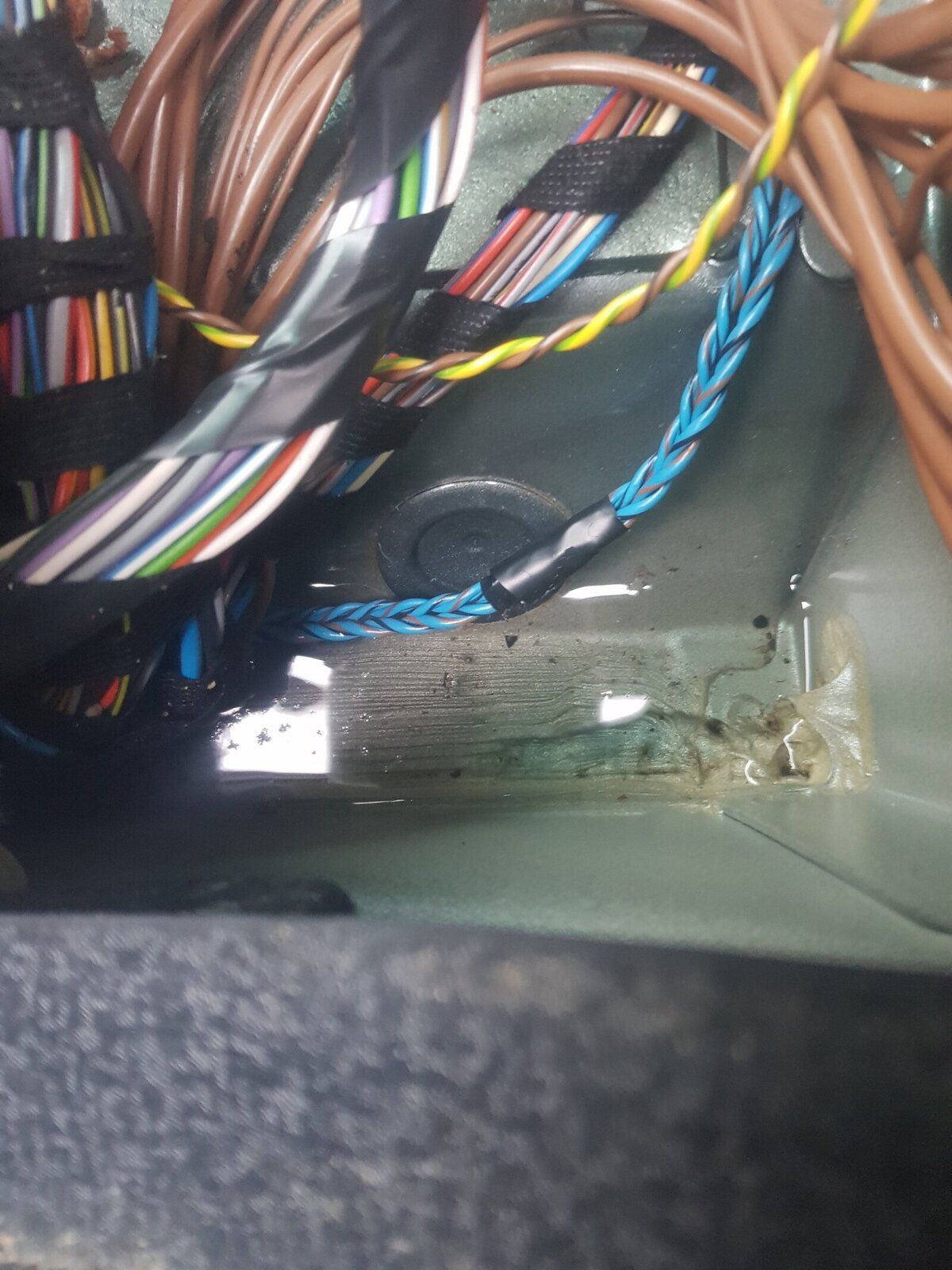

Just pulled carpet up after removing passenger seat and unlocking the BCM and found a pool if you can see on pic.£2 jeez that doubles the value of an L322
Attachments
Last edited:
Henry_b
Think outside, no box required.
- Posts
- 15,509
- Location
- somewhere else
Datatek
Well-Known Member
- Posts
- 45,018
- Location
- Near Poitiers SW France
Blocked sunroof drains are a common problem.
Is this a tube and is this something else that's in the RAVE manual ect were its located?
- Posts
- 16,479

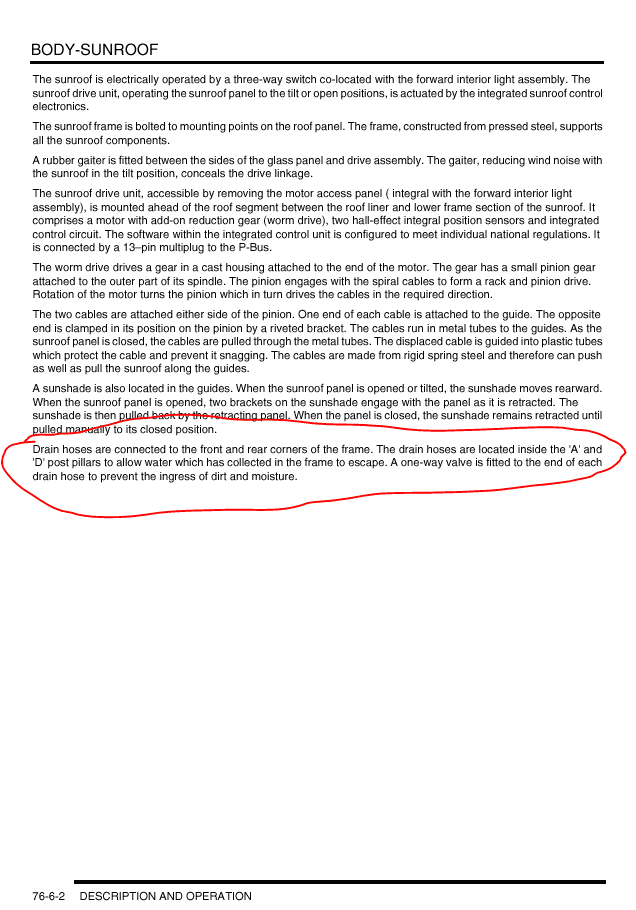

I was close....it is the A and D pillars (windscreen pillars and the tailgate pillars)
It's amazing whats in RAVE

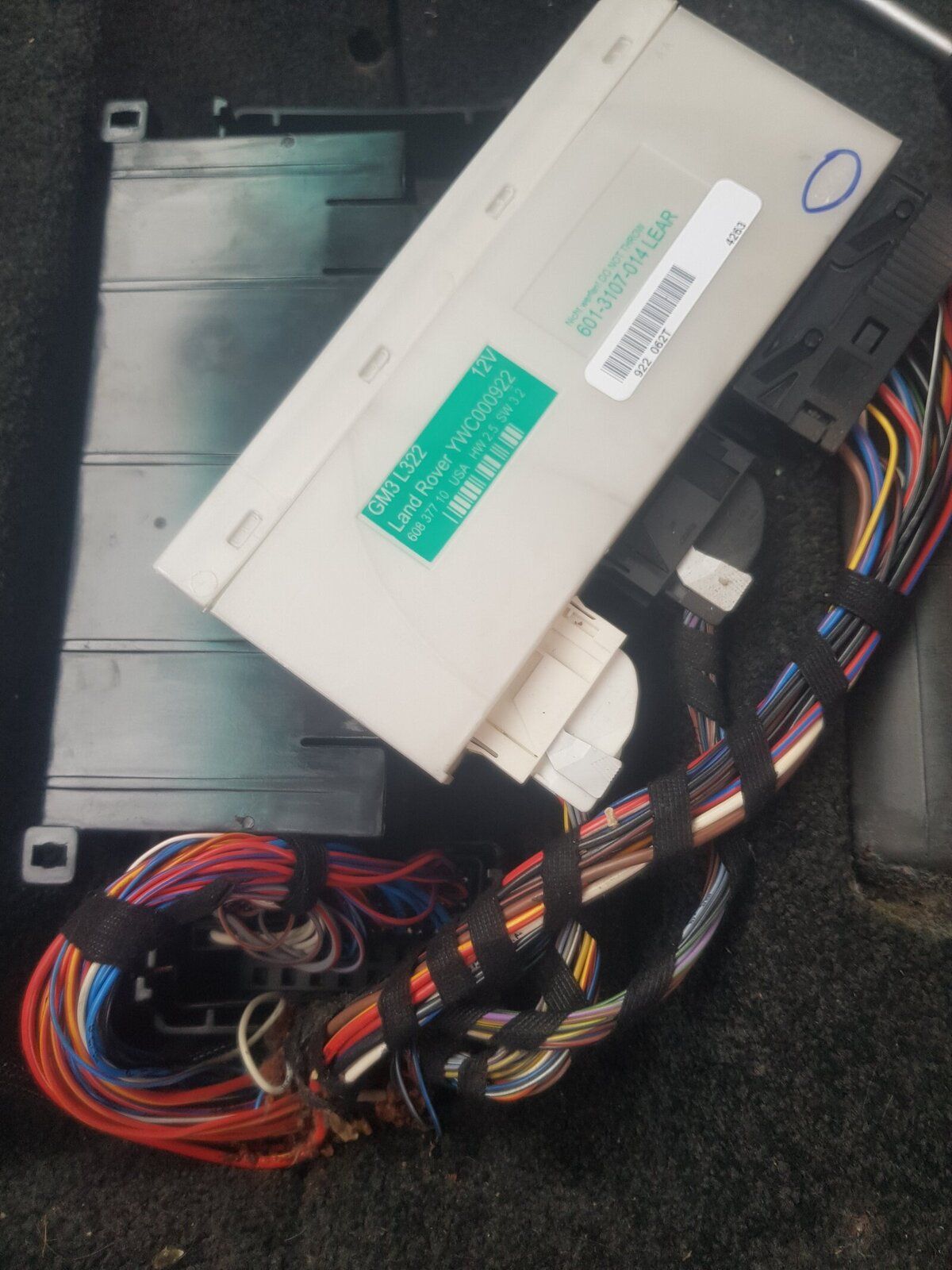

I'm guessing theres not much you can do with the bcu I have had it out and all looks clean and dry circuit board looks healthy no signs of water even though I can't actually get it out of the plastic casing itself, I have noticed people tend to just get a new or second hand BCU I'm guessing thats all I can do since the circuit board isn't really accessible but also I have read if I get another it will need an update so how much am I looking at for this update as I don't have the programme or software to do this?
