P38 hard very occasional hard brake pedal ( hopefully cured ).

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Neil.ms

Member
Posts
48
Location
Goring on Thames

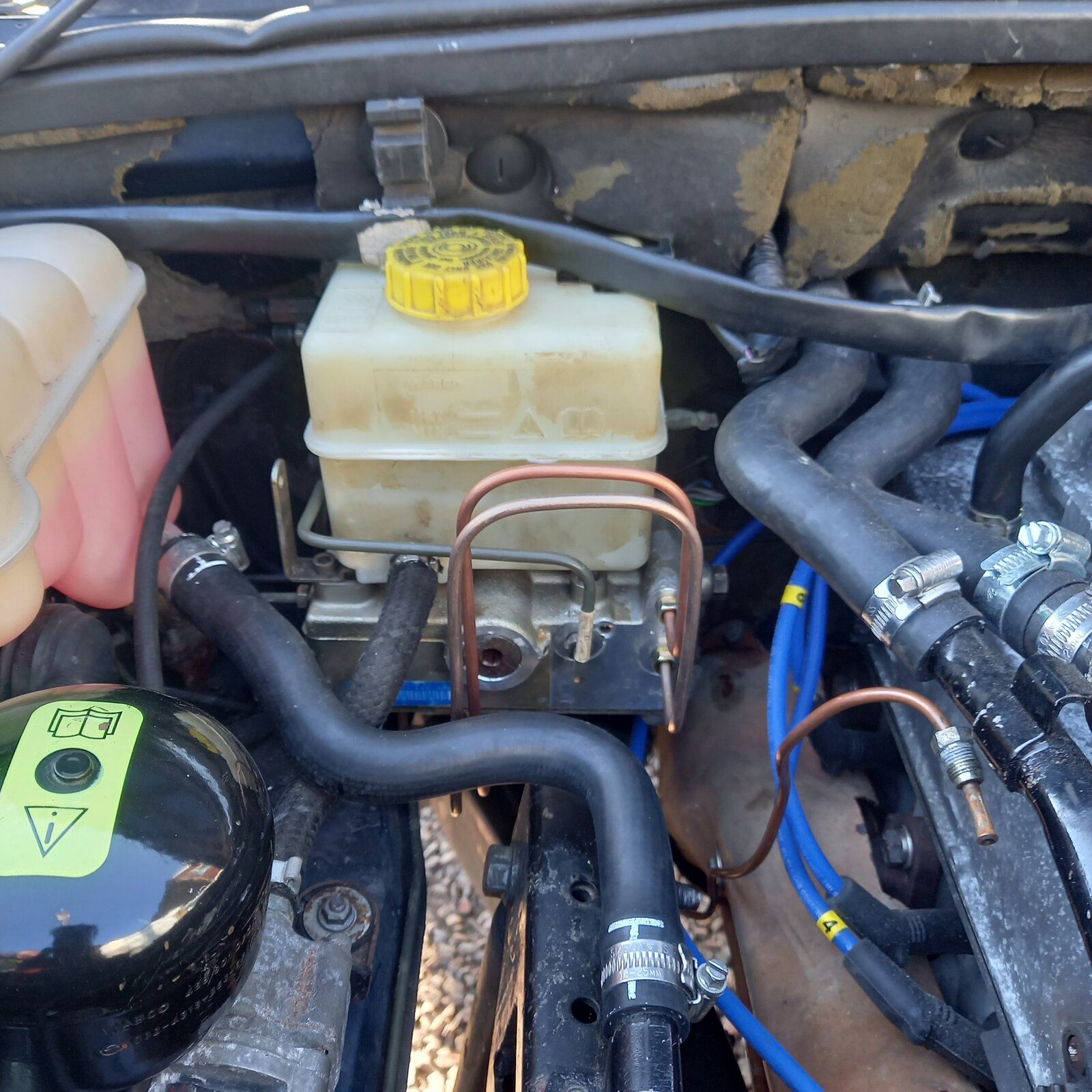

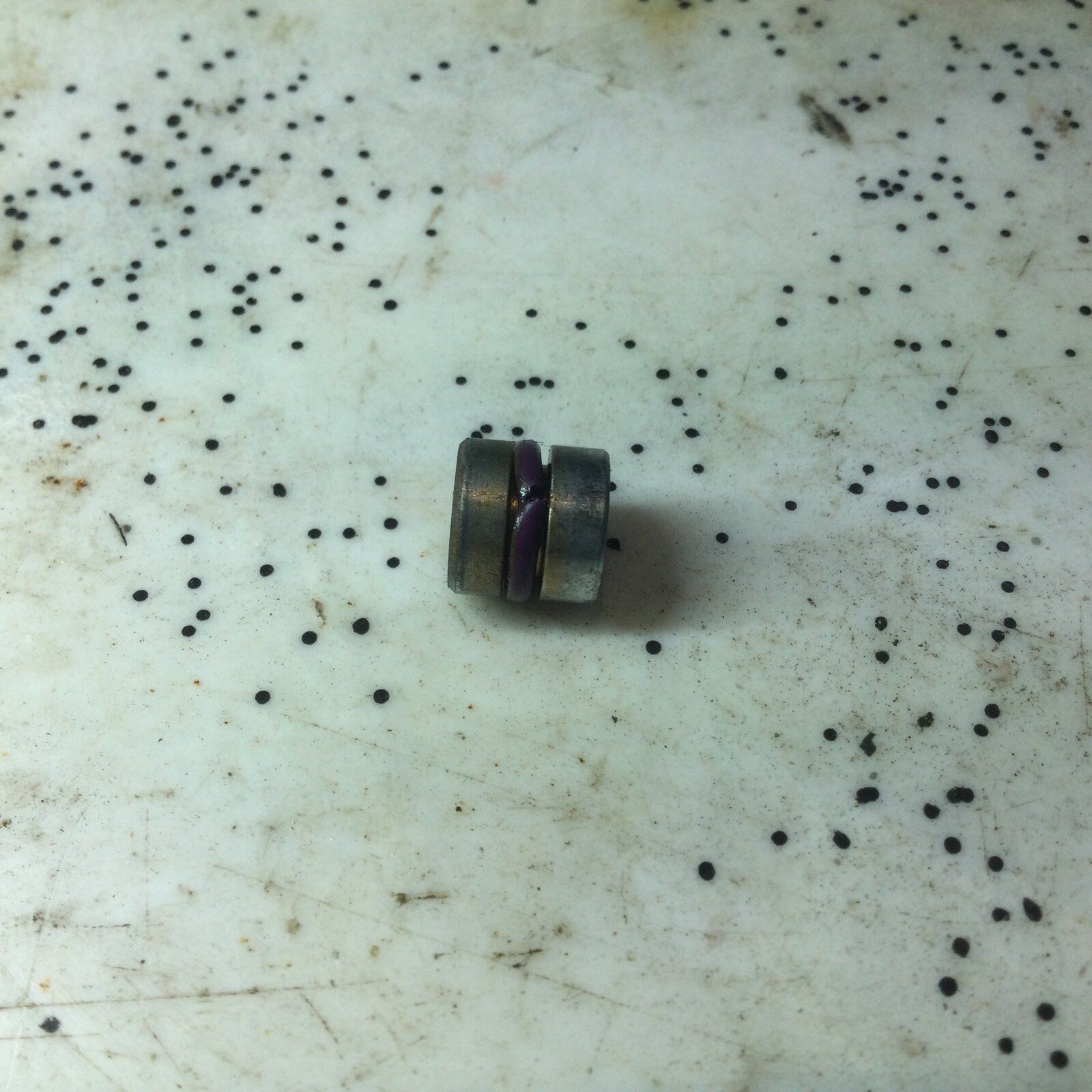

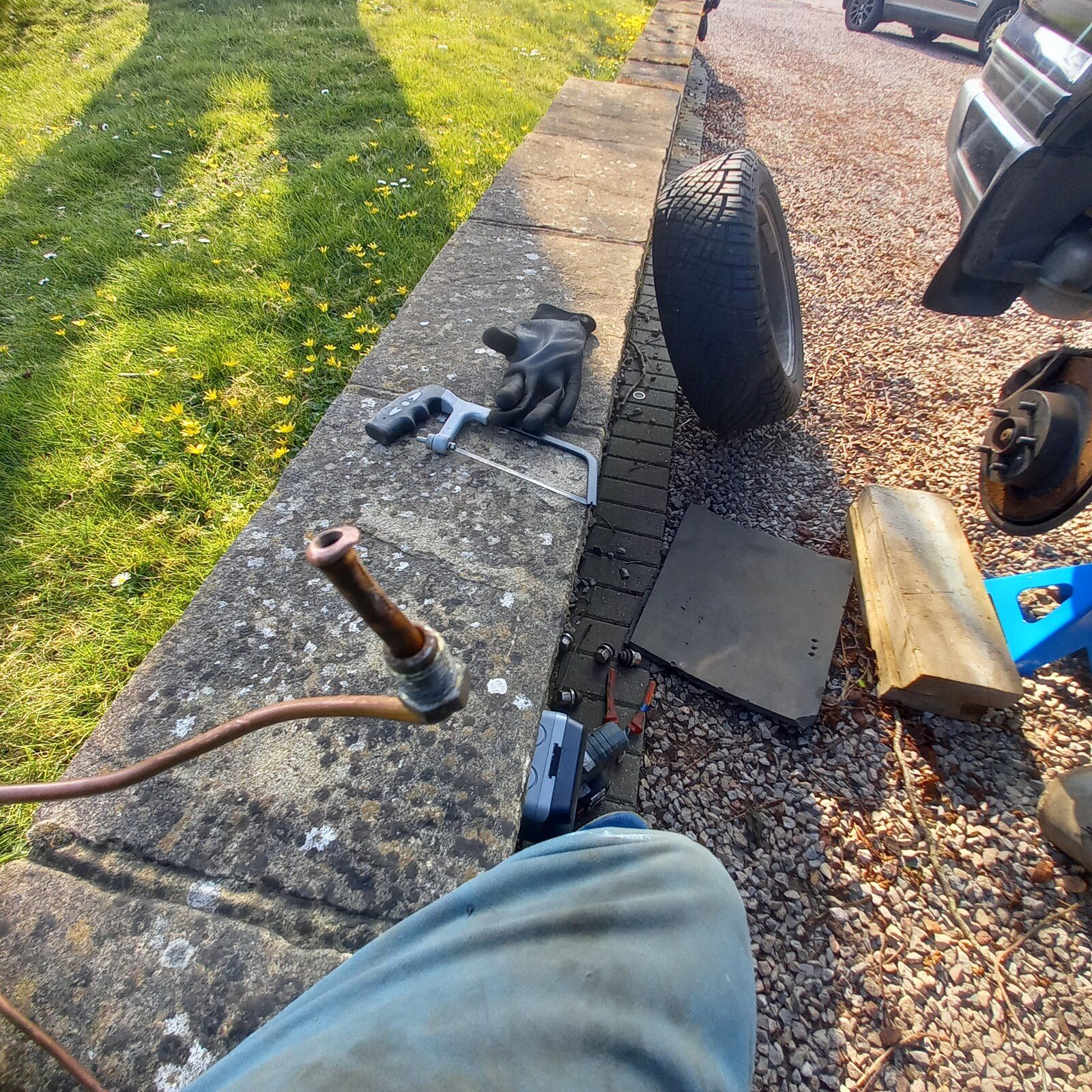

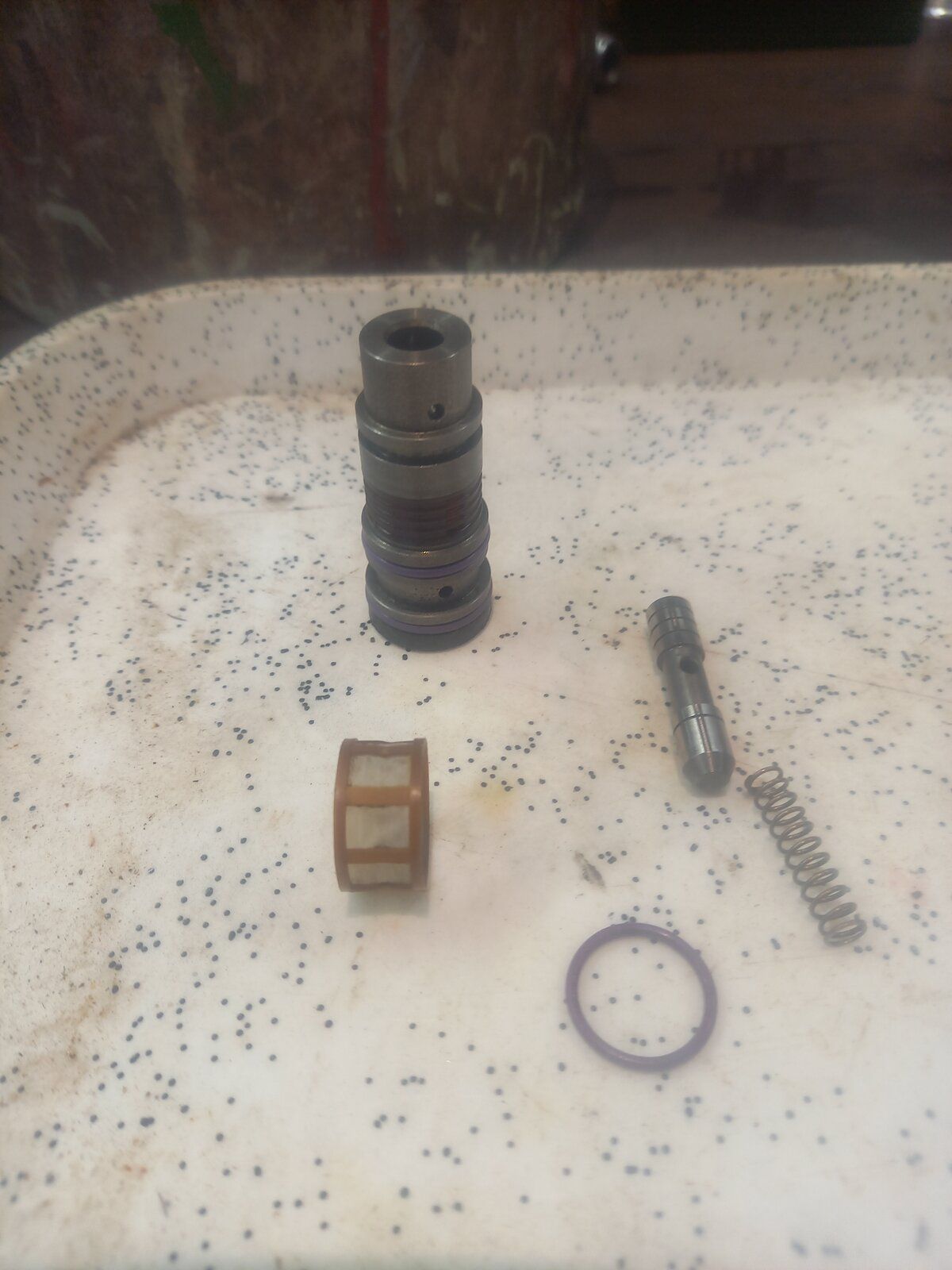

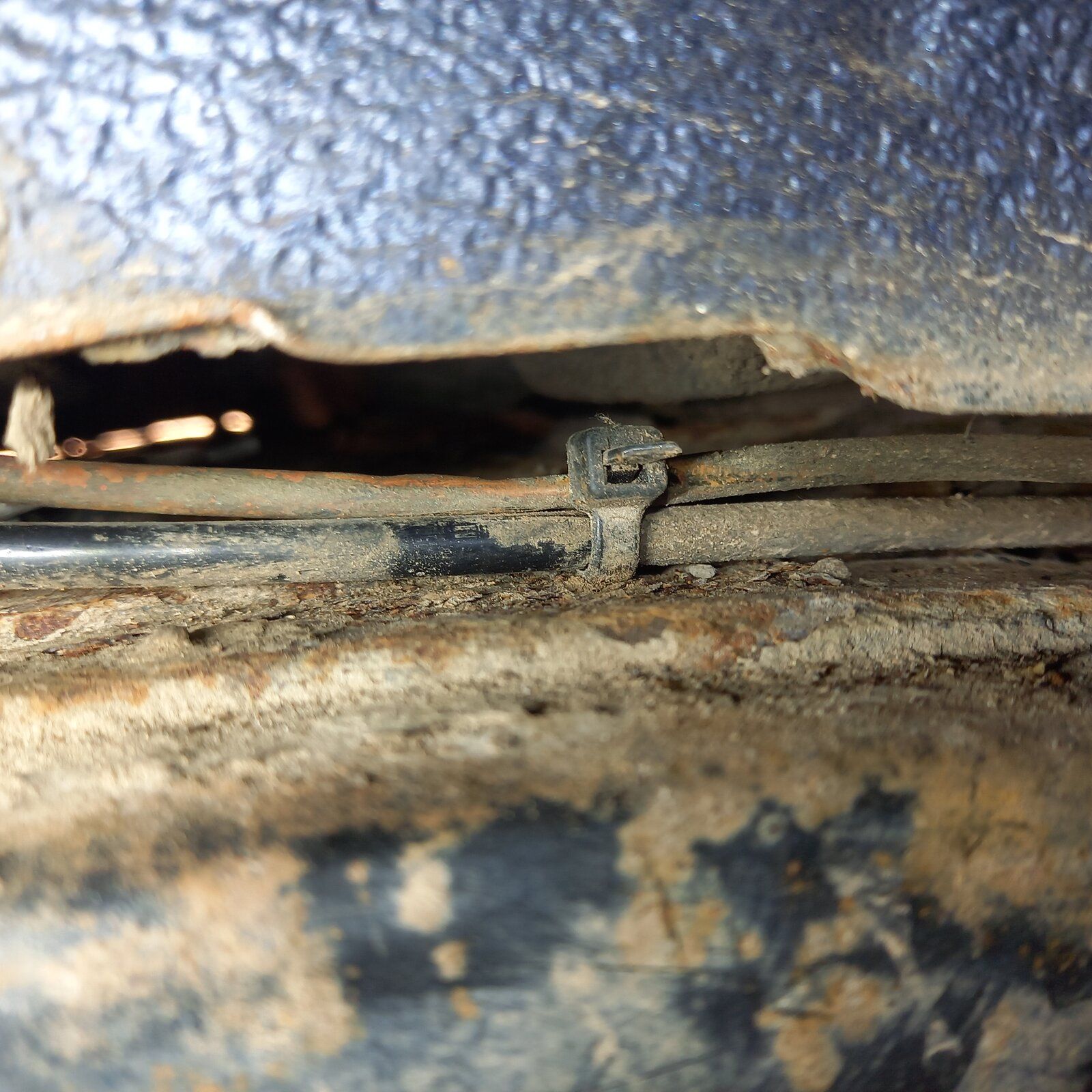

2001 4.0L. Has had a very occasional hard brake pedal. I initially replaced the accumulator, then tried a used abs pump but the problem would still reappear. Took it off the road this spring to get a long list of small jobs done. Rear brake lines had been replaced at some point, but as they looked rather clumsily done ( very polite ). I thought I would re-do them. Very glad I did, as some of the flares were dodgy. Top tip - it’s a lot easier to fabricate and fit new rear brake lines with the abs module and steering linkage removed. With the abs module out, I thought i would check it over and see if I could find anything wrong with it. Disassembly not too hard ( lots of photos taken, and measurements made ). I found one of the piston seals damaged so I replaced all of them, cleaned out the internal filter and also cleaned out the brake fluid reservoir. Re-assembly was fairly easy. Brakes were bled according to rave and then tested. I have driven about 100 miles so far with no hard brake pedal! Then again the p38 may be messing with my mind and it may suddenly appear again ( I hope not ).


Attachments

  • A35F91BB-1B3C-407C-B726-5D6BC8F539BA.jpeg
    151.2 KB · Views: 106
  • EE1A5964-4B7C-4DCF-8BB5-8A835EBD2116.jpeg
    274.3 KB · Views: 97
  • 21036BFB-26C0-4F1B-B76B-BAD48AF70911.jpeg
    778.6 KB · Views: 104
  • B63DDFF8-A423-4EAB-A254-1F6588A8EDD1.jpeg
    348.4 KB · Views: 103
  • 063F5E61-8CD6-404F-A2D1-351B448C8B4F.jpeg
    328.3 KB · Views: 102
2001 4.0L. Has had a very occasional hard brake pedal. I initially replaced the accumulator, then tried a used abs pump but the problem would still reappear. Took it off the road this spring to get a long list of small jobs done. Rear brake lines had been replaced at some point, but as they looked rather clumsily done ( very polite ). I thought I would re-do them. Very glad I did, as some of the flares were dodgy. Top tip - it’s a lot easier to fabricate and fit new rear brake lines with the abs module and steering linkage removed. With the abs module out, I thought i would check it over and see if I could find anything wrong with it. Disassembly not too hard ( lots of photos taken, and measurements made ). I found one of the piston seals damaged so I replaced all of them, cleaned out the internal filter and also cleaned out the brake fluid reservoir. Re-assembly was fairly easy. Brakes were bled according to rave and then tested. I have driven about 100 miles so far with no hard brake pedal! Then again the p38 may be messing with my mind and it may suddenly appear again ( I hope not ).
Where did you get the replacement seal kit from?;):)

I was quite surprised when I took it to bits that it was so complex! I expected a simpler piston type design. I suppose for the operation of the abs and traction control to work correctly you need more control / separation of the flow for each wheel.

Well I won’t be doing that any time soon I’ve you were surprised how complex it was will give that a swerve
