Hi guys,

I have persistent sagging issue with my EAS. Block rebuilt no leaking from the bags themselves but seem to drop on 3/4 corners. I’ve come across a mod were they replace the collets for brass compression fittings. This requires some drilling and tapping of the VB but seems to achieve zero leaks and holds up over time. Is there anyone in the UK that has done this, and better still would be willing to do this for a fee. I would give it ago but I just don’t have the equipment to do it.

Cheers

Josh Wiggill said:
Hi guys,

I have persistent sagging issue with my EAS. Block rebuilt no leaking from the bags themselves but seem to drop on 3/4 corners. I’ve come across a mod were they replace the collets for brass compression fittings. This requires some drilling and tapping of the VB but seems to achieve zero leaks and holds up over time. Is there anyone in the UK that has done this, and better still would be willing to do this for a fee. I would give it ago but I just don’t have the equipment to do it.

Cheers
Click to expand...
I have an as new valve block for sale if you need one, save yourself the hassle and tears. Up to you but drilling into a valve block does not always end well. Any swarf in the ports and you will have major leaks on the solenoids and return valves.

Josh Wiggill said:
Hi guys,

I have persistent sagging issue with my EAS. Block rebuilt no leaking from the bags themselves but seem to drop on 3/4 corners. I’ve come across a mod were they replace the collets for brass compression fittings. This requires some drilling and tapping of the VB but seems to achieve zero leaks and holds up over time. Is there anyone in the UK that has done this, and better still would be willing to do this for a fee. I would give it ago but I just don’t have the equipment to do it.

Cheers
Click to expand...
The standard method should seal the pipes perfectly well if the pipe ends are in good condition. You can replace the O rings.
The fittings are standard as used on air powered equipment and normally give no trouble, are you sure it's the pipes at the valve block leaking?

kurtjohnson10 said:
I have an as new valve block for sale if you need one, save yourself the hassle and tears. Up to you but drilling into a valve block does not always end well. Any swarf in the ports and you will have major leaks on the solenoids and return valves.
Click to expand...
How much are you looking for your valve block. I would like to avoid drilling into it if possible but it seems like a definite way, if all swarf is removed, to stop any further leaks

Josh Wiggill said:
How much are you looking for your valve block. I would like to avoid drilling into it if possible but it seems like a definite way, if all swarf is removed, to stop any further leaks
Click to expand...
You can drill if you want but if there are stem or base leaks on any of the solenoids then drilling it will not stop them. Give it a go you may get lucky.
I am looking for £140 for the v-block that is posted as well.
Kurt

Datatek said:
The standard method should seal the pipes perfectly well if the pipe ends are in good condition. You can replace the O rings.
The fittings are standard as used on air powered equipment and normally give no trouble, are you sure it's the pipes at the valve block leaking?
Click to expand...
I have gone round all bags and sprayed with soapy water no leaks from there, it is definitely from the valve block as I can see bubbles from the soapy water

Josh Wiggill said:
I have gone round all bags and sprayed with soapy water no leaks from there, it is definitely from the valve block as I can see bubbles from the soapy water
Click to expand...
So what is the state of the pipes where they go into the block? Have they been cut back so the raised collar prevents then going fully in?
If the pipe ends are not scored and they have not been cut back, get a set of new O rings.
If the pipes have been cut back you have a problem that compression fittings would not solve, you will have to cut back beyond the raised collar and fit couplers and a new short length of pipe.

Datatek said:
So what is the state of the pipes where they go into the block? Have they been cut back so the raised collar prevents then going fully in?
If the pipe ends are not scored and they have not been cut back, get a set of new O rings.
If the pipes have been cut back you have a problem that compression fittings would not solve, you will have to cut back beyond the raised collar and fit couplers and a new short length of pipe.
Click to expand...
The ends of the pipes were pretty scratched up so I picked up some new pipe and couplers today and have just replaced them and again within 15 minuets she’s down to the bump stops almost on the RR, RL & FR bags. None of them are leaking, there’s no leaks from the collets no and yet she’s still dropping I don’t understand

If there's no leaks on the airbags or the collets on the block, where else on the valve block can you see leaks ? Sounds like the block needs a refurb, or if you cannot do it, get one from Kurt.

Josh Wiggill said:
The ends of the pipes were pretty scratched up so I picked up some new pipe and couplers today and have just replaced them and again within 15 minuets she’s down to the bump stops almost on the RR, RL & FR bags. None of them are leaking, there’s no leaks from the collets no and yet she’s still dropping I don’t understand
Click to expand...
How old are the airbags? It can only go down like that if there are leaks.
To ensure it's not the ECU playing tricks, remove the EAS relay from under the passenger seat and see which corners still go down.

pwood999 said:
If there's no leaks on the airbags or the collets on the block, where else on the valve block can you see leaks ? Sounds like the block needs a refurb, or if you cannot do it, get one from Kurt.
Click to expand...
He claims the valve block has been re-built so there is a good possibility that there are leaking valves, but the OP also said there were leaks at the collets so I have followed that path.

pwood999 said:
If there's no leaks on the airbags or the collets on the block, where else on the valve block can you see leaks ? Sounds like the block needs a refurb, or if you cannot do it, get one from Kurt.
Click to expand...
Hi there,

I’ve returned the block this weekend. O-Rings sourced from 4x4airseals. Annoyingly I order the kit without the diaphragm but I have ordered this and it should be here tomorrow. Surely if that was the issue all 4 bags would deflate instead of just 3?

Datatek said:
How old are the airbags? It can only go down like that if there are leaks.
To ensure it's not the ECU playing tricks, remove the EAS relay from under the passenger seat and see which corners still go down.
Click to expand...
I took the relay out this weekend and it’s the rear left and right and the front right that are deflating. Front right stays up perfectly. Unsure on how old the bags are - they are continental bags if that helps? I’ve sprayed them in off-road and normal height and I can’t see any bubbles coming from them anyway. The collets on the bags aren’t leaking either

Josh Wiggill said:
I took the relay out this weekend and it’s the rear left and right and the front right that are deflating. Front right stays up perfectly. Unsure on how old the bags are - they are continental bags if that helps? I’ve sprayed them in off-road and normal height and I can’t see any bubbles coming from them anyway. The collets on the bags aren’t leaking either
Click to expand...
The bags leak where they fold under, often it's hard to see where the are leaking. In off road height can you see if the rubber is perished at all?

Josh Wiggill said:
Hi there,

I’ve returned the block this weekend. O-Rings sourced from 4x4airseals. Annoyingly I order the kit without the diaphragm but I have ordered this and it should be here tomorrow. Surely if that was the issue all 4 bags would deflate instead of just 3?
Click to expand...
What colour were your replacement O rings for the valve block?

Datatek said:
The bags leak where they fold under, often it's hard to see where the are leaking. In off road height can you see if the rubber is perished at all?
Click to expand...

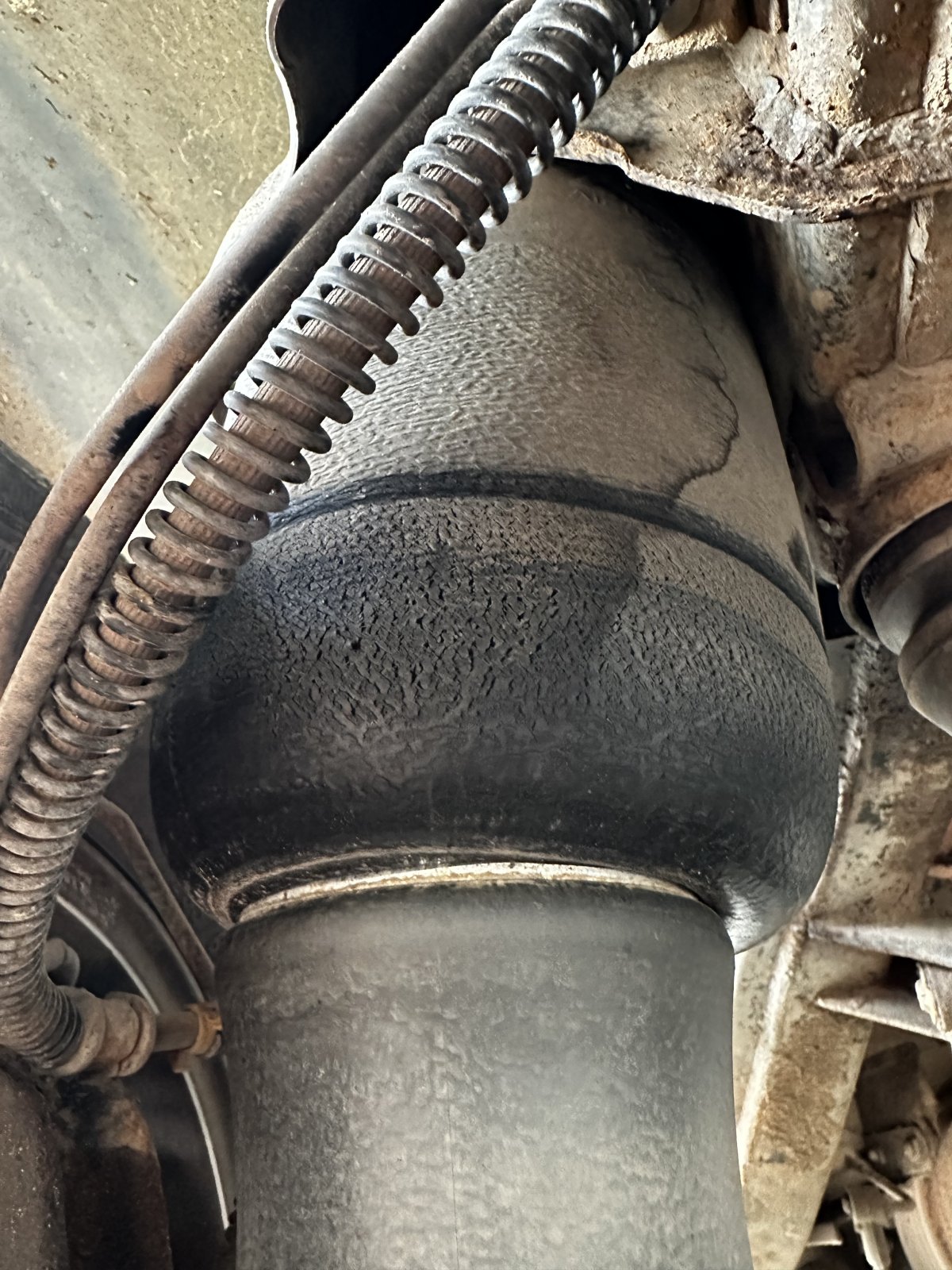

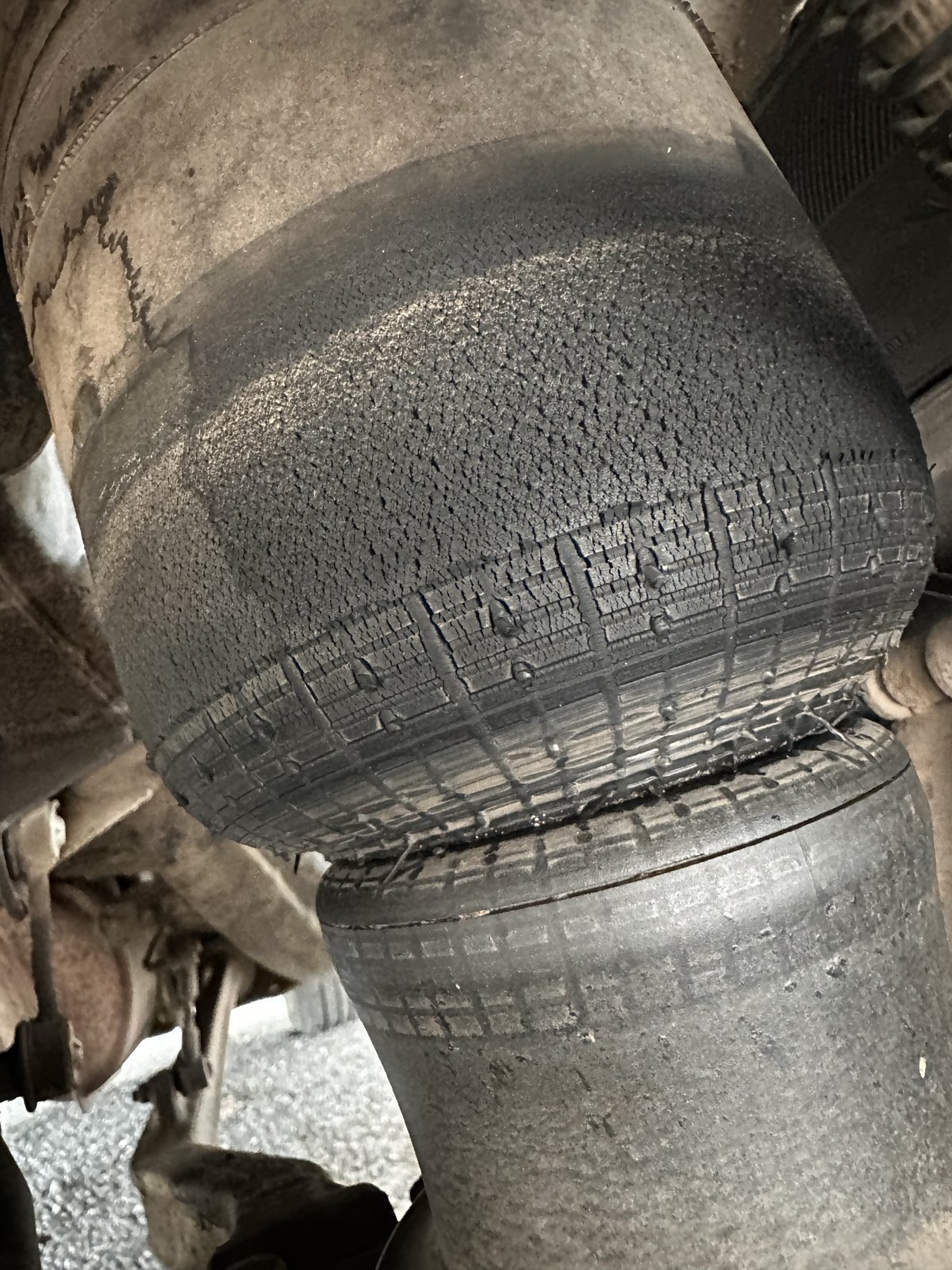

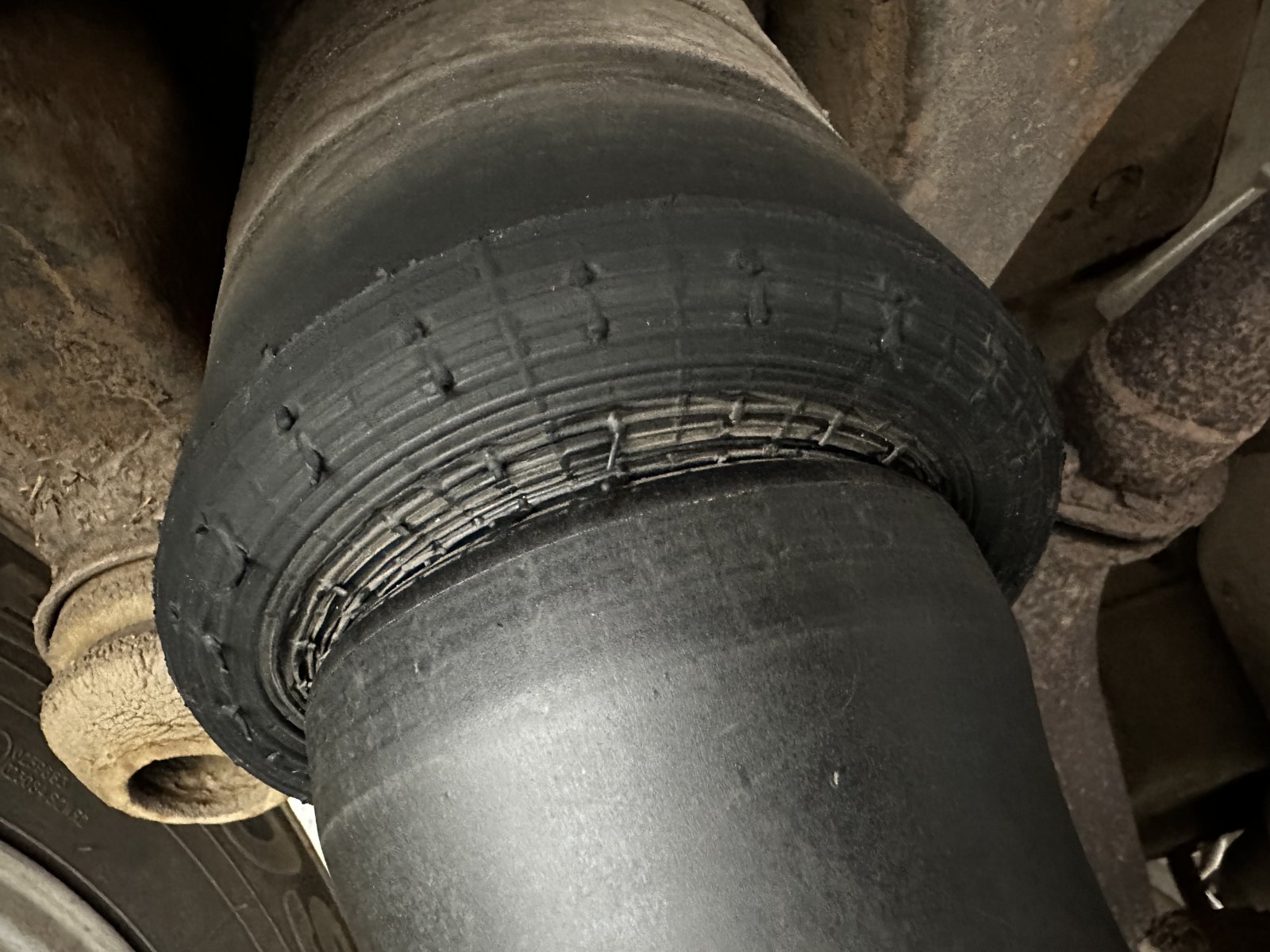

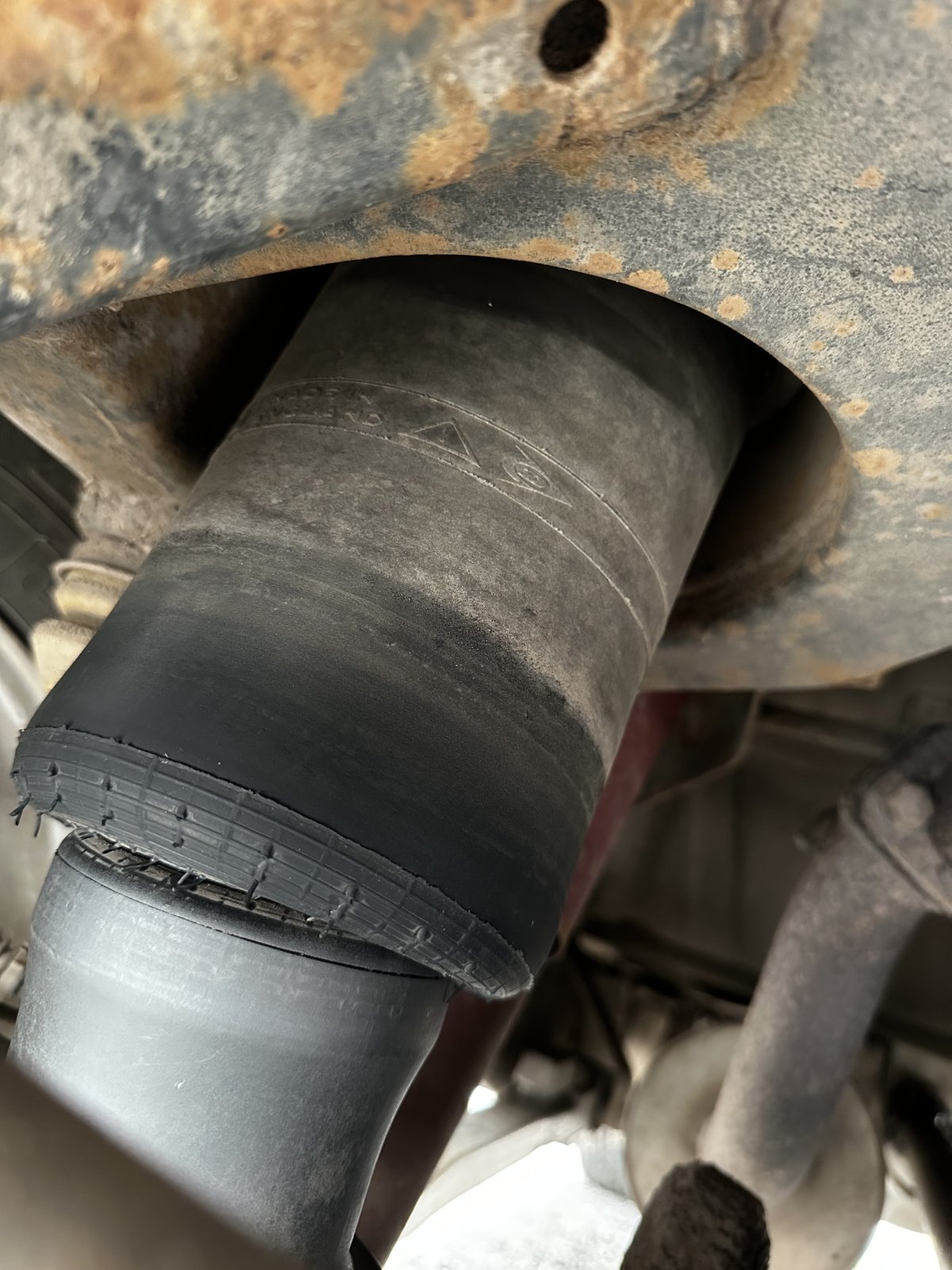

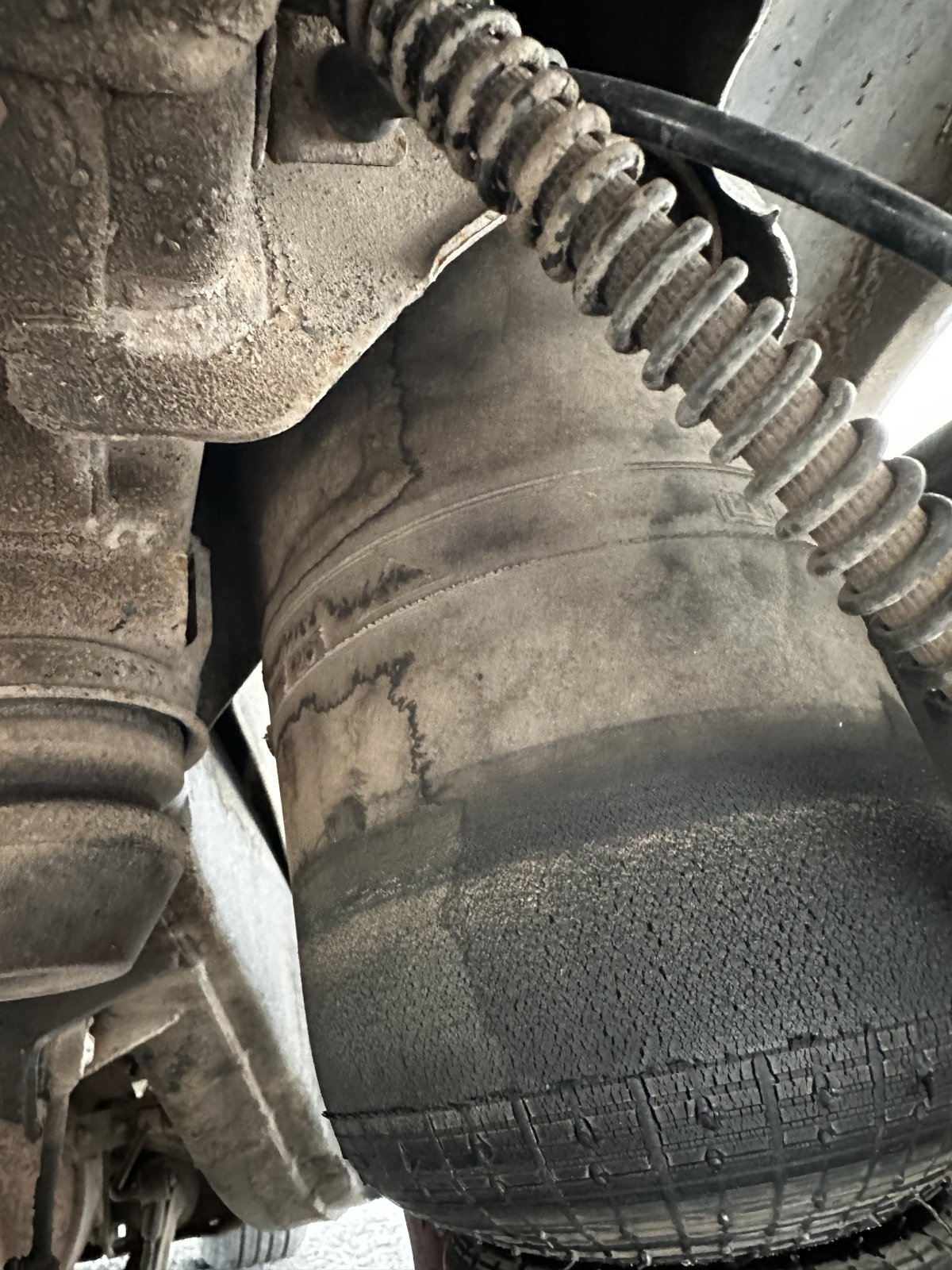

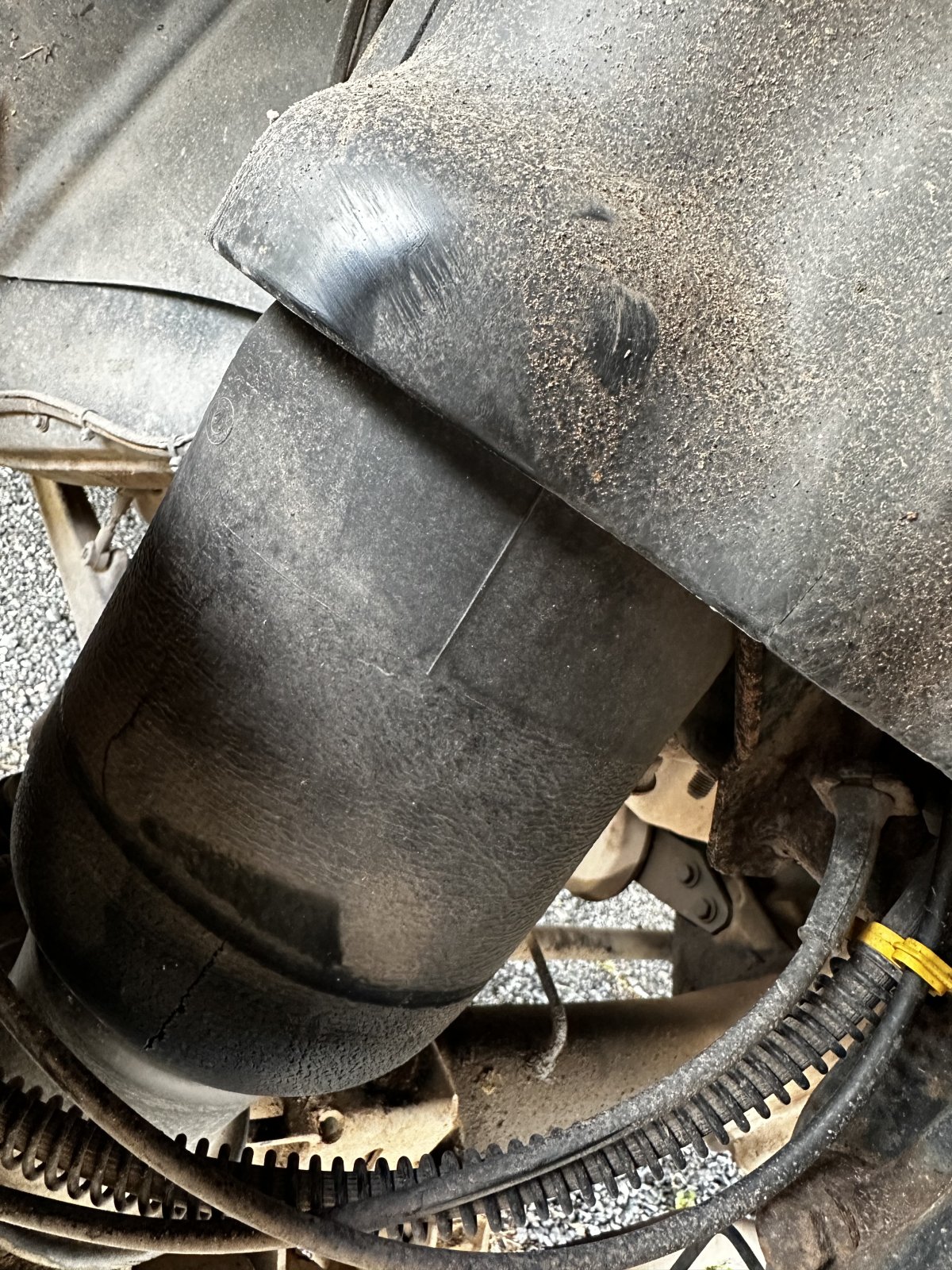

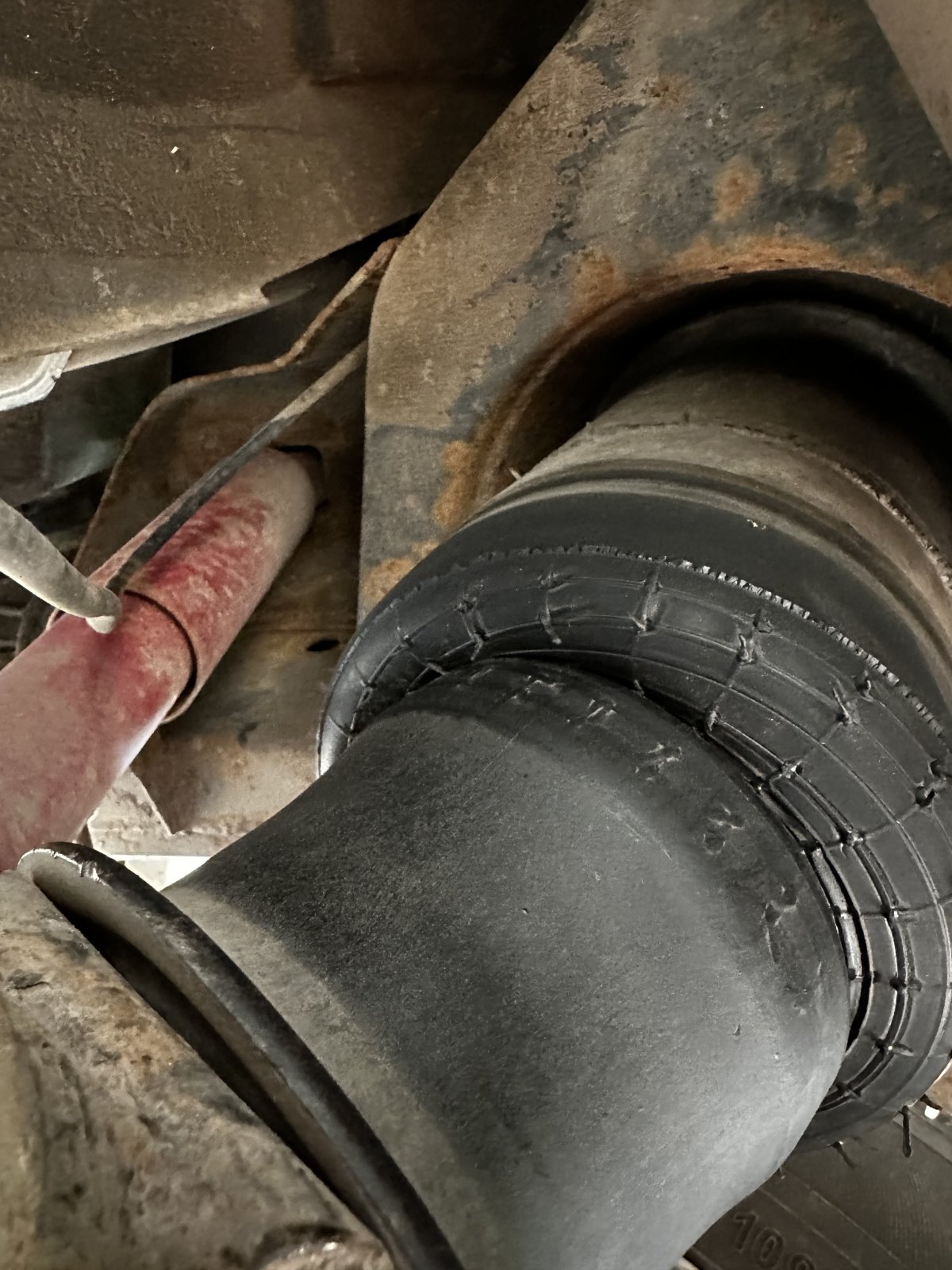

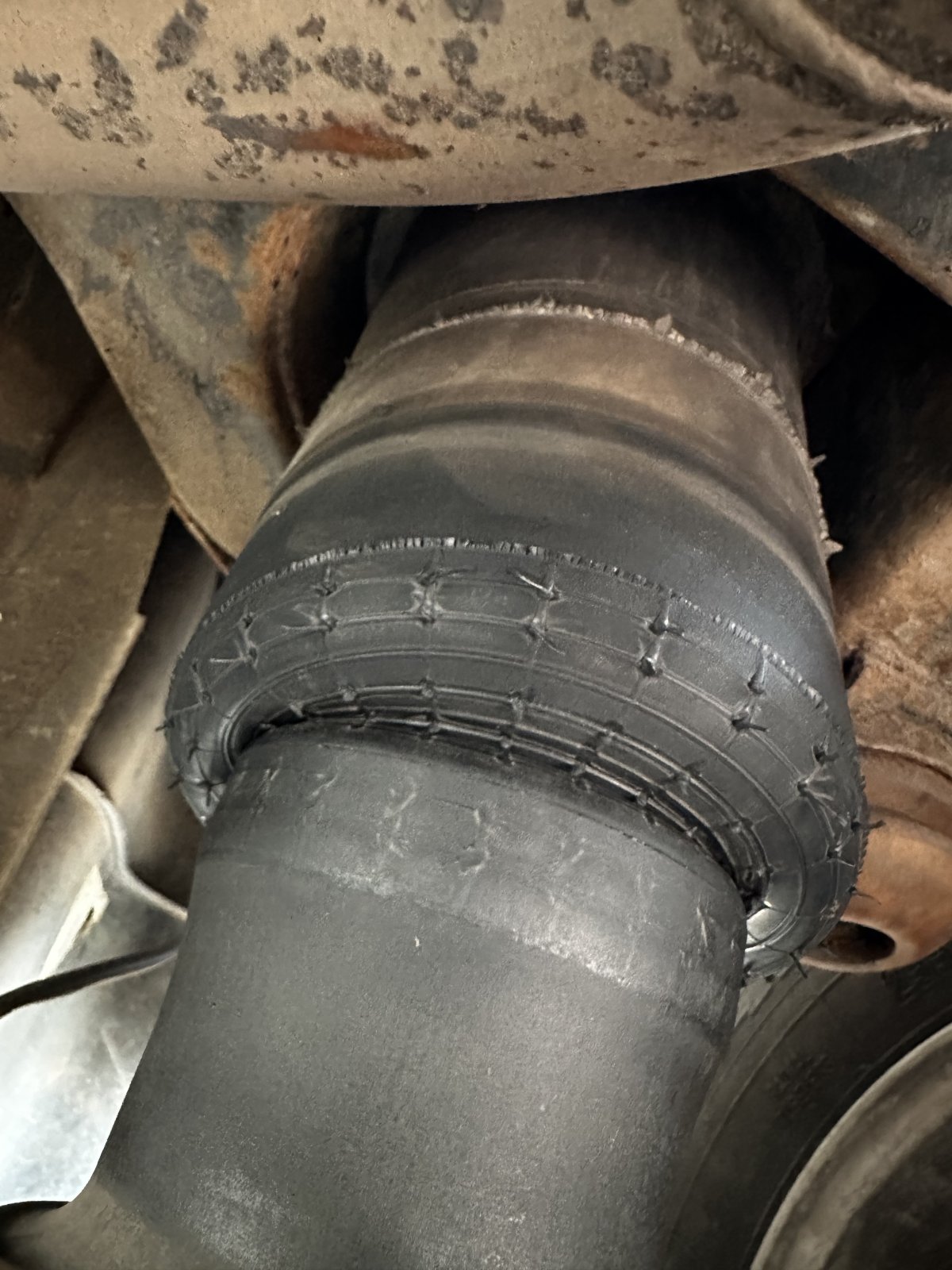

These are the body and basses of the bag…rears in the first 4 pictures then the fronts


Attachments

  • IMG_1272.jpeg
    269.7 KB · Views: 127
  • IMG_1274.jpeg
    281 KB · Views: 141
  • IMG_1275.jpeg
    273.3 KB · Views: 120
  • IMG_1276.jpeg
    531 KB · Views: 111
  • IMG_1272.jpeg
    269.7 KB · Views: 124
  • IMG_1277.jpeg
    381.9 KB · Views: 110
  • IMG_1278.jpeg
    368.6 KB · Views: 116
  • IMG_1279.jpeg
    424.7 KB · Views: 102
  • IMG_1273.jpeg
    294.9 KB · Views: 118
