Cheers for that. Just letting the engine cool down before tinkering.
P38 Diesel Injector Pump & Cam Top Dead Centre?
- Thread starter UnitLandy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 13,960
- Location
- Sud ouest France !
That's an idea
It may be easier to remove the inlet manifold to get to the inner coller nut on the pump and there is the support bracket at the rear lower part of the pump that may need loosening up... It's been a while since I did one
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
Cheers, Mark
I assume you meant bolt not volt?
Yes I'll get all three bolts. Collect them all! Like a kids toy advert.
I assume you meant bolt not volt?
Yes I'll get all three bolts. Collect them all! Like a kids toy advert.
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
Incidentally, Mark. Would you know what special size socket I'd need to remove the injectors? I'm not sure if it could be a lose olive, leak off pipe or copper washer, but their's a trail of diesel down the side of the engine that drips on the ground. I'll double check when getting the engine up to temp with manifold off.
Flossie
Well-Known Member
- Posts
- 11,401
- Location
- Shropshire
Bear with....
Flossie
Well-Known Member
- Posts
- 11,401
- Location
- Shropshire

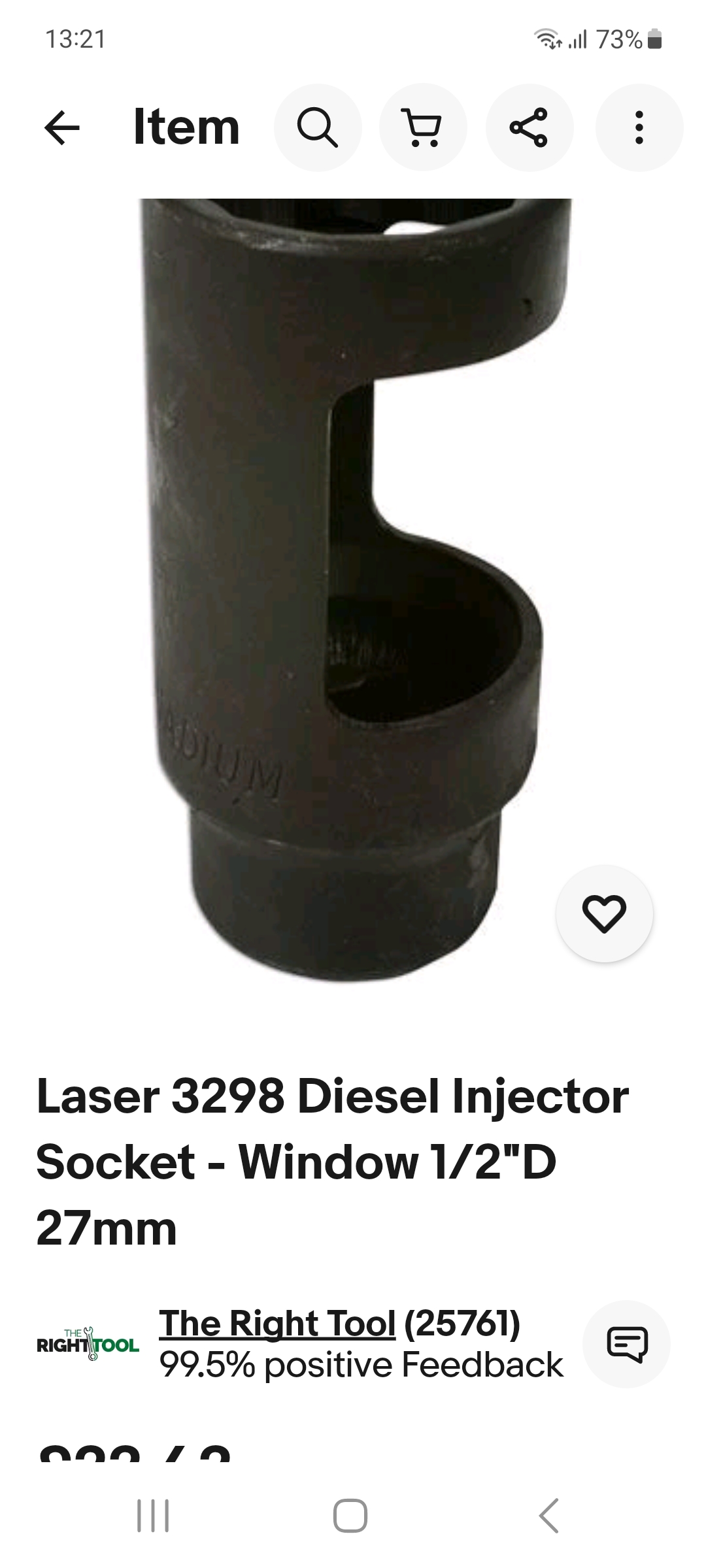

This is the one I got, with the window for number 4 injector.
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
That's brilliant. Thanks, Flossie!
- Posts
- 13,960
- Location
- Sud ouest France !
It's quite likely the rubber leak off pipes are split at the ends. If not and it's the fourth injector, the seal around the wiring on the injector can give up and a new one needed
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
I'm in luck as it's the 5th injector. I replaced the leak off pipes a year or so back but I'll check them again.
Datatek
Well-Known Member
- Posts
- 46,470
- Location
- Near Poitiers SW France
PM me with an Email address and I will send you my steel rule timing info.
Depends what you used for the leak off pipes the first stuff I tried only lasted a year. Got the Gates reinforced stuff on there now.
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
Cheers, Datatek. I've already got a copy from you thanks. I've got to put some masking tape on my steel ruler with 16th of an inch increments as it only has 16ths on the first three inches of the ruler.
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
First measurment above was at 12/16 of an inch & that was 86.57% modulation at 94⁰c

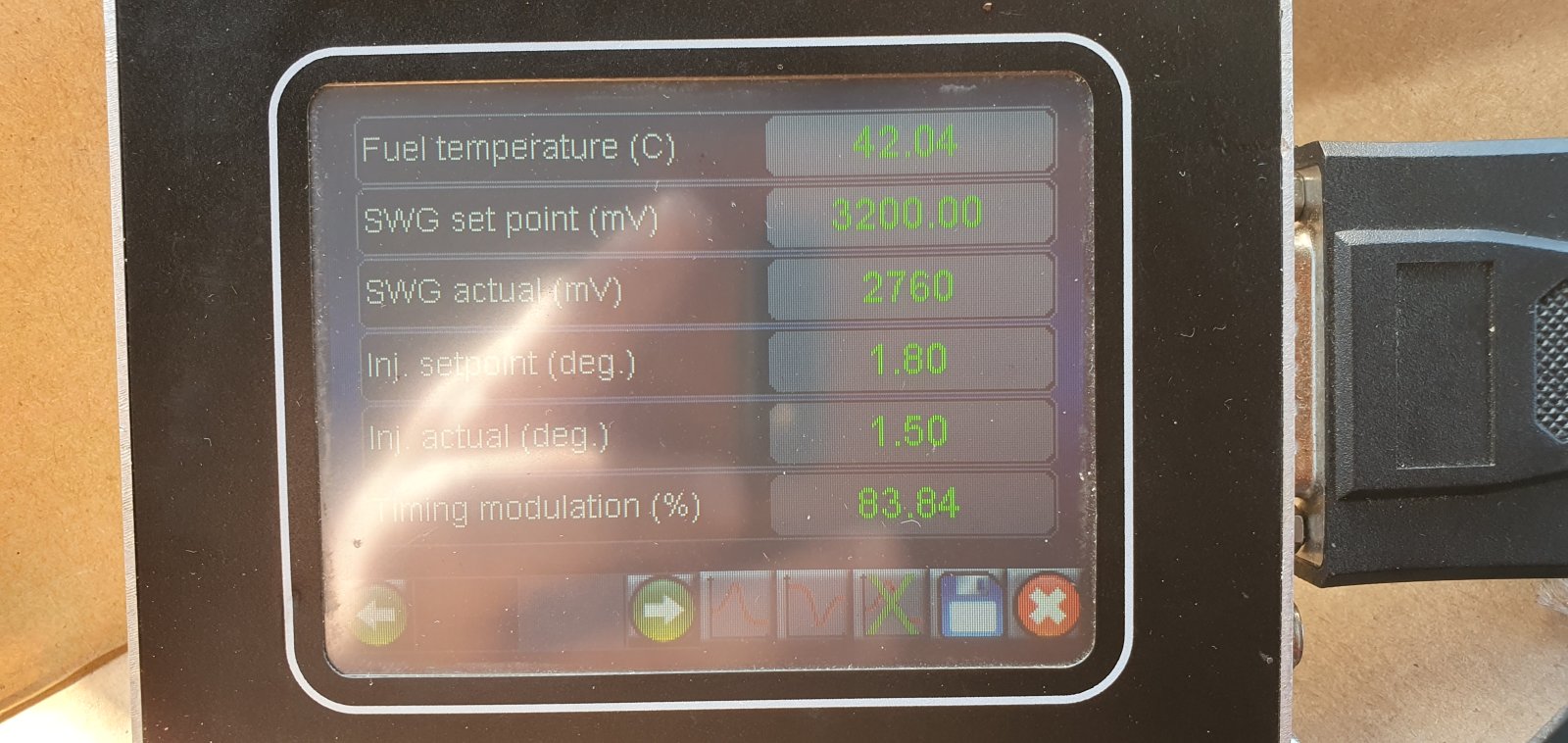

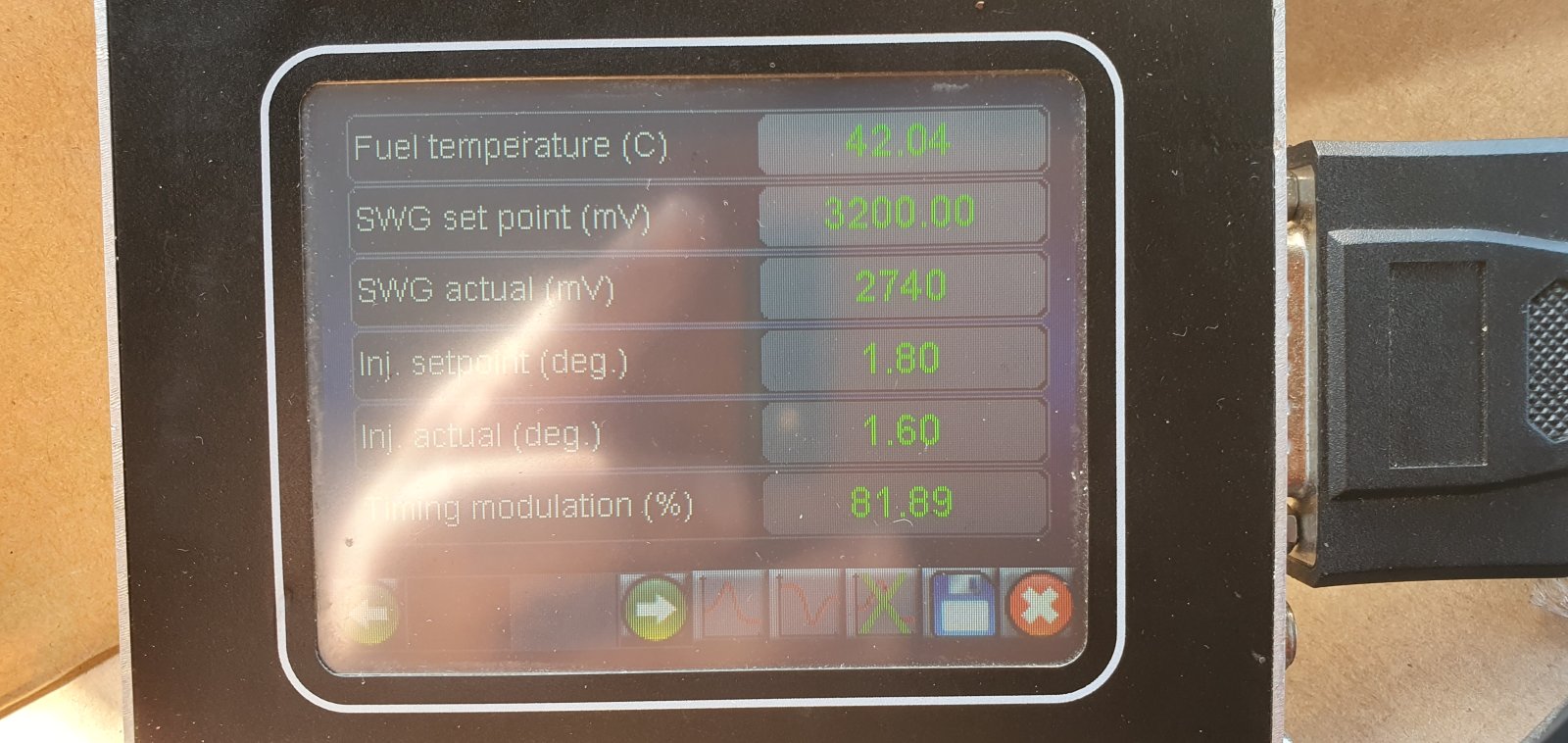

Second I knocked it to 10/16 of an inch and that only drew it down to 83.84% - 81.89% modulation at 93⁰c
I don't know if the pump will even rotate enough to get it down to 50% but I'll see.
Second I knocked it to 10/16 of an inch and that only drew it down to 83.84% - 81.89% modulation at 93⁰c
I don't know if the pump will even rotate enough to get it down to 50% but I'll see.
Datatek
Well-Known Member
- Posts
- 46,470
- Location
- Near Poitiers SW France
You only moved it 2 sixteenths, needs to go a good bit more than that, there should be at least another 4 or 5 sixteenths available if not more.
The change in modulation is not linear, as an example:-
A an example these are the measurements I got on the last one I did.
7" 7/16" Modulation 63% @ 95C
7" 5/16" Modulation 60% @ 95C
7" 4/16" Modulation 50.31% @ 95C
One sixteenth of additional movement produced a big change in modulation.
Engine temperature also affects the modulation, ideally it should be at 95C for 50% modulation, a lower temperature will change the modulation. I think I sent you a chart of modulation against temperature?
Last edited:
- Posts
- 4,789
- Location
- Near Heathrow.
Shame most US owners have petrol P38's. They would love all this sixteenths stuff !!
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
Thought it would be super sensitive,
. I'll move it a good 4-6 16th next time.
. I'll move it a good 4-6 16th next time.
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
Incidentally, you were right, Datatek. It was No 5 injector leak off pipes leaking. I've got some braided hose spare.
RangeRoller dt
Well-Sprung Member
- Posts
- 14,849
- Location
- Trapped inside my head @ LZ asylum
If you tell them it’s half 2, they think it’s 1PM!
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
I waited for it to get up to 95C but the bugger wouldn't. Bit of a wind up today.
Datatek
Well-Known Member
- Posts
- 46,470
- Location
- Near Poitiers SW France
Remove the viscous fan.
UnitLandy
Well-Known Member
- Posts
- 225
- Location
- Whittonstall
Ha ha. I'm reluctant to do so as it's a right pain in the backside to put back on again. As it happens I've got a hairline crack running along the plastic outlet pipe on the radiator. What's the best remedy for this. Araldite?
